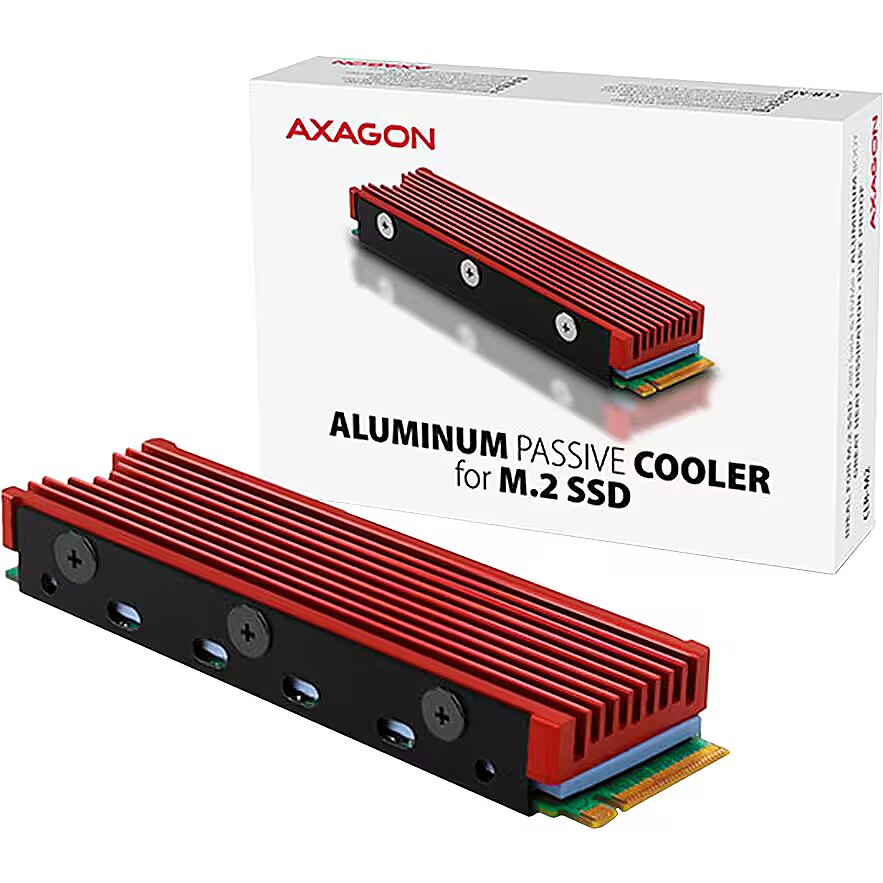

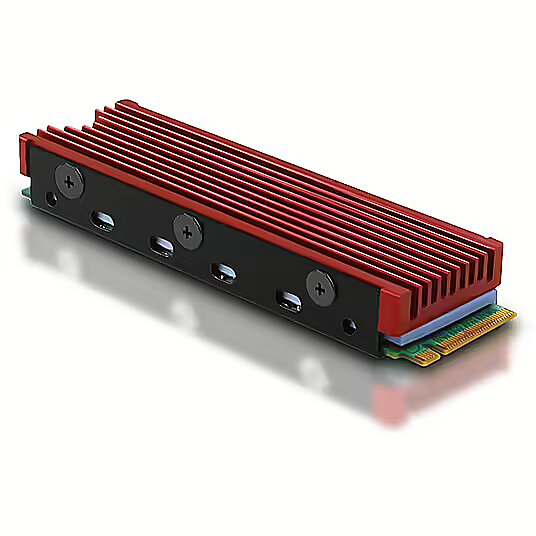

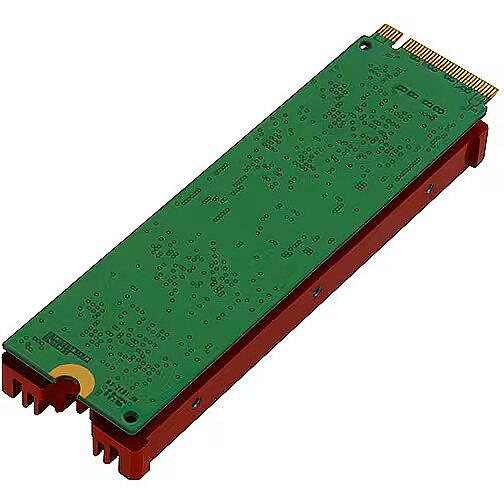

Axagon CLR-M2, M.2 Heatsink

Accessories included - Passive cooler 5 pcs of heat conductive pads Mounting material and screwdriver Packed in a cardboard box
Augstums (mm) - 24 milimetrs
Brand - Axagon
BrandPartCode - CLR-M2
category - Aircooling|Coolers|HDD Coolers
Category - Computer Cooling Systems
Category Code - HDA
code - CLR-M2
Code - CLR-M2
Colour - Red
Compatible with -
Cooling System Type - SSD Cooler
Description - AXAGON CLR-M2 ALU passive cooler for ideal cooling of high performance M.2 SSDs. The versatile passive cooler can be used for M.2 cards, size 22 x 80 mm. Three delivered thermally conductive pads with a different thickness will allow to install the cooler for all one-sided as well as double-sided M.2 SSDs. The 8mm aluminum finned cooler assists in a better discharge of heat generated during the M.2 SSD operation, thus allowing to reduce the drive temperature by as much as 25°C. Thanks to its easy installation and compact dimensions, the cooler can be used not only with M.2 AXAGON adapters, but also with M.2 (NGFF) slots on motherboards, etc. Features:
Support of M.2 drives of any capacity.
Support of both one-sided and double-sided M.2 drives.
Support of M.2 drives, size 22 x 80 mm.
Support of SATA (AHCI) as well as  NVMe (PCI-Express) M.2 drives.
Aluminum cooler body.

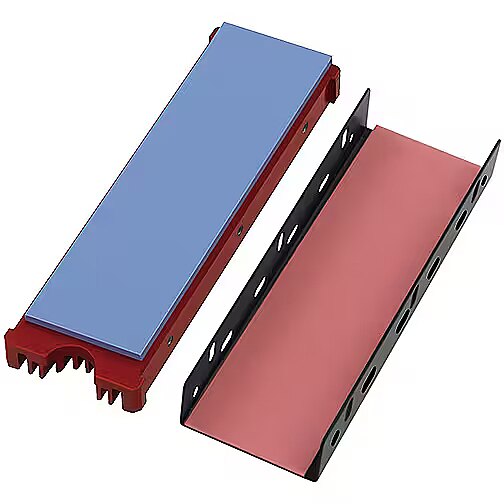

3 thermally conductive pads can be deliberately combined and used for both one-sided and double-sided SSDs with various heights.
Compact dimensions 76 x 24 x 10 mm.
Weight  21 g. Package contains:
1 passive cooler,
3 thermally conductive pads,
mounting material and a screwdriver,
packed in a cardboard box.

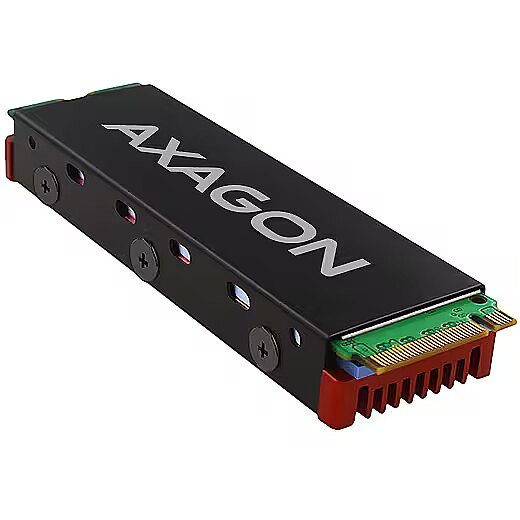

Description - CLR-M2 cooler for M.2 SSD Passive aluminum cooler for all M.2 SSDs, size 2280, high 12 mm. The AXAGON CLR-M2 ALU passive aluminum cooler is ideal for cooling high-performance M.2 SSDs, especially NVMe. The versatile passive cooler can be used for M.2 cards, size 22 x 80 mm. The supplied thermally conductive pads allow the installation of a cooler for all single-sided and double-sided M.2 SSD disks. Thanks to its overall height of 12 mm and passive of 8 mm height, the cooler can also be used in the slot above which the graphics card extends. The aluminum passive ribbing and metal frame optimize heat dissipation from the M.2 SSD, which can reduce the temperature of the drive by up to 25°C. This prolongs the life of the SSD disk and prevents the slowing down of the disk speed, the so-called „Thermal Throttling“. Thanks to its easy installation and compact dimensions, the cooler can be used not only with M.2 AXAGON adapters, but also with M.2 (NGFF) slots on motherboards, etc. Thanks to the metal frame, the cooler dissipates heat from both sides of the M.2 drive for maximum cooling efficiency.
Design - Certification - CE, RoHS
Design - Material - Aluminium
Design - Number of fans - 0 fan(s)
Design - Product colour - Black, Red
Design - Radiator material - Aluminum
Designation - CE+WEEE
dimension depth - 30 mm
dimension height - 130 mm
Dimensions - 76 x 24 x 10 mm
dimension weight - 55 g
dimension width - 100 mm
Dzesēšanas sistēmas funkcijas - Alumīnija Silicone Thermal Pads
Dziļums (mm) - 10 milimetrs
EAN - 8595247903976
ean - 8595247903976
EAN kods - 8595247903976
Form Factor - M.2
Gabali iepakojumā - 1
Garantija Produkti atgriežami - Jā
Garantijas apstiprināšanas kritēriji - Sērijas numurs
Garantijas termiņš (mēnesis) - 36 mēnesis(-i)
GTIN - 8595247903976
guarantee - 24
guarantee_type - normal
Iekļauti aksesuāri - Montāžas komplekts
Iepakojuma svars Brutto (kg) - 0.04 kilograms
Iepakojuma svars Netto (kg) - 0.021 kilograms
Iepakojuma tips - Mazumtirdzniecība
Iepakojums kastē - 144
Included Accessories - - passive cooler
- 3 thermally conductive pads
- mounting material and a screwdriver
Kastes svars Brutto (kg) - 11.5 kilograms
Link - https://www.axagon.eu/en/produkty/clr-m2
LongDesc - AXAGON CLR-M2 ALU passive cooler for ideal cooling of high performance M.2 SSDs.The versatile passive cooler can be used for M.2 cards, size 22 x 80 mm.Three delivered thermally conductive pads with a different thickness will allow to install the cooler for all one-sided as well as double-sided M.2 SSDs.The 8mm aluminium finned cooler assists in a better discharge of heat generated during the M.2 SSD operation, thus allowing to reduce the drive temperature by as much as 25°C.Thanks to its easy installation and compact dimensions, the cooler can be used not only with M.2 AXAGON adapters, but also with M.2 (NGFF) slots on motherboards, etc.Features:• Support of M.2 drives of any capacity.• Support of both one-sided and double-sided M.2 drives.• Support of M.2 drives, size 22 x 80 mm.• Support of SATA (AHCI) as well as NVMe (PCI-Express) M.2 drives.• Aluminium cooler body.• 3 thermally conductive pads can be deliberately combined and used for both one-sided and double-sided SSDs with various heights.• Compact dimensions 76 x 24 x 10 mm.• Weight 21 g.Package contains:• 1 passive cooler,• 3 thermally conductive pads,• mounting material and a screwdriver,• packed in a cardboard box.
LongProductName - CLR-M2 Passive aluminum cooler for all M.2 SSDs, size 2280, high 12 mm.
LongSummaryDescription - Axagon CRL-M2 Passive aluminum cooler for all M.2 SSDs, size 2280, high 12 mm.. Type: Heatsink/Radiator. Width: 76 mm, Depth: 24 mm, Height: 10 mm. Product colour: Black, Red
Mazumtirdzniecības iepakojuma neto svars Plastmasa - 0.021 kilograms
Mazumtirdzniecības iepakojums Neto svars Kartona kārba - 0.021 kilograms
Model - CLR-M2
name - AXAGON CLR-M2 passiver M.2-SSD-Kühlkörper - 2280, Aluminium, rot
Name - AXAGON | Passive aluminum cooler for all M.2 SSDs, size 2280, high 12 mm | CLR-M2
name - CLR-M2 passive - M.2 SSD, 80mm SSD, ALU body, silicone thermal pads
Nominālais svars - 0.021 kilograms
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 170 mm
Package features > Gross height (mm) - 30 mm
Package features > Gross width (mm) - 131 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 2586 pc(s)
Package features > Paper/Pasteboard - 29 g
Package features > Plastic (No PET) - 7 g
Package features > Tare weight (kg) - 0.036 kg
Package features > Volume (m3) - 0.0006681 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Installation instruction - Yes
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Packaging content - Thermal pad included - Yes
Parameter Level ELKO Internal Logistics Data - 3
Performance - Compatible products - M.2 SSD 2280
Performance - Fan diameter - N
Performance - Noise level (low speed) - 0 dB
Performance - Quantity per pack - 1 pc(s)
Performance - Suitable location - M.2 NVMe SSD, Solid-state drive
Performance - Supported processor sockets - Not supported
Performance - Type - Heatsink/Radiator
Platums (mm) - 76 milimetrs
Power supply -
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=190424114348726245&THEME=asbis&LANG=lv
ProductCategory - Kūleri
ProductCode - CLR-M2
ProductDescription - AXAGON CLR-M2 passive - M.2 SSD, 80mm SSD, ALU body, silicone thermal pads
ProductName - CRL-M2 Passive aluminum cooler for all M.2 SSDs, size 2280, high 12 mm.
Product Net Weight ELKO Logistics Data - 0.021 kg
ProductType - Cooling System
Product Type - Cooling System
Shipping Box Depth ELKO Internal Logistics Data - 3 cm
Shipping Box Height ELKO Internal Logistics Data - 13 cm
Shipping Box Weight ELKO Internal Logistics Data - 0.05 kg
Shipping Box Width ELKO Internal Logistics Data - 10 cm
ShortSummaryDescription - Axagon CRL-M2 Passive aluminum cooler for all M.2 SSDs, size 2280, high 12 mm., Heatsink/Radiator, Black, Red
Technical details - Compliance certificates - RoHS, CE
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 0.077 kg
Technical details > Net weight - 0.041 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - Passive aluminum cooler for all M.2 SSDs, size 2280, high 12 mm
Technical details > Producer product name - CLR-M2
Title - Axagon CRL-M2 Passive aluminum cooler for all M.2 SSDs, size 2280, high 12 mm.
Unit Box Height - 0.13
Unit Box Length - 0.03
Unit Box Width - 0.1
Unit Calculated Volume ELKO Internal Logistics Data - 0.00039 cubm
Units per Shipping Box ELKO Logistics Data - 1
URL - https://www.axagon.eu/en/produkty/clr-m2
Vendor - AXAGON
Vendor Homepage - www.axagon.eu/en/produkty/clr-m2?ami=204
vendpn - CLR-M2
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 3 years
Weight - 21 g
Weight & dimensions - Depth - 24 mm
Weight & dimensions - Height - 10 mm
Weight & dimensions - Package depth - 130 mm
Weight & dimensions - Package height - 27 mm
Weight & dimensions - Package weight - 75 g
Weight & dimensions - Package width - 90 mm
Weight & dimensions - Weight - 21 g
Weight & dimensions - Width - 76 mm
