Deepcool CK-11509

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1209353 Product code: DP-ICAP-11509
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • Cooler class: Basic
  • Cooling capacity (TDP), W: Not specified
  • Height, mm: 56
  • LED lighting color: None
  • Number of fans: 1
  • Producer: Deepcool
Similar Products
This product Deepcool CK-11509
Deepcool Theta 31 PWM
Xilence I200
Deepcool GAMMA ARCHER
Deepcool AG620 Black
Show similar specs. Hide similar specs.
8.33 €
13.73 €
11.39 €
11.44 €
47.95 €
Compatibility LGA1150 LGA1151 LGA1155 LGA1200 LGA1150 LGA1151 LGA1155 LGA1200 LGA1150 LGA1151 LGA1155 LGA1156 LGA1200 AM4 AM5 LGA1150 LGA1151 LGA1155 LGA1200 LGA775 AM4 AM5 LGA1150 LGA1151 LGA1155 LGA1200 LGA1700 LGA2011 LGA2011-3 LGA2066
Cooler class Basic Basic Basic Basic Pro
Cooling capacity (TDP), W Not specified Not specified 65 95 260
Fan colour Black Blue Black Blue Black
Fan size, mm 92 100 92 120 120
Fan speed (MAX), rpm 2200 2400 2200 1600 1850
Fan speed (MIN), rpm Not specified 900 Not specified Not specified 300
Height, mm 56 60 70 68 157
LED lighting color None None None None None
Noise level (MAX), dB(A) 26.8 32.5 25.0 26.1 29.4
Number of fans 1 1 1 1 2
Output Interface 4-pin (PWM) 4-pin (PWM) 3-pin (DC) 3-pin (DC) 4-pin (PWM)
Producer Deepcool Deepcool Xilence Deepcool Deepcool
Radiator colour Black Silver Silver Silver Silver
Description
The cooler shall be 56mm high. When choosing this cooler, be sure to check whether its height will allow you to fit it into the enclosure of your choice!
All parameters
Compatibility : LGA1150, LGA1151, LGA1155, LGA1200
Cooler class : Basic
Cooling capacity (TDP), W : Not specified
Fan colour : Black
Fan size, mm : 92
Fan speed (MAX), rpm : 2200
Fan speed (MIN), rpm : Not specified
Height, mm : 56
LED lighting color : None
Noise level (MAX), dB(A) : 26.8
Number of fans : 1
Output Interface : 4-pin (PWM)
Producer : Deepcool
Radiator colour : Black
More detailed specification
Category - Datortehnika :: Datoru komponentes :: CPU Dzesētāji
Code - DP-ICAP-11509
Desc - Dzesētāja tips: CPU, Ligzda (socket): LGA 775/1150/1151/1155/1156, Ventilatora diametrs: 92 mm, Ventilatora ātrums (apgr.min.): 2200 apgr.min., Garantija: 2 gadi
Design - Number of fans - 1 fan(s)
Design - Product colour - Aluminium
Design - Product colour - Black
dimensionalWeight - 154
EAN - 6933412725626

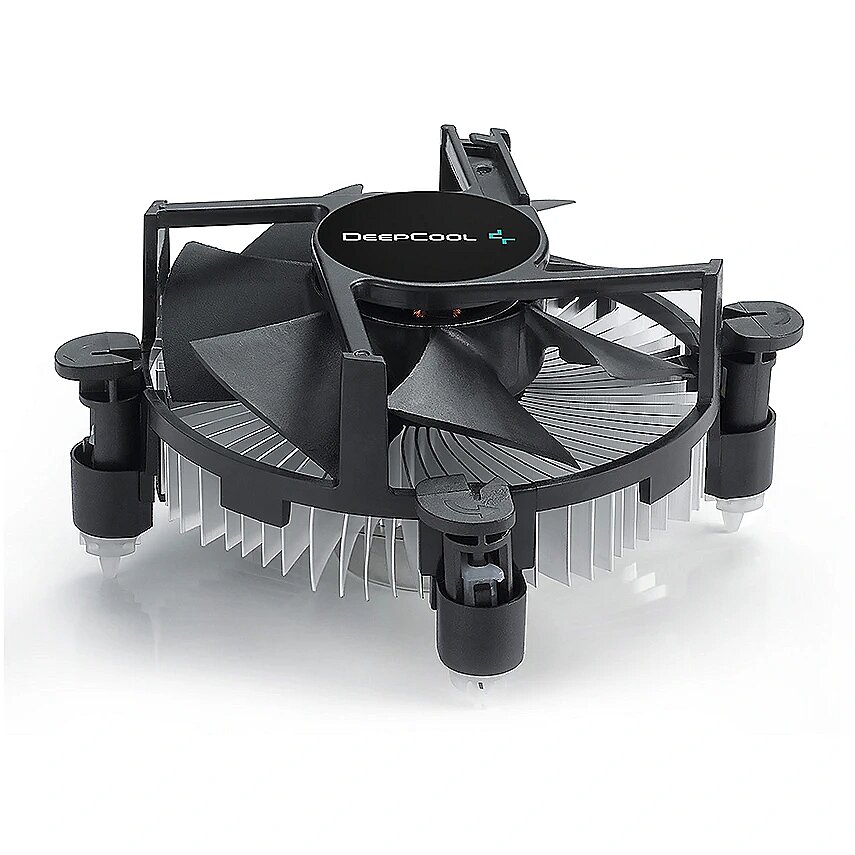

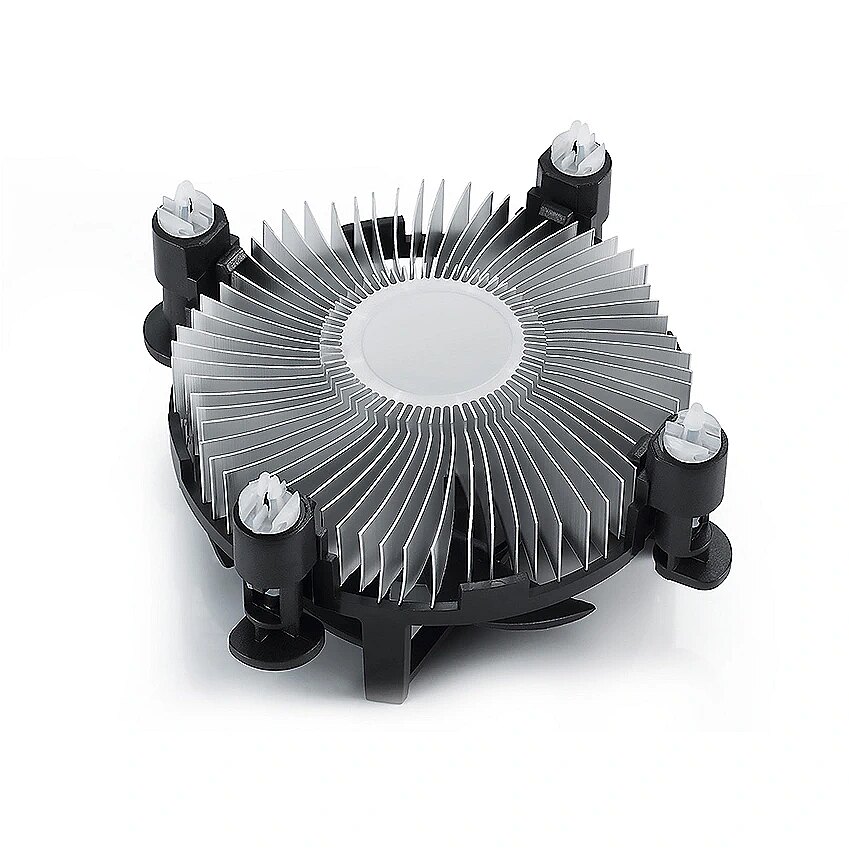

LargeDescHTML - 92x25mm upside-down fan offers optimal airflow at low noise level.Radial-type aluminum heatsink offers high cooling performance.Simple and easy installation with push pins.
Name - DeepCool CK-11509
Packaging content - Package type - Box
Performance - Compatible processor series - Intel Pentium G
Performance - Compatible processor series - Intel® Celeron®
Performance - Compatible processor series - Intel® Celeron® G
Performance - Compatible processor series - Intel® Pentium®
Performance - Fan bearing technology - Hydro bearing
Performance - Fan diameter - 9.2 cm
Performance - Maximum airflow - 38.62 cfm
Performance - Noise level (high speed) - 26.8 dB
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 2200 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1151 (Socket H4)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1200 (Socket H5)
Performance - Type - Cooler
Power - Power consumption (typical) - 2.16 W
Power - Rated current - 0.18 A
Power - Rated voltage - 12 V
Power - Starting voltage - 7 V
Power - Voltage - 10.8 - 13.2 V
producerCode - DP-ICAP-11509
productName - DeepCool CK-11509 Processor Cooler 9.2 cm Aluminium, Black 1 pc(s)
productSize - Normal
Safety warning - Warnings - Do not touch the fan during operation.
Safety warning - Warnings - Ensure that the unit is switched off before starting to assemble or dismantle the cooling unit.
Safety warning - Warnings - Take appropriate precautions during installation to avoid damage to computer components.
sizeX - 105
sizeY - 105
sizeZ - 70
warrantyLength - 36
warrantyType - G
weight - 180
Weight & dimensions - Depth - 94.5 mm
Weight & dimensions - Fan dimensions (W x D x H) - 92 x 92 x 25 mm
Weight & dimensions - Height - 56 mm
Weight & dimensions - Weight - 147 g
Weight & dimensions - Width - 94.5 mm
