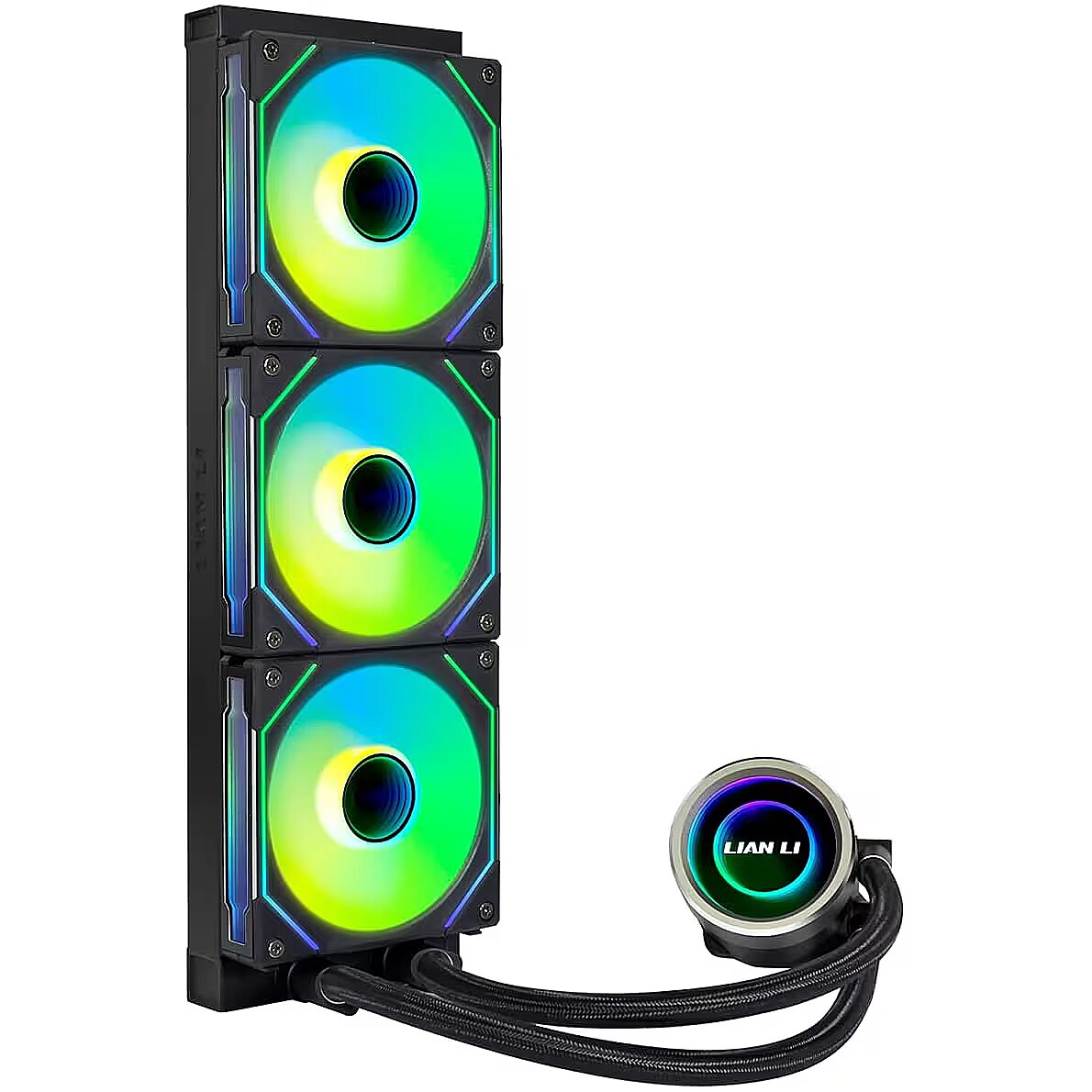

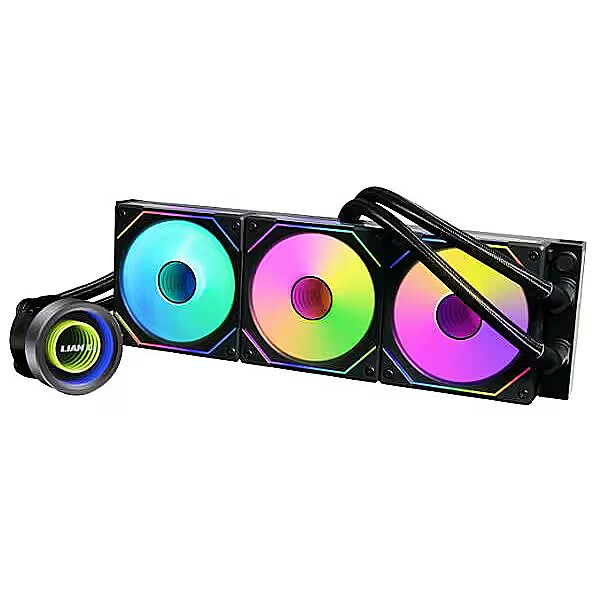

Lian Li GALAHAD II 360 Trinity SL-INF, Black

Bearing type Performance - Fluid Dynamic Bearing (FDB)
Cables included Packaging content - 4-pin, SATA
category - Liquid Cooling|Sets & Bundles|AIO Liquid Coolers|360 mm AiOs
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category Code - COC
code - GA2T36INB
CPU bracket(s) Packaging content - Yes
Description - With UNI FAN SL-INF
Easily match the AIO fans to your case fans with this visually stunning option IMPROVED DESIGNS, IMPROVED PERFORMANCE
Compared to the Galahad AIO, the Galahad ll Trinity series shows significant improvement in cooling performance thanks to the many design changes that were introduced. CHOOSE PREFERABLE LOOK

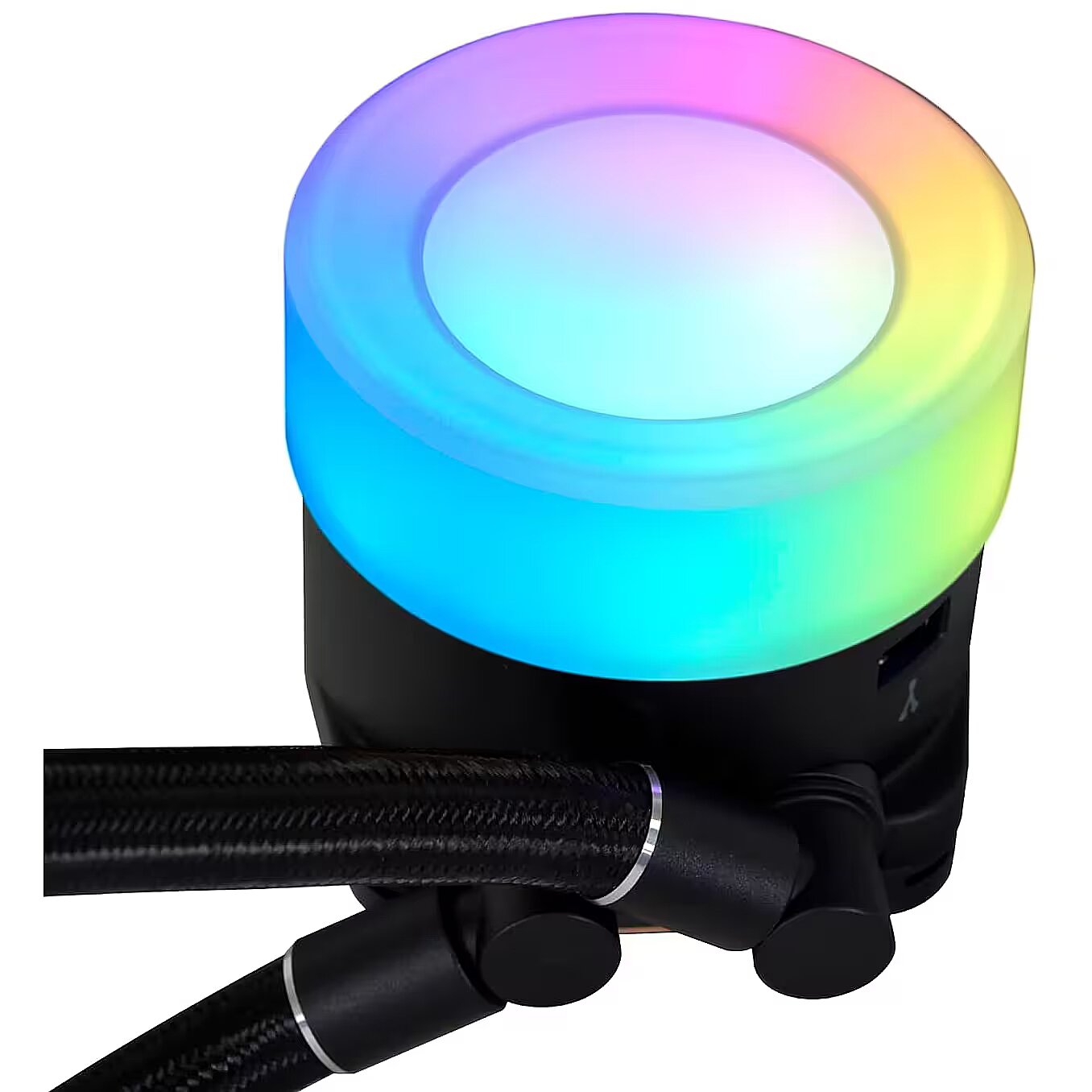

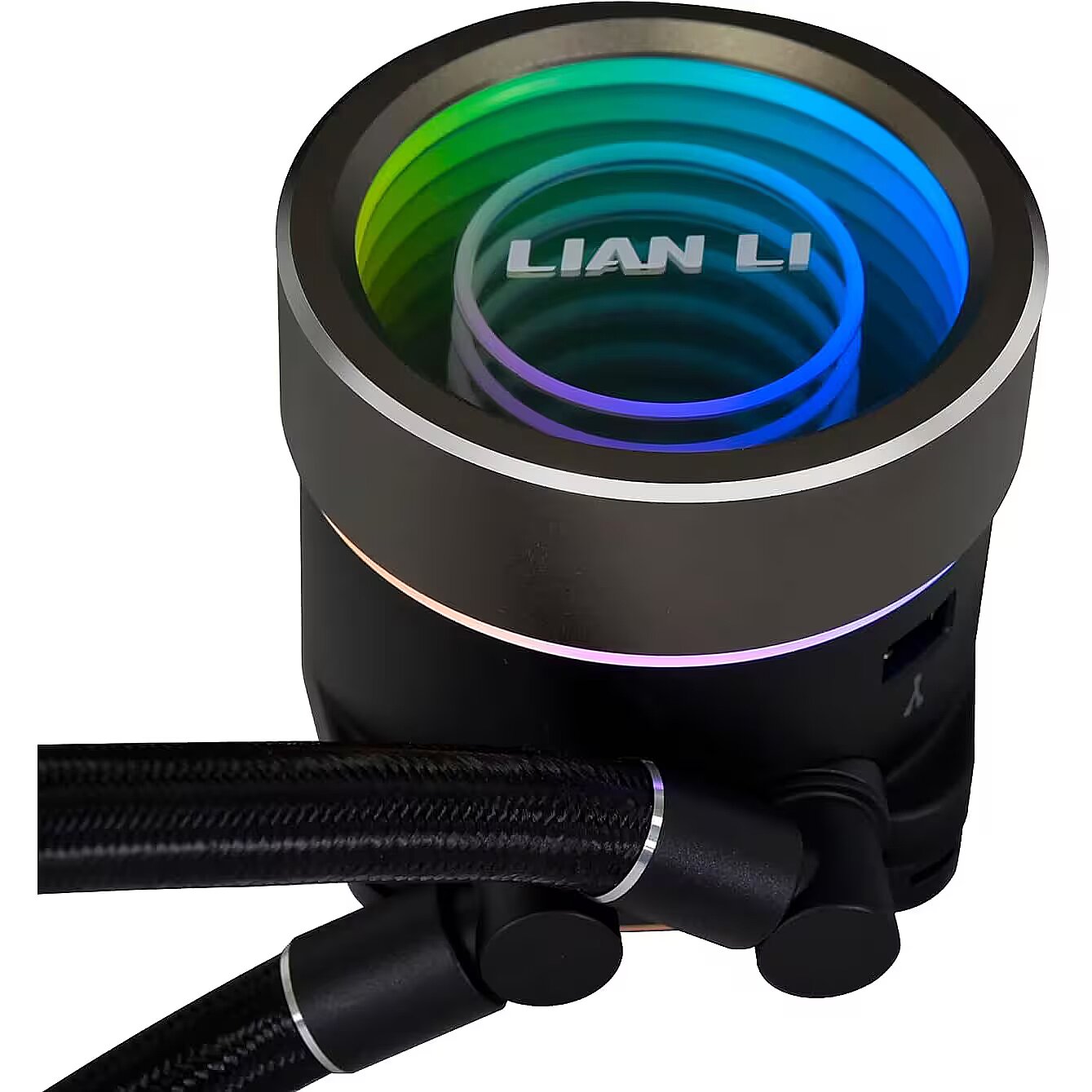

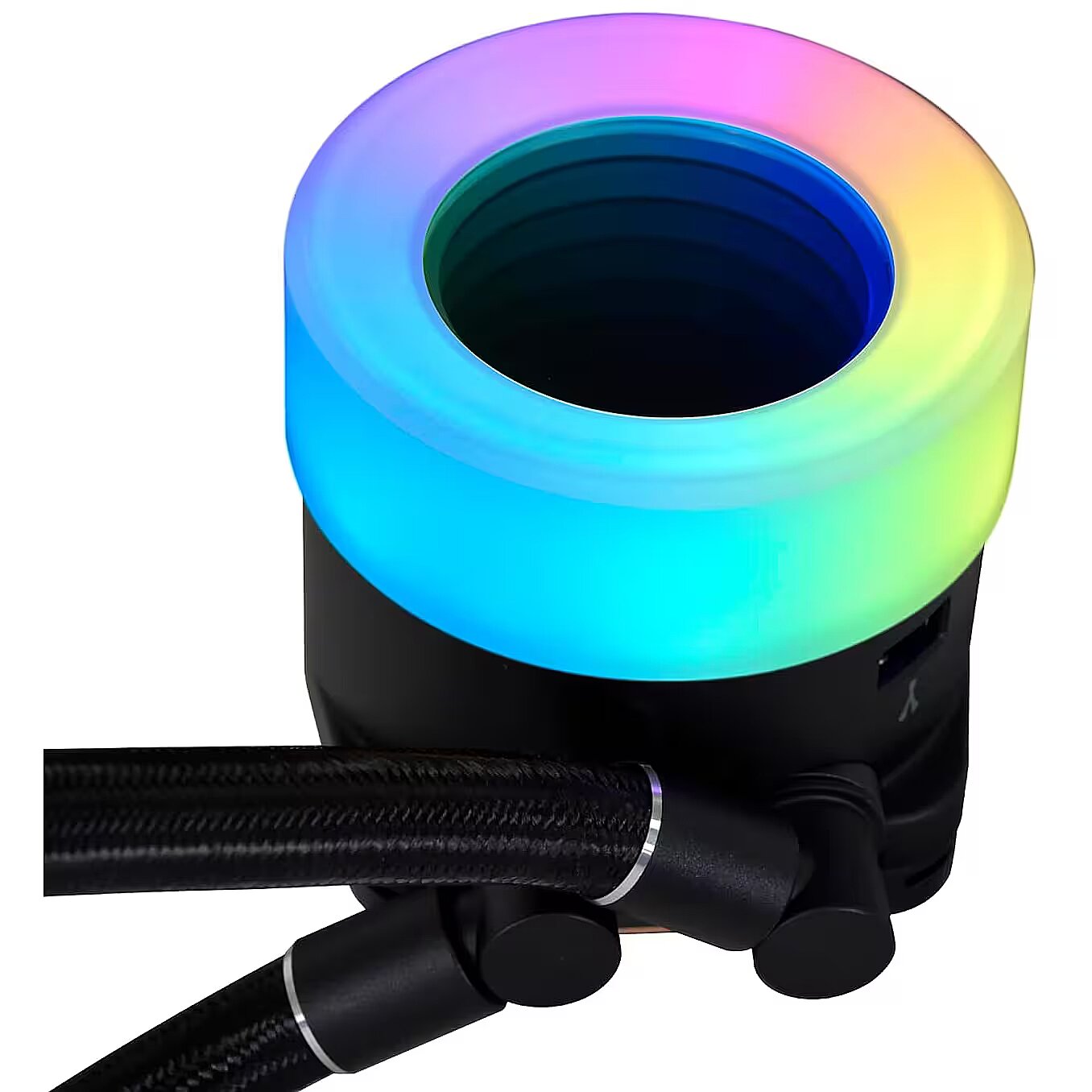

The Galahad II Trinity series’ pump cap has three interchangeable designs, each with a unique look and two rings of colors that can be individually controlled with different lighting effects. HIGH DENSITY ALUMINUM RADIATOR
This 27mm thick radiator features single-wave radiator fins with 20 FPI (fins per inch), which is less airflow restrictive and can result in greater thermal performance. DAISY-CHAINABLE ARGB FAN
The ARGB PWM fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fan. The 120mm fan is 25mm thick and is equipped with fluid dynamic bearings for stable and quiet operations while effectively providing airflow to the radiator. MOUNT IN ANY WAY
This innovative 45° tubing connector gives the tubes the freedom of 360° rotation, allowing the Galahad ll Trinity series to be installed in many different ways. INSTALATION MADE EASY, FOR YOU
The Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. The backplates have a one-piece design with fixed struts to make installation easier.
It also comes with a thermal paste control film and spreader to help ensure the right amount of thermal paste is applied for effective heat dissipation. SEAMLESS SOFTWARE​
Control and preview with precision the lighting effect and real-time motor speed of the Galahad II Trinity Pump and fans with the L-Connect 3. SIMPLE CONNECTION
The controller is built into the pump and the fan can be connected to the pump to control via L-Connect 3.3 interchangeable pump looks that can be customized with L-Connect 3Factory installed with ARGB daisy-chainable radiator fans or UNI FAN SL-INFPump motor speed goes up to 3200RPMIncludes a newly designed copper plate and creates straightened Liquid coolant pathway45-degree tubing connector with tubes’ inner diameter increased to 7mm
Design - Number of fans - 3 fan(s)
Design - Number of fins - 1
Design - Product colour - Black
Design - Radiator material - Aluminum
dimensionalWeight - 2850
ean - 4718466013545
Eans - 4718466013545
Fan diameter Performance - 12 cm
Fan dimensions (W x D x H) Weight & dimensions - 120 x 120 x 25 mm
Fan noise level (max) Performance - 29 dB
Fan speed (min) Performance - 2100 RPM
Maximum airflow Performance - 61.3 cfm
Maximum air pressure Performance - 2.66 mmH2O
Model - G89.GA2T36INB.00
Model name - GA II Trinity SL-INF 360, GA2T36INB BLACK
Mounting kit Packaging content - Yes
name - Lian Li GALAHAD II 360 Trinity SL-INF AiO Water Cooler - black
Name - Lian Li GALAHAD II 360 Trinity SL-INF AiO Water Cooler - black
Number of fans Design - 3 fan(s)
Number of fins Design - 1
Packaging content - Cables included - 4-pin, SATA
Packaging content - CPU bracket(s) - Yes
Packaging content - Mounting kit - Yes
Packaging content - RGB controller included - Yes
Packaging content - Screws included - Yes
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Fan diameter - 12 cm
Performance - Fan noise level (max) - 29 dB
Performance - Fan speed (min) - 2100 RPM
Performance - Maximum airflow - 61.3 cfm
Performance - Maximum air pressure - 2.66 mmH2O
Performance - Pump motor speed - 3200 RPM
Performance - Pump noise level - 16.59 dB
Performance - Quantity per pack - 1 pc(s)
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket AM5
Performance - Type - All-in-one liquid cooler
Producer - Lian-Li
producerCode - 9266823
ProducerCode - GA2T36INB
Product colour Design - Black
productName - Lian Li GALAHAD II 360 Trinity SL-INF AiO Water Cooler - black
productSize - Normal
Pump depth Weight & dimensions - 7.4 cm
Pump height Weight & dimensions - 6.9 cm
Pump motor speed Performance - 3200 RPM
Pump noise level Performance - 16.59 dB
Pump width Weight & dimensions - 7.4 cm
Quantity per pack Performance - 1 pc(s)
Radiator depth Weight & dimensions - 11.9 cm
Radiator height Weight & dimensions - 2.7 cm
Radiator material Design - Aluminum
Radiator width Weight & dimensions - 39.8 cm
RGB controller included Packaging content - Yes
Safety warning - Warnings - Avoid contact with eyes and skin.
Safety warning - Warnings - Dispose of used water cooling accessories in accordance with local hazardous waste regulations.
Safety warning - Warnings - Keep out of the reach of children.
Screws included Packaging content - Yes
ShortDescription -
sizeX - 452
sizeY - 216
sizeZ - 146
Suitable location Performance - Computer case
Summary - Lian Li GA II TRINITY. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Maximum air pressure: 2.66 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: Black
Supported processor sockets Performance - Socket AM4, Socket AM5
Tube length Weight & dimensions - 38.5 cm
Type Performance - All-in-one liquid cooler
Unit Box Height - 0.22
Unit Box Length - 0.45
Unit Box Width - 0.14
Unit Calculated Volume - 0.01604 cubm
Unit Calculated Weight - 3.08 kg
Units per Pallet - 0
Units per Shipping Box - 4
Vendor Homepage - https://lian-li.com/product/galahad-ii-trinity/
Warranty - 24 months
warrantyLength - 24
warrantyType - G
weight - 2874
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Pump depth - 7.4 cm
Weight & dimensions - Pump height - 6.9 cm
Weight & dimensions - Pump width - 7.4 cm
Weight & dimensions - Radiator depth - 11.9 cm
Weight & dimensions - Radiator height - 2.7 cm
Weight & dimensions - Radiator width - 39.8 cm
Weight & dimensions - Tube length - 38.5 cm
