Brand - ARCTIC
BrandPartCode - ACFRE00200A
Category - Computer Cooling Systems
Design - Base plate material - Copper
Design - Fan connector - 3-pin/4-pin
Design - Fins material - Copper
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Radiator material - Aluminum
GTIN - 0840033403504
GTIN - 840033403504
GTIN - 4895265000836

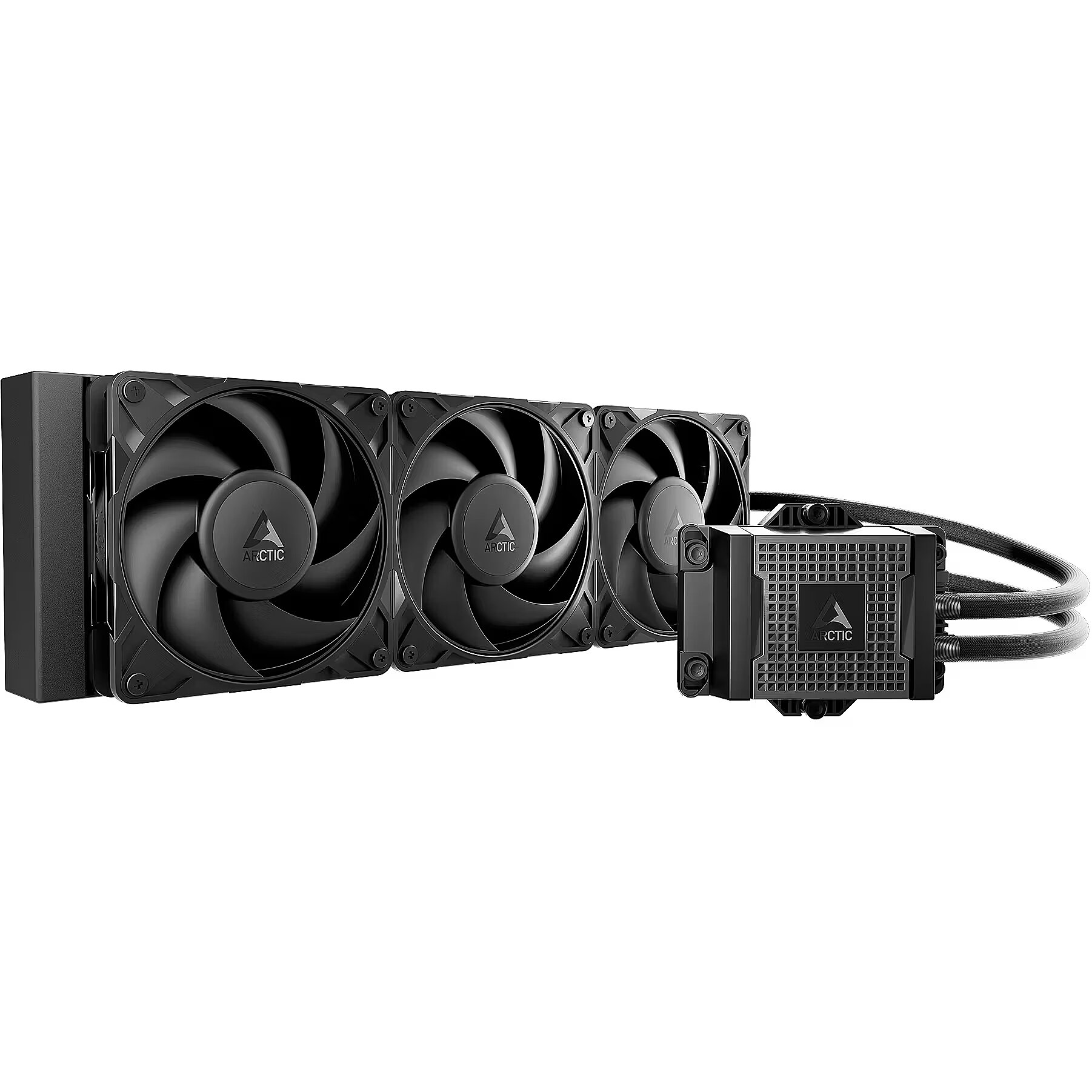

LongDesc - Liquid Freezer WS360-SP5Workstation All-in-One CPU Water CoolerOutstanding Liquid Cooling for WorkstationsThe Liquid Freezer WS360-SP5 is an all-in-one liquid cooling solution designed for the AMD SP5 workstation platform. Featuring a specially mounting system for easy installation, it delivers outstanding cooling performance to meet the demands of high-performance workstations.Designed for Superior Cooling, optimized for WorkstationsThanks to its radiator design and high-performance fans, the Liquid Freezer WS360-SP5 delivers outstanding cooling under heavy loads while keeping noise levels comparable to competing solutions.P12 Pro PST CO – Performance & DurabilityThe ARCTIC's P12 Pro PST CO pair the High Static‑Pressure Performance of the P12 Pro with Dual Ball Bearings engineered for continuous 24/7 operation, ensuring durability and extended lifespan.Tailored Made for SP5A fixed mounting system tailored for AMD SP5 ensures optimal contact pressure on the CPU and user-friendly installation.Water Block Design for WorkstationsThe water block is a brand‑new design with high‑density micro‑fins, efficient chamber flow, and a durable pump for long‑lasting reliability.Premium-Class RadiatorLiquid coolers with 38mm radiators offer superior thermal dissipation, and we continued integrating this design into our workstation models.High Quality EPDM TubingEPDM tubing with braided sheathing to ensure durability and prevent leakage, protecting your components is our highest priority.Efficiency Engineered to Reduce Ownership CostsEngineered for an outstanding Power Efficiency Ratio (PER). Capable of dissipating up to 800W of CPU Heat while consuming only 14.8W, it significantly reduces the Total Cost of Ownership (TCO) for high-performance workstations.Xtender – Xtend your PotentialThe Xtender is a high-airflow case designed for maximum air circulation. It accommodates motherboards up to the EATX format with a width of 285 mm and graphics cards up to 482 mm in length, making it suitable for workstation use.
LongProductName - Liquid Freezer WS360-SP5, 600-3000 rpm, 77 cfm / 131 m³/h, 6.9 mm H20
LongSummaryDescription - ARCTIC Liquid Freezer WS360-SP5. Type: Liquid cooling kit, Fan diameter: 12 cm, Airflow: 131 m³/h, Maximum air pressure: 6.9 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: Black
Packaging content - Package type - Box
Performance - Airflow - 131 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Fan diameter - 12 cm
Performance - Fan speed (max) - 3000 RPM
Performance - Fan speed (min) - 600 RPM
Performance - Maximum airflow - 77 cfm
Performance - Maximum air pressure - 6.9 mmH2O
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump motor speed (max) - 3000 RPM
Performance - Pump motor speed (min) - 800 RPM
Performance - Quantity per pack - 1 pc(s)
Performance - Suitable location - Processor
Performance - Supported processor sockets - Socket SP5
Performance - Type - Liquid cooling kit
Power - Fan current - 0.33 A
Power - Fan voltage - 12 V
Power - Pump current - 350 mA
Power - Pump voltage - 12 V
ProductName - WS360-SP5
ShortSummaryDescription - ARCTIC Liquid Freezer WS360-SP5, Liquid cooling kit, 12 cm, 131 m³/h, Black
Title - ARCTIC Liquid Freezer WS360-SP5 Processor Liquid cooling kit 12 cm Black 1 pc(s)
URL - https://www.arctic.de/en/Liquid-Freezer-WS360-SP5/ACFRE00200A
WarrantyInfo - 6 Years
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Package depth - 431 mm
Weight & dimensions - Package height - 154 mm
Weight & dimensions - Package weight - 2.6 kg
Weight & dimensions - Package width - 156 mm
Weight & dimensions - Radiator depth - 39.8 cm
Weight & dimensions - Radiator height - 3.8 cm
Weight & dimensions - Radiator width - 12 cm
Weight & dimensions - Tube diameter - 1.24 cm
Weight & dimensions - Tube inner diameter - 6 mm
Weight & dimensions - Tube length - 45 cm
Weight & dimensions - Weight - 2.15 kg
