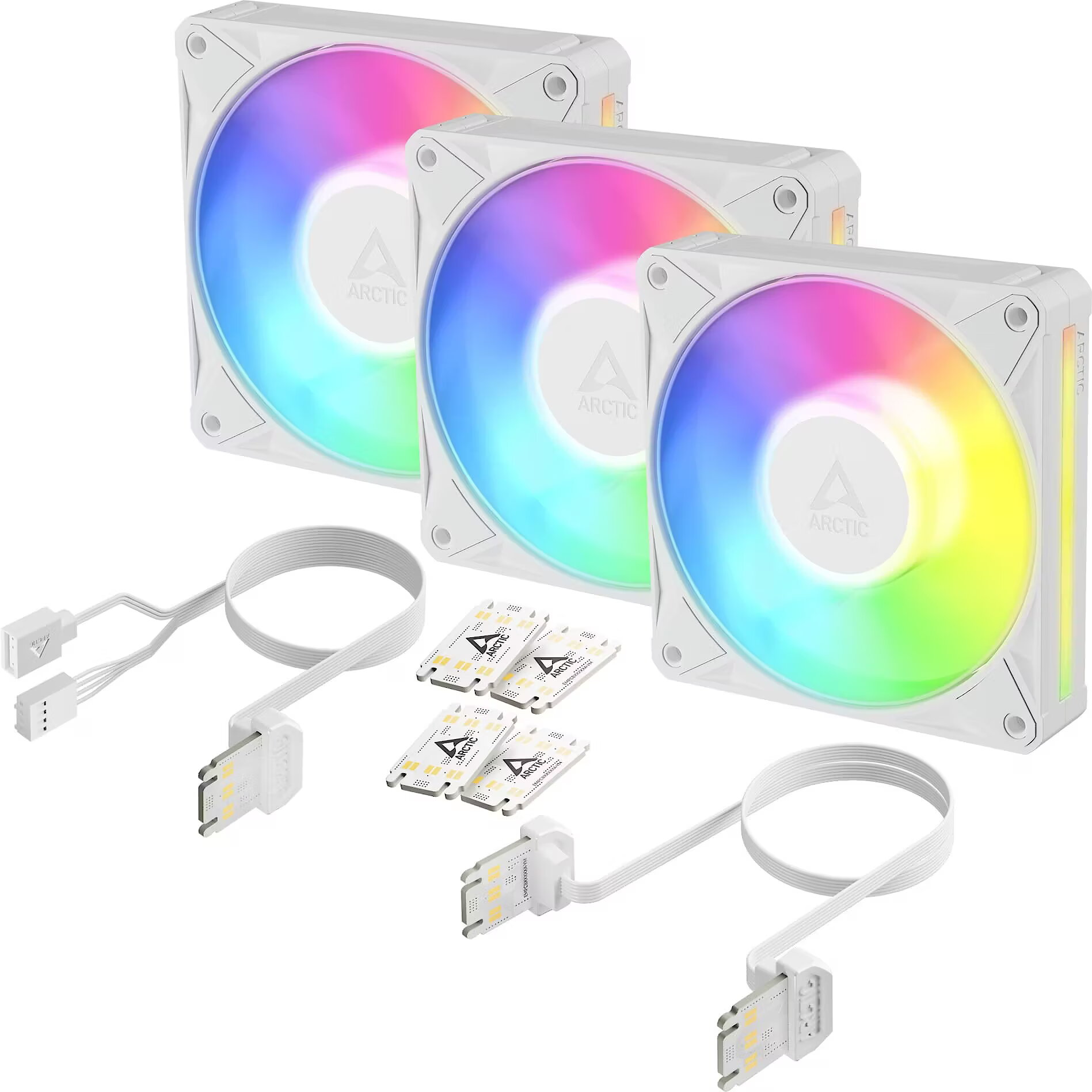

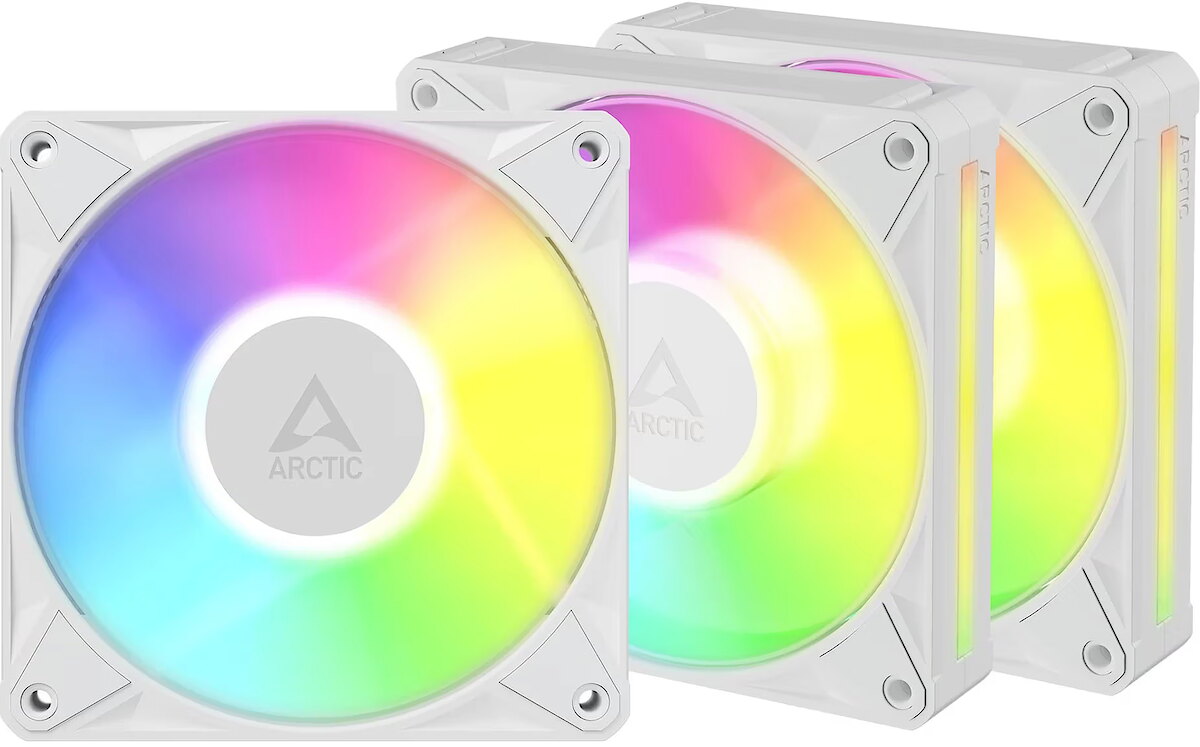

Arctic BioniX P12 A-RGB, 3 Pack, White

Airflow Performance - 129 m³/h
Bearing type Performance - Fluid Dynamic Bearing (FDB)
Brand - ARCTIC
BrandPartCode - ACFAN00338A
Cable length Weight & dimensions - 0.4 m
Category - Computer Cooling Systems
Category1 - Case accessories
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
category_en - Computers & Components > Computer components > Cooling systems
category_lv - Datortehnika > Datoru komponentes > Dzesēšanas sistēmas
category_ru - Datortehnika > Datoru komponentes > Dzesēšanas sistēmas
CnCode - 84145925

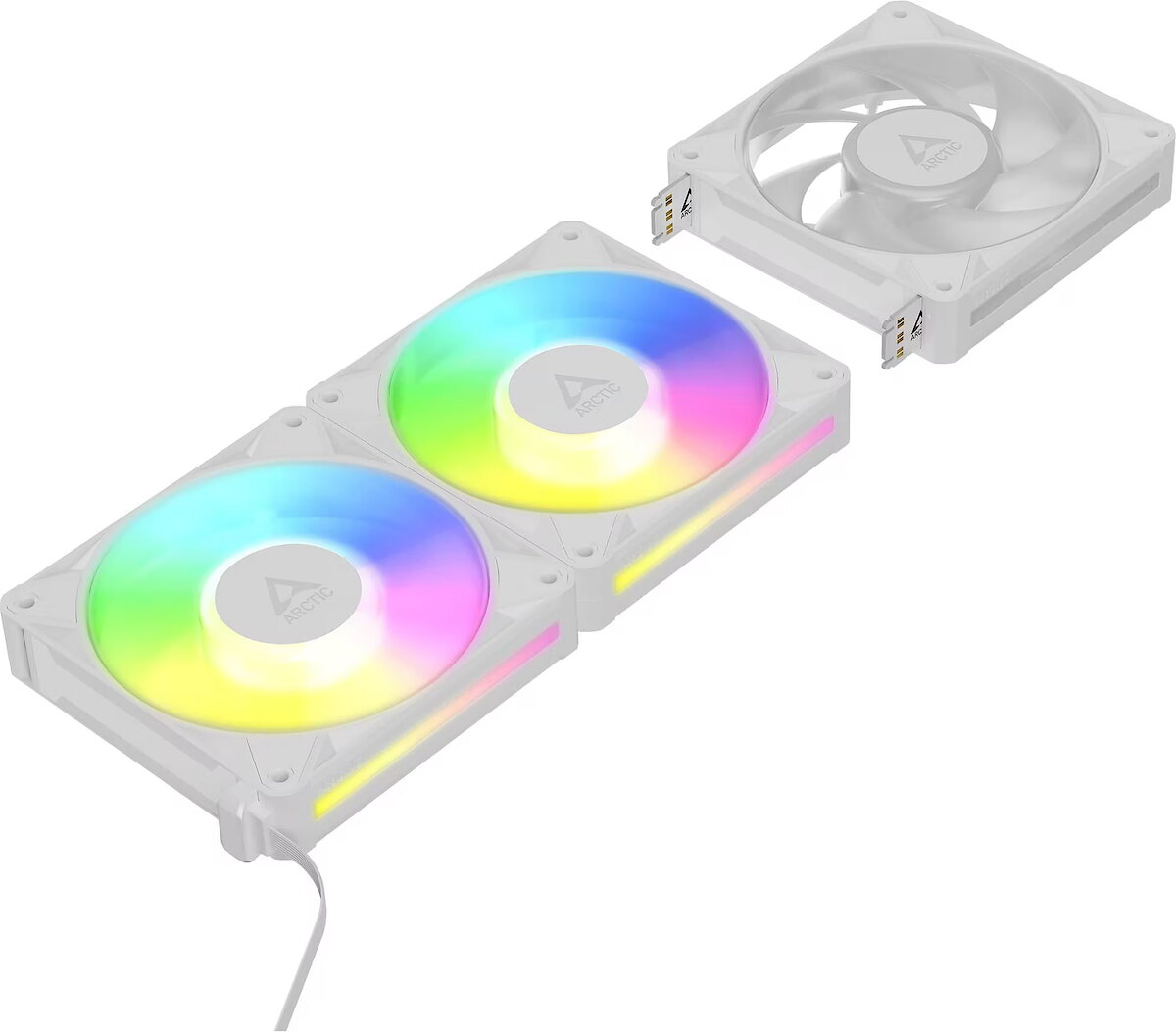

Daisy chain Design - Yes
Depth Weight & dimensions - 120 mm
Description - ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.
Description1 - ARCTIC Fan BioniX P12 A-RGB White - 12 cm - 3-pack
Description2 - ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.
description_en - Arctic BioniX P12 A-RGB — a set of 3 × 120 mm case fans designed for efficient PC cooling. The fans feature PWM speed control, Fluid Dynamic Bearings and addressable A-RGB lighting. Their optimized design provides high airflow and strong static pressure, making them suitable for both case ventilation and radiator applications. Daisy-chain connectivity simplifies installation and helps reduce cable clutter.
Technical specifications: Type: case fan
Quantity: 3 pcs.
Individual fan size: 120 × 120 mm
Thickness: 27 mm
Fan speed: 200–3000 RPM
Speed control: PWM
Airflow: up to 77 CFM
Airflow: up to 131 m³/h
Static pressure: up to 3.6 mm H₂O
Bearing: Fluid Dynamic Bearing (FDB)
Voltage: 12 V
Maximum current: 0.42 A
Fan connector: 4-pin PWM
Lighting: addressable A-RGB
LEDs: 12 per fan
RGB connector: 3-pin A-RGB
RGB voltage: 5 V
0 RPM mode: yes
description_lv - Arctic BioniX P12 A-RGB — 3 gab. 120 mm korpusa ventilatoru komplekts, kas paredzēts efektīvai datora dzesēšanai. Ventilatori aprīkoti ar PWM ātruma vadību, Fluid Dynamic Bearing gultņiem un adresējamu A-RGB izgaismojumu. Optimizētā konstrukcija nodrošina lielu gaisa plūsmu un augstu statisko spiedienu, tāpēc ventilatori ir piemēroti gan datora korpusa ventilācijai, gan radiatoriem. Virknē savienojama konstrukcija atvieglo uzstādīšanu un palīdz samazināt kabeļu daudzumu.
Tehniskā specifikācija: Tips: korpusa ventilators
Daudzums komplektā: 3 gab.
Viena ventilatora izmērs: 120 × 120 mm
Biezums: 27 mm
Rotācijas ātrums: 200–3000 apgr./min
Ātruma vadība: PWM
Gaisa plūsma: līdz 77 CFM
Gaisa plūsma: līdz 131 m³/h
Statiskais spiediens: līdz 3,6 mm H₂O
Gultnis: Fluid Dynamic Bearing (FDB)
Spriegums: 12 V
Maksimālā strāva: 0,42 A
Ventilatora savienotājs: 4-pin PWM
Izgaismojums: adresējams A-RGB
LED skaits: 12 vienam ventilatoram
Izgaismojuma savienotājs: 3-pin A-RGB
Izgaismojuma spriegums: 5 V
0 apgr./min režīms: jā
description_ru - Arctic BioniX P12 A-RGB — комплект из 3 корпусных вентиляторов диаметром 120 мм, предназначенных для эффективного охлаждения компьютера. Вентиляторы оснащены PWM-управлением, гидродинамическими подшипниками и адресной A-RGB-подсветкой. Оптимизированная конструкция обеспечивает высокий воздушный поток и хорошее статическое давление, что делает вентиляторы подходящими как для установки на корпус, так и для радиаторов. Последовательное подключение позволяет упростить монтаж и уменьшить количество кабелей.
Технические характеристики: Тип: корпусный вентилятор
Количество в комплекте: 3 шт.
Размер одного вентилятора: 120 × 120 мм
Толщина: 27 мм
Скорость вращения: 200–3000 об/мин
Управление скоростью: PWM
Воздушный поток: до 77 CFM
Воздушный поток: до 131 м³/ч
Статическое давление: до 3,6 мм H₂O
Подшипник: Fluid Dynamic Bearing (FDB)
Напряжение: 12 В
Максимальный ток: 0,42 А
Разъём вентилятора: 4-pin PWM
Подсветка: адресная A-RGB
Количество светодиодов: 12 на вентилятор
Разъём подсветки: 3-pin A-RGB
Напряжение подсветки: 5 В
Режим 0 об/мин: да
Design - Daisy chain - Yes
Design - Fan connector - 4-pin
Design - Illumination colour - Red, Green, Blue
Design - Illumination LED - Yes
Design - LED connector type - 3-pin
Design - Number of LEDs - 16
Design - Product colour - White
EAN - 4895265001062
EAN_code - 4895265001062
Fan connector Design - 4-pin
Fan current Power - 0.34 A
Fan diameter Performance - 12 cm
Fan voltage Power - 12 V
gross_weight - 0.65 kg
GTIN - 0840033403733
GTIN - 840033403733
GTIN - 4895265001062
Height Weight & dimensions - 26 mm
Illumination colour Design - Red, Green, Blue
Illumination LED Design - Yes
LED connector type Design - 3-pin
LED current Power - 0.6 A
LED voltage Power - 5 V
LongDesc - ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.
LongProductName - BioniX P12 A-RGB (White) – 3 Pack 120 mm PWM Fan with Daisy Chain
LongSummaryDescription - ARCTIC BioniX P12 A-RGB (White) – 3 Pack 120 mm PWM Fan with Daisy Chain. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 450 RPM, Rotational speed (max): 3000 RPM, Airflow: 129 m³/h, Maximum air pressure: 6.7 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Width: 120 mm, Depth: 120 mm, Height: 26 mm. Product colour: White
Manufacturer - Arctic
Manufacturer - ARCTIC
Manufacturer - Arctic Cooling
ManufacturerID - ACFAN00338A
Manufacturer_code - ACFAN00338A
Maximum airflow Performance - 76 cfm
Maximum air pressure Performance - 6.7 mmH2O
Model -
Model name - BioniX P12 A-RGB (White) – 3 Pack 120 mm PWM Fan with Daisy Chain
MPN - ACFAN00338A
Name - Arctic BioniX P12 A-RGB (white/white, pack of 3, 120 mm)
Name - ARCTIC BioniX P12 A-RGB White 3er-Pack | Gehäuselüfter
Name - CASE FAN 120MM BIONIX P12 ARGB/3-PACK WHT ACFAN00338A ARCTIC
Number of LEDs Design - 16
Number of screws Packaging content - 12
Operating temperature (T-T) Performance - 0 - 40 °C
Package depth Weight & dimensions - 124 mm
PackageHeight - 88
Package height Weight & dimensions - 85 mm
PackageLength - 160
Package type Packaging content - Box
PackageWeight - 750
Package weight Weight & dimensions - 733 g
PackageWidth - 125
Package width Weight & dimensions - 158 mm
Packaging content - Number of screws - 12
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 129 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 76 cfm
Performance - Maximum air pressure - 6.7 mmH2O
Performance - Operating temperature (T-T) - 0 - 40 °C
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 3 pc(s)
Performance - Rotational speed (max) - 3000 RPM
Performance - Rotational speed (min) - 450 RPM
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Fan current - 0.34 A
Power - Fan voltage - 12 V
Power - LED current - 0.6 A
Power - LED voltage - 5 V
Power - Starting voltage - 5 V
Producer - Arctic
Product colour Design - White
ProductName - BioniX P12 A-RGB (White) – 3 Pack 120 mm PWM Fan with Daisy Chain
Pulse-width modulation (PWM) support Performance - Yes
Quantity per pack Performance - 3 pc(s)
Rotational speed (max) Performance - 3000 RPM
Rotational speed (min) Performance - 450 RPM
Screws included Packaging content - Yes
Shipping Box Depth ELKO Internal Logistics Data - 49.5 cm
Shipping Box Height ELKO Internal Logistics Data - 28 cm
Shipping Box Weight ELKO Internal Logistics Data - 20.4 kg
Shipping Box Width ELKO Internal Logistics Data - 39 cm
ShortSummaryDescription - ARCTIC BioniX P12 A-RGB (White) – 3 Pack 120 mm PWM Fan with Daisy Chain, Fan, 12 cm, 450 RPM, 3000 RPM, 129 m³/h, White
Starting voltage Power - 5 V
Suitable location Performance - Computer case
Summary - ARCTIC BioniX P12 A-RGB (White) – 3 Pack 120 mm PWM Fan with Daisy Chain. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 450 RPM, Rotational speed (max): 3000 RPM, Airflow: 129 m³/h, Maximum air pressure: 6.7 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Width: 120 mm, Depth: 120 mm, Height: 26 mm. Product colour: White
Title - ARCTIC BioniX P12 A-RGB (White) – 3 Pack 120 mm PWM Fan with Daisy Chain
title_en - Arctic BioniX P12 A-RGB Cooling system 3 pcs
title_lv - Arctic BioniX P12 A-RGB Dzēsēšanas sitēma 3 gab
title_ru - Arctic BioniX P12 A-RGB Система охлаждения 3 шт
Type Performance - Fan
Unit Box Height - 0.087
Unit Box Length - 0.16
Unit Box Width - 0.125
Unit Calculated Volume ELKO Internal Logistics Data - 0.002002 cubm
Unit Calculated Weight ELKO Verified Logistics Data - 0.756 kg
Unit Depth ELKO Verified Logistics Data - 16 cm
Unit Height ELKO Verified Logistics Data - 8.7 cm
Units per Pallet ELKO Verified Logistics Data - 0
Units per Shipping Box ELKO Verified Logistics Data - 27
Unit Width ELKO Verified Logistics Data - 12.5 cm
UPC - 840033403733
URL - https://www.arctic.de/en/BioniX-P12-A-RGB-White-3-Pack/ACFAN00338A
Vendor Homepage - https://www.arctic.de/en/BioniX-P12-A-RGB-White-3-Pack/ACFAN00338A
Warranty - 3 months
WarrantyInfo - 6 Years
WEEE - DE83654239
Weight - 0,19
Weight - 0.73
weight - 0.459 kg
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Package depth - 124 mm
Weight & dimensions - Package height - 85 mm
Weight & dimensions - Package weight - 733 g
Weight & dimensions - Package width - 158 mm
Weight & dimensions - Width - 120 mm
Width Weight & dimensions - 120 mm
