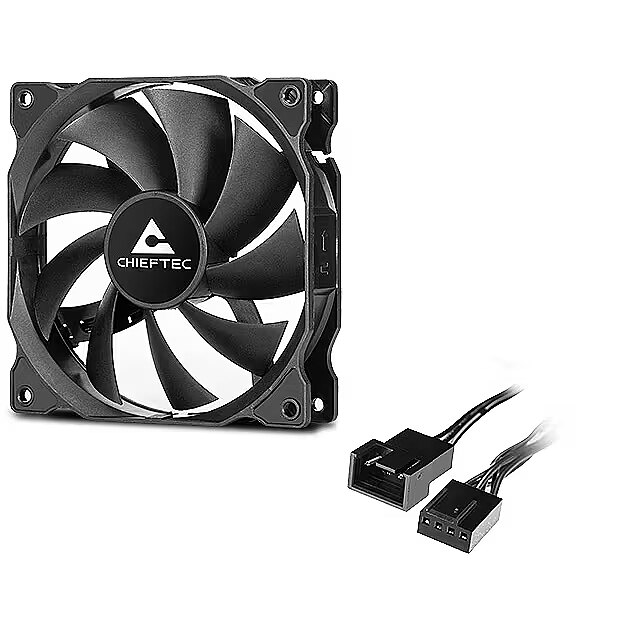

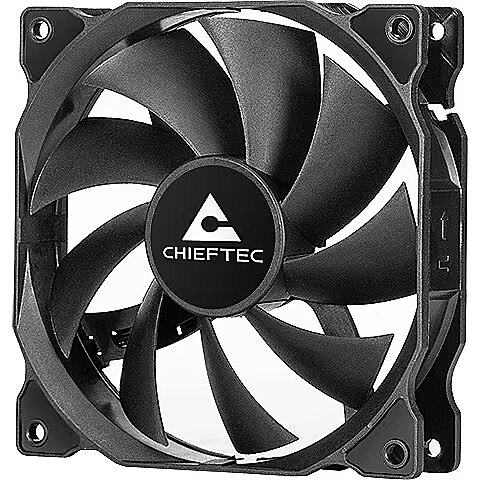

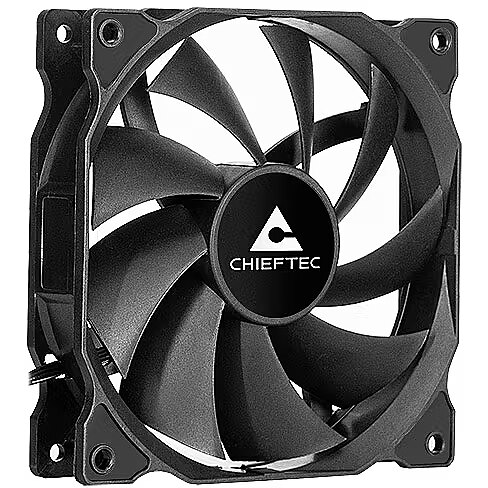

Chieftec ZF-1225PWM, 120mm, PWM

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1148148 Product code: ZF-1225PWM
Can be ordered 30 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
8.72 €
Ready for dispatch
28.07.2025
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Producer: Chieftec
  • LED izgaismojuma krāsa: Nav
  • Output Interface: 4-pin (PWM)
  • Revolutions (MIN), rpm: 0
  • RPM (MAX), rpm: 1600
  • Size, mm: 120
  • Sound level (MAX), dB(A): 25.5
  • Units in package: 1
All parameters
Producer : Chieftec
Type of lighting : Without lighting
Basic information
Direction of air flow : Standarta
LED izgaismojuma krāsa : Nav
Output Interface : 4-pin (PWM)
RPM (MAX), rpm : 1600
Size, mm : 120
Sound level (MAX), dB(A) : 25.5
Units in package : 1
More detailed specification
Brand - Chieftec
BrandPartCode - ZF-1225PWM
Category - Computer Cooling Systems
Design - Fan connector - 4-pin
Design - Fan controller - Yes
Design - Illumination LED - No
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
LongSummaryDescription - Chieftec ZF-1225PWM. Type: Fan, Fan diameter: 12 cm, Maximum air pressure: 1.09 mmH2O, Bearing type: Hydraulic. Product colour: Black
Performance - Bearing type - Hydraulic
Performance - Fan diameter - 12 cm
Performance - Fan noise level (max) - 25.5 dB
Performance - Fan speed (max) - 1600 RPM
Performance - Maximum airflow - 33.12 cfm
Performance - Maximum air pressure - 1.09 mmH2O
Performance - Noise level (high speed) - 25.5 dB
Performance - Quantity per pack - 1 pc(s)
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Maximum current - 0.38 A
Power - Rated current - 0.28 A
ProductName - ZF-1225PWM
ShortSummaryDescription - Chieftec ZF-1225PWM, Fan, 12 cm, Black
Title - Chieftec ZF-1225PWM computer cooling system Computer case Fan 12 cm Black 1 pc(s)
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Fan weight - 125 g
Weight & dimensions - Package weight - 145 g
