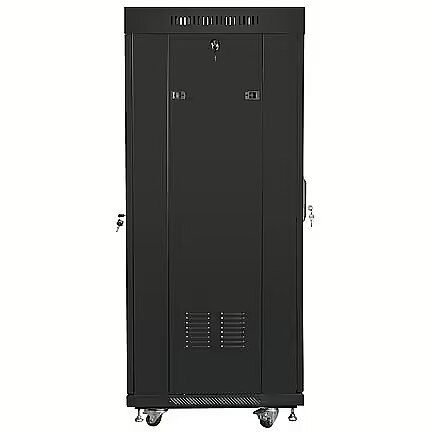

Lanberg Standing rack cabinet 19 27U 600x600 mm, black

Accessories included - Mounting accessories Front and rear door lock 2 x Side panel locks 20 x M6 screw 4 x Circle 4 x Foot Grounding kit
Color - Black
Color - RAL 9004
Description - Standing rack 19 27U 600x600 mm, black The Lanberg FF01-6627-23BL single-section standing rack is the ideal solution for professional installers who build networks, carry out cable assembly and install 19" equipment. This reliable rack cabinet offers a maximum total load capacity increased from 800kg to 1200kg, ensuring the robustness and security of your installations. Our rack cabinet is specifically designed for data centres that require a large amount of rack space for equipment. It is perfect for extensive networks and server rooms, whether in small, medium or large companies and corporations. In addition, it is the perfect solution for low-current installations such as cable TV networks, alarm, fire, access control and CCTV and IP surveillance systems. The cabinet's construction is made of high-quality rolled steel, ensuring excellent design and build quality. The cabinet has depth-adjustable vertical mounting rails to accommodate different types of equipment. The cabinet is equipped with a front perforated door with lock and a rear perforated door. Right or left-hand door mounting possible. The side panels are removable (with locks included). The cabinet is also equipped with a front-mounted LCD display with thermostat function, which displays basic information such as the temperature inside the cabinet, the current time and the current status of the fans. The Lanberg cabinet also features lockable top and bottom panels with plugs included for convenient cable entry and concealment. This makes your installation aesthetically pleasing and well organised, minimising cable clutter. In addition, it comes with earthing accessories, including cable and caps. The earthing pins are located in three parts of the cabinet - the frame, front door and rear door, providing comprehensive earthing for your installations. Also included is a ventilation panel with 2 230V fans, support rail fixing accessories, M6 screws, entrance panel caps, earthing kit, castors and feet. For ease of transport, the cabinet is packaged in three flat packs for self-assembly. Choose a Lanberg rack cabinet to provide a reliable and professional installation solution for your projects!
Designation - CE+WEEE
dimensionalWeight - 49998
dimension depth - 640 mm
dimension height - 500 mm
Dimensions - 600 x 600 x 1461 mm Height (top panel - bottom panel): 1352 mm Height (top panel - ground): 1455 mm Height (top panel - floor including screws): 1461 mm Internal spacing between rack rails: 450 mm Spacing width between rack rail holes: 465 mm External width between rack rails: 500 mm
dimension weight - 70000 g
dimension width - 1290 mm
ean - 5901969439731
Features - Adjustable feet - Yes
Features - Back door construction - Perforated
Features - Back door key lock - Yes
Features - Castor wheels - Yes
Features - Certification - ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
Features - Front door construction - Perforated
Features - Front door key lock - Yes
Features - International Protection (IP) code - IP20
Features - Key lock - Yes
Features - LCD display - Yes
Features - Maximum weight capacity - 1200 kg
Features - Number of fans - 2 fan(s)
Features - Product colour - Black
Features - Rack capacity - 27U
Features - Rack rails - Yes
Features - Side panel key lock - Yes
Features - Side panels included - Yes
Features - Thermostat - Yes
Features - Type - Floor standing cabinet
Front door type - Perforated
guarantee - 36
guarantee_type - normal
Height - 27U
LCD display - Yes
Load (max) - 1200 kg
name - Standing rack cabinet 19 27U 600x600 mm, black
Other features - LCD display Door type: front - perforated, rear - perforated Compliance with standards: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI Cable openings: top, bottom (adjustable)
Packaging data - Manual - Yes
Packaging data - Screws included - Yes
Power - AC input voltage - 230 V
producer - Lanberg
producerCode - FF01-6627-23BL
productName - LANBERG STANDING RACK CABINET 19" 27U 600X600 BLACK
productSize - SmallPallet
Protection class - IP20
sizeX - 1300
sizeY - 300
sizeZ - 641
Stuff - Steel
Type - Floor standing
vendpn - FF01-6627-23BL
warrantyLength - 36
warrantyType - G
Weight - 70 kg
weight - 40000
Weight & dimensions - Depth - 600 mm
Weight & dimensions - Height - 1460 mm
Weight & dimensions - Size (imperial) - 48.3 cm (19")
Weight & dimensions - Weight - 70 kg
Weight & dimensions - Width - 600 mm
Width - 600 mm
