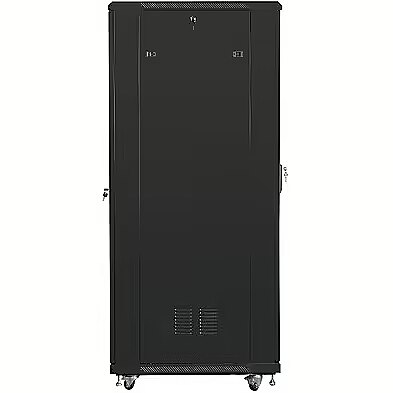

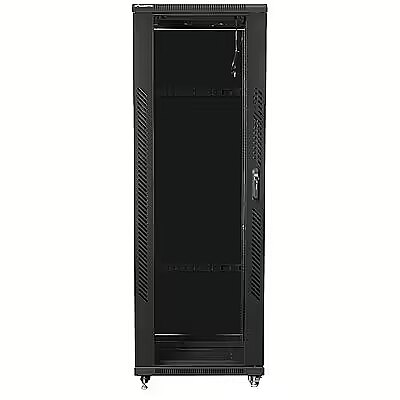

Lanberg Free-Standing Rack 19" 47U 800x800mm black

Accessories included - - Mounting accessories
- Front and rear door lock
- Side panel lock x2
- M6 x20 screws
Color - Black
Description - Standing cabinet Rack 19" 47U 800x800mm black
One-section standing cabinet Lanberg FF01-8847-12B is a solution designed for network construction, installation of cabling and equipment in size 19 with a maximum combined load capacity of up to 800 kg. It can be used in data centers that require a large amount of space in the device cabinets.
The wardrobe will successfully fulfill its role in large, extensive networks and server rooms, both in small, medium and large companies as well as corporations. It also works well in low voltage installations such as cable television networks, alarm and fire alarm systems, access control systems as well as CCTV and IP monitoring systems. The construction is made using high quality rolled steel, characterized by excellent design and quality.
The cabinet allows full adjustment of the depth of vertical mounting rails. It is equipped with a front door made of tempered glass with a lock, with the possibility of fitting the right or left side. It has removable side panels (with locks included) and a rear solid steel door with a lock. It is possible to insert the wiring through the closed top and bottom panels (with end caps included).
The set includes a ventilation panel with 4 230V fans. In addition, the set includes accessories for fixing support rails, M6 screws and plugs for entry panels.
Designation - CE+WEEE
dimensionalWeight - 403144
dimension depth - 800 mm
dimension height - 500 mm
Dimensions - 800 x 800 x 2277 mm
dimension weight - 150000 g
dimension width - 2220 mm
ean - 5901969415049
Features - Maximum weight capacity - 800 kg
Features - Product colour - Black
Features - Rack capacity - 47U
Features - Type - Standing rack
guarantee - 36
guarantee_type - normal
Height - 47U
Load (max) - 800 kg
name - Free-Standing Rack 19" 47U 800x800mm black
Optional accessory - - AK-1206-B CABLE ORGANIZER AK-1206-B 19 "2U WITH 5 HOLDERS TYPE B BLACK LANBERG
- AK-1205-B CABLE ORGANIZER AK-1205-B 19 "1U WITH 5 HOLDERS TYPE B BLACK LANBERG
- AK-1204-B CABLE ORGANIZER AK-1204-B 19 "2U WITH 5 HOLDERS PANEL BRUSHED TYPE B BLACK LANBERG
- AK-1203-B CABLE ORGANIZER AK-1203-B 19 "1U WITH 5 HOLDERS PANEL BRUSHED TYPE B BLACK LANBERG
- AK-1008-B PÓŁKA DO SZAF 19 "450/600/800 / 1000MM BLACK LANBERG
- AK-1005-B SHELF CABINET 19 "800MM BLACK LANBERG
- AK-1101-B PANEL BRUSH CABINET 19 "1U BLACK LANBERG
- AK-1302-S M6 FITTING MOUNTING KIT FOR CABINET 19
- AK-1401-B HANGER FOR CABINETS 19 "1U BLACK LANBERG
- AK-1402-B HANGER FOR CABINETS 19 "2U BLACK LANBERG
Other features - - Floor panel: 4 wheels with brakes + adjustable feet
- Ventilation panel: 4 230V fans in the upper housing
- Type of door: Front - Tempered glass, Rear - Steel
- Compliance with standards: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI
- Material: High-quality rolled steel, powder coated
- Door thickness: 5.0 mm
- Sheet thickness: vertical mounting rails - 2.00 mm; mounting profile - 2.00 mm; rest - 1.50 mm - 1.20 mm
- Cable openings: Top, Bottom (adjustable)
producer - Lanberg
producerCode - FF01-8847-12B
productName - Lanberg 19" Standing Rack 47U 800x800 Black FF01-8847-12B
productSize - Pallet
Protection class - IP20
sizeX - 820
sizeY - 1020
sizeZ - 2410
Stuff - Glass
Stuff - Steel
Type - Floor standing
vendpn - FF01-8847-12B
warrantyLength - 24
warrantyType - G
Weight - 112 kg
weight - 32000
Weight & dimensions - Depth - 800 mm
Weight & dimensions - Height - 2270 mm
Weight & dimensions - Size (imperial) - 48.3 cm (19")
Weight & dimensions - Weight - 142 kg
Weight & dimensions - Width - 800 mm
Width - 800 mm
