Accessories included - Mounting kit (screws, cage nuts, washers) 2 x wrench 1 x quick start guide
ARTIKEL1 - 4HE SOHO PRO WALLMOUNT CAB GREY
ARTIKEL2 - 19INSOHO PRO 240X540X400MM GREY
Breite - 0
Color - Gray
Color - RAL 7035

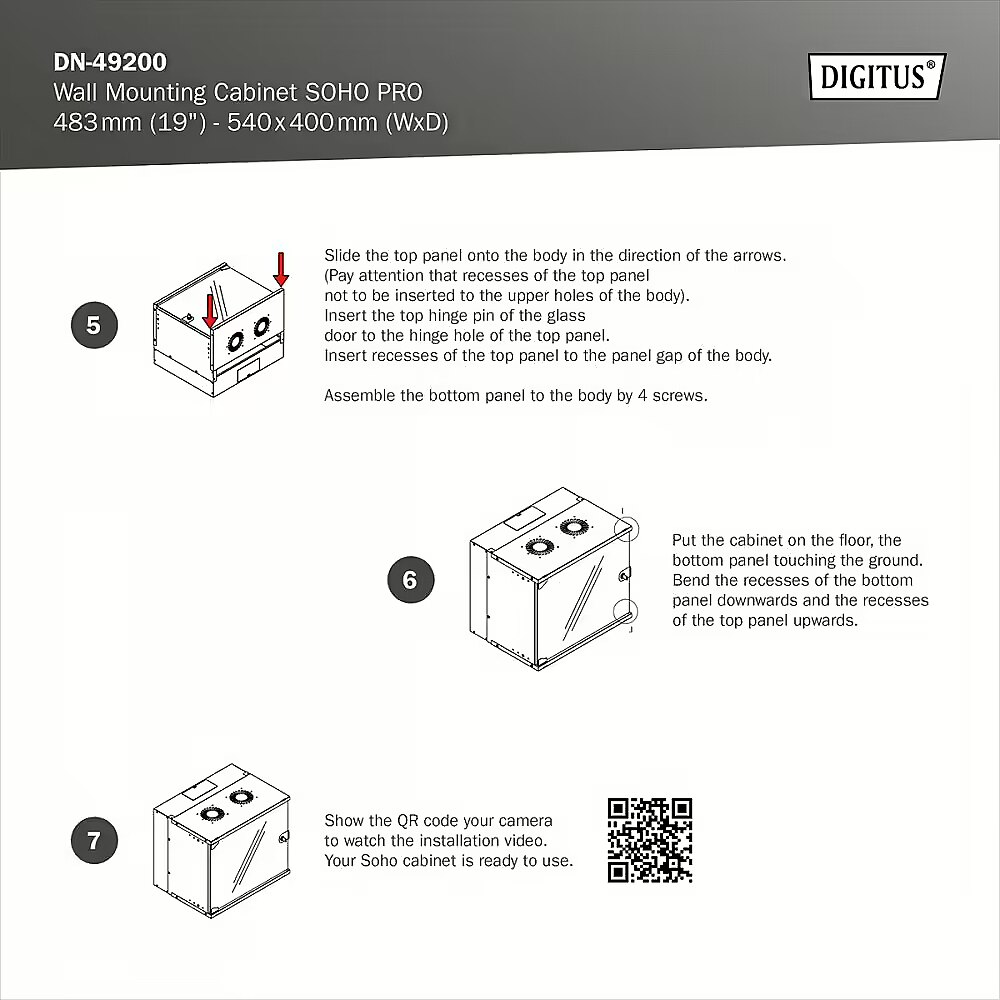

Description - The DIGITUS wall-mounted data communications cabinet is equipped with a glazed door and a cable gland in the roof and floor. The steel structure is made of steel sheet up to 1.5 mm thick. It is possible to change the side of the door hinges and adjust the depth. The rack cabinets are delivered unassembled, in a flat package. Assembly is carried out in a few simple steps thanks to the enclosed "step-by-step" instructions. Installation cabinet supplied unassembled Quick installation Door opening angle: 200° 1-point locking on front door 483 mm (19") rack profiles mounted at the front inside the cabinet, galvanized 483 mm (19") rack profiles with depth adjustment 1.1-1.5 thick, high-strength sheet steel, powder-coated Cable inlet with brush strip in the roof and plastic cover in the floor Ventilation slots for active and passive air supply and exhaust Front door: glass, single Side panels: on two sides Assembled: no
Designation - CE+WEEE
dimension depth - 175 mm
dimension height - 190 mm
Dimensions - Mounting depth for components max.: 327 mm Product dimensions (H x W x D): 240 x 540 x 400 mm
dimension weight - 8000 g
dimension width - 580 mm
ean - 4016032493686
EANCode - 4016032493686
GRUPPE1 - Accessories
GRUPPE2 - Rack
guarantee - 24
guarantee_type - external
Height - 4U
HERSTELLER - DIGITUS
Hoehe - 0
HSTNUMMER - DN-49200
Laenge - 0
Load (max) - 60 kg
name - Wall Mount Cabinet 19 DN-49200
Other features -
producer - Digitus
Protection class - IP20
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Stuff - Plate
Stuff - Steel
Type - Wallmounting
vendpn - DN-49200
Weight - 7.6 kg
Width - 540 mm
