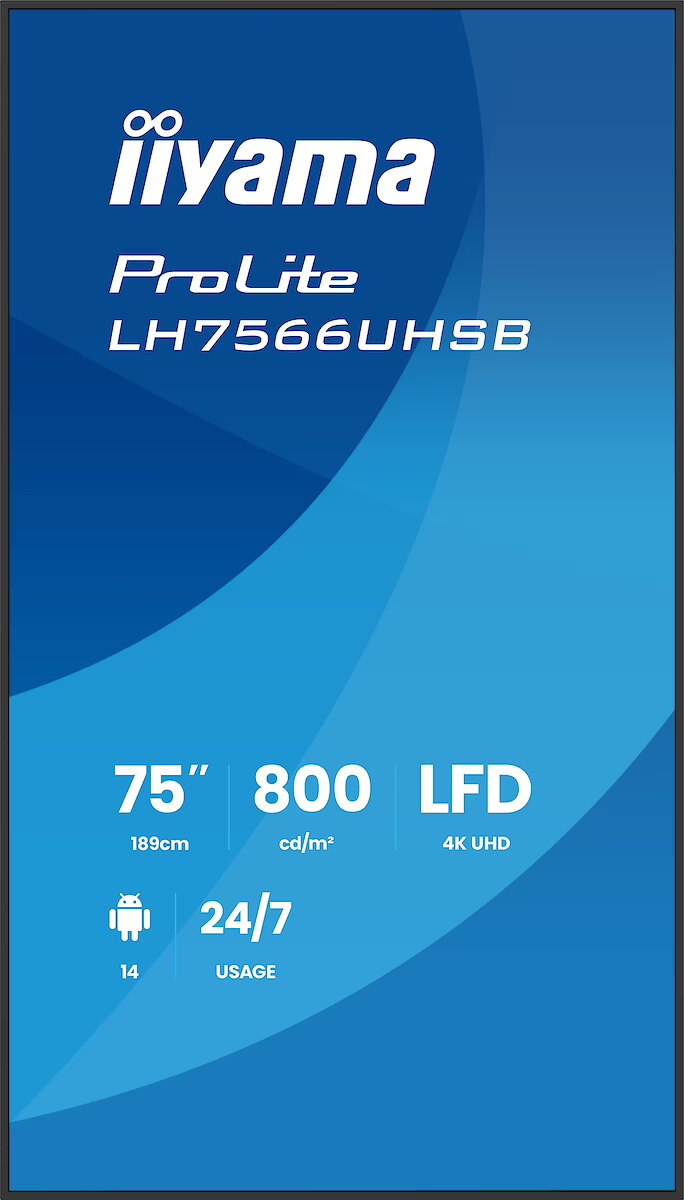

ARTIKEL1 - LH7566UHSB-B1AG 75IN 3840X2160
ARTIKEL2 - USB 2.0 X2 WIFI LAN MEDIA
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 20 W
Brand - iiyama
BrandPartCode - LH7566UHSB-B1AG
Breite - 1.1
Category - Signage Displays
Computer system - Built-in processor - Yes
Computer system - Computer system - Yes
Computer system - Internal memory - 4 GB
Computer system - Internal storage capacity - 32 GB
Computer system - On-board graphics card model - ARM Mali-G52
Computer system - Operating system installed - Android
Computer system - Operating system version - 14
Computer system - Processor architecture - ARM Cortex-A73
Computer system - Processor family - ARM Cortex
Computer system - Processor manufacturer - MediaTek
Computer system - Processor model - MT9679
Design - Anti-glare screen - Yes
Design - Bezel colour - Black
Design - Bezel width (bottom) - 1.28 cm
Design - Bezel width (side) - 1.28 cm
Design - Bezel width (top) - 1.28 cm

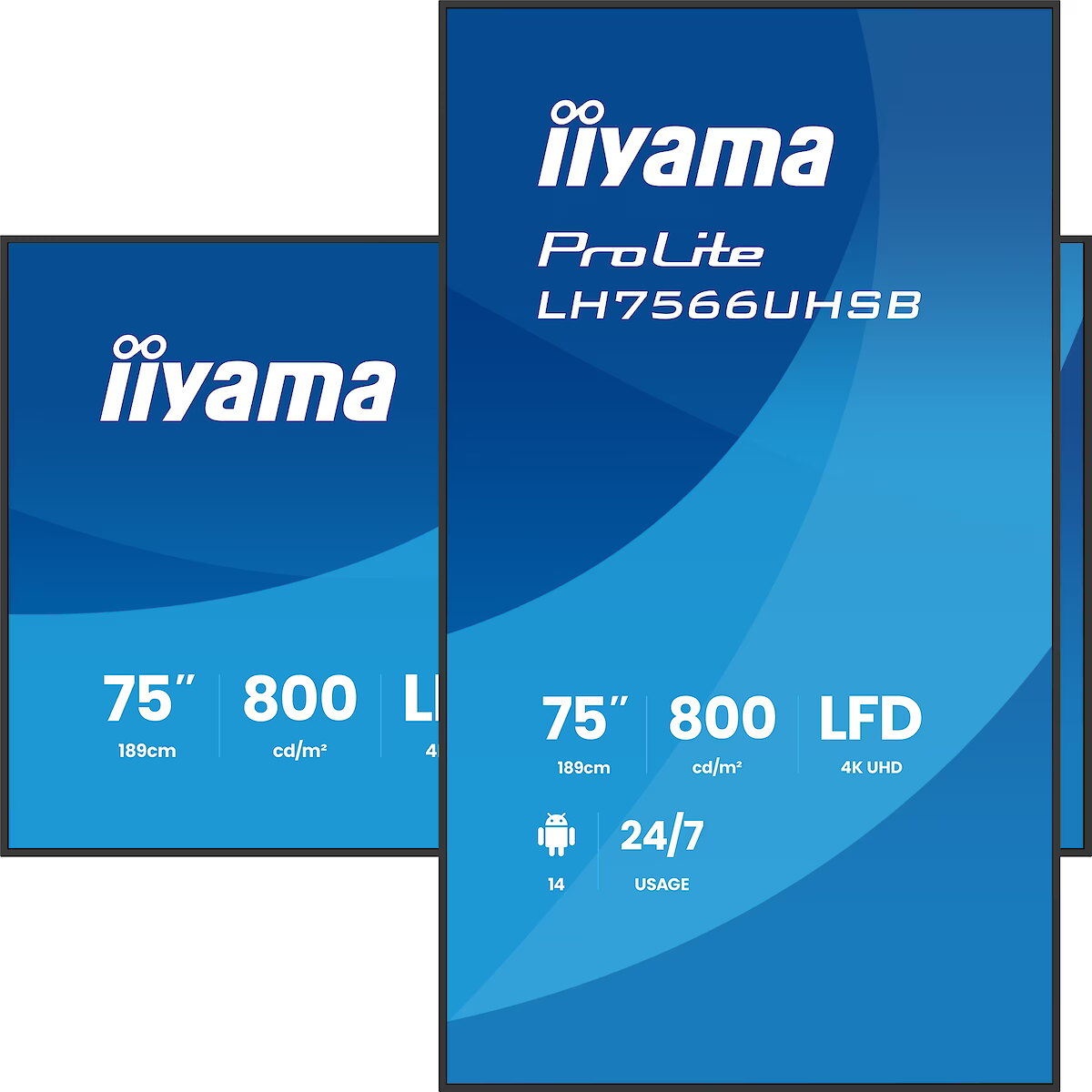

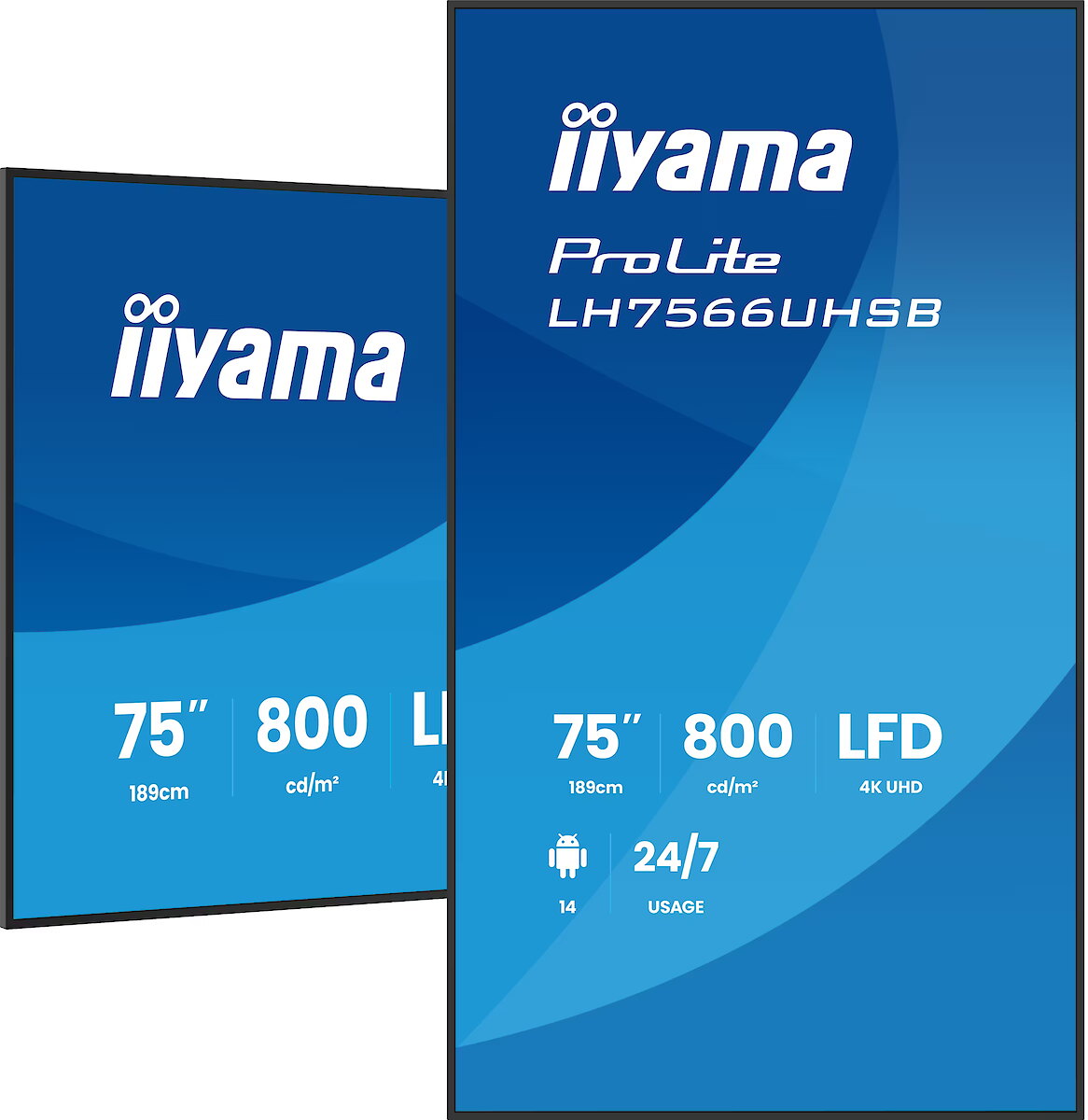

Design - Orientation - Horizontal/Vertical

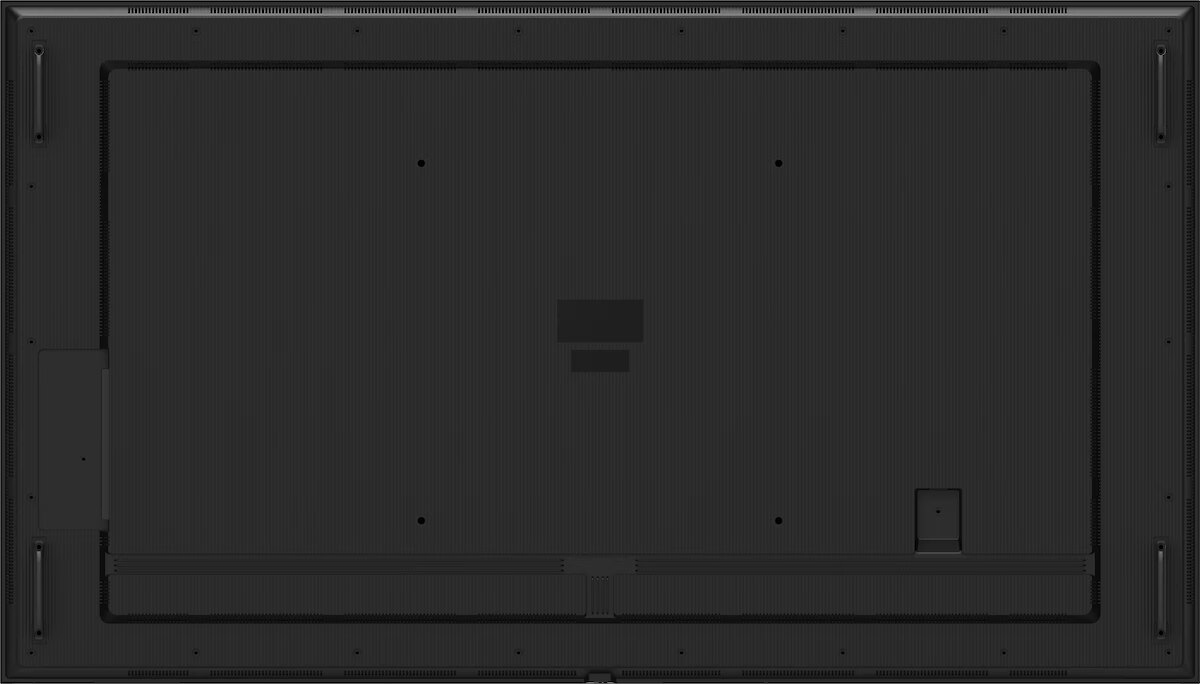

Design - Panel mounting interface - 500 x 500 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - VESA mounting - Yes
Display - Active display area (W x H) - 1650.24 x 928.26 mm
Display - Contrast ratio (typical) - 5000:1
Display - Display brightness - 800 cd/m²
Display - Display diagonal - 190.5 cm (75")
Display - Display diagonal (metric) - 189.5 cm
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display technology - LCD
Display - Haze rate - 25%
Display - HD type - 4K Ultra HD
Display - Horizontal scan range - 57 - 62 kHz
Display - Native aspect ratio - 16:9
Display - Native refresh rate - 60 Hz
Display - Panel type - VA
Display - Pixel pitch - 0.429 x 0.429 mm
Display - Response time - 6.5 ms
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4948570128242
Features - Base material - Plastic
Gewicht - 39.9
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570128242
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - LH7566UHSB-B1AG
Laenge - 1.85
Logistics data - Products per pallet - 12 pc(s)

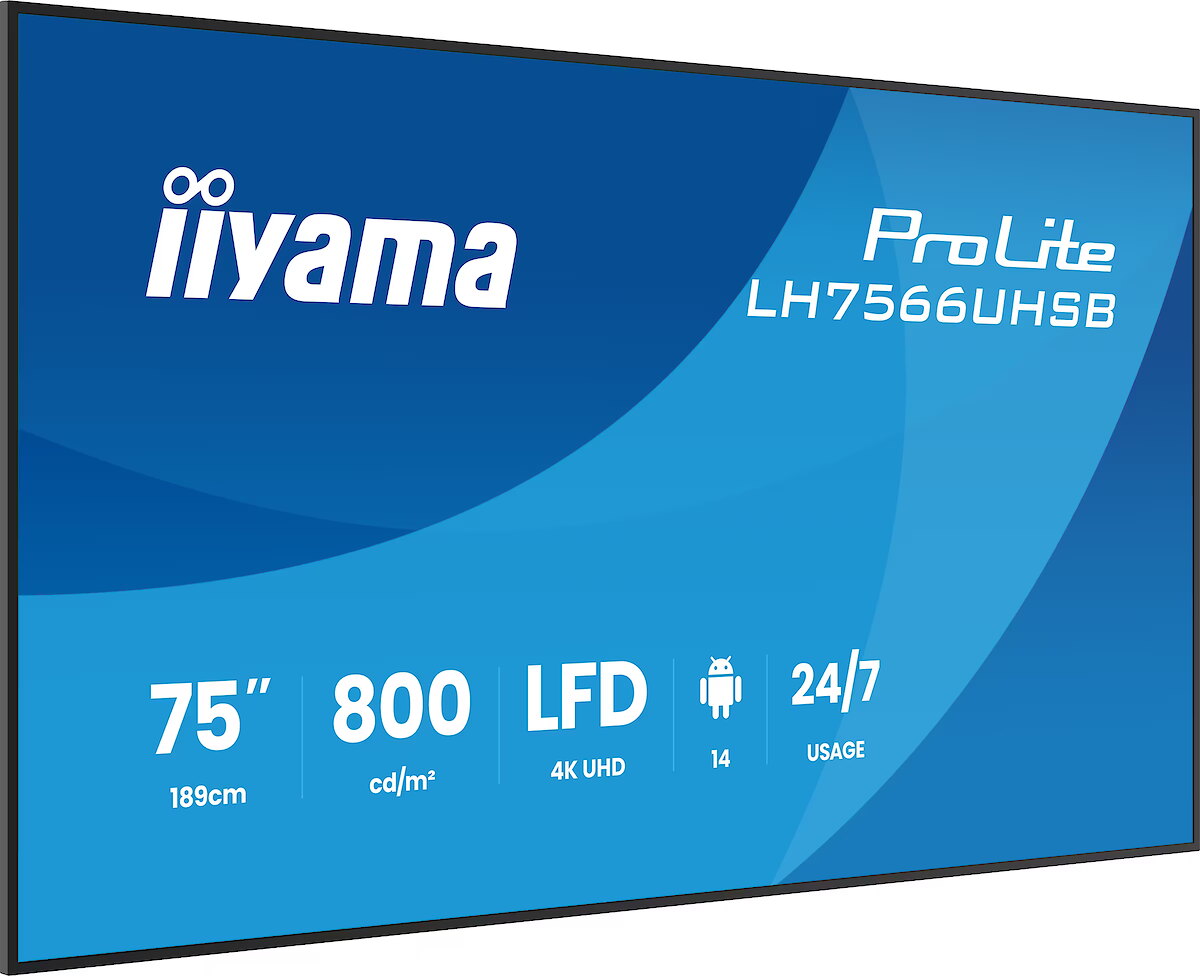

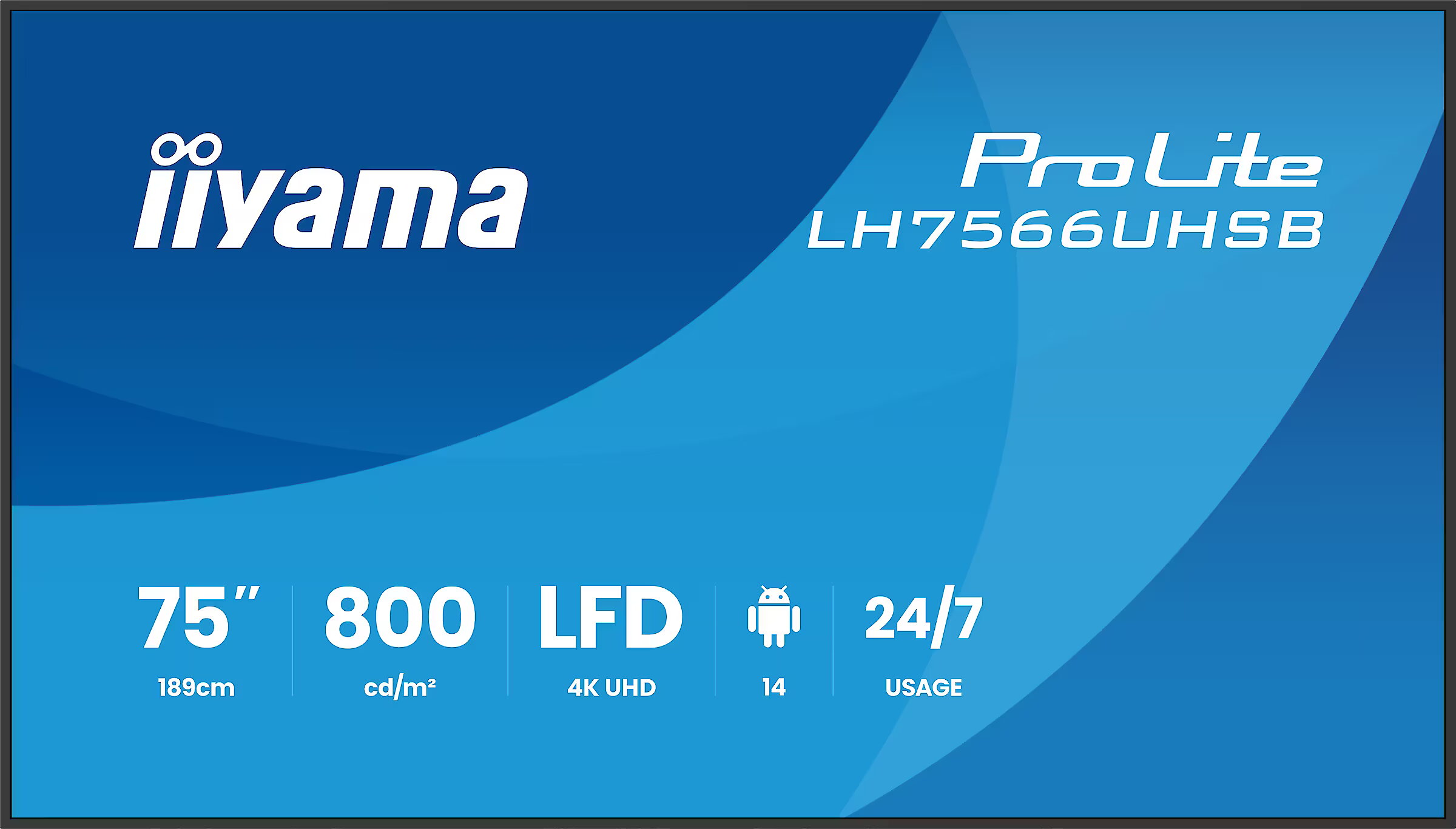

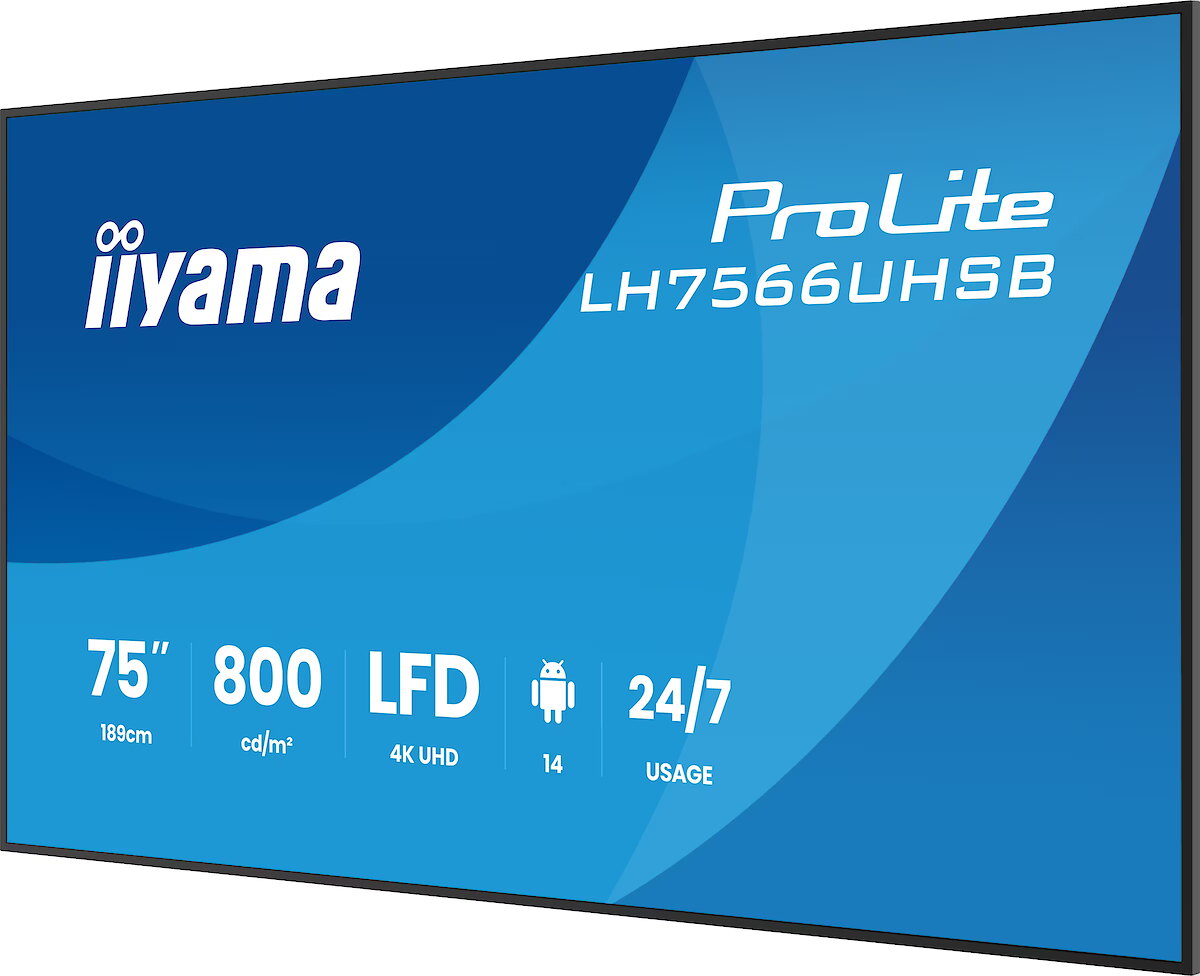

LongDesc - The ProLite LH7566UHSB-B1AG is a 75" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage2 (CMS), iiControl (DMS), and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness of 800cd/m2 .
LongProductName - 75" 4K UHD Most powerful professional digital signage display with a brightness of 800cd/m2
LongSummaryDescription - iiyama LH7566UHSB-B1AG. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 800 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Power supply type - Internal
Other features - Quick start guide - Yes

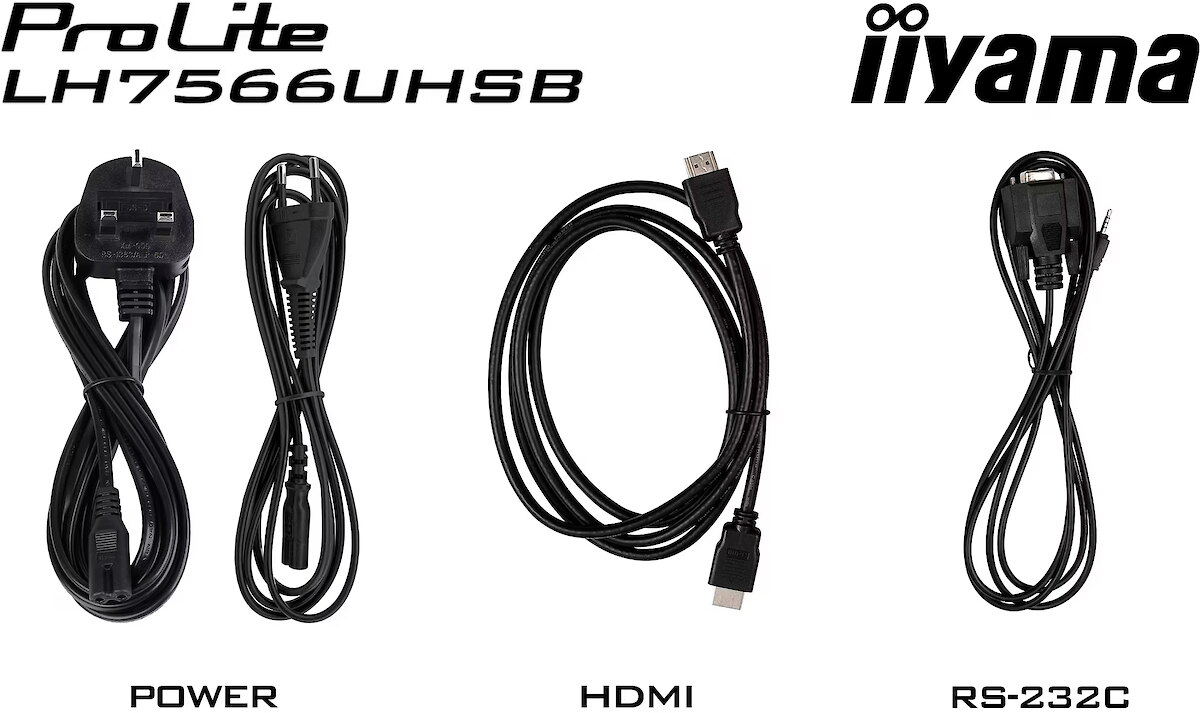

Packaging content - Cables included - AC, HDMI, RS-232
Packaging content - Mounting kit - Yes
Packaging content - Remote control included - Yes
Packaging data - Package depth - 1112 mm
Packaging data - Package height - 177 mm
Packaging data - Package weight - 39.6 kg
Packaging data - Package width - 1840 mm
Performance - HDCP - Yes
Performance - HDCP version - 1.4/2.0
Performance - International Protection (IP) code - IP5X
Performance - Mean time between failures (MTBF) - 50000 h
Performance - On Screen Display (OSD) - Yes
Performance - On Screen Display (OSD) languages - Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Universal

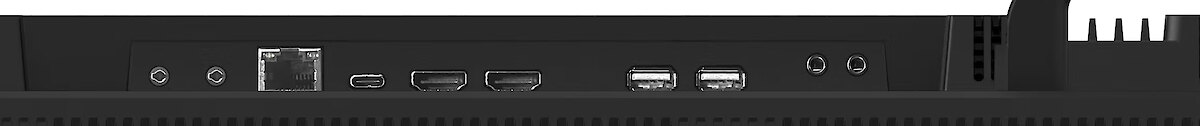

Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - Remote (IR) output - 1
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 2
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery up to - 15 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Ports & interfaces - USB version - 2.0
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy efficiency class (SDR) - G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 219 W
ProductName - LH7566UHSB-B1AG
ShortSummaryDescription - iiyama LH7566UHSB-B1AG, Digital signage flat panel, 190.5 cm (75"), LCD, 3840 x 2160 pixels, Wi-Fi, 24/7
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Technical details - Compliance certificates - CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Technical details - Pallet net height - 107.2 cm
Technical details - Pallet net length - 111.2 cm
Technical details - Pallet net width - 185 cm
Technical details - Playback media - Y
Technical details - Sustainability certificates - ErP
Technical details - User controls - network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export)
Title - iiyama LH7566UHSB-B1AG Signage Display Digital signage flat panel 190.5 cm (75") LCD Wi-Fi 800 cd/m² 4K Ultra HD Black Built-in processor Android 24/7
URL - https://iiyama.com/
WarrantyInfo -

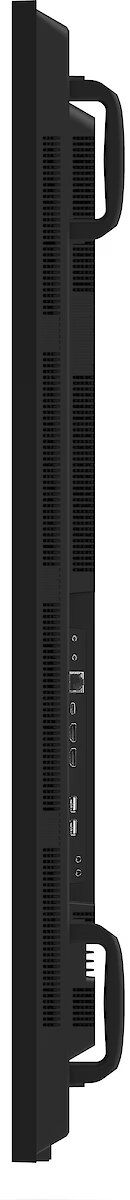

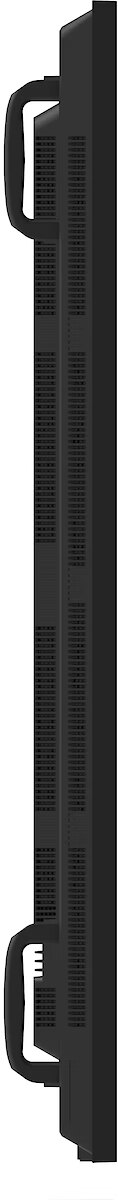

Weight & dimensions - Depth - 69 mm
Weight & dimensions - Display depth - 69 mm
Weight & dimensions - Display height - 957.1 mm
Weight & dimensions - Display weight - 28 kg
Weight & dimensions - Display width - 1679 mm
Weight & dimensions - Height - 957.1 mm
Weight & dimensions - Weight - 28 kg
Weight & dimensions - Width - 1679 mm
