ARTIKEL1 - LH8664UHS-B3AG 86IN 3840X2160 8
ARTIKEL2 - MS 1200:1 HDMI/USB
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 32 W
Brand - iiyama
BrandPartCode - LH8664UHS-B3AG
Breite - 1.17
Category - Signage Displays
Computer system - Built-in processor - Yes
Computer system - Internal memory - 4 GB
Computer system - Internal storage capacity - 32 GB
Computer system - On-board graphics card model - Mali-G52 MC1
Computer system - Operating system installed - Android
Computer system - Operating system version - 14
Computer system - Processor architecture - ARM Cortex-A73
Computer system - Processor cores - 4
Computer system - Processor manufacturer - MediaTek
Computer system - Processor model - MT9679
Design - Anti-glare screen - Yes
Design - Bezel colour - Black
Design - Bezel width (bottom) - 2.2 cm
Design - Bezel width (side) - 2.15 cm
Design - Bezel width (top) - 2.2 cm

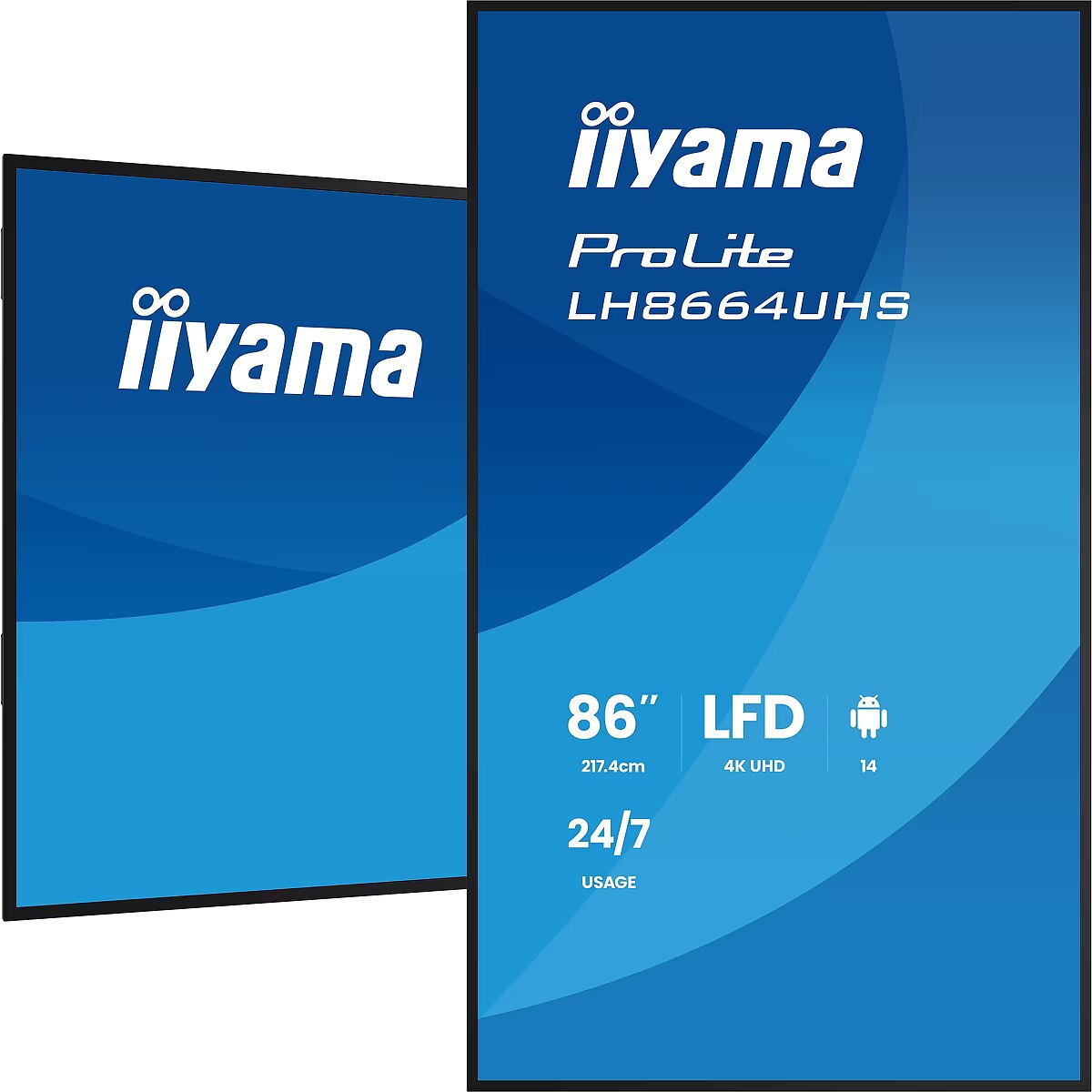

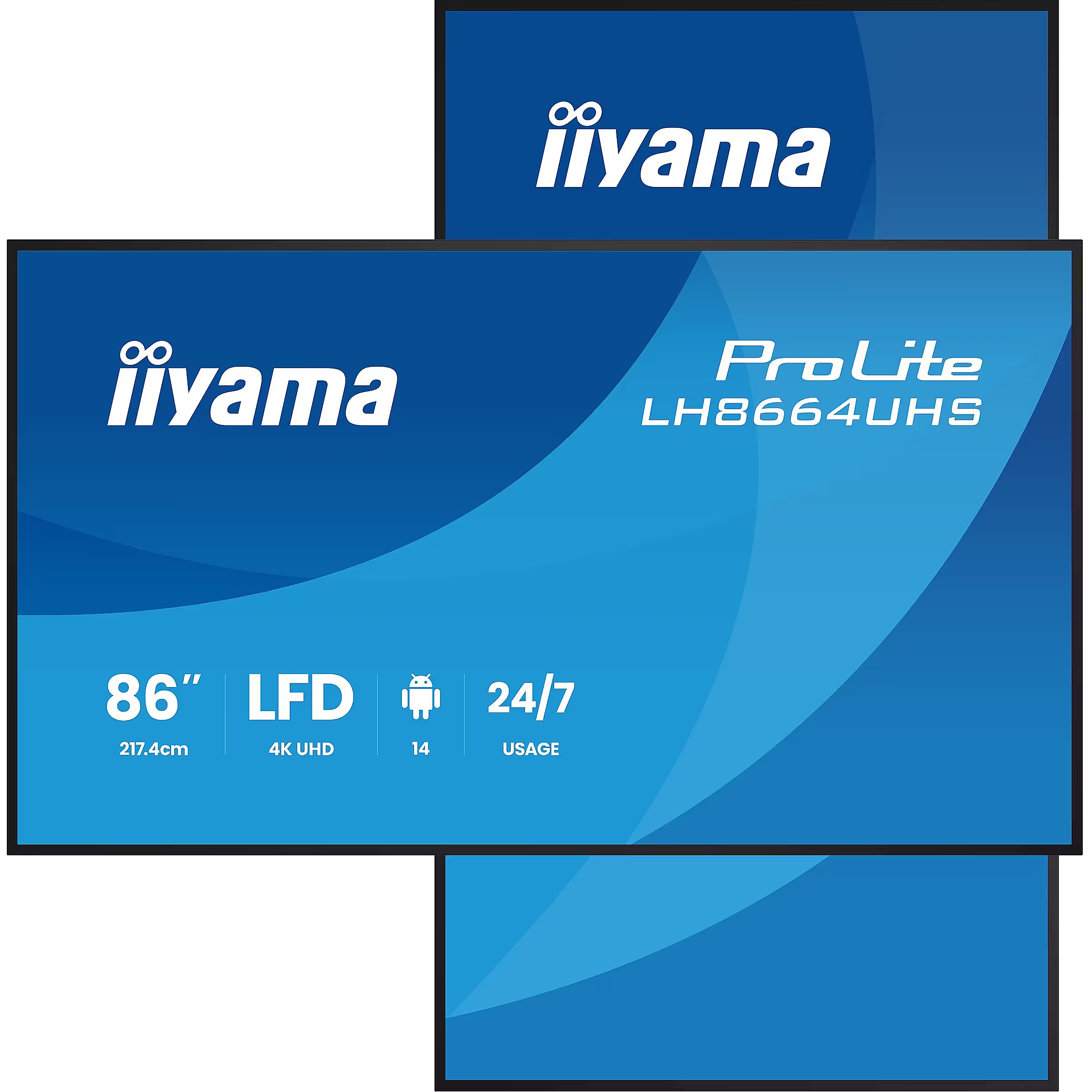

Design - Orientation - Horizontal/Vertical

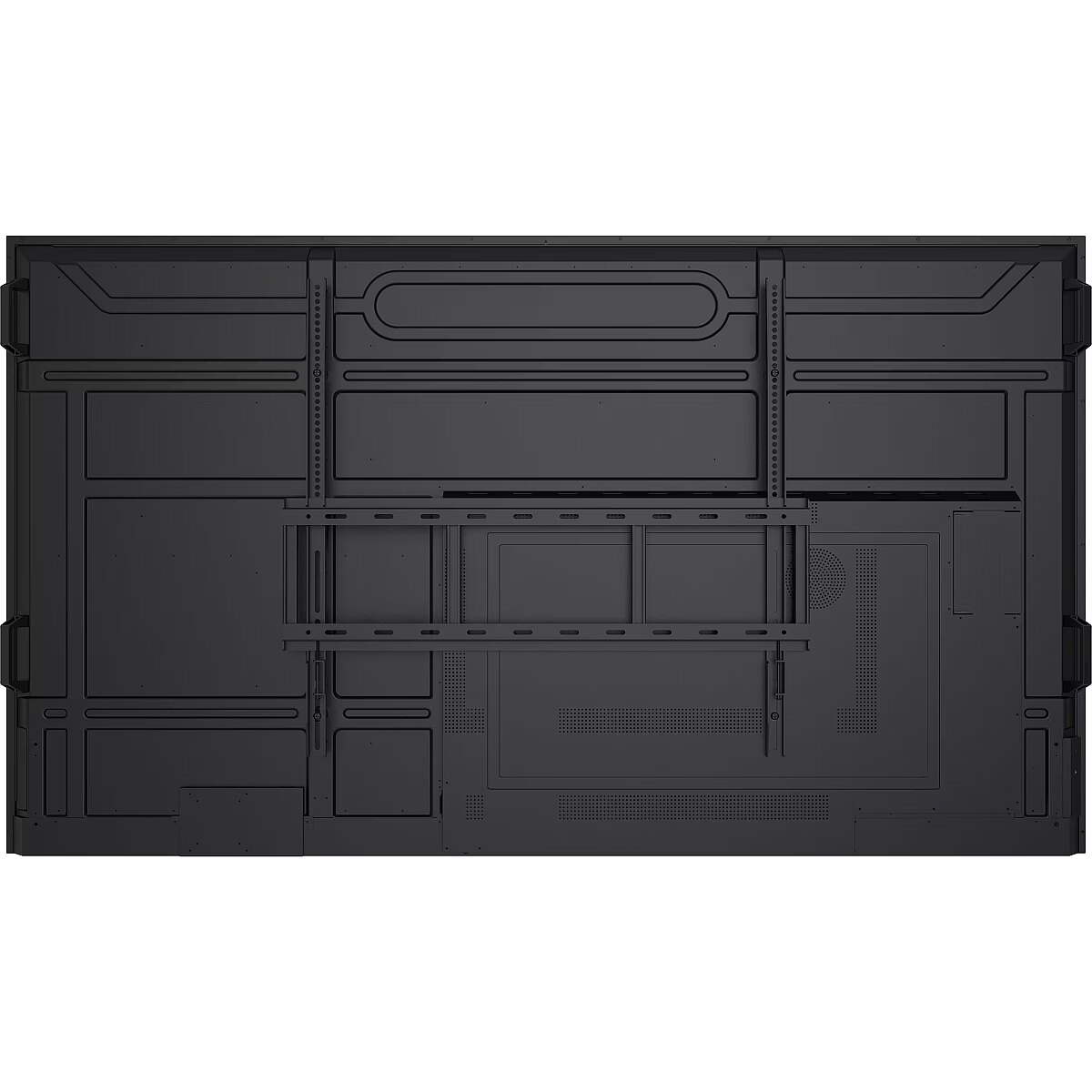

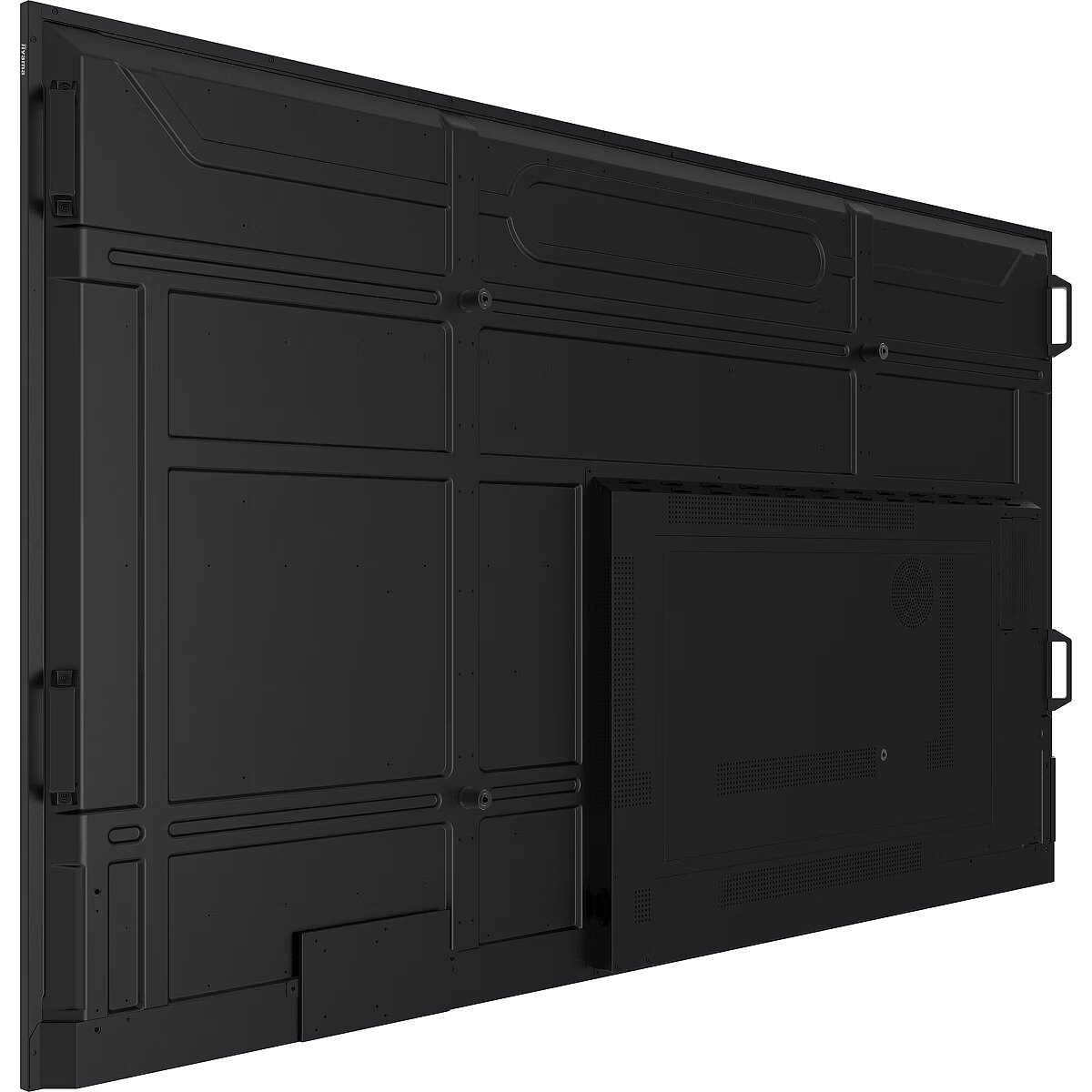

Design - Panel mounting interface - 800 x 600 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - Screen shape - Flat
Design - VESA mounting - Yes
Display - Active display area (W x H) - 1895 x 1066 mm
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 500 cd/m²
Display - Display diagonal - 2.17 m (85.6")
Display - Display diagonal (metric) - 217.4 cm
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Haze rate - 25%
Display - HD type - 4K Ultra HD
Display - Horizontal scan range - 28 - 160 kHz
Display - Native aspect ratio - 16:9
Display - Native refresh rate - 60 Hz
Display - Panel type - IPS
Display - Pixel pitch - 0.493 x 0.493 mm
Display - Response time - 8 ms
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4948570125357
Gewicht - 55
GRUPPE1 - Displays
GRUPPE2 - Lcd Large Format
GTIN - 4948570125357
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - LH8664UHS-B3AG
Laenge - 2.1
LongDesc - Elevate your visual communication with the LH8664UHS-B3AG and unlock the new possibilities for your business. This 450cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With Android 14 OS, iiSignage² (CMS), iiControl (DMS) and iiShare , plus EShare (Wireless Presentation) features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B3AG will undoubtedly captivate your audience and leave a lasting impression.
LongProductName - 86" 4K UHD professional digital signage display with advanced control and connectivity options
LongSummaryDescription - iiyama LH8664UHS-B3AG. Product design: Digital signage flat panel. Display diagonal: 2.17 m (85.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Power supply type - Internal
Other features - Quick start guide - Yes

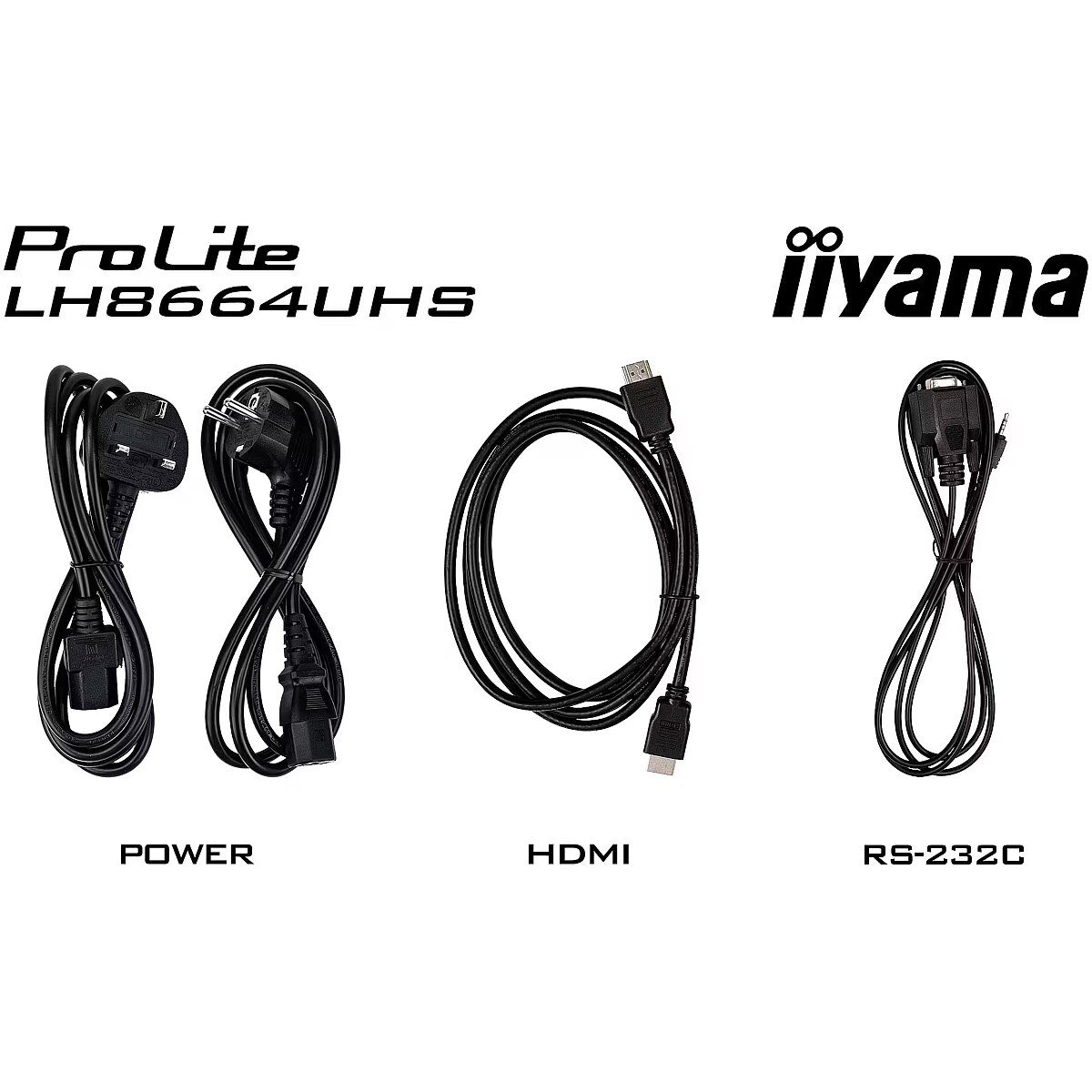

Packaging content - Cables included - AC, HDMI, RS-232

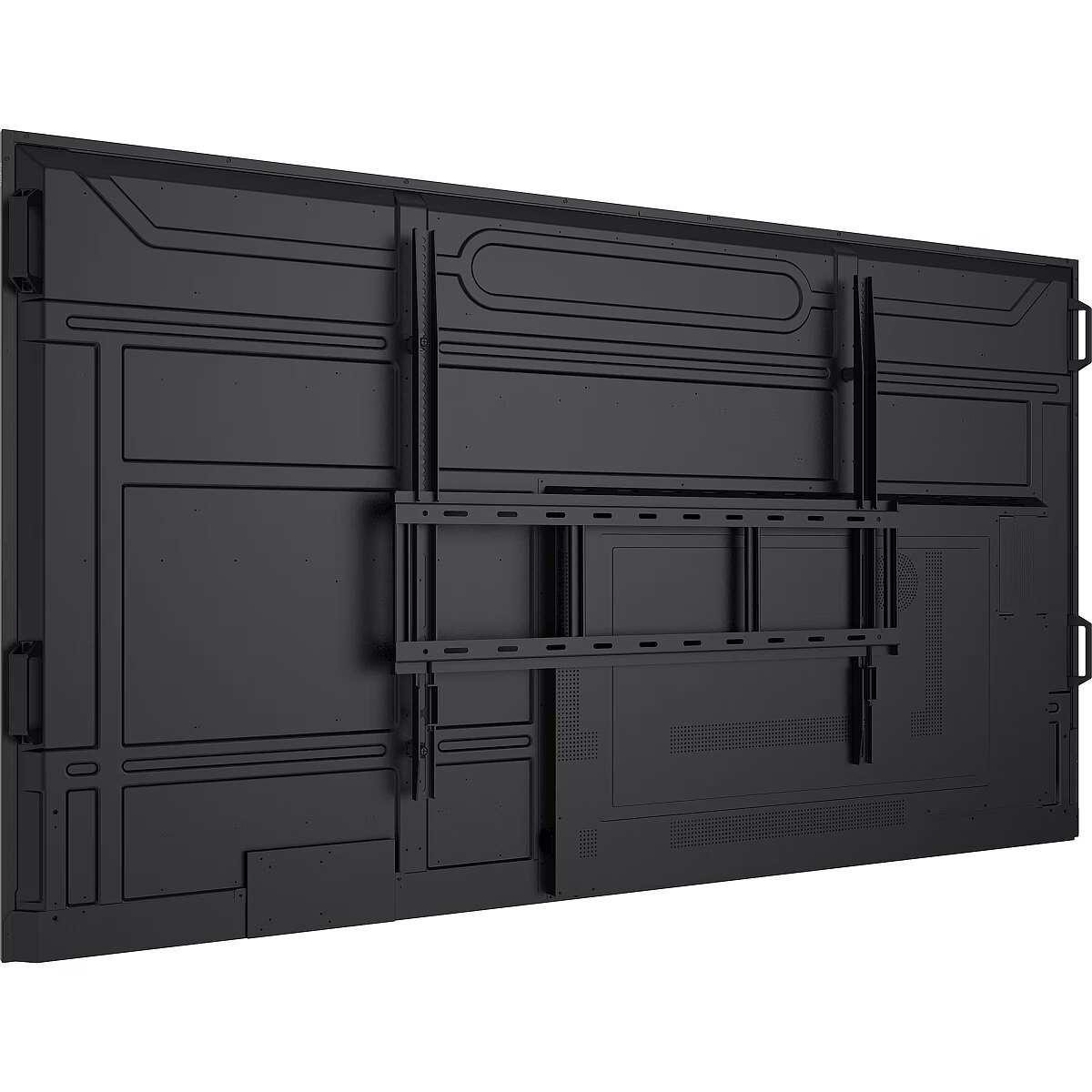

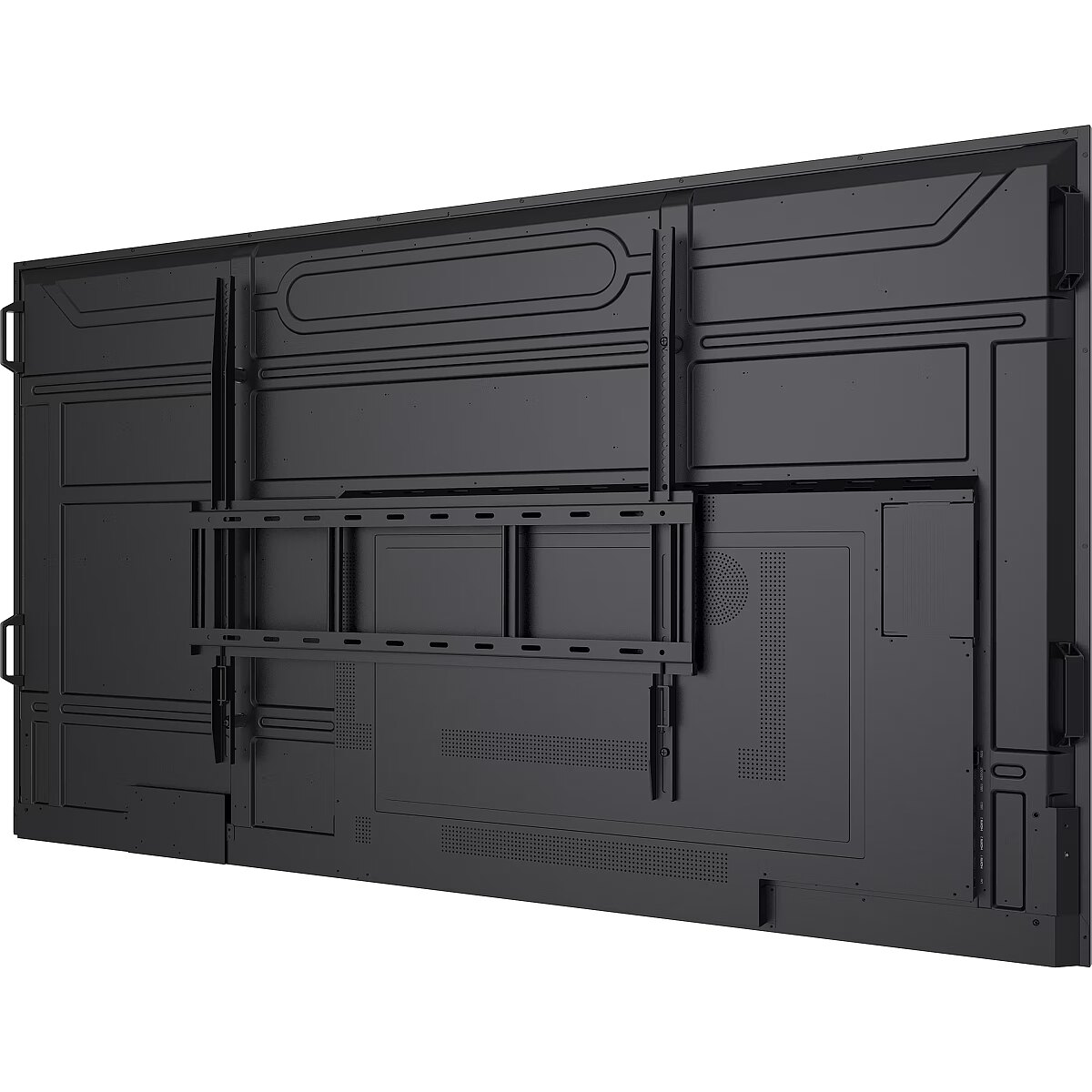

Packaging content - Mounting kit - Yes
Packaging content - Remote control included - Yes
Packaging data - Package depth - 225 mm
Packaging data - Package height - 1215 mm
Packaging data - Package weight - 62.2 kg
Packaging data - Package width - 2095 mm
Performance - HDCP - Yes
Performance - HDCP version - 1.4/2.2
Performance - Mean time between failures (MTBF) - 50000 h
Performance - On Screen Display (OSD) - Yes
Performance - On Screen Display (OSD) languages - Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Corporate

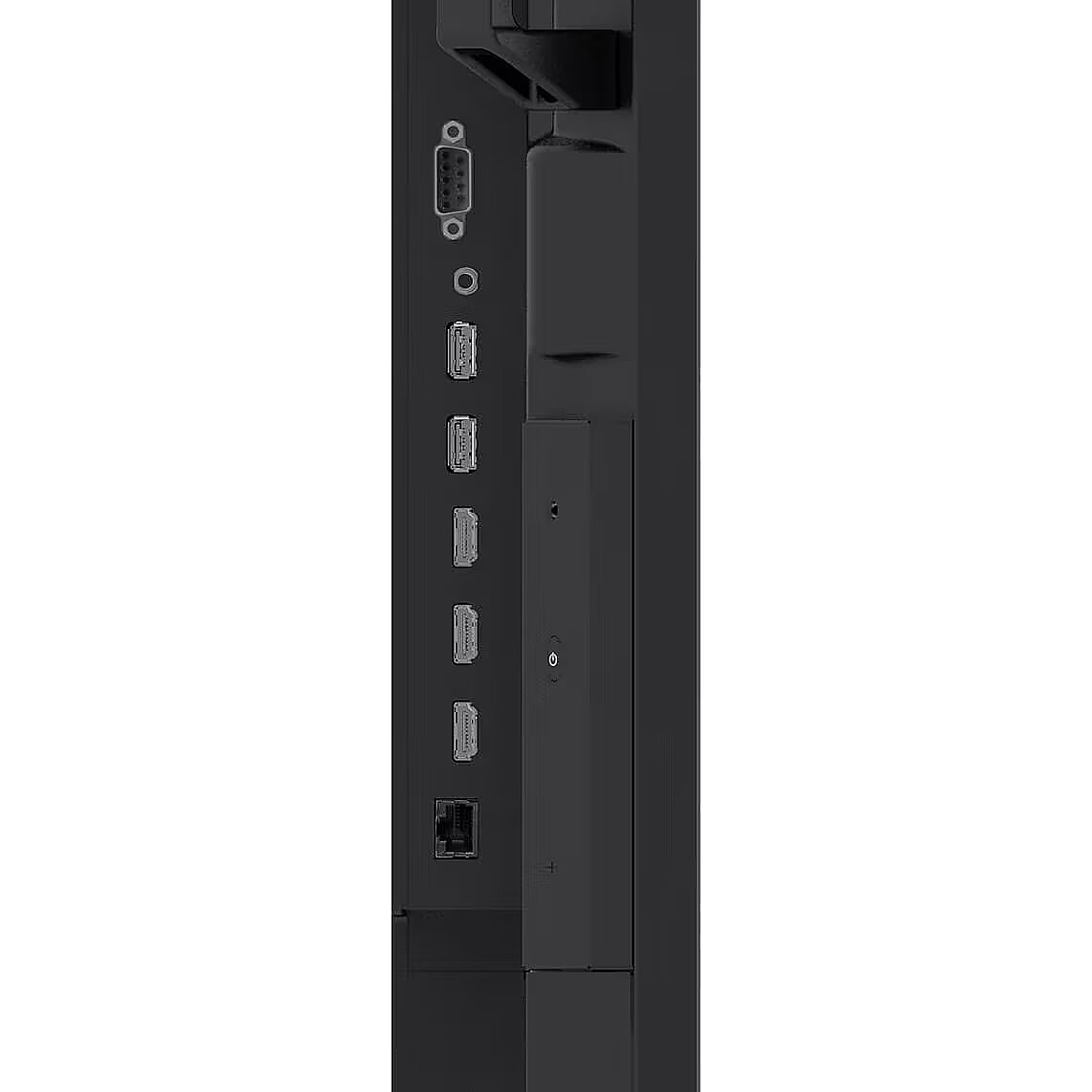

Ports & interfaces - Audio Return Channel (ARC) - Yes
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI input ports quantity - 2
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Infrared data port - Yes
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - Remote (IR) output - 1
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB connector type - USB Type-A, USB Type-C
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 2
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery up to - 15 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Ports & interfaces - USB version - 2.0
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 277 kWh
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - G
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 277 W
ProductName - LH8664UHS-B3AG
ShortSummaryDescription - iiyama LH8664UHS-B3AG, Digital signage flat panel, 2.17 m (85.6"), 3840 x 2160 pixels, Wi-Fi, 24/7
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Technical details - Compliance certificates - CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Technical details - Playback media - Y
Technical details - Sustainability certificates - EPEAT, ErP
Technical details - User controls - network (network status, WiFi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, over scan, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD settings (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD), General (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, physical button, power saving, panel saving, monitor information, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen Share, Miracast standby, log export)
Title - iiyama LH8664UHS-B3AG Signage Display Digital signage flat panel 2.17 m (85.6") Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 24/7
URL - https://iiyama.com/
WarrantyInfo -
Weight & dimensions - Depth - 79.6 mm
Weight & dimensions - Display depth - 79.6 mm
Weight & dimensions - Display height - 1108.8 mm
Weight & dimensions - Display weight - 47.9 kg
Weight & dimensions - Display width - 1937.8 mm
Weight & dimensions - Height - 1108.8 mm
Weight & dimensions - Weight - 47.9 kg
Weight & dimensions - Width - 1937.8 mm
