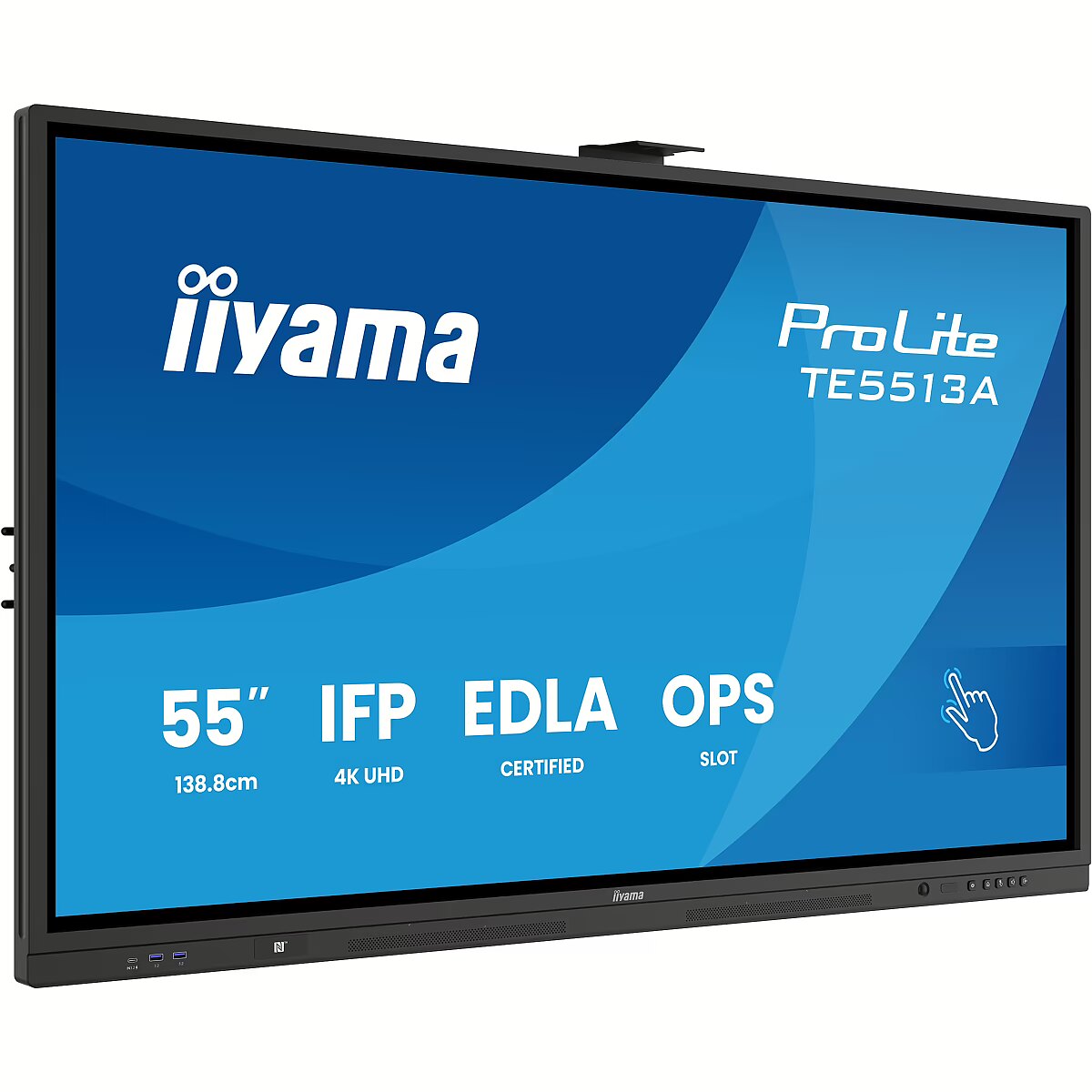

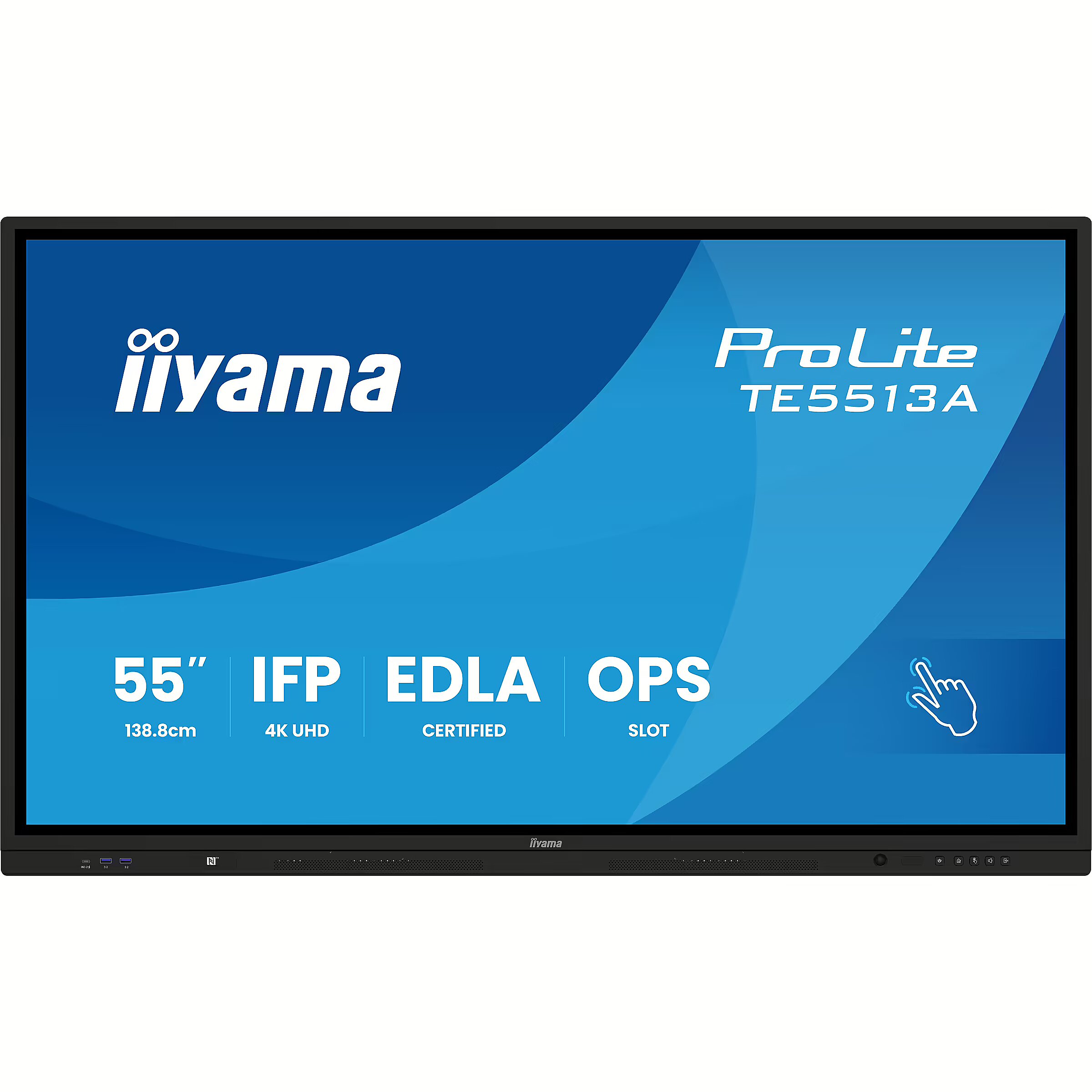

Iiyama TE5513A-B1AG

ARTIKEL1 - TE5513A-B1AG 55 IN UHD IR 40P T
ARTIKEL2 - POINTS 4K UHD 3840X2160 8MS 450C
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 40 W
Brand - iiyama
BrandPartCode - TE5513A-B1AG
Breite - 0
Category - Signage Displays
Computer system - Built-in processor - Yes
Computer system - Computer system - Yes
Computer system - Internal memory - 8 GB
Computer system - Internal storage capacity - 128 GB
Computer system - On-board graphics card model - ARM Mali-G52
Computer system - Operating system installed - Android
Computer system - Operating system version - 14
Computer system - Processor architecture - ARM Cortex-A73
Computer system - Processor cores - 4
Computer system - Processor frequency - 1.4 GHz
Design - Anti-glare screen - Yes
Design - Orientation - Vertical
Design - Panel mounting interface - 400 x 400 mm
Design - Placement supported - Indoor
Design - Positioning accuracy - 1 mm
Design - Product colour - Black
Design - Product design - Interactive flat panel
Design - VESA mounting - Yes
Display - Active display area (W x H) - 1210 x 680 mm
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 450 cd/m²
Display - Display diagonal - 138.7 cm (54.6")
Display - Display diagonal (metric) - 138.8 cm
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Glass thickness - 3.2 mm
Display - HD type - 4K Ultra HD
Display - Horizontal scan range - 30 - 135 kHz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 40
Display - Panel type - IPS
Display - Pixel pitch - 0.315 x 0.315 mm
Display - Response time - 8 ms
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - PureTouch-IR
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4948570124794
Gewicht - 35.2
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570124794
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - TE5513A-B1AG
Laenge - 1.39
LongDesc - The TE5513A-B1AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero Airgap LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5.0 connectivity, and iiControl (DMS), it integrates seamlessly into your ecosystem.Enjoy advanced wireless sharing with the intuitive iiShare app for streamlined collaboration and enjoy added features like a PIR motion sensor for energy efficiency and NFC Reader for security. Perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.Google EDLA CertifiedGoogle Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 365 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.iiWare 21E (Android 14 OS)Empower your presentations with iiWare 2a1E, featuring featuring Google EDLA, iiControl (DMS), iiShare (Wireless Presentation), WhiteBoard, Cloud Drives, iiBrowser and file manager via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.Quick Radial MenuThis feature provides a quick way to operate the interactive display. Long press with five fingers to bring up the Quick Radial Menu. Users can directly select the frequently used apps in the apps menu and place them in the Quick Radial Menu.iiControl - DMSiiControl provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiyama DMS is committed to maintaining compliance with GDPR.PURETOUCH-IR+The state-of-the-art PureTouch-IR+ technology ensures accurate and precise touch responses, enabling effortless interaction and annotation.PIR Motion SensorThe PIR motion sensor enhances energy efficiency by detecting movement and automatically adjusting display settings. It reduces power consumption when no activity is detected, extending device lifespan. Ideal for offices and classrooms, it ensures a smart, hands-free operation while optimizing performance and sustainability.Pen PickUp SensorThe Stylus Pen Pick-Up Sensor detects when the pen is lifted from its holder, ensuring instant responsiveness and seamless transitions between touch and stylus input. Ideal for interactive displays, it enhances workflow efficiency by automatically activating writing mode, reducing delays, and improving the overall user experience.NFC ReaderThe built-in NFC reader enables secure and fast authentication, allowing users to log in with a simple tap. Ideal for business and education, it enhances security and access control while streamlining user management. Perfect for seamless integration into modern workflows.Standalone Solution & ConnectivityThe OPS PC Slot offers a convenient standalone solution, allowing easy integration without the need for additional devices. The USB-C connection provides seamless connectivity, enabling quick data transfer, video output, and power through a single cable for enhanced versatility and ease of use.Wall MountThe included wall mount bracket ensures secure and stable installation of your display. Designed for easy setup, it supports VESA compatibility and offers a sleek, space-saving solution. Its durable construction guarantees reliability, making it ideal for classrooms, offices, and meeting rooms.Speakers, Subwoover and Webcam BracketThe built-in front-facing speakers with an integrated subwoofer support conferencing configurations with ultra clear sound. The included webcam bracket ensures secure and stable installation of a webcam. Ideal for conferencing, presentations, and interactive applications.
LongProductName - 54.6'' 4K UHD 3840 x 2160 IPS, 16:9, 450 cd/m², 1200:1, 8ms, Android 14 OS, Wi-Fi, HDMI, DisplayPort, USB, RS-232c, OPS Slot, 1267 x 765.4 x 86 mm, 28.7 kg
LongSummaryDescription - iiyama TE5513A-B1AG. Product design: Interactive flat panel. Display diagonal: 138.7 cm (54.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 18/7. Operating system installed: Android. Product colour: Black
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Packaging content - Cables included - HDMI, Power, USB
Packaging content - Number of stylus pens - 4
Packaging content - Stylus pen - Yes
Packaging data - Package depth - 185 mm
Packaging data - Package height - 865 mm
Packaging data - Package weight - 34.8 kg
Packaging data - Package width - 1385 mm
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - Mean time between failures (MTBF) - 50000 h
Performance - Number of OSD languages - 13
Performance - On Screen Display (OSD) - Yes
Performance - On Screen Display (OSD) languages - Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian
Performance - Operating hours (hours/days) - 18/7
Performance - Purpose - Education
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI input ports quantity - 2
Ports & interfaces - HDMI output ports quantity - 1
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - OPS module slot - Yes
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 2
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - Wi-Fi - Yes
Ports & interfaces - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 125 kWh
Power - Energy efficiency class (SDR) - G
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 125 W
ProductName - TE5513A-B1AG
ShortSummaryDescription - iiyama TE5513A-B1AG, Interactive flat panel, 138.7 cm (54.6"), 3840 x 2160 pixels, Wi-Fi, 18/7
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Title - iiyama TE5513A-B1AG Signage Display Interactive flat panel 138.7 cm (54.6") Wi-Fi 450 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 18/7
URL - https://iiyama.com/gl_en/products/prolite-te5513a-b1ag/
WarrantyInfo - 5 years
Weight & dimensions - Display depth - 86 mm
Weight & dimensions - Display height - 765.4 mm
Weight & dimensions - Display weight - 28.7 kg
Weight & dimensions - Display width - 1267 mm
