Aqara SMART HOME FLOOR THERMOSTAT/W500 UT-A01D

barcode - 6975833357901
brand - Aqara
BrandCode - AQARA
Category - Root/Smarthome/Smart Home/Sterowniki inteligentne
Category Code - HAU
category_en - Smart home
category_et - Nutikodu
category_ru - Смарт дом
Cechy związane z elekrycznością: Maksymalne obciążenie - 16 A
Colour - White
Dane fizyczne: Kolor obudowy - biały
Dane fizyczne: Temperatura pracy - od 0 do +40 °C
Dane fizyczne: Wymiary - 86 x 86 x 45 mm
Dane techniczne: Detekcja - temperatury
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Komunikacja - Bluetooth
Dane techniczne: Komunikacja - Thread
Dane techniczne: Komunikacja - ZigBee
Dane techniczne: Maksymalna moc obsługiwanych urządzeń - 3600 W
Dane techniczne: Producent - Aqara
Dane techniczne: Rodzaj produktu - czujnik
Dane techniczne: Współpraca z systemami - Amazon Alexa
Dane techniczne: Współpraca z systemami - Apple HomeKit
Dane techniczne: Współpraca z systemami - Google Home
Dane techniczne: Wymagany Hub do połączenia - tak
Dane techniczne: Zasilanie - sieciowe
Description - Aqara Floor Heating Thermostat W500 (UT-A01D) Control your underfloor heating with the Aqara Floor Heating Thermostat W500. Supports Thread, Zigbee, smart schedules, remote control, and energy-saving automations Thread/Zigbee Support: The device features dual protocol support. In Thread mode, no Aqara hub is required to connect to third-party Matter ecosystems②, while Zigbee mode③ unlocks exclusive Aqara features and ensures backward compatibility with the classic Aqara Zigbee hubs without compromising Matter support. The flexible protocol switching lets users enjoy Matter integration or Aqara’s advanced functionalities based on their preference. Multiple Control Methods④ : The device offers multiple control options, including physical buttons, app control, voice commands, and scheduling. Its smart scheduling feature allows users to create personalised heating schedules with up to 7 time periods per day across all 7 days of the week. It also includes 5 preset modes for added convenience. Once schedules are set, they will run locally on the device—even if the internet is down or the device is accidentally disconnected from the hub. Precise Temperature Control: Achieve highly accurate temperature regulation with multiple sensor options and temperature calibration. The device can read temperature and humidity data from multiple sources⑤, including built-in sensors, wired floor sensors (NTC), or associated Aqara temperature and humidity sensors. Supports temperature calibration within a range of ±0-5℃⑥, allowing users to fine-tune the device for precise temperature control. Stay Warm, Uninterrupted: Set custom temperature buffers (0.5-3℃) around your goals and reduce the frequent on and off cycles of your heating system, thereby ensuring a more stable indoor environment and avoiding sudden temperature changes. This not only improves overall comfort, but also reduces energy consumption by avoiding unnecessary on and off, thereby extending the life of the equipment and improving energy efficiency. Energy Saving: Monitor real-time energy use and track daily/monthly consumption⑦ to better manage heating efficiency. If a window is left open (detected via Aqara door and Window sensor)⑥, heating pauses automatically to avoid waste. Even without a sensor, sudden temperature drops trigger a 30-minute pause to save energy. Supports Whole Home Energy Consumption feature on Aqara Home app when connected to an Aqara hub. Always-On Protection for Endurance and Safety: The device is equipped with a variety of safety protection mechanisms to effectively protect your heating system and home environment. Floor material protection prevents overheating for sensitive flooring⑧. Anti-freeze protection heats automatically around 5°C to avoid freezing⑥. Overheat & Overload auto shut-off the device when temperature or power exceeds safe limits.
description_en - W500 brings precise, energy-efficient control to your electric or hydronic floor heating system. With smart scheduling, remote access, and multi-sensor support, it keeps your home warm the smart way—all while saving energy and extending system life. The Floor Heating Thermostat W500 supports Thread and Zigbee for seamless integration with third-party ecosystems, suitable for electric/hydronic heating systems. It allows for the connection of an NTC floor sensor or an external Aqara sensor, offering features such as remote control, smart scheduling, and power monitoring, which help enhance home comfort and energy efficiency. Intelligently Automate Your Heaters
Electric heating devices utilizing only Live and Neutral wires or hydronic systems with 2-wire 230V normally closed (NC)actuators are compatible. The W500 is compatible with 86mm or EU round wall boxes and powered by Live and Neutral wires. Maximum output capacity of 16A and 3600W and a power supply of AC 220-250V at 50/60Hz. Thread/Zigbee Support
The device features dual protocol support. In Thread mode, no Aqara hub is required to connect to third-party Matter ecosystems, while Zigbee mode unlocks exclusive Aqara features and ensures backward compatibility with the classic Aqara Zigbee hubs without compromising Matter support. The flexible protocol switching lets users enjoy Matter integration or Aqara's advanced functionalities based on their preference. Multiple Control Methods
The device offers multiple control options, including physical buttons, app control, voice commands, and scheduling. Its smart scheduling feature allows users to create personalized heating schedules with up to 7 time periods per day across all 7 days of the week. It also includes 5 preset modes for added convenience. Once schedules are set, they will run locally on the device—even if the internet is down or the device is accidentally disconnected from the hub. Precise Temperature Control
Achieve highly accurate temperature regulation with multiple sensor options and temperature calibration. The device can read temperature and humidity data from multiple sources, including built-in sensors, wired floor sensors (NTC), or associated Aqara temperature and humidity sensors. Supports temperature calibration within a range of ±0-5℃, allowing users to fine-tune the device for precise temperature control. Stay Warm, Uninterrupted
Set custom temperature buffers (0.5-3℃) around your goals and reduce the frequent on and off cycles of your heating system, thereby ensuring a more stable indoor environment and avoiding sudden temperature changes. This not only improves overall comfort, but also reduces energy consumption by avoiding unnecessary on and off, thereby extending the life of the equipment and improving energy efficiency. Energy Saving
Monitor real-time energy use and track daily/monthly consumption to better manage heating efficiency. If a window is left open (detected via Aqara door and Window sensor), heating pauses automatically to avoid waste. Even without a sensor, sudden temperature drops trigger a 30-minute pause to save energy. Supports Whole Home Energy Consumption feature on Aqara Home app when connected to an Aqara hub. Always-On Protection for Endurance and Safety
The device is equipped with a variety of safety protection mechanisms to effectively protect your heating system and home environment. Floor material protection prevents overheating for sensitive flooring. Anti-freeze protection heats automatically around 5°C to avoid freezing. Overheat & Overload auto shut-off the device when temperature or power exceeds safe limits.
description_et - Aqara Floor Heating Thermostat W500 tagab täpse ja energiasäästliku juhtimise nii elektrilistele kui ka veepõhistele põrandaküttesüsteemidele. Nutikad ajakavad, kaugjuhtimine ja mitme sensori tugi hoiavad kodu alati sooja – targalt, tõhusalt ja säästlikult. Targa juhtimisega kütteautomaatika
W500 sobib elektriliste küttekehade juhtimiseks, mis kasutavad ainult faasi (L) ja nulli (N), ning veepõhiste põrandaküttesüsteemidega, kus kasutatakse 2-juhtmelisi, 230 V normaalolekus suletud (NC) ajameid. Seade on mõeldud paigaldamiseks 86 mm ristkülikukujulisse või EL-standardiga ümmargusse seinakarbikusse ning saab toite faasi ja nulli kaudu. Maksimaalne väljundvõimsus on 16 A / 3600 W ning toitepinge AC 220–250 V, 50/60 Hz. Thread ja Zigbee tugi
W500 toetab kaht juhtprotokolli. Thread-režiimis saab termostaati kasutada otse Matter-ökosüsteemides ilma Aqara keskseadmeta. Zigbee-režiimis avanevad Aqara eksklusiivsed funktsioonid ja tagatakse ühilduvus olemasolevate Zigbee-keskustega. Mitmekülgsed juhtimisvõimalused
W500 võimaldab juhtimist füüsiliste nuppude, rakenduse, häälkäskluste ja nutikate ajakavade kaudu. Saad seadistada kuni 7 ajaperioodi päevas igaks nädalapäevaks ja kasutada 5 eelseadistatud režiimi. Kõik ajakavad töötavad lokaalselt, isegi ilma interneti või ühenduseta keskseadmega. Täpne temperatuuri juhtimine ja kalibreerimine
Seade ühildub erinevate anduritega – sisseehitatud temperatuuriandur, NTC põrandasensor või väline Aqara temperatuuri- ja niiskusandur.
Toetab temperatuuri kalibreerimist vahemikus ±0–5 °C, et tagada maksimaalne täpsus. Stabiilne soojus, katkestusteta mugavus
Seadista oma soovitud temperatuurile 0,5–3 °C tolerants, et vältida sagedast sisse- ja väljalülitamist. See tagab ühtlasema sisekliima, vähendab energiatarbimist ja pikendab küttekeha eluiga. Energiasääst ja nutikas tuvastus
W500 võimaldab jälgida energiatarbimist reaalajas ning vaadata igapäevaseid ja igakuiseid tarbimisraporteid, et parandada kütmise tõhusust ja vähendada raiskamist. Kui avatud aken tuvastatakse Aqara ukse- või aknaanduri abil, peatab termostaat automaatselt kütte. Isegi ilma sensorita tuvastab seade järsu temperatuuri languse ning lülitub 30 minutiks välja, et säästa energiat. Kui W500 on ühendatud Aqara keskseadmega, toetab see ka terve kodu energiatarbimise jälgimist Aqara Home rakenduses. Pidev kaitse ja turvalisus
W500 on varustatud mitmekülgsete kaitsemehhanismidega, mis aitavad hoida küttekeskkonna turvalisena ja tagavad süsteemi pika tööea. Põrandakatte kaitse ennetab tundlike materjalide ülekuumenemist. Külmumiskaitse aktiveerub automaatselt umbes +5 °C juures, hoides ära torude ja põranda külmumise. Kui seade tuvastab ohtlikult kõrge temperatuuri või liigse koormuse, rakendub automaatne väljalülitus, mis kaitseb nii süsteemi kui ka kodu.
description_short_en - Smart thermostat for floor heating Accurate and customizable temperature control Efficient and energy-saving operation mode Built-in overheating and freezing protection Supports Zigbee, Thread and Matter protocols
description_short_et - Nutikas termostaat põrandaküttele Täpne ja kohandatav temperatuuri juhtimine Tõhus ja energiasäästlik töörežiim Sisseehitatud ülekuumenemis- ja külmumiskaitse Toetab Zigbee, Thread ja Matter protokolle
Dimensions - 86 × 86 × 45 mm
Dimensions - depth - 4.5
Dimensions - height - 8.6
Dimensions - weight - 244
Dimensions - width - 8.6
EAN - 6975833357901
Eans - 6975833357901
feature_group_en - Thermostats
feature_group_et - Termostaadid
feature_group_ru - Термостаты
Functions - voice control support - Amazon Alexa
Functions - voice control support - Google Assistant
General parameters - colour - white
General parameters - manufacturer - Aqara
GrossWeight - 0.2490
Group - IT > IT ACCESSORIES > SMARTHOME > SWITCHES
Height - 0.1030
Included Accessories - Floor Heating Thermostat W500 × 1, User Manual × 1, Compliance Statement × 1, Screw Kit × 1, NTC × 1
Interfaces - Apple HomeKit
Interfaces - Aqara Home
Interfaces - Bluetooth
Interfaces - Google Home
Interfaces - Matter
Interfaces - Samsung SmartThings
Interoperability standard - Bluetooth/ZigBee
Length - 0.0550
LongDescription EN - Precise control for floor heating
Suitable for electric and 230V NC water-based systems. Works with NTC floor sensors and Aqara climate sensors to regulate based on floor or room temperature.

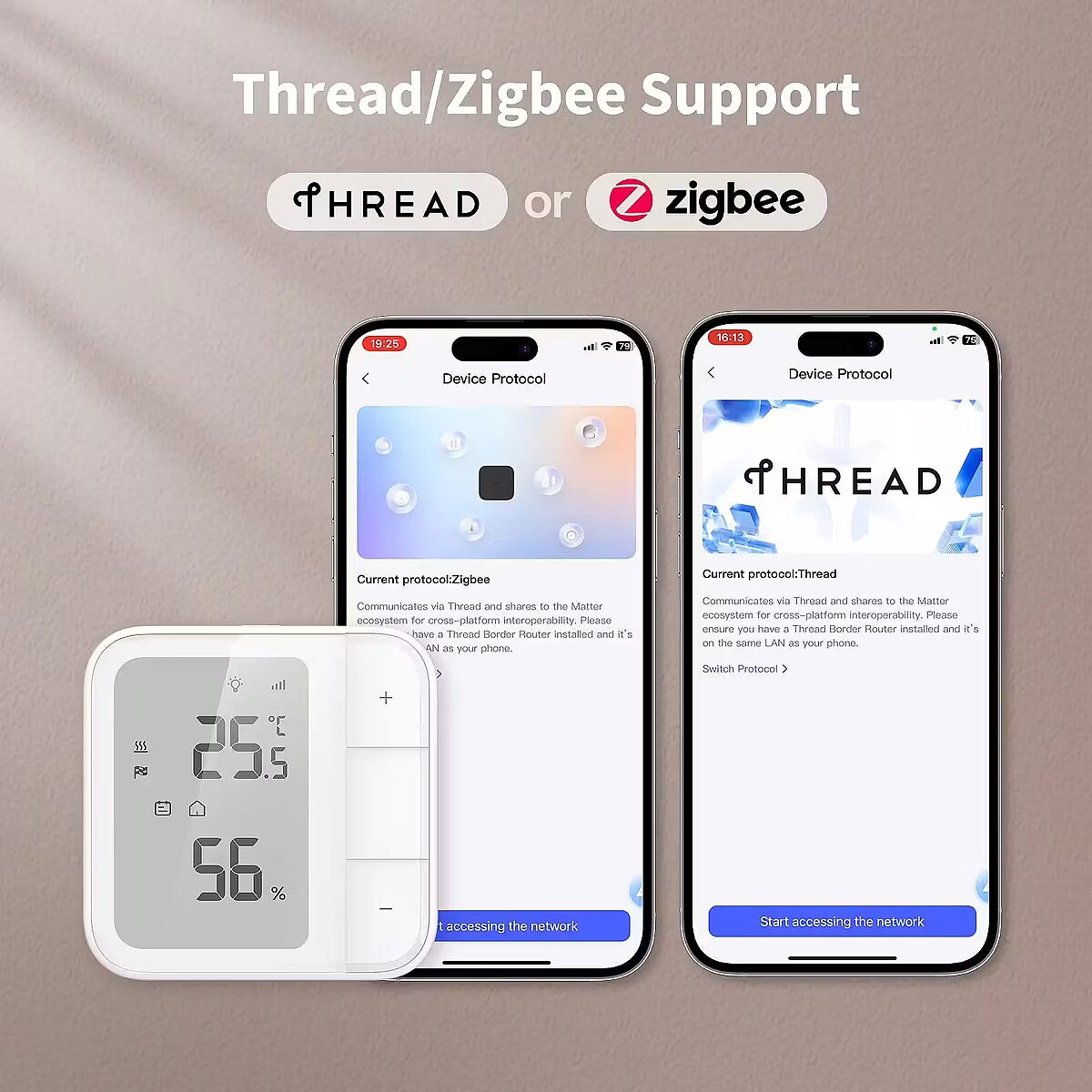

Thread and Zigbee support
Choose your connection mode as needed. Thread allows direct integration with Apple Home, Google Home, Alexa, and other Matter systems. Zigbee unlocks extra features within the Aqara app, like detailed scheduling and power metering.

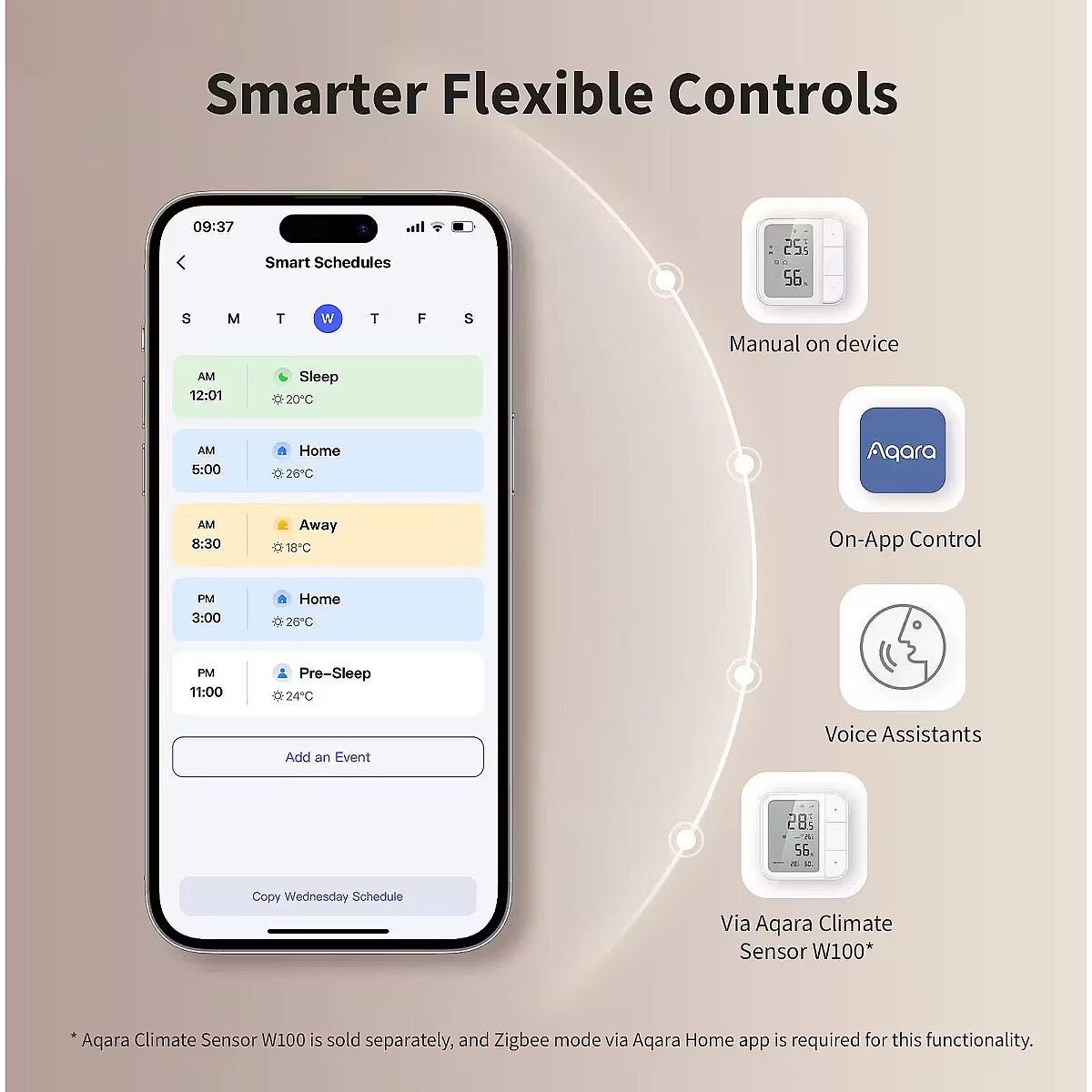

Smart control options
Operate via physical buttons, app, schedules, or voice commands. Supports up to 7 time slots per day and 5 preset modes. All schedules run locally—even without internet.
Stable and accurate temperature
Calibration range of ±0–5 °C. A comfort zone (e.g., ±1 °C from target) prevents frequent switching, resulting in more stable heating and longer system lifespan.

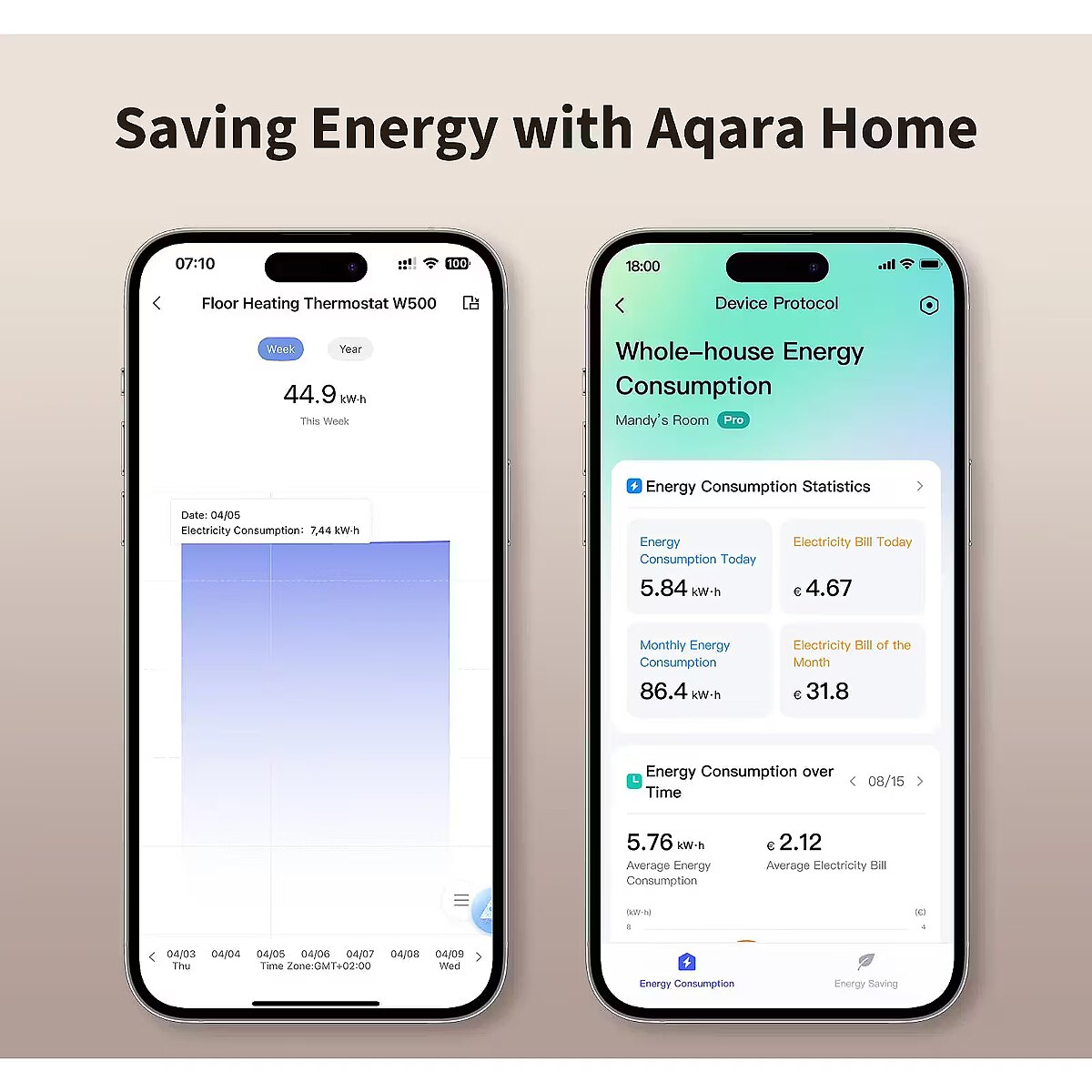

Energy tracking and auto eco mode
Monitor energy usage in real time and view daily or monthly stats. If a window is opened (detected via Aqara sensor), heating pauses automatically. Without a sensor, a 30-minute pause activates if a sudden temperature drop is detected.
Safe and durable
Built-in protections include:
• Overheat protection for flooring
• Frost protection (activates below +5 °C)
• Auto shutoff for overload or high temperatures
Installation and compatibility
Fits 86 mm EU and round wall boxes. Power: 220–250 V (L + N), max output 16 A / 3600 W. Supported platforms: Apple Home, Google Home, Alexa, Home Assistant, SmartThings, Homey.
LongDescription ET - Täpne juhtimine põrandaküttele
W500 sobib elektrilistele või veepõhistele (230V NC) põrandaküttesüsteemidele. Toetab nii NTC-põrandasensorit kui ka Aqara kliimaandureid, võimaldades seadistada põrandapinna või toa temperatuuri järgi kütmist.
Thread ja Zigbee tugi
Vali ühendusprotokoll vastavalt vajadusele. Thread-režiimis ühildub otse Apple Home’i, Google Home’i, Alexa jt Matteri-toega süsteemidega. Zigbee-režiim avab lisafunktsioonid Aqara süsteemis, sealhulgas detailsemad ajastused ja energiamõõdikud.
Nutikad juhtimisvõimalused
Termostaati saab juhtida füüsiliste nuppude, äpi, ajastuste ja häälkäskluste kaudu. Toetab kuni 7 ajavahemikku päevas ja 5 eelseadistatud režiimi. Kõik ajastused töötavad lokaalselt ka siis, kui internet puudub.
Täpne ja stabiilne temperatuur
Kalibreeritav temperatuurivahemikus ±0–5 °C. Saab määrata ka mugavustsooni (nt ±1 °C eesmärgist), et vältida sagedast sisse- ja väljalülitamist, tagades sujuvama temperatuuri ning pikema eluea küttesüsteemile.
Energiatarbe jälgimine ja automaatne säästurežiim
Jälgi energiakasutust reaalajas ning vaata päevas- või kuupõhist tarbimist. Kui aken jääb avatuks (tuvastatakse Aqara ukse-/aknaanduriga), lülitub küte automaatselt pausile. Ilma sensorita aktiveerub 30-minutiline paus äkilise temperatuurilanguse korral.
Turvaline ja vastupidav
Termostaat sisaldab mitmekordseid kaitseid:
• põrandakatte kaitse ülekuumenemise eest
• külmumiskaitse (aktiveerub alla +5 °C)
• ülekoormuse ja ülekuumenemise automaatne väljalülitus
Paigaldus ja ühilduvus
Sobib Euroopa 86 mm ja ümaratesse seinakarpidesse. Toiteallikas: 220–250 V (L + N), maksimaalne väljundvõimsus 16 A / 3600 W. Toetab süsteeme: Apple Home, Google Home, Alexa, Home Assistant, SmartThings, Homey.
LongDescription LV - Precīza vadība grīdas apkureiPiemērots elektriskajām un 230 V NC tipa ūdens sistēmām. Saderīgs ar NTC grīdas sensoriem un Aqara klimata sensoriem, ļaujot regulēt temperatūru pēc grīdas vai telpas rādījumiem. Atbalsts Thread un Zigbee protokoliemIzvēlieties savienojuma veidu atbilstoši vajadzībām. Thread nodrošina tiešu integrāciju ar Apple Home, Google Home, Alexa un citiem Matter risinājumiem. Zigbee aktivizē papildu iespējas Aqara lietotnē – detalizētu grafiku pārvaldību un enerģijas uzskaiti. Viedas vadības iespējasKontrolējiet apkuri ar fiziskajām pogām, lietotni, ieplānotiem grafikiem vai balss komandām. Atbalsta līdz 7 laika posmiem dienā un 5 iepriekš definētus režīmus. Visi grafiki darbojas lokāli – pat bez interneta. Stabila un precīza temperatūraKalibrēšanas diapazons ±0–5 °C. Komforta zona (piemēram, ±1 °C no mērķa temperatūras) novērš biežu ieslēgšanos un izslēgšanos, nodrošinot vienmērīgāku apkuri un ilgāku sistēmas kalpošanu. Enerģijas uzskaite un automātiska eko režīma aktivizēšanaReāllaikā sekojiet enerģijas patēriņam ar ikdienas un mēneša pārskatiem. Ja tiek atvērts logs (noteikts ar Aqara sensoru), apkure automātiski pauzējas. Bez sensora apkure tiek pārtraukta uz 30 minūtēm pie straujas temperatūras krišanās. Drošs un izturīgsIebūvēta aizsardzība ietver:• Pārkaršanas aizsardzību grīdas segumam• Aizsardzību pret aizsalšanu (aktivizējas zem +5 °C)• Automātisku izslēgšanos pārslodzes vai pārmērīgas temperatūras gadījumā Vienkārša uzstādīšana un plaša saderībaPiemērots 86 mm EU un apaļajiem montāžas standartiem. Barošana: 220–250 V (L + N), maksimālā jauda: 16 A / 3600 W. Atbalstītās platformas: Apple Home, Google Home, Alexa, Home Assistant, SmartThings, Homey.
manufacturer_code - UT-A01D
MediumDescription EN - Aqara W500 floor heating thermostat enables smart control for both electric and water-based systems. It supports Thread and Zigbee protocols, works without internet, and offers precise temperature regulation with energy-saving features.
• Compatible with Matter and Aqara ecosystems
• Accurate multi-sensor temperature control
• Smart schedules and remote management
• Energy usage tracking and eco modes
• Protection against overheating, freezing, and overload
MediumDescription ET - Aqara W500 põrandakütte termostaat võimaldab targa kodu juhtimist nii elektri- kui ka veepõhise kütte korral. Toetab Thread- ja Zigbee-protokolle, töötab ilma internetiühenduseta ning pakub täpset temperatuuri reguleerimist ja energiasäästu.
• Ühildub Matteri ja Aqara süsteemidega
• Täpne temperatuurikontroll mitme anduriga
• Nutikad ajastused ja kaugjuhtimine
• Energiatarbimise jälgimine ja säästurežiimid
• Ülekuumenemise, külmumise ja ülekoormuse kaitse
MediumDescription LV - Aqara W500 grīdas apkures termostats nodrošina viedu un precīzu temperatūras regulēšanu gan elektriskajām, gan ūdens apkures sistēmām. Tas atbalsta Thread un Zigbee protokolus, darbojas arī bez interneta pieslēguma un palīdz jums samazināt enerģijas patēriņu, nezaudējot komfortu. • Saderīgs ar Matter un Aqara viedās mājas ekosistēmām
• Precīza temperatūras kontrole, izmantojot vairākus sensorus
• Viedie grafiki un attālināta pārvaldība caur lietotni
• Enerģijas patēriņa uzskaite un ekonomiskie režīmi
• Aizsardzība pret pārkaršanu, aizsalšanu un pārslodzi
Model - Aqara Floor Heating Thermostat W500 (UT-A01D)
Model name - W500
Name - Aqara Floor Heating Thermostat W500
Name EN - Aqara Floor Heating Thermostat W500
Name ET - Aqara Floor Heating Thermostat W500
NameInWeb EN - Aqara Floor Heating Thermostat W500, white - Smart thermostat
NameInWeb ET - Aqara Floor Heating Thermostat W500, valge - Nutikas termostaat
NameInWeb LV - Aqara Floor Heating Thermostat W500, balta - Viedais termostats
Name LV - Aqara Floor Heating Thermostat W500
name_en - Aqara Floor Heating Thermostat W500
name_et - Aqara termostaat Floor Heating Thermostat W500
NetWeight - 0.2169
Power supply - power supply - mains
Producent: Nazwa producenta / importera - Aqara
eVatmaster Consulting GmbH
Raiffeisenstraße 2 B11
63110 Rodgau

Producer - Aqara
ProducerCode - UT-A01D
ProductCode - UT-A01D
ProductionCountry - CN
Product Net Weight - 0.244 kg
SalesUnitOfMeasureCode - tk
ShortDescription - Floor Heating Thermostat W500
Smart home - compatible with - Aqara Hub M2
Smart home - compatible with - Aqara Hub M3
TariffNo - 90321080
Unit Box Height - 0.055
Unit Box Length - 0.105
Unit Box Width - 0.105
Unit Calculated Volume - 0.0009256 cubm
Unit Calculated Weight - 0.28 kg
UnitOfMeasureCode - tk
UnitsPerPackage - 1
Units per Pallet - 0
Units per Shipping Box - 45
Vendor Homepage - www.aqara-shop.co.uk/product/aqara-floor-heating-thermostat-w500/
Volume - 0.00058350
Warranty - 24 months
Width - 0.1030
