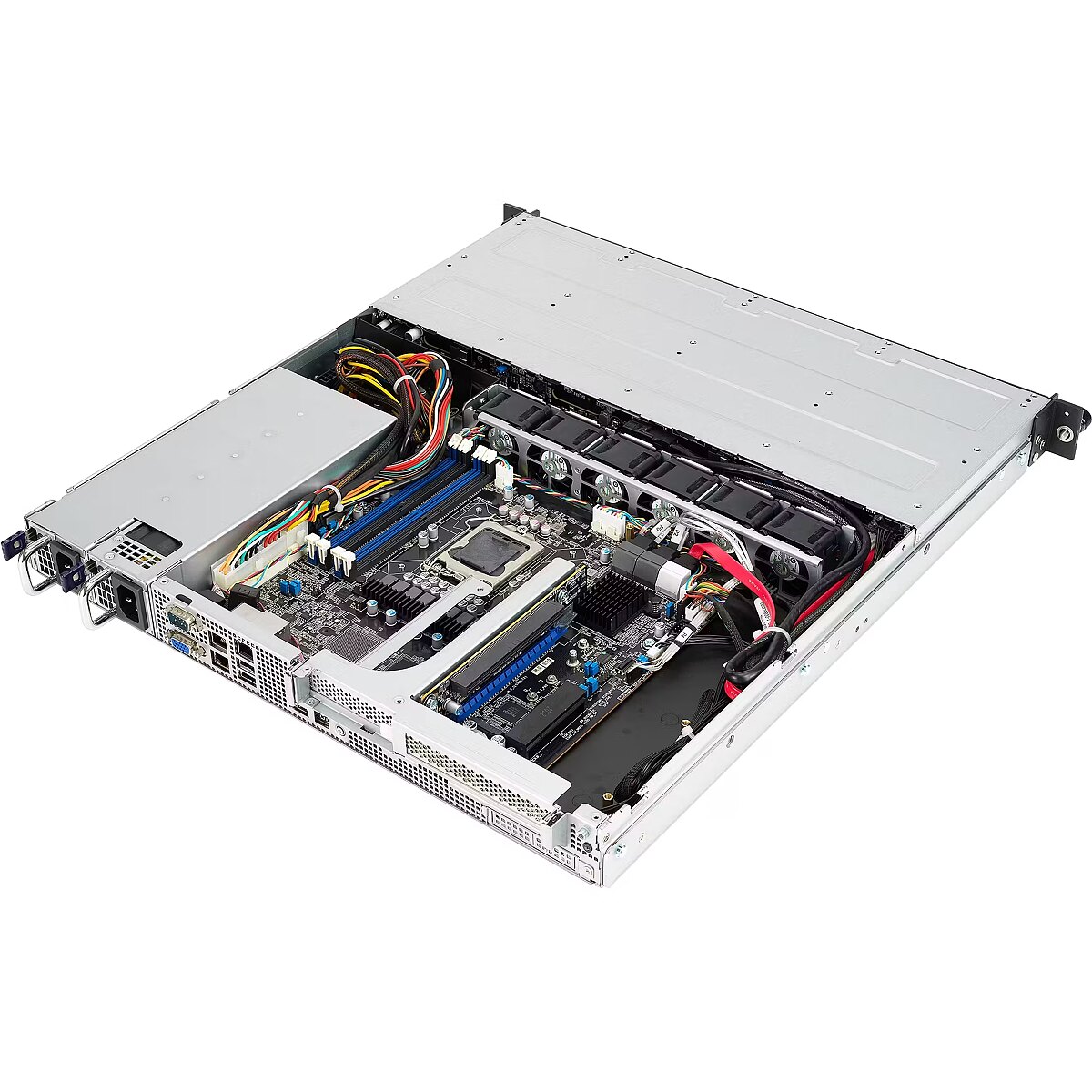

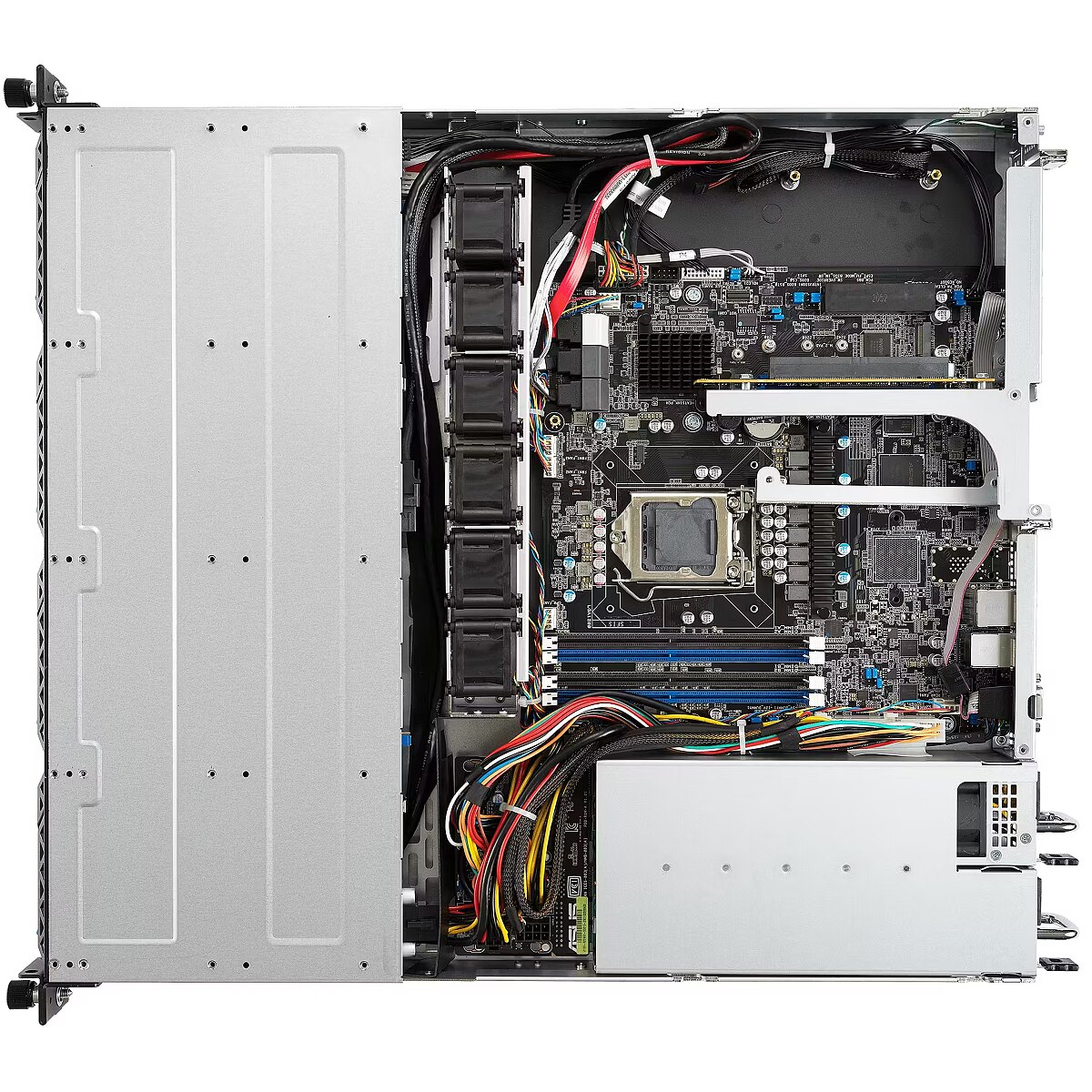

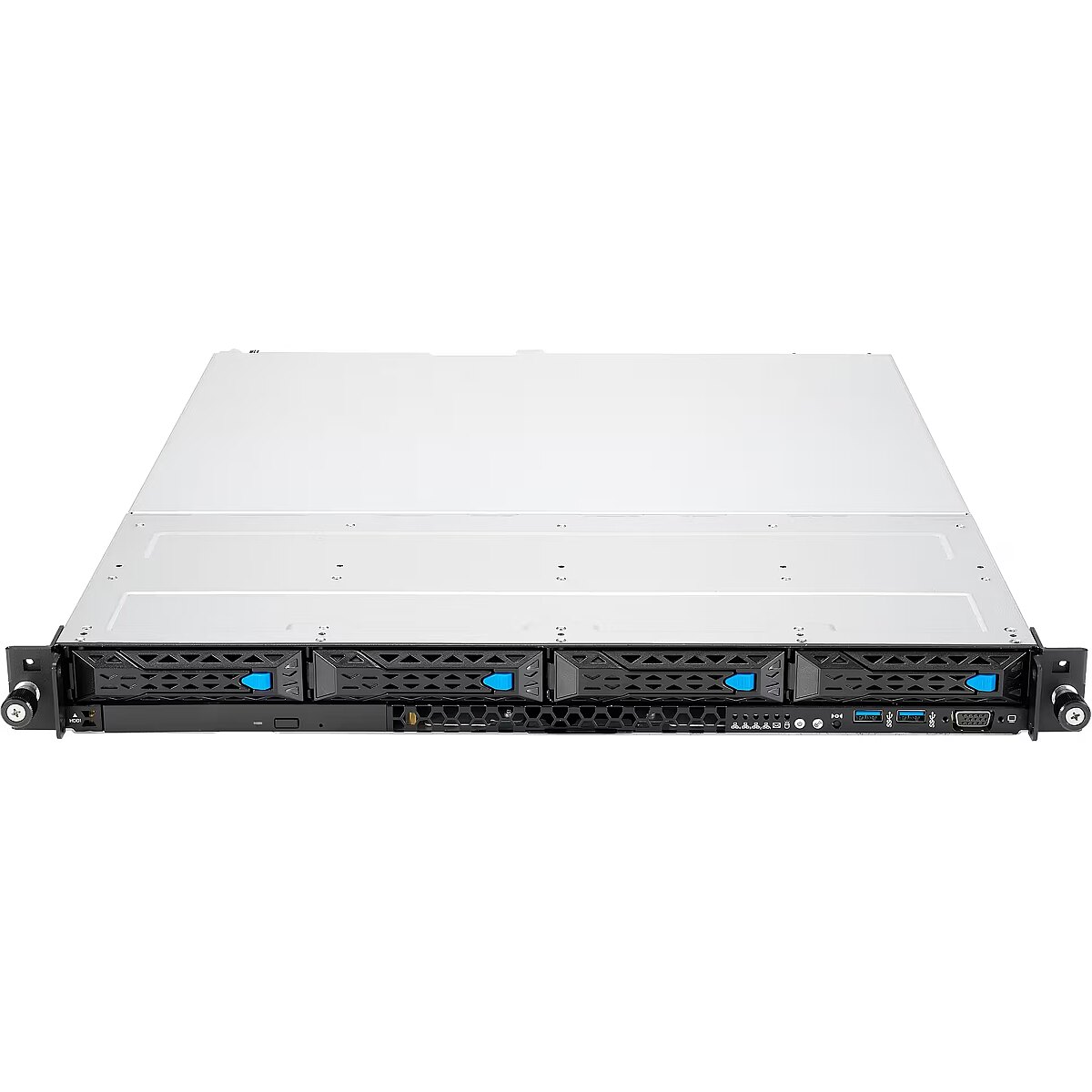

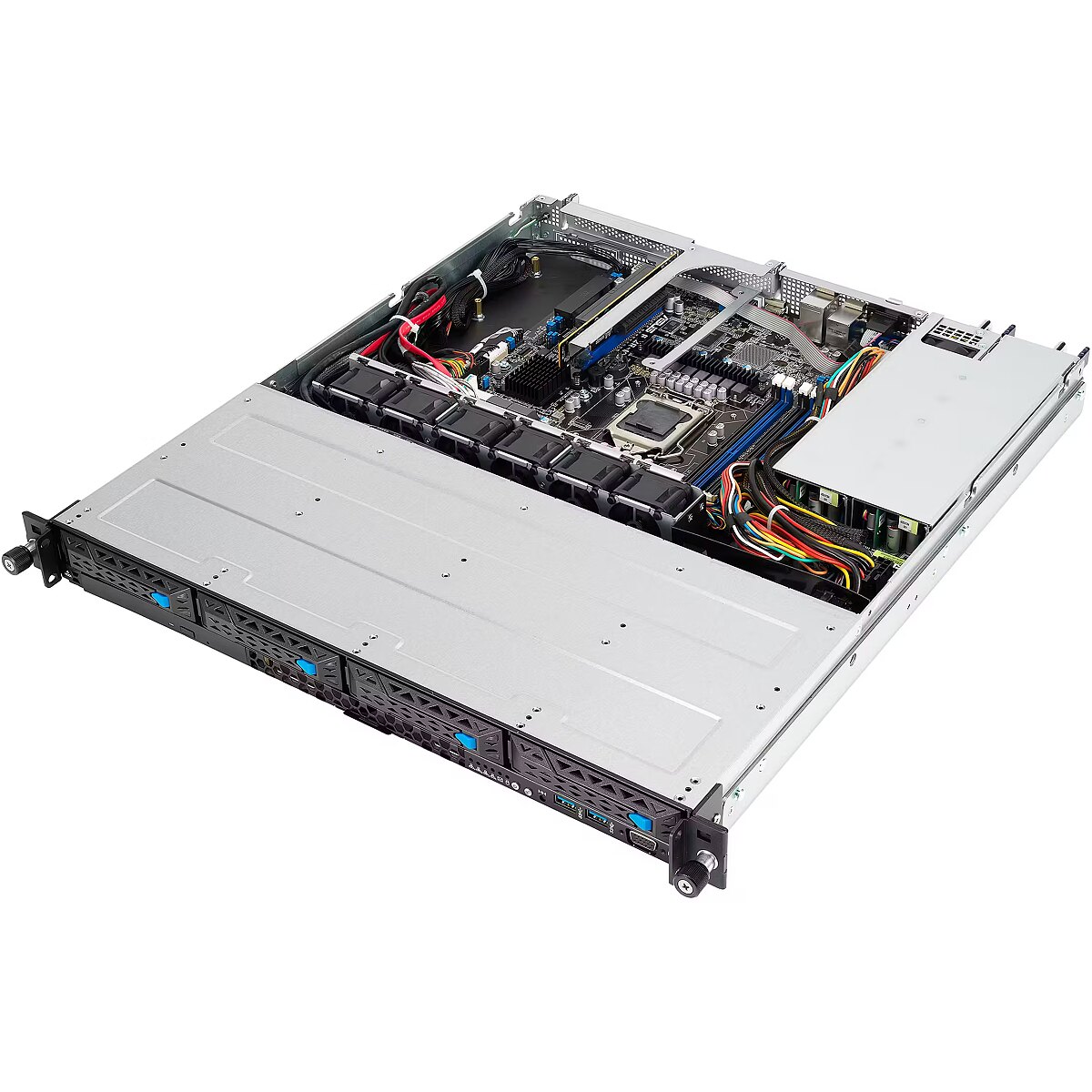

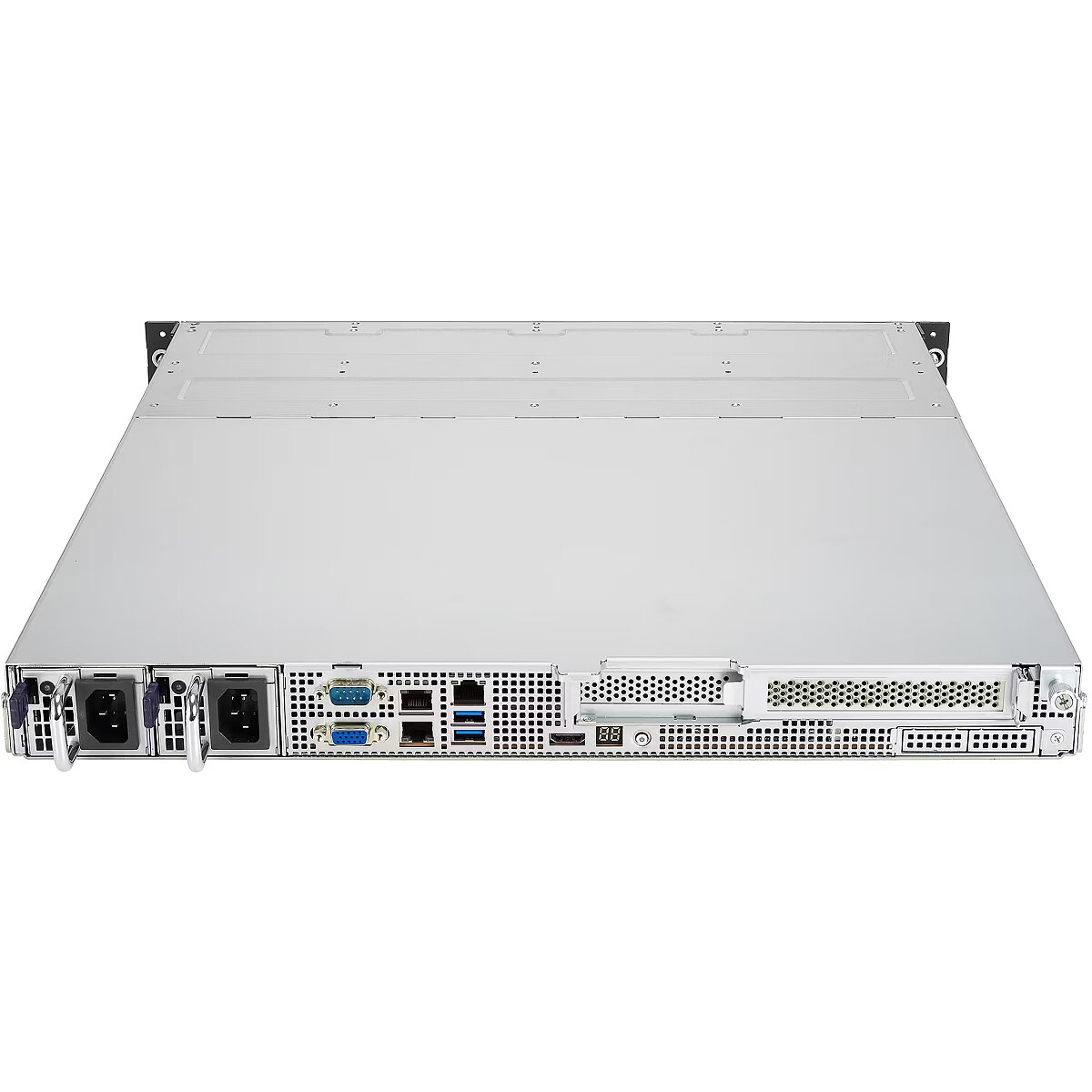

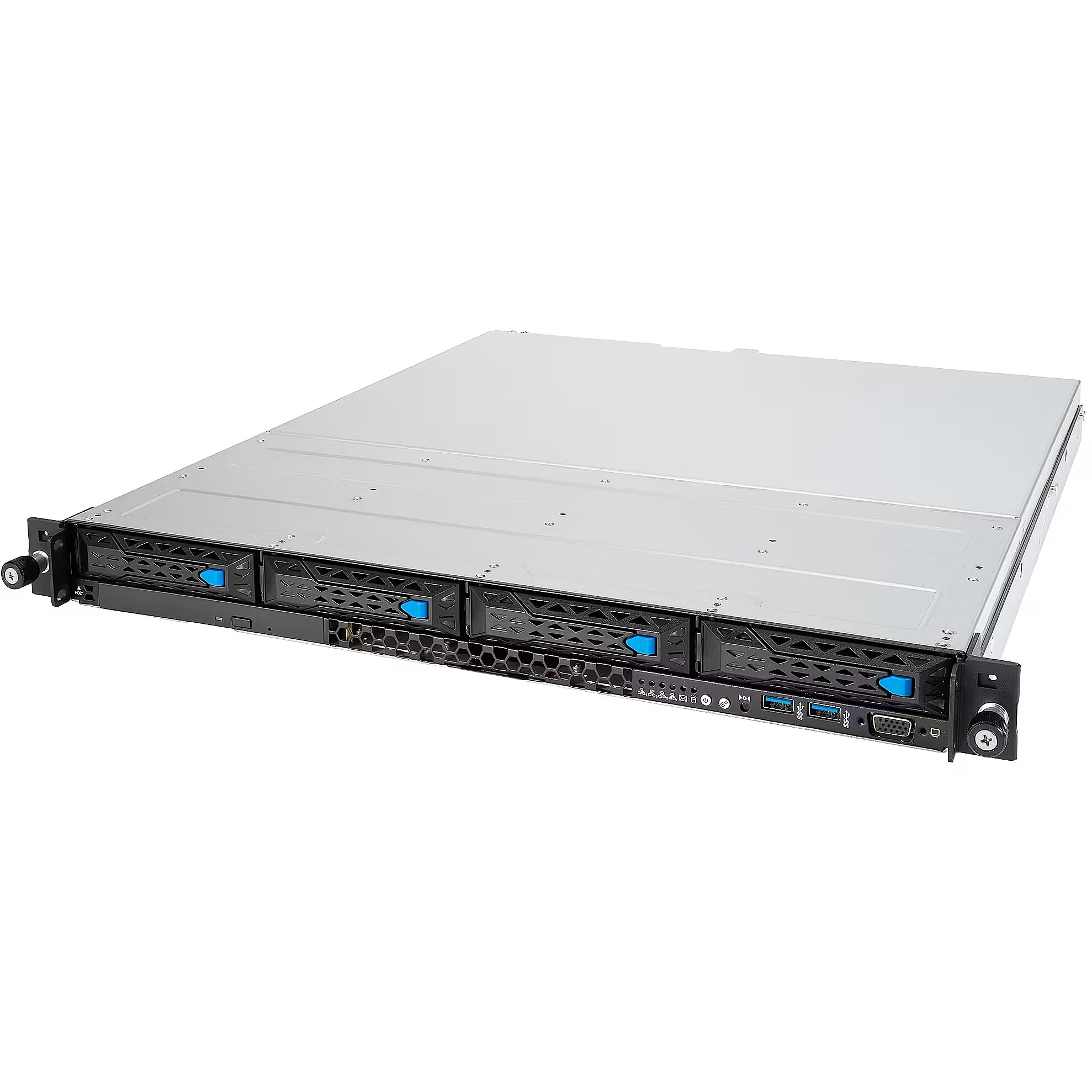

Asus RS300-E11-PS4 Intel C252 LGA 1200 (Socket H5) Rack (1U) Silver

Brand - ASUS
BrandPartCode - 90SF01Y1-M000E0
Category - Server Barebones
Design - Certification - BSMI, CE, FCC(Class A)
Design - Chassis type - Rack (1U)
Design - Product colour - Silver
dimensionalWeight - 18995
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express slots version - 3.0
Expansion slots - PCI Express slots version - 3.0, 4.0
Expansion slots - PCI Express slots version - 4.0
Graphics - On-board graphics card memory - 64 MB
Graphics - On-board graphics card model - Aspeed AST2600
GTIN - 4711081496151
LongDesc - Intel® Xeon® E-2300 1U server with four DIMM, two NVMe, one M.2 and two PCIe 4.0 slots, dual LAN, 80 PLUS® Platinum redundant power supplies, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVMIntel Xeon E-2300 processorsSmall businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.PCIe 4.0 ReadyPCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS300-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.Redundant Platinum PSU support​RS300-E11-RS4 supports redundant 450W 80 PLUS Platinum power supplies, which are 96%+ efficient, directly reducing operating costs and capital expenses. The 1+1 power-supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation.​Enhanced securityASUS RS300-E11 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.In addition, all RS300-E11 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.* Platform Firmware Resilience (PFR) module must be specified at time of purchase and is factory-fitted. It is not for sale separately.High-resolution HDMI monitoringRS300-E11 server features a HDMI 1.4 port directed from CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.Dual Ethernet BandwidthFeaturing dual onboard LAN ported by Intel I210-AT Ethernet Controller, RS300-E11 server provides server-grade connectivity and supports high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applicationsServer-management SolutionASUS ASMB10-iKVMASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.ASUS Control CenterASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
LongProductName - 1 x Socket LGA1200, Intel C252, DDR4, 4 x 3.5” Hot-Swap HDD, 2 x Intel I210AT + 1 x Mgmt LAN, 1U, 15.2 kg
LongSummaryDescription - ASUS RS300-E11-RS4. Motherboard chipset: Intel C252, Processor socket: LGA 1200 (Socket H5). Supported memory types: DDR4-SDRAM, Supported DIMM module capacities: 4GB, 8GB, 16GB, 32GB, Maximum internal memory: 128 GB. Storage drive sizes supported: 3.5,M.2, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: M.2, Serial ATA III. On-board graphics card model: Aspeed AST2600, On-board graphics card memory: 64 MB. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Intel® I210-AT
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Number of DIMM slots - 4
Memory - Supported DIMM module capacities - 4GB
Memory - Supported DIMM module capacities - 4GB, 8GB, 16GB, 32GB
Memory - Supported DIMM module capacities - 8GB
Memory - Supported DIMM module capacities - 16GB
Memory - Supported DIMM module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Supported UDIMM clock speeds - 2666
Memory - Supported UDIMM clock speeds - 2666,3200 MHz
Memory - Supported UDIMM clock speeds - 3200 MHz
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet interface type - Fast Ethernet, Gigabit Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I210-AT
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 20 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Ports & interfaces - COM ports quantity - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Number of SATA III connectors - 6
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Power - 80 PLUS certification - 80 PLUS Titanium
Power - Power supply - 450 W
Processor - Motherboard chipset - Intel C252
Processor - Number of processors supported - 1
Processor - Processor socket - LGA 1200 (Socket H5)
producerCode - 90SF01Y1-M000E0
productName - ASUS RS300-E11-PS4 Intel C252 LGA 1200 (Socket H5) Rack (1U) Silver
ProductName - RS300-E11-RS4
productSize - Normal
ShortSummaryDescription - ASUS RS300-E11-RS4, Intel C252, LGA 1200 (Socket H5), DDR4-SDRAM, 4GB, 8GB, 16GB, 32GB, 128 GB, 2666,3200 MHz
sizeX - 842
sizeY - 188
sizeZ - 600
Storage - Hot-swap HDD bays - Yes
Storage - Number of 3.5" bays - 4
Storage - Number of storage drives supported - 7
Storage - SSD form factor - M.2
Storage - Storage drive sizes supported - 3.5"
Storage - Storage drive sizes supported - 3.5,M.2
Storage - Storage drive sizes supported - M.2
Storage - Supported storage drive interfaces - M.2, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Title - ASUS RS300-E11-RS4 Intel C252 LGA 1200 (Socket H5) Rack (1U) Silver
URL - https://servers.asus.com/products/Servers/Rack-Servers/RS300-E11-RS4/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 15670
Weight & dimensions - Depth - 497 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 15.2 kg
Weight & dimensions - Width - 439.5 mm
