Dahua REJESTRATOR IP DAHUA NVR2104-4KS3

Brand - Dahua Technology
BrandPartCode - DHI-NVR2104-4KS3
Category - Network Video Recorders (NVR)
dimensionalWeight - 1778
Features - Certification - CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Features - Certification - CE EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 CE LVD: EN 62368-1:2014 2023-09-26
Features - Product colour - White
Features - Rack capacity - 1U
Features - Rack mounting - Yes
GTIN - 6923172507839
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 20 TB
Hard drive - Number of HDDs installed - 1
LongDesc - 4CH Smart 1U 1HDD Lite Network Video RecorderThe NVR2000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. This NVR is both costeffective and easy-to-install, making it ideal for a wide range of applications such as villas, shops and other small and medium-sized scenes.Functions- SMD PlusWith intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and ilter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.- Perimeter Protection by CameraAutomatically ilters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.

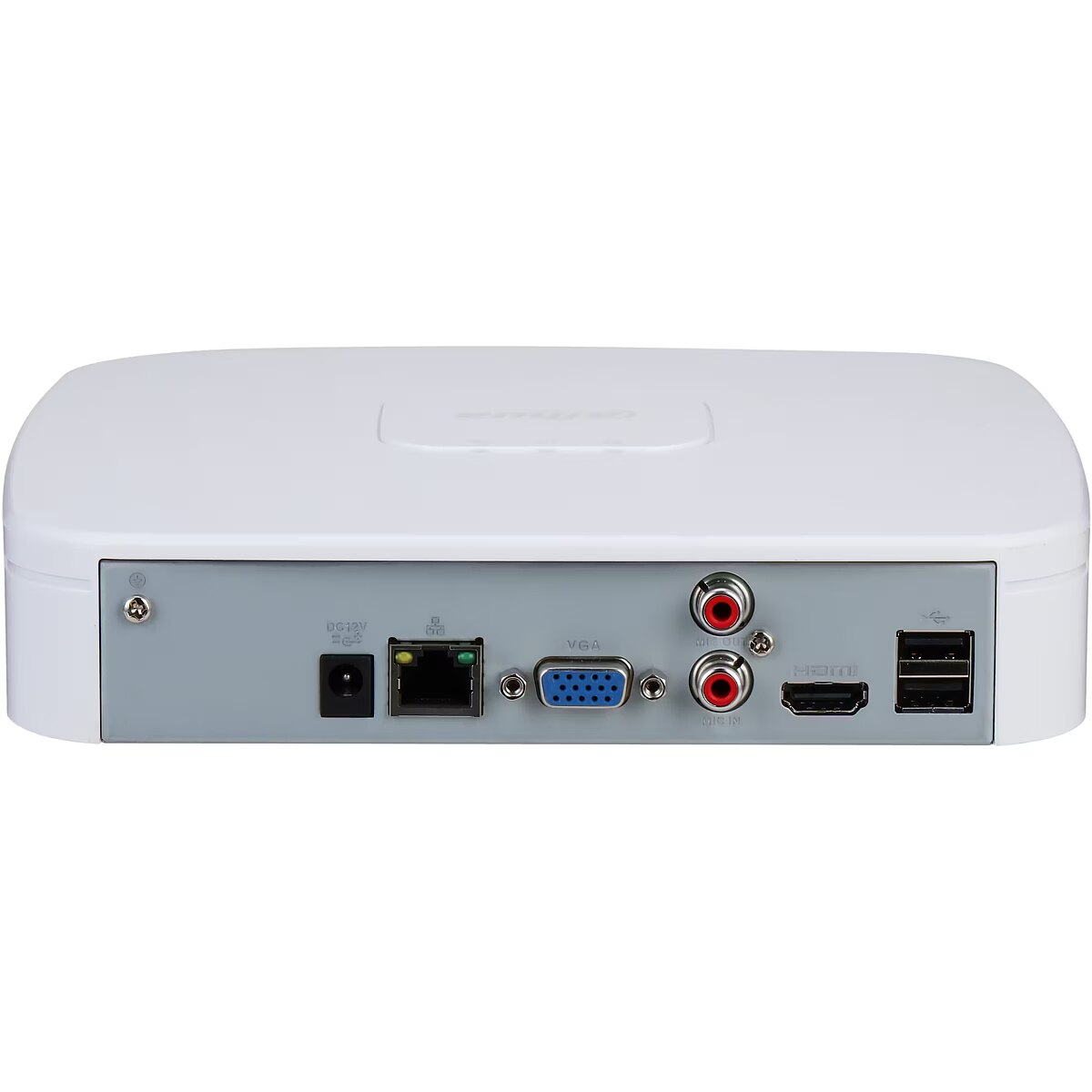

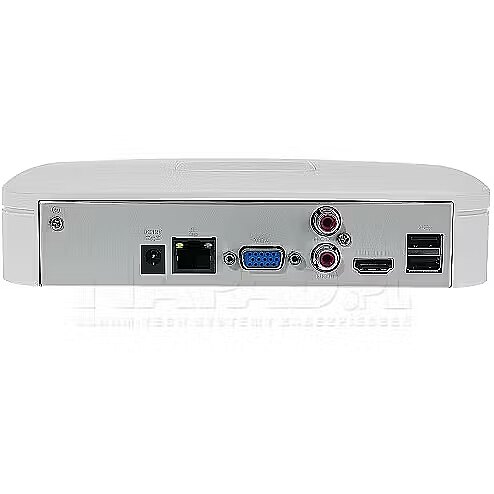

LongProductName - 4 channels, RCA x 2, SATA x 1, USB x 2, HDMI x 1, VGA x 1, RJ-45 x 1, 204.6 x 206.4 x 45.6 mm, 450g
LongSummaryDescription - Dahua Technology Lite NVR2104-4KS3. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 960p, 1080p. Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports.... Rack capacity: 1U, Product colour: White, Certification: CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN.... Power consumption (typical): 10 W, Output current: 1.5 A, Output voltage: 12 V
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Performance - Audio codecs - PCM; G711A; G711U; G726
Performance - Audio formats supported - G.711 A-law, G.711 μ-law, G.726, PCM
Performance - Image formats supported - MJPEG
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Operating system installed - Embedded LINUX
Performance - Output bandwidth - 60 Mbit/s
Performance - Playback modes - Pause, Play, Stop
Performance - Recording modes - Motion detection, manual recording, smart recording, alarm
Performance - Supported resolutions - HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Performance - Video codecs - Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video input channels - 4 channels
Performance - Video motion detection - Yes
Performance - Video recording modes - 720p
Performance - Video recording modes - 720p, 960p, 1080p
Performance - Video recording modes - 1024p
Performance - Video recording modes - 1080p
Performance - Video recording modes - 2160p
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - eSATA ports quantity - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - Ethernet LAN data rates - 100
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.5 A
Power - Output voltage - 12 V
Power - Power consumption (typical) - 10 W
Processor - Built-in processor - Yes
producerCode - NVR2104-4KS3
productName - DAHUA IP RECORDER NVR2104-4KS3
ProductName - NVR2104-4KS3
productSize - Normal
ShortSummaryDescription - Dahua Technology Lite NVR2104-4KS3, 4 channels, 3840 x 2160 pixels, 720p, 960p, 1080p, HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720, G.711 A-law, G.711 μ-law, G.726, PCM, H.264, H.264+, H.265, H.265+
sizeX - 360
sizeY - 95
sizeZ - 260
System requirements - Browser supported - Chrome, IE9 lub wyższy, Firefox, Safari, Edge
System requirements - Browser supported - Chrome; IE; Safari; Edge; Firefox
System requirements - Mobile operating systems supported - Android
System requirements - Mobile operating systems supported - Android, iOS
System requirements - Mobile operating systems supported - iOS
Title - Dahua Technology Lite NVR2104-4KS3 1U White
URL - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2104-4KS3
WarrantyInfo -
warrantyLength - 24
warrantyType - F
weight - 1040
Weight & dimensions - Depth - 206.4 mm
Weight & dimensions - Height - 45.6 mm
Weight & dimensions - Package depth - 96 mm
Weight & dimensions - Package depth - 364 mm
Weight & dimensions - Package height - 261 mm
Weight & dimensions - Package weight - 1.05 kg
Weight & dimensions - Package weight - 1.42 kg
Weight & dimensions - Package width - 96 mm
Weight & dimensions - Package width - 364 mm
Weight & dimensions - Weight - 450 g
Weight & dimensions - Weight - 480 g
Weight & dimensions - Width - 204.6 mm
Wireless LAN features - Wi-Fi - No
