Code - EV-CB-EXT-T2-32-3P-W-5m
Design > Cable length - 5 m
Design > Product family - EV+ Charging Cable Extender Type 2 32A 3 phase
EAN - 5060687661180
Name - EV+ Charging Cable Extender Type 2 32A 3 phase 5m | EV+ | EV-CB-EXT-T2-32-3P-W-5m | EV+ Charging Cable Extender Type 2 32A 3 phase | 5 m
Operational conditions > Operating temperature (T-T) - -30°C to +50 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 395.00 mm
Package features > Gross height (mm) - 385.00 mm
Package features > Gross width (mm) - 85.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 134 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Technical details > Charging capacity - 22 kW

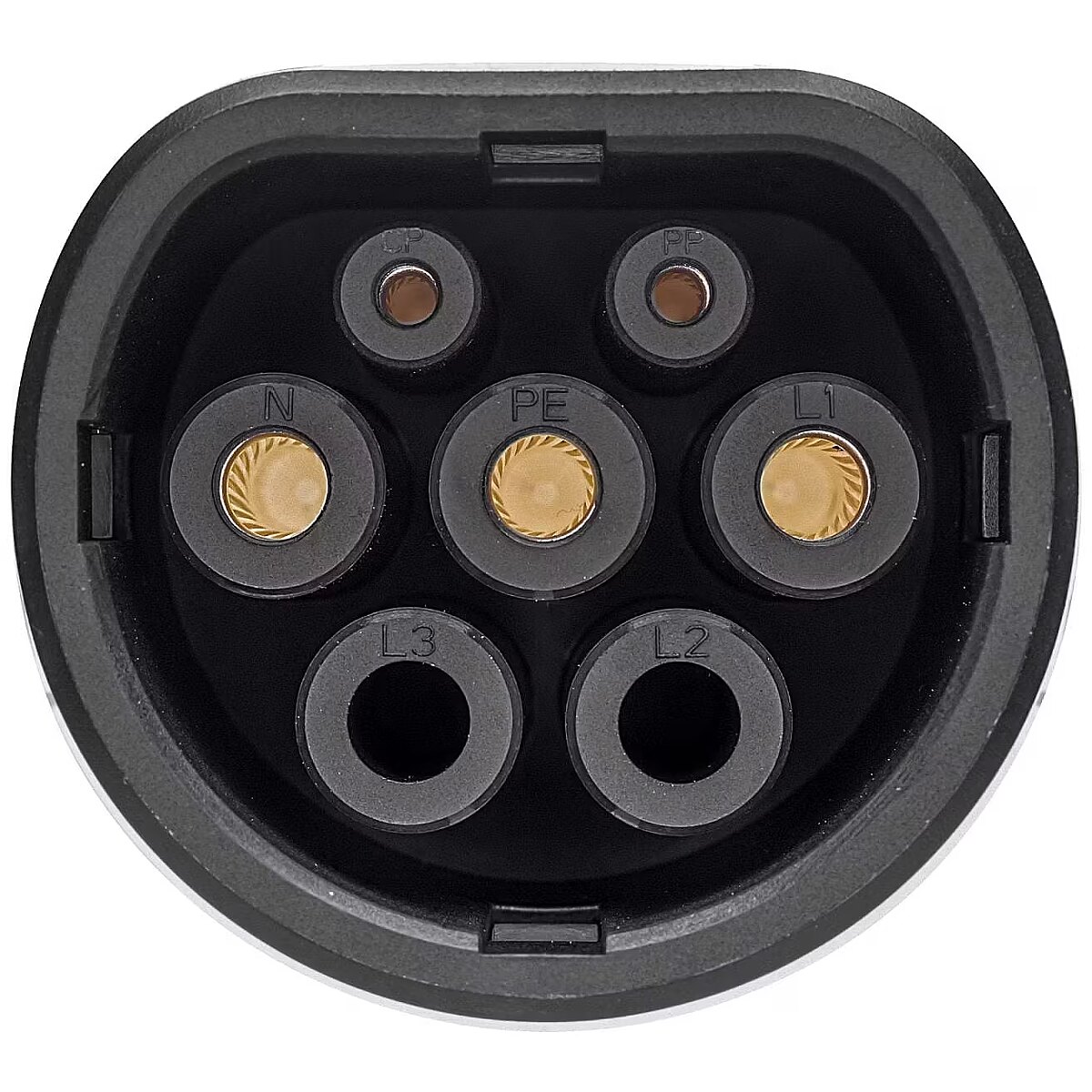

Technical details > Connector type - Type 2
Technical details > Gross weight - 2.58 kg
Technical details > IP class - 54
Technical details > Net weight - 2.38 kg

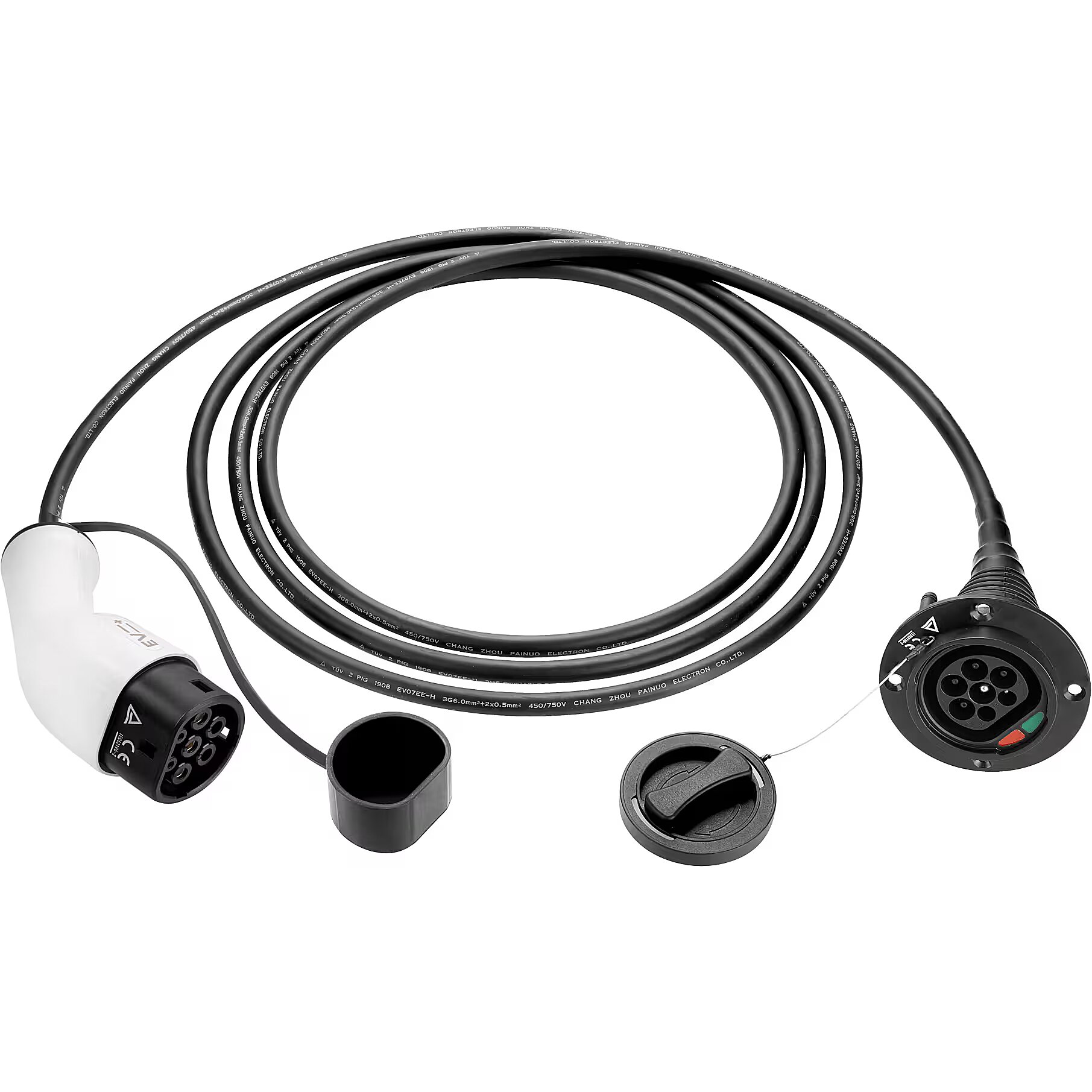

Technical details > Other features - With this EV charging cable extender Type 2 32A 3 phase 5m, you can extend your existing charging cable Type 2 to 5 meters longer. Compatible with Type 2 charging cables. The cable is 32 A, 3-phase and charges your EV with up to 22kW of power. The product has a nice appearance, a hand-held ergonomic design and is easy to plug. The working length is 5 meters and is made from thermoplastic material. It has protection level IP54, is anti-flaming, pressure-resistant, abrasion-resistant and impact resistant
Technical details > Producer - EV+
Technical details > Product name - EV-CB-EXT-T2-32-3P-W-5m
Warranty - 24
Warranty - 24 month(s)
