Digitus HDBaseT KVM Extender Set 150m 4K/60Hz USB 1.1 PoC IR black

Accessories included - 1 x transmitter module 1 x receiver module 1 x IR transmitter cable (1.5m) 1 x IR receiver cable (1.5m) 1 x Power adapter (DC 24V/1A, 1.15m) 1 x USB connecting cable (1.5m) 1 x mounting materials 1 x User Manual
ARTIKEL1 - HDBASET KVM EXTENDER SET 150M
ARTIKEL2 - 4K/60HZ USB 1.1 POC IR BLACK
Breite - 0
Category 1 - Kabel & Adapter
Category 2 - Display
Category 3 - HDMI
Color - Black
Connectors #1 - 3,5mm IR Female x 2
Connectors #1 - DC 5.5/2.1 female
Connectors #1 - HDMI Type A Female
Connectors #1 - RJ45 Female
Connectors #1 - USB Micro-A Female
Connectors #1 - USB Type B Female
Connectors #2 - 3,5mm IR Female x 2
Connectors #2 - DC 5.5/2.1 female
Connectors #2 - HDMI Type A Female
Connectors #2 - USB Micro-B Female
Connectors #2 - USB Type A Female x2
Description - The HDBaseT HDMI KVM extender kit enables the transmission of uncompressed, high-definition audio/video signals over long distances over a CAT6A network cable (or higher specification network cable). The maximum transmission range is 150 m. Thanks to PoC technology, only one module needs to be connected to the power supply via an external power supply. The receiver module is equipped with two USB ports (1.1) for connecting a mouse and keyboard, which allows convenient control of the signal source on the output screen/display. Bi-directional infrared (IR) signal transmission is also part of the scope of this solution. HDBaseT 1.0 support over CAT6A/7/8 cable up to 100m Transmission range - Full HD (1080p / 60 Hz): 150 m (max.) Transmission range - UHD (4K / 60 Hz): 120 m (max.) 4K 2K/60Hz support (4:4:4) Video throughput: 18 Gbps EDID support (2 modes) - 1: copy - receiver with HDMI output / 2: standard - 1080p, 2 channels Two-way infrared (IR) signal transmission It is possible to connect a mouse and keyboard to the receiver module (2x USB 1.1) for convenient control of the signal source from the output display PoC (Power over Cable) only one module requires an external power supply Metal housing Suitable for wall mounting
Designation - CE+WEEE
dimension depth - 78 mm
dimension height - 190 mm
Dimensions - (1 module): L 6.5 x W 14 x H 1.8 cm Weight (1 module): 246 g
dimension weight - 1085 g
dimension width - 245 mm
ean - 4016032483694
EAN - 4016032483694
EANCode - 4016032483694
Gewicht - 1.03
GRUPPE1 - Network
GRUPPE2 - KVM Switch Entry Level
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0
HSTNUMMER - DS-55522
Laenge - 0
Manufacturer - Digitus
MPN - DS-55522
Name - DIGITUS 4K HDBaseT HDMI KVM Extender Set USB 1.1 150m
name - HDMI extender DS-55522

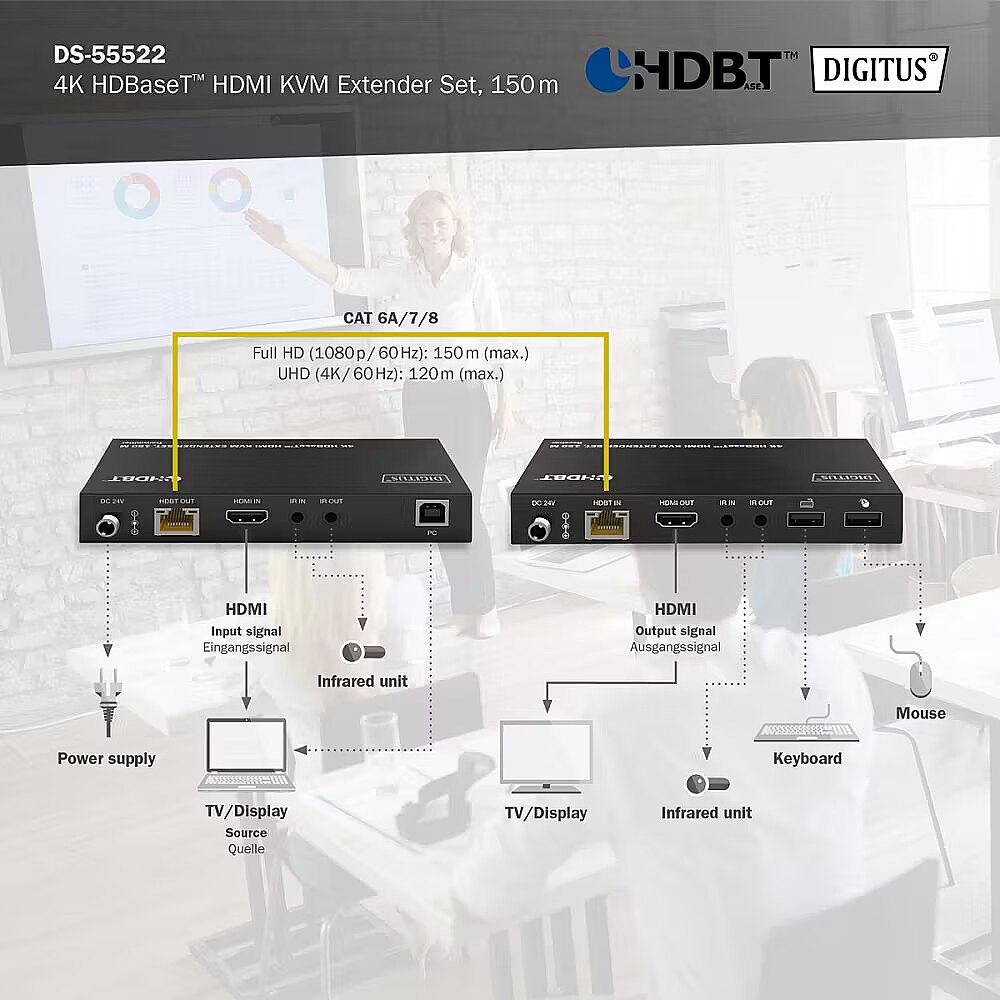

Other features - Transmitter Module Connectors: 1 x HDMI input (4K / 60 Hz) connection to the signal source 1 x RJ45 output (HDBaseT) CAT cable connection for transmission 1 x IR input for receiving signals from the remote control 1 x IR output to control the source device 1 x USB-B (1.1) port - connection to the computer (signal source) for using the KVM function 1 x power supply input (DC 24 V / 1 A), screw connection for external power supply 1 x micro USB input - service/firmware update 1 x EDID switch Receiver module connectors: 1 x HDMI out (4K/60Hz) connector for output device 1 x RJ45 input - connecting a CAT cable for transmission 1 x IR input for receiving signals from the remote control 1 x IR output to control the source device 2 x USB-A port (1.1) - for connecting a mouse and keyboard 1 x power supply input (DC 24 V / 1 A), screw connection for external power supply 1 x micro USB input - service/firmware update HDMI 2.0b / HDCP 2.2 USB 1.1 HDR, HDR10, HDR10+, DolbyVision, HLG Surge Protection (ESD) Working temperature: 0-40° Power consumption: approx. 10 W
producer - Digitus
Standard - HDMI Ultra HD 4K
Stck_Kart - 9998
Stck_Pal - 0
Storno - N
System Requirements -
Type - Extension cord
Usage - Video
vendpn - DS-55522
Weight - 1.04
