Digitus HDMI Extender Set 4K/30Hz 70m PoC IR

Accessories included - 1 x transmitter module 1 x receiver module 1 x IR transmitter cable (1.5m) 1 x IR receiver cable (1.5m) 1 x Power adapter (DC 12V/1A, 1.15m) 1 x User Manual
ARTIKEL1 - 4K HDMI EXTENDER SET 70 M
ARTIKEL2 -
Breite - 0
Category 1 - Kabel & Adapter
Category 2 - Display
Category 3 - HDMI
Color - Black
Connectors #1 - 3,5mm IR Female
Connectors #1 - DC 5.5/2.1 female
Connectors #1 - HDMI Type A Female x2
Connectors #1 - RJ45 Female
Connectors #2 - 3,5mm IR Female
Connectors #2 - HDMI Type A Female
Connectors #2 - RJ45 Female

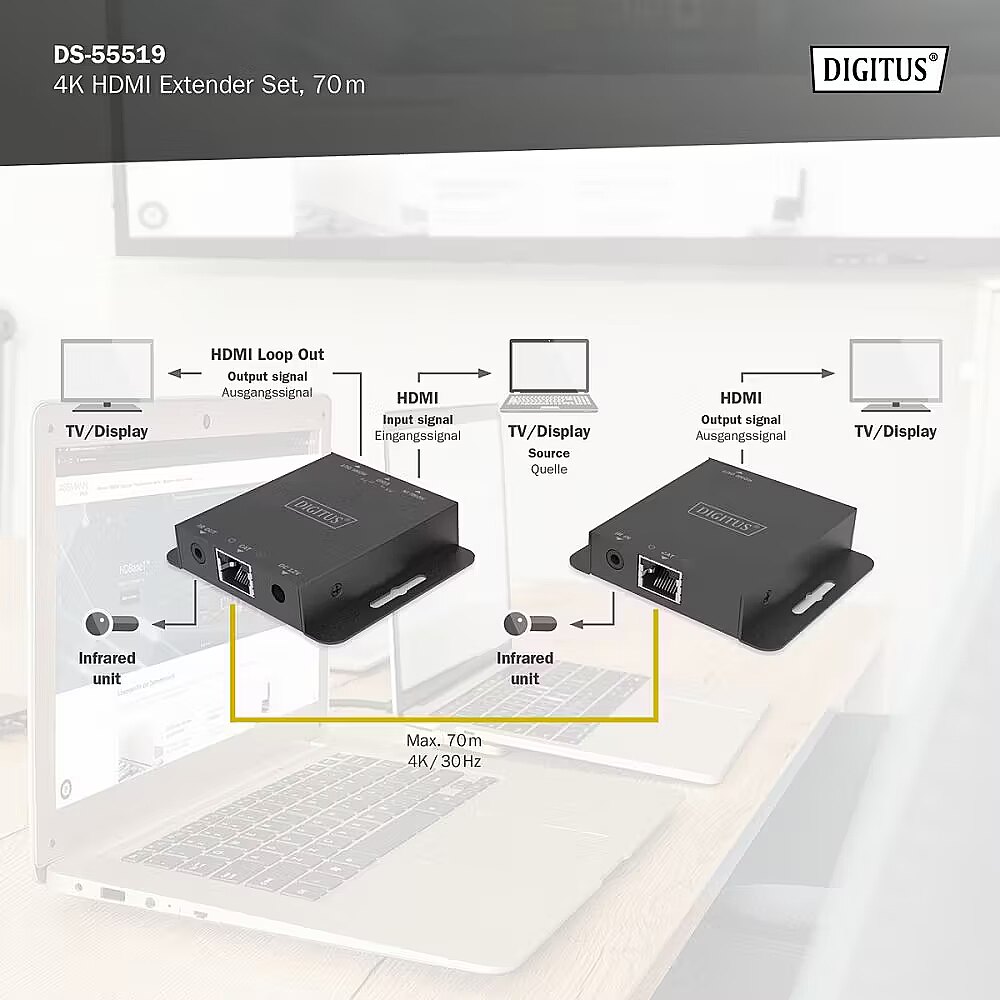

Description - The HDMI extender kit extends the range of Full HD audio/video signals to a distance of up to 70 m, and the range of 4K / 30 Hz signals can be extended to a distance of up to 40 m with a CAT6 (or higher specification) network cable. The transmitter module is equipped with an HDMI output for connecting a local monitor. Thanks to PoC (Power over Cable) technology, only the transmitter needs to be connected to the power supply. Infrared (IR) signal transmission allows you to conveniently control the signal source using the remote control from the receiver (on the output screen). The scope of functionality also includes the function of copying the EDID of the output screen in the receiver or on HDMI-Loop Out, which can be selected using a switch. Extends the range of the HDMI audio-video signal to a distance of up to 70 m Supports resolutions up to 4K/30Hz, 4:4:4 HDMI 1.4, HDCP 1.4, DVI 1.0 Support for CAT 5e, CAT 6, CAT 6A, CAT 7, CAT 8 network cables Audio support: Up to 7.1ch HD audio PoC (Power over Cable) - only the transmitter requires an external power supply Loop-Out/HDMI output - connect a local monitor to the source device EDID copy function of the output screen in the receiver or on HDMI-Loop Out Infrared signal transmission (two-way) An infrared (IR) signal interface allows remote control of the input source via the output screen Suitable for wall mounting Metal housing
Designation - CE+WEEE
dimension depth - 115 mm
dimension height - 75 mm
Dimensions - (1 module): L 7.9 cm x W 6.9 cm x H 1.65 cm Weight: transmitter: 132 g, receiver: 130 g
dimension weight - 428 g
dimension width - 195 mm
ean - 4016032482734
EAN - 4016032482734
EANCode - 4016032482734
Gewicht - 0
GRUPPE1 - Cables
GRUPPE2 - Hdmi Cable
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0
HSTNUMMER - DS-55519
Laenge - 0
Manufacturer - Digitus
MPN - DS-55519
Name - DIGITUS HDMI Extender Set USB 70m 4K schwarz
name - HDMI Extender DS-55519

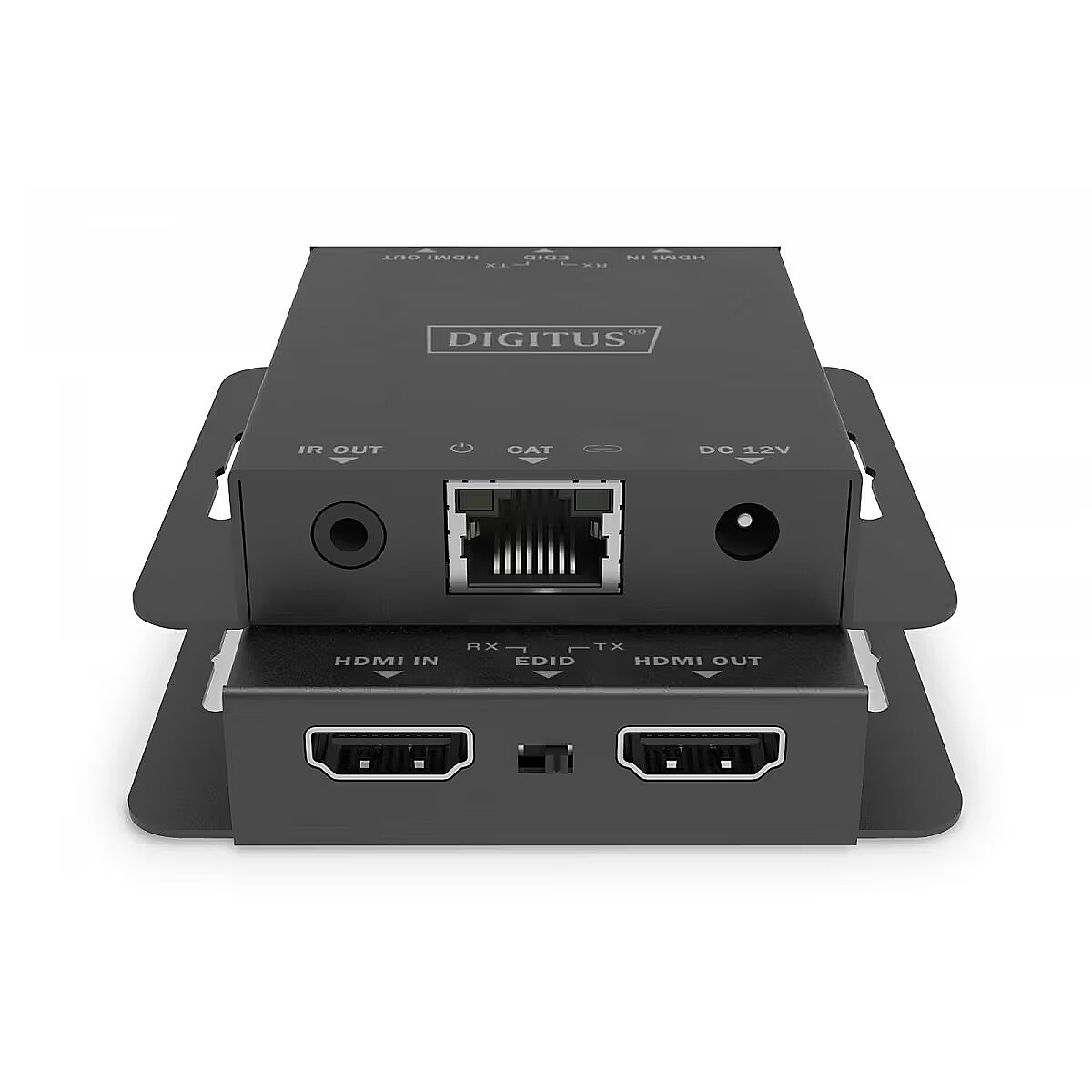

Other features - Transmitter Module Connectors: 1 x HDMI input (4K / 30 Hz) - for connecting the signal source 1 x Loop-Out/HDMI Out - Local Monitor Connection (Source Device) 1 x RJ45 output connector for CAT cable for transmission 1 x infrared output - connection of an infrared relay 1 x power supply input (DC 12 V / 1 A) - connection of an external power supply 1 x EDID switch Receiver module connectors: 1 x HDMI output (4K / 30 Hz) - connection of an output device 1 x RJ45 input - connecting a CAT cable for transmission 1 x input for infrared signal - connection of an infrared receiver Video throughput: 10.2Gbps Surge Protection (ESD) Working temperature: 0-40° Power consumption: Transmitter module: 1.86 W, Receiver module: approx. 0.87 W
producer - Digitus
Standard - HDMI Ultra HD 4K
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
System Requirements -
Type - Extension cord
Usage - Video
vendpn - DS-55519
Weight - 0.57
