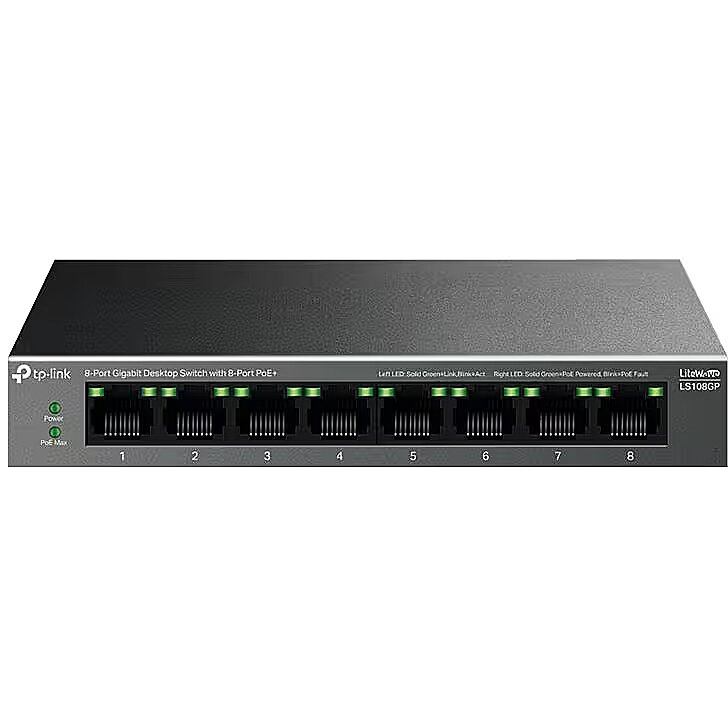

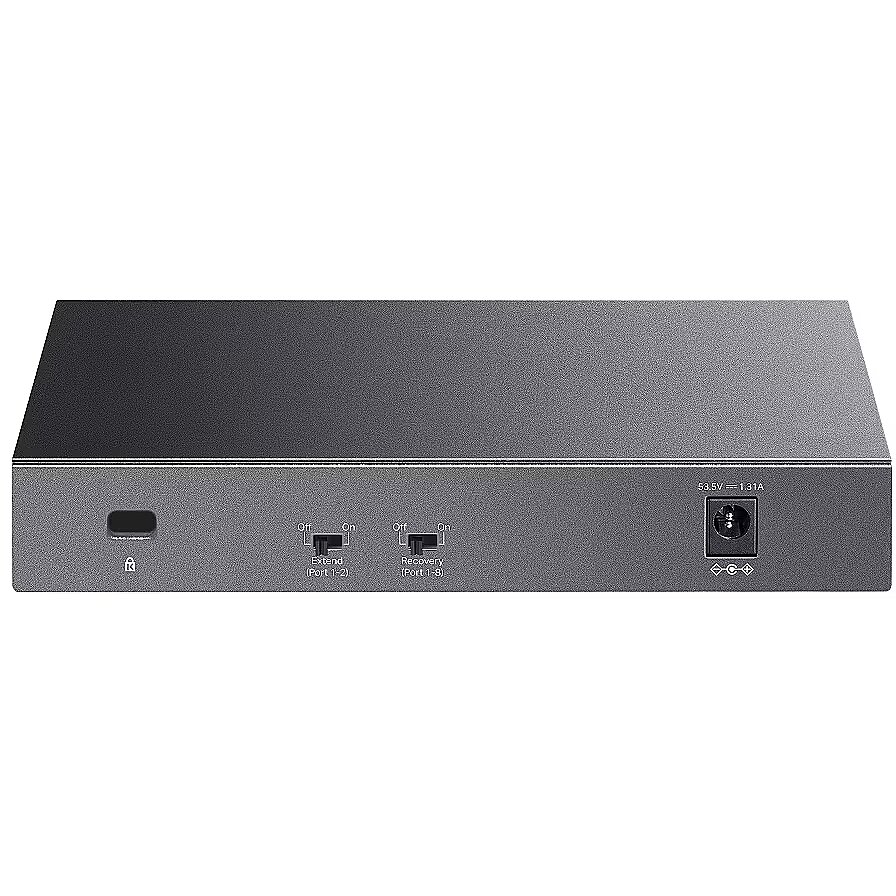

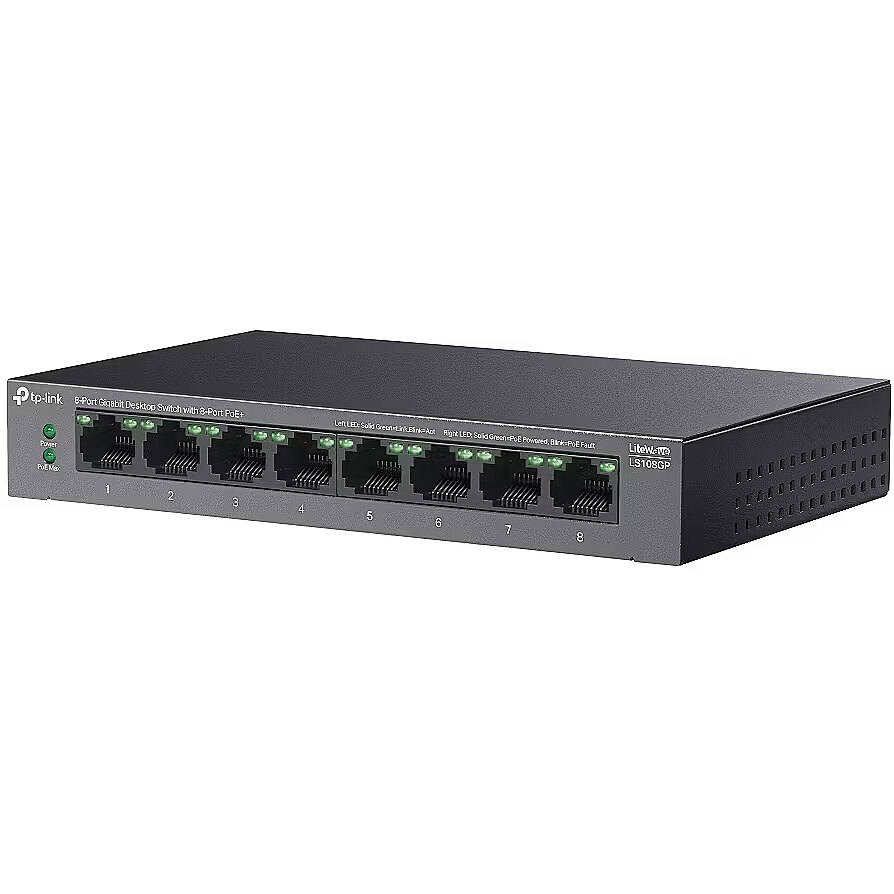

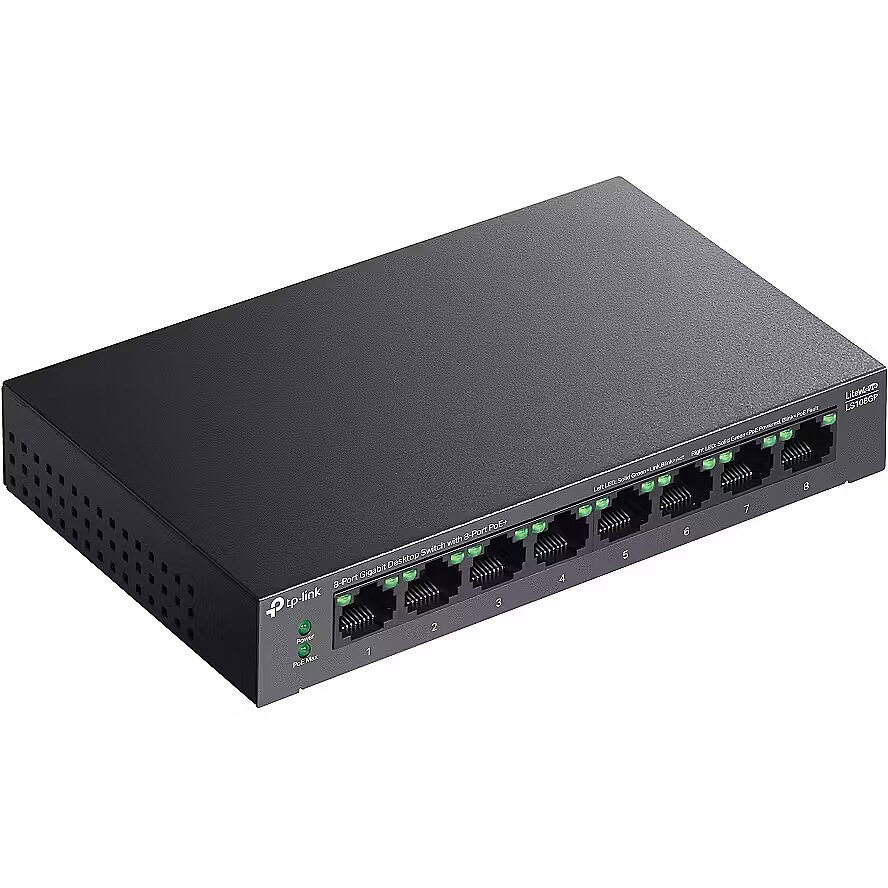

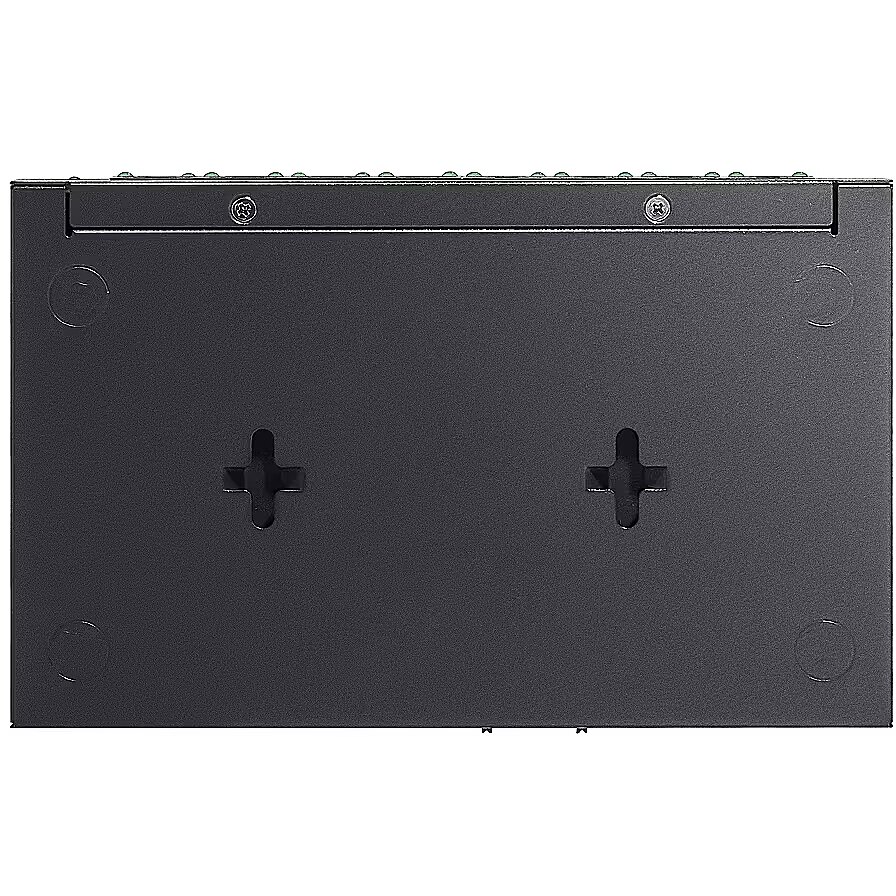

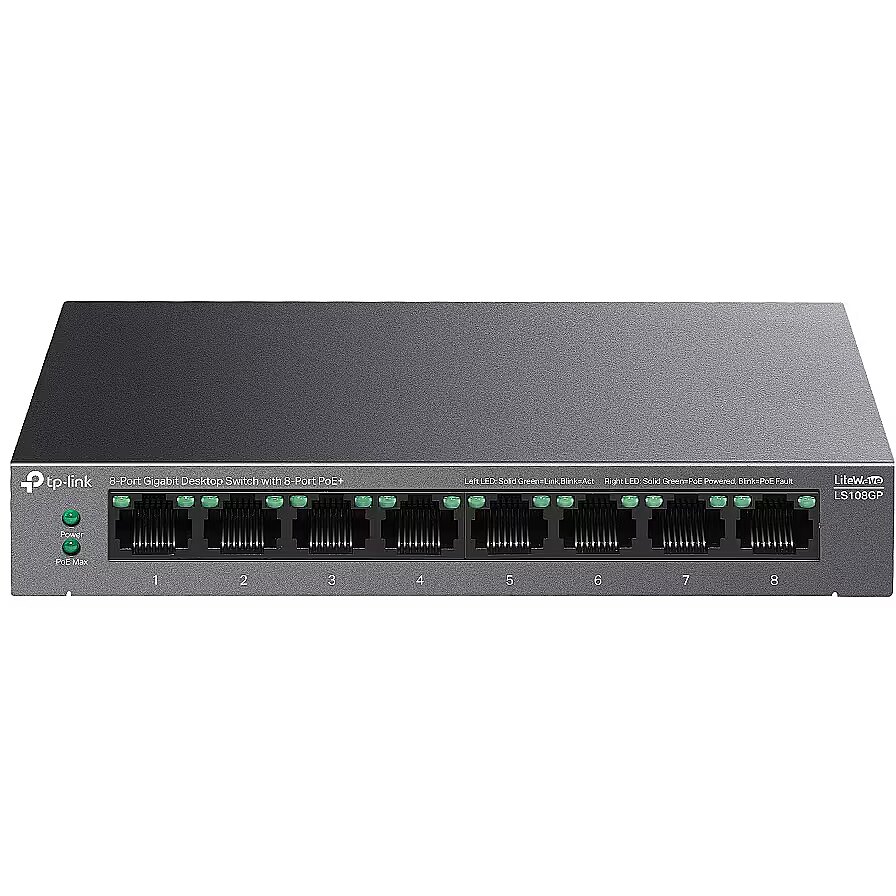

TP-LINK LS108GP 8-Port Gigabit Desktop Switch with 8-Port PoE+

10/100/1000/2500 Mbps ports - None
10Base-T / 100Base-TX / 1000Base-T Ports - 8
Accessories included -
Application - Home and small office
Brand - TP-Link
BrandPartCode - LS108GP
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category Code - SWI
Certificates -
Certificates - Certification - CE, FCC, RoHS
Chassis type - Desktop
Code - LS108GP
Console port - No
Data transmission - Forwarding rate - 11.9 Mpps
Data transmission - Jumbo frames - 16000
Data transmission - MAC address table - 4000 entries
Data transmission - Switching capacity - 16 Gbit/s
Description - LS108GP 8-Port Gigabit Desktop Switch with 8-Port PoE+ - Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity. - 62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port. - Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas. - PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices. - Plug and Play: Simply plug and play for instant connectivity with no configuration required. - Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses. - Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Description - Porty Gigabit: Osiem gigabitowych portów zapewnia przepustowość do 16 Gbps. Budżet PoE 62 W: Osiem gigabitowych portów PoE+ zgodnych z 802.3af/at łatwo łączy i zasila urządzenia stacjonarne, takie jak kamery IP, punkty dostępu i telefony IP za pomocą pojedynczego kabla. Każdy port PoE obsługuje moc do 30 W. Transmisja PoE do 250 m: W trybie Extend odległość transmisji PoE osiąga do 250 m, co jest idealne do rozmieszczania kamer monitoringu na dużych obszarach. Plug and Play: Wystarczy podłączyć i używać dla natychmiastowej łączności bez konieczności konfiguracji. Cicha praca: Konstrukcja bez wentylatora zmniejsza zużycie energii i zapewnia cichą pracę, co jest idealne dla domów lub firm wrażliwych na hałas. Niezawodna konstrukcja sprzętu: Trwała metalowa obudowa i konstrukcja do montażu na biurku/ścianie są dobrze dostosowane do różnych środowisk.
Design - Certification - CE, FCC, RoHS
Design - LED indicators - Yes
Design - Product colour - Black
Design > Form factor - Desktop
Designation - CE+WEEE
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 624
dimension depth - 120 mm
dimension height - 135 mm
Dimensions - 158 × 99 × 25 mm
Dimensions - 158×99×25 mm
dimension weight - 770 g
dimension width - 200 mm
EAN - 4895252505986
ean - 4895252505986
Eans - 4895252505986
Environment requirements - Temperatura pracy: 0 - 40 stopni Celsjusza Temperatura przechowywania: -40 - 70  stopni Celsjusza Wilgotność robocza: 10-90% RH, bez kondensacji Wilgotność przechowywania: 5-90% RH, bez kondensacji
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 11.9 Mpps
Forwarding rate - 11.9 Mpps
Full Description Line - Desktop/pedestal|8x10Base-T / 100Base-TX / 1000Base-T|IEEE 802.1p|IEEE 802.3af|IEEE 802.3at|IEEE 802.3x|PoE+ ports 8|Switching capacity 16 Gbps|Forwarding rate 11.9 Mpps|Power supply External|Dimensions 158×99×25 mm|Unit Net Weight 0.5 kg
GTIN - 4895252505993
guarantee - 60
guarantee_type - normal
IEEE 802.1p Network standard - Yes
IEEE 802.3af Network standard - Yes
IEEE 802.3at Network standard - Yes
IEEE 802.3x Network standard - Yes
Jumbo frame size - 16 KB
L2 features -
L3 features -
Link - https://www.tp-link.com/za/business-networking/soho-switch-unmanaged/ls108gp/
LongDesc - The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
LongProductName - 8× 10/100/1000Mbps RJ45 PoE+, 16 Gbps, 4K MAC, 16 KB Jumbo, 158×99×25 mm
LongSummaryDescription - TP-Link LiteWave 8-Port Gigabit Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE.... DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE)
MAC address table size - 4000
Management, monitoring, configuration -
Management features - Quality of Service (QoS) support - Yes
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Model name - LS108GP
name - Switch 8xGE PoE+ LS108GP
Name - TP-Link LS108GP
Name - TP-LINK | 8-Port Gigabit Desktop Switch with 8-Port PoE+ | LS108GP | Unmanaged | Desktop
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Flow control support - Yes
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3i
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Networking standards - IEEE 802.3z
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - 8
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Heat dissipation - 243.47 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 196.00 mm
Package features > Gross height (mm) - 121.00 mm
Package features > Gross width (mm) - 131.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 556 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - User guide - Yes
Packaging data - Package type - Box
Packaging data - User guide - Yes
PoE+ ports - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Power - AC input frequency - 50 Hz
Power - AC input voltage - 220 V
Power - DC input voltage - 53.5 V
Power - Input current - 1.31 A
Power - Power consumption (max) - 71.61 W
Power - Power source - DC/PoE
Power - Power supply included - Yes
Power consumption - 71.61 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 8
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 62 W
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power supply - External
Power supply - Zewnętrzny zasilacz (wyjście: 53,5 VDC / 1,31 A)
Power supply - External
producer - TP-LINK
Producer - TP-Link
producerCode - LS108GP
ProducerCode - LS108GP
ProductName - 8-Port Gigabit Desktop Switch with 8-Port PoE+
productName - TP-Link LiteWave 8-Port Gigabit Desktop Switch with 8-Port PoE+
productSize - Normal
QoS -
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 19.7 cm
Shipping Box Height Shipping/Package Box Dimensions - 12.1 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.79 kg
Shipping Box Width Shipping/Package Box Dimensions - 13.1 cm
ShortDescription -
ShortSummaryDescription - TP-Link LiteWave 8-Port Gigabit Desktop Switch with 8-Port PoE+, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
sizeX - 200
sizeY - 130
sizeZ - 120
Stackability - No
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Unmanaged
Switching capacity - 16 Gbps
Technical details > Gross weight - 0.87 kg
Technical details > Net weight - 0.67 kg
Technical details > Producer - TP-LINK
Technical details > Producer product family - 8-Port Gigabit Desktop Switch with 8-Port PoE+
Technical details > Producer product name - LS108GP
Throughput - 16 Gb/s
Title - TP-Link LiteWave 8-Port Gigabit Desktop Switch with 8-Port PoE+
Unit Box Height - 0.121
Unit Box Length - 0.197
Unit Box Width - 0.131
Unit Brutto Volume - 0.003123 cubm
Unit Gross Weight - 0.79 kg
Unit Net Weight - 0.5 kg
URL - https://www.tp-link.com/uk/business-networking/soho-switch-poe/ls108gp/
Vendor Homepage - www.tp-link.com/za/business-networking/soho-switch-poe/ls108gp/
vendpn - LS108GP
VLAN -
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo -
warrantyLength - 60
warrantyType - G
weight - 795
Weight & dimensions - Depth - 99 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 158 mm
