ID: 1301375
Product code: HAP120
In stock 5 units
Warranty: 3 years

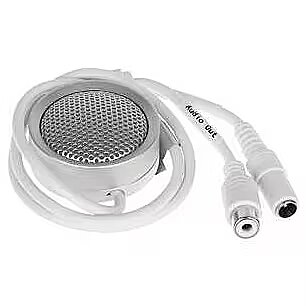

Dahua AUDIO MICROPHONE MODULE/HAP120
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
More detailed specification
Brand - Dahua Technology
BrandPartCode - HAP120
Category - Microphone Parts & Accessories
Category Code - CAC
Colour - White
Description - Use high sensitivity, all directional microphone head and omnidirectional microphone, clear and natural sound; Lightning protection, power polarity transposition protection and electrostatic protection. Scope 10~70 m2 Sensitivity -34±3dB Frequency response 80Hz～16kHz Omni-directional Dynamic range 74dB Max. sustainable sound pressure 110dBSPL (1KHz, THD 1%) Output impedance 600Ω (non-equilibrium) Output signal amplitude 2.5Vpp/88dBSPL Plated film capacitor microphone head Working voltage DC 12V Working current 40mA Working temperature -30ºC~+70ºC Material Aluminum Dimension Φ40mm×20mm / 48g
Dimensions - Φ40mm×20mm
Features - Current consumption - 40 mA
Features - Frequency - 16 kHz
Features - Impedance - 600 Ω
Features - Input frequency - 80 Hz
Features - Material - Aluminium
Features - Microphone sensitivity - 58 dB
Features - Minimum terminating impedance - 600 Ω
Features - Product colour - Silver
Features - Product type - Microphone head
Features - Quantity - 1
GTIN - 6939554996214
LongDesc - Use high sensitivity, all directional microphone head and omnidirectional microphone, clear and natural sound. Lightning protection, power polarity transposition protection and electrostatic protection.
LongProductName - 10 - 70 m2, -34±3dB, 80Hz～16kHz, 58dB, 74dB, 600Ω, DC 12V, 40mA, -30ºC - 70ºC, 48g
LongSummaryDescription - Dahua Technology HAP120. Product type: Microphone head, Product colour: Silver, Current consumption: 40 mA. Weight: 48 g
Operational conditions - Operating temperature (T-T) - -30 - 70 °C
ProductName - HAP120
Product Net Weight - 0.048 kg
ShortSummaryDescription - Dahua Technology HAP120, Microphone head, Silver, 40 mA, 600 Ω, 16 kHz, 600 Ω
Title - Dahua Technology HAP120 microphone part/accessory
Unit Box Height - 0.047
Unit Box Length - 0.095
Unit Box Width - 0.093
Unit Calculated Volume - 0.0004152 cubm
Unit Calculated Weight - 0.091 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Accessories/Audio/Pickups/HAP120
Vendor Homepage - www.dahuasecurity.com/products/productDetail/20687
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Weight - 48 g
