15pin D-sub Input/Output connectors - 1
Accessories included -
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Audio compression - G.711a
Audio compression - G.711u
Audio compression - G.726
Audio compression - PCM
Brand - Dahua Technology
BrandPartCode - NVR4104HS-P-EI
Category - Network Video Recorders (NVR)
Category Code - NVR
Channels - 4
Connectors - 1 x D-Sub
Connectors - 1 x HDMI
Connectors - 2 x USB 2.0
Connectors - RJ-45
Connectors - SATA
Description - 4 IP channel max, up to 16MP resolution Max: 80Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps 1 SATA III port, up to 16 TB for a single HDD PoE 4 ports, 10/100 Mbps, IEEE 802.3 af/at, total 36W max No front panel control, no alarm I/O, 2 USB, Two-way Talk: 1/1 Desktop mounted chassis AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus. AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map. Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK Other brands IP cameras supported
Description - Wbudowane funkcje AI: ochrona perymetryczna (2 kanały) lub wykrywanie twarzy / rozpoznawanie twarzy (1 kanał), klasyfikacja obiektu - człowiek/pojazd (4 kanały) SMD+ - klasyfikacja obiektu z filtrowaniem fałszywych alarmów Zarządzanie biblioteką wizerunków (10 baz, do 20000 zdjęć) Inteligentne wyszukiwanie według określonych parametrów (AI search) Kanał zerowy do łączenia wszystkich kanałów w jeden strumień Synchroniczne odtwarzanie do 4 kanałów wideo Obsługa: ONVIF, CGI, SDK, P2P W modelu NVR4104HS-P-EI: 4-portowy switch PoE 36W 802.3af/at, Wsparcie dla kamer z funkcjami: ochrona perymetryczna, wykrywanie twarzy
Designation - CE+WEEE
dimension depth - 115 mm
dimension height - 310 mm
Dimensions - 260 mm × 232.7 mm × 47.6 mm
Dimensions - 260 × 232.7 × 47.6 mm
dimension weight - 1852 g
dimension width - 375 mm
ean - 6923172585103
Features - Certification - EN IEC 61000-3-2:2019+A1:2021;
EN 61000-3-3:2013+A1:2019+A2:2021; EN
55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
GTIN - 6923172585103
guarantee - 36
guarantee_type - normal
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 16 TB
HDD interface - SATA
HDMI Input/Output connectors - 1
LongDesc -

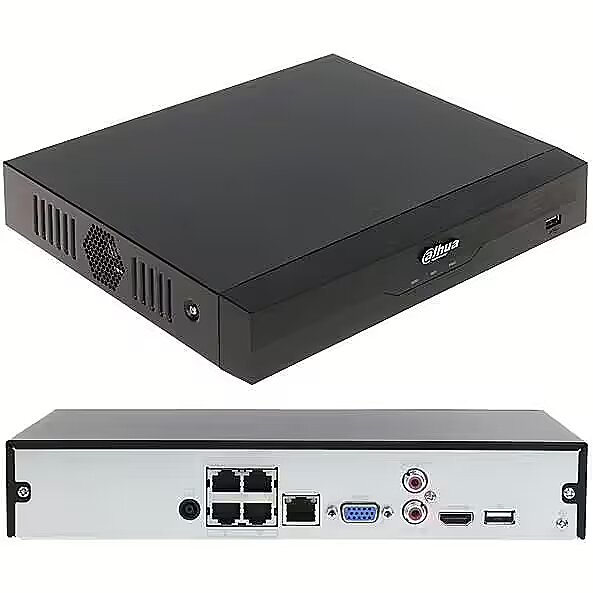

LongProductName - 4CH Compact 1U 4PoE 1HDD WizSense Network Video Recorder
LongSummaryDescription - Dahua Technology WizSense NVR4104HS-P-EI. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 960p, 1080p. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS;.... Rack capacity: 1U, Product colour: Black, Certification: EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN.... Power consumption (max): 10 W, Output current: 1.226 A
Max. capacity of disks - 16 TB
Max. number of disks - 1
Model - NVR4104HS-P-EI
name - 4-channel recorder NVR4104HS-P-EI
Number of Channels - 4
Number of drives/bays - 1
Operating temperature range - –10 °C to +55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features -
Performance - Audio formats supported - G.711 A-law, G.711 μ-law, G.726, PCM
Performance - Backup function - Yes
Performance - Face detection - Yes
Performance - Image formats supported - MJPEG
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Multi-screen - Yes
Performance - Operating system installed - Embedded LINUX
Performance - Output bandwidth - 80 Mbit/s
Performance - People counting - Yes
Performance - Supported resolutions - HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video input channels - 4 channels
Performance - Video recording modes - 720p, 960p, 1080p
PoE ports - 4
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.226 A
Power - Power consumption (max) - 10 W
Power consumption - 36 Watts
Power supply requirements - 53 VDC, 1.226 A
producer - Dahua
ProductName - NVR4104HS-P-EI
Product Net Weight - 0.86 kg
RCA inputs - 1
RCA outputs - 1
Recording modes -
Resolution - 4608 x 3472
RJ45 Input/Output connectors - 1
ShortSummaryDescription - Dahua Technology WizSense NVR4104HS-P-EI, 4 channels, 3840 x 2160 pixels, 720p, 960p, 1080p, HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280..., G.711 A-law, G.711 μ-law, G.726, PCM, H.264, H.264+, H.265, H.265+
Special functions -
System requirements - Browser supported - Chrome; IE9 and later; Firefox
System requirements - Mobile operating systems supported - Android, iOS
Technical details - Compliance certificates - CE, Federal Communications Commission (FCC)
Title - Dahua Technology WizSense NVR4104HS-P-EI network video recorder 1U Black
Unit Box Height - 0.305
Unit Box Length - 0.37
Unit Box Width - 0.115
Unit Calculated Volume - 0.01298 cubm
Unit Calculated Weight - 1.36 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4104HS-P-EI
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4104HS-P-EI
vendpn - 6923172585103
Video compression - H.264
Video compression - H.264+
Video compression - H.265
Video compression - H.265+
Viewing modes -
Warranty - 36 months
WarrantyInfo -
Weight - 0.86 kg
Weight & dimensions - Depth - 232.7 mm
Weight & dimensions - Height - 47.6 mm
Weight & dimensions - Package depth - 89 mm
Weight & dimensions - Package height - 315 mm
Weight & dimensions - Package weight - 1.88 kg
Weight & dimensions - Package width - 333 mm
Weight & dimensions - Weight - 860 g
Weight & dimensions - Width - 260 mm
Wireless communication - No
Wireless LAN features - Wi-Fi - No
