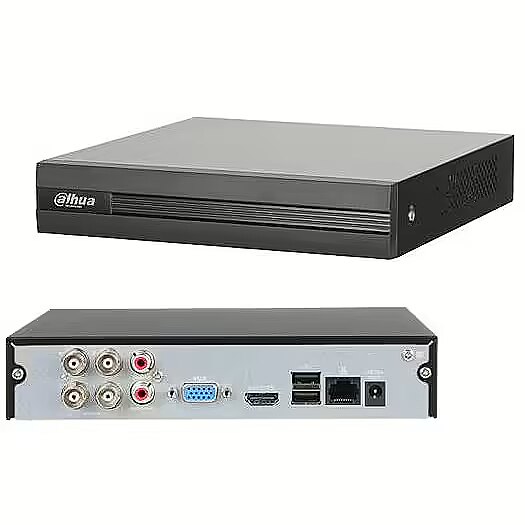

Dahua DVR 4CH HDCVI PENTABRID/XVR1B04-I

15pin D-sub Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - DH-XVR1B04-I
Camera Compatibility - AHD 1080P/AHD 720P/Analog/HDCVI 1080P/HDCVI 720P/HD-TVI/TurboHD 1080P/HD-TVI/TurboHD 720P/IP
Category - Digital Video Recorders (DVR)
Category Code - STD
Description - 4 Channel Penta-brid 1080N/720p Cooper 1U 1HDD WizSense Digital Video Recorder Pentabrid capability: Each channel supports HDCVI, AHD, TVI, CVBS and IP Video input 4-channel BNC interface HDCVI/AHD/HD-TVI recording: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps) IP: Max 5 channels IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth Video Compression: AI Coding/H.265+/H.265/H.264+/H.264, ONVIF 16.12, CGI Conformant SMD Plus: Search by target classification (Human, Vehicle) G.711A; G.711U; PCM video/audio compression 1x SATA interface up to 6TB storage VGA/HDMI up to Full HD output, RJ-45, 2x USB ports No front panel control, 1/1 Audio I/O, no Alarm I/O Mini 1U case, mouse included P2P, Coaxial Audio/Alarm/Upgrade Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more Free IP monitoring software available
Dimensions - 198 × 202.9 × 41.5mm
DVR type - 4 Channel
Full Description Line - 4 Channel|Camera Compatibility Analog/IP/AHD 720P/AHD 1080P/HDCVI 720P/HDCVI 1080P/HD-TVI/TurboHD 720P/HD-TVI/TurboHD 1080P|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|DC 12 V/1.5 A
Hard drive - HDD interface - SATA
Hard drive - Maximum HDD capacity - 6 TB
Hard drive - Number of HDDs supported - 1
HDMI Input/Output connectors - 1
LongDesc - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products andsolutions
LongProductName - 4 Channel, 1U, 1x HDMI, 1x VGA, RJ-45, 2x USB 2.0, 1x SATA, DC12V, 0.57kg
LongSummaryDescription - Dahua Technology DH-XVR1B04-I. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm..., Number of users: 128 user(s). HDD interface: SATA, Maximum HDD capacity: 6 TB. Power supply type: DC, DC voltage: 12 V. Width: 198 mm, Depth: 202.9 mm, Height: 41.5 mm
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Number of users - 128 user(s)
Network - Supported network protocols - HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search
Number of channels - 4
Operational conditions - Operating temperature (T-T) - -10 - 45 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Packaging content - AC adapter included - Yes
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Performance - Analog signal format system - NTSC, PAL
Performance - Audio formats supported - AAC, G.711, PCM
Performance - Backup function - Yes
Performance - Certification - CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN
50130; EN 55024
Performance - Channels quantity - 4 channels
Performance - Maximum video resolution - 1920 x 1080 pixels
Performance - Operating system installed - Embedded LINUX
Performance - Playback modes - Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Performance - Playback resolutions supported - 1920×1080, 1280×1024, 1280×720
Performance - Product colour - Black
Performance - PTZ control - Yes
Performance - Rack capacity - 1U
Performance - Video compression formats - H.264, H.264+, H.265, H.265+
Performance - Video motion detection - Yes
Ports & interfaces - Audio input - 1
Ports & interfaces - Audio output - 1
Ports & interfaces - BNC input ports - 4
Ports & interfaces - BNC output ports - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - DC voltage - 12 V
Power - Power supply type - DC
Power supply requirements - DC 12 V/1.5 A
ProductName - DH-XVR1B04-I
Product Net Weight - 0.57 kg
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 33.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 25.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 1.074 kg
Shipping Box Width Shipping/Package Box Dimensions - 10 cm
ShortSummaryDescription - Dahua Technology DH-XVR1B04-I, Black, 1920 x 1080 pixels, H.264, H.264+, H.265, H.265+, AAC, G.711, PCM, 1920×1080, 1280×1024, 1280×720, 4 channels
Title - Dahua Technology DH-XVR1B04-I digital video recorder (DVR) Black
Unit Box Height - 0.255
Unit Box Length - 0.335
Unit Box Width - 0.1
Unit Calculated Volume - 0.008542 cubm
Unit Calculated Weight - 1.07 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/Cooper-I-Series/XVR1B04-I
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 202.9 mm
Weight & dimensions - Height - 41.5 mm
Weight & dimensions - Weight - 570 g
Weight & dimensions - Width - 198 mm
