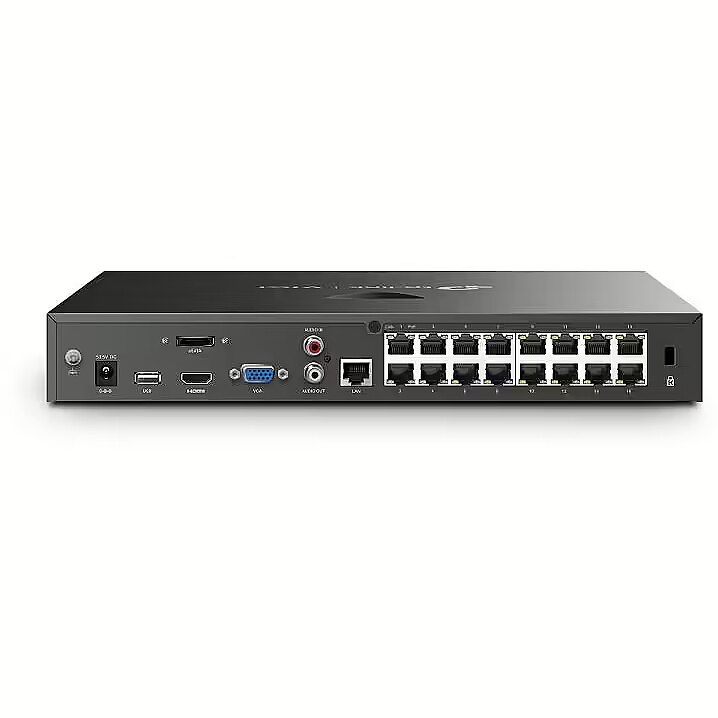

TP-LINK VIGI NVR2016H-1 6P Video Recorder PoE+

AC adapter included Packaging content - Yes
Accessories included -
Audio compression - G.711a
Audio compression - G.711u
Audio compression - G.726
Audio formats supported Performance - G.711 A-law, G.711 μ-law, G.726
Audio output Ports & interfaces - 1
Brand - TP-Link
BrandPartCode - VIGI NVR2016H-16P
Cables included Packaging content - AC
Category - Network Video Recorders (NVR)
Category Code - NVR
Certification Features - CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Channels - 16
Connectors - 2 x 3,5 mm minijack
Connectors - 2 x USB 3.0
Connectors - RJ-45
Data Act - Link
DC-in jack Ports & interfaces - Yes
Depth Weight & dimensions - 285 mm
Description - 4K HDMI Video Output and 16MP Decoding Capacity: Sharp image resolution of up to 8MP and 8-channel decoding capacity at 2MP allow you to enjoy live view and playback of more channels at the same time. 90W PoE budget: 16 802.3af/at compliant PoE+ ports with a total power of 90W. 16-Channel Simultaneous Playback: Playback from up to 16 cameras simultaneously, increase playback speed and find events in the video schedule to easily review recordings. H.265+: Compresses video size without losing video quality, reducing network load and saving disk space. ONVIF ensures compatibility: Easily add VIGI and other brands' IPCs to create a powerful and diverse network with barrier-free compatibility. Auto Initialization for Quick Configuration: Just click Auto Initialization to configure the basic IPC and HDD parameters, greatly reducing setup time. 24/7 continuous recording: Stores up to 20TB of footage (1,048 days of storage) from connected cameras to secure data and ensure quick and convenient access. Two-way audio: With voice intercom support, you'll deter potential thieves or intruders wherever you are.
Description - Security Never Shuts Down Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.† Dedicated 16 PoE+ Ports for Simplified IP Camera Deployment.
Designed to use a single Ethernet cable for both data and power transmission, this NVR offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions. Reviewing Footage is Faster than Ever
16-Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed,
and find events in the video schedule to easily review footage. More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. No Need to Check Long Compatibility Lists
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. △ Auto Initialize for Quick Configuration
Just click "Auto Initialize" to set up basic IPC and hard disk parameters, including initialization and recording plans, significantly reducing your configuration time. Security for Every Hour and Every Day
27/4 Continuous Recording
With the storage capacity of up to 20TB, the NVR supports 24/7 continuous local recording. Customize record schedule or record type to save storage space and quickly search out target footage. Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are. Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client. Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal. Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs. Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more. Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience. One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time90 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90 W.‡16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footageH.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk spaceONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibilityAuto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient accessTwo-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you areRemote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience†Fewer or no channels may be available for playback if the total resolution is 16MP.
‡**Calculations based on laboratory testing using VIGI cameras. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.
*The decoding capability reaches 16 MP only at 25fps.
***Calculations based on laboratory testing using 1* VIGI 3MP camera with with the following settings: 25fps frame rate, H265+ encoding mode, 2048Kbps bit rate, and 24-hour continuous storage. And the results only for reference.
△Some features may operate sub-optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with VIGI cameras.
§A hard disk drive (not included) must be installed for operation.
Designation - CE+WEEE
dimension depth - 145 mm
dimension height - 350 mm
Dimensions - 330 × 285 × 45 mm
dimension weight - 3730 g
dimension width - 400 mm
ean - 4895252504040
eSATA Ports & interfaces - Yes
eSATA ports quantity Ports & interfaces - 1
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN data rates Ports & interfaces - 10,100,1000 Mbit/s
Features - Certification - CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Features - Product colour - Black
Features - Reset button - Yes
GTIN - 0840030710360
GTIN - 840030710360
GTIN - 4895252504040
guarantee - 36
guarantee_type - normal
Hard drive - HDD capacity - 0 GB
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 10 TB
Hard drive - Number of HDDs supported - 2
HDD capacity Hard drive - 0 GB
HDD interface - SATA
HDD interface Hard drive - SATA
HDMI ports quantity Ports & interfaces - 1
Height Weight & dimensions - 45 mm
Input bandwidth Performance - 80 Mbit/s
Internal SATA ports quantity Ports & interfaces - 2
Line-in Ports & interfaces - Yes
LongDesc - Security Never Shuts DownEvery Angle All on One Screen4K HDMI Video Output & 16MP Decoding CapacitySharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.†Dedicated 16 PoE+ Ports for Simplified IP Camera Deployment.Designed to use a single Ethernet cable for both data and power transmission, this NVR offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.Reviewing Footage is Faster than Ever16-Channel Simultaneous Playback*Replay the feed from up to 16 cameras at the same time, increase replay speed,and find events in the video schedule to easily review footage.More Compression. More Savings. More Quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.No Need to Check Long Compatibility ListsONVIF Ensures CompatibilityEasily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. △Auto Initialize for Quick ConfigurationJust click "Auto Initialize" to set up basic IPC and hard disk parameters, including initialization and recording plans, significantly reducing your configuration time.Security for Every Hour and Every Day27/4 Continuous RecordingWith the storage capacity of up to 20TB, the NVR supports 24/7 continuous local recording. Customize record schedule or record type to save storage space and quickly search out target footage.Two-Way AudioWith voice intercom support, scare off any potential thieves or intruders from wherever you are.Remote ManagementTake full control over your security anytime and anywhere on the VIGI app or client.Live Views and Real-Time AlertsEasily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.Easy & Smart PlaybackQuickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.Customized Monitoring PatternsBased on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.Four-Way ManagementFlexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - VIGI 16 Channel PoE+ Network Video Recorder
LongSummaryDescription - TP-Link VIGI NVR2016H-16P. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 40 W, Output current: 2.43 A, Output voltage: 53.5 V
Max. capacity of disks - 10 TB
Max. number of disks - 2
Maximum frame rate Performance - 30 fps
Maximum resolution Performance - 3840 x 2160 pixels
Maximum storage capacity Hard drive - 10 TB
Model - VIGI NVR2016H-16P
Model name - VIGI NVR2016H-16P
Name - NET VIDEO RECORDER 16CH POE+/VIGI NVR2016H-16P TP-LINK
name - VIGI NVR2016H-1 6P Video Recorder PoE+
Networking standards Ports & interfaces - IEEE 802.3af, IEEE 802.3at
Number of HDDs supported Hard drive - 2
Number of simultaneously playbacked channels Performance - 16 channels
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - -10 - 55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Output bandwidth Performance - 60 Mbit/s
Output current Power - 2.43 A
Output voltage Power - 53.5 V
Package weight Weight & dimensions - 3.2 kg
Packaging content - AC adapter included - Yes
Packaging content - Cables included - AC
Packaging content - Quick installation guide - Yes
Performance - Audio formats supported - G.711 A-law, G.711 μ-law, G.726
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum frame rate - 30 fps
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Number of simultaneously playbacked channels - 16 channels
Performance - Output bandwidth - 60 Mbit/s
Performance - Playback controls - Yes
Performance - Playback modes - Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Performance - Recording modes - Manual, Schedule
Performance - Supported resolutions - HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz
VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video input channels - 16 channels
Performance - Video motion detection - Yes
Performance - Video recording modes - 720p, 1080p
Playback controls Performance - Yes
Playback modes Performance - Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Ports & interfaces - Audio output - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - eSATA - Yes
Ports & interfaces - eSATA ports quantity - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Internal SATA ports quantity - 2
Ports & interfaces - Line-in - Yes
Ports & interfaces - Networking standards - IEEE 802.3af, IEEE 802.3at
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 16
Ports & interfaces - Supported network protocols - UPnP (Plug and Play), NTP (Network Timing)
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 2.43 A
Power - Output voltage - 53.5 V
Power - Power consumption (max) - 40 W
Power - Total Power over Ethernet (PoE) budget - 90 W
Power consumption (max) Power - 40 W
Power over Ethernet (PoE) Ports & interfaces - Yes
Power over Ethernet (PoE) ports quantity Ports & interfaces - 16
producer - TP-LINK
Product colour Features - Black
ProductName - VIGI NVR2016H-16P
Product Net Weight ELKO Verified Logistics Data - 1.9 kg
Quick installation guide Packaging content - Yes
Recording modes -
Recording modes Performance - Manual, Schedule
Reset button Features - Yes
Resolution - 3840 x 2160
Shipping Box Depth ELKO Internal Logistics Data - 40 cm
Shipping Box Height ELKO Internal Logistics Data - 35 cm
Shipping Box Weight ELKO Internal Logistics Data - 3.75 kg
Shipping Box Width ELKO Internal Logistics Data - 14 cm
ShortSummaryDescription - TP-Link VIGI NVR2016H-16P, 16 channels, 3840 x 2160 pixels, 16 channels, 720p, 1080p, HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz,..., G.711 A-law, G.711 μ-law, G.726
Special functions -
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Summary - TP-Link VIGI NVR2016H-16P. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 40 W, Output current: 2.43 A, Output voltage: 53.5 V
Supported network protocols Ports & interfaces - UPnP (Plug and Play), NTP (Network Timing)
Supported resolutions Performance - HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz
VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x10
Title - TP-Link VIGI NVR2016H-16P network video recorder Black
Total Power over Ethernet (PoE) budget Power - 90 W
Unit Box Height - 0.35
Unit Box Length - 0.4
Unit Box Width - 0.14
Unit Calculated Volume ELKO Internal Logistics Data - 0.0196 cubm
Unit Calculated Weight ELKO Verified Logistics Data - 3.75 kg
Unit Depth ELKO Verified Logistics Data - 40 cm
Unit Height ELKO Verified Logistics Data - 35 cm
Units per Pallet ELKO Verified Logistics Data - 0
Units per Shipping Box ELKO Verified Logistics Data - 1
Unit Width ELKO Verified Logistics Data - 14 cm
URL - https://www.tp-link.com/my/business-networking/vigi-network-video-recorder/vigi-nvr2016h-16p/
USB 2.0 ports quantity Ports & interfaces - 2
Vendor Homepage - https://www.tp-link.com/my/business-networking/vigi-network-video-recorder/vigi-nvr2016h-16p/
vendpn - VIGI NVR2016H-16P
VGA (D-Sub) output ports Ports & interfaces - 1
Video compression - H.264
Video compression - H.264+
Video compression - H.265
Video compression - H.265+
Video formats supported Performance - H.264, H.264+, H.265, H.265+
Video input channels Performance - 16 channels
Video motion detection Performance - Yes
Video recording modes Performance - 720p, 1080p
Viewing modes -
Warranty - 36 months
WarrantyInfo -
Weight - 1.9 kg
Weight & dimensions - Depth - 285 mm
Weight & dimensions - Height - 45 mm
Weight & dimensions - Package weight - 3.2 kg
Weight & dimensions - Weight - 1.9 kg
Weight & dimensions - Width - 330 mm
Weight Weight & dimensions - 1.9 kg
Wi-Fi Wireless LAN features - No
Width Weight & dimensions - 330 mm
Wireless LAN features - Wi-Fi - No
