15pin D-sub Input/Output connectors - 1
Alarm In Input/Output connectors - 4
Alarm Out Input/Output connectors - 2
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - NVR5216-EI
Category - Network Video Recorders (NVR)
Category Code - NVR
Description - "16 Channels 1U 2HDDs WizSense Network Video Recorder > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format. > Max. decoding capability: 32 × 1080p@30 fps or 16 × 4MP@30 fps. > Max. 384 Mbps incoming/recording/outgoing bandwidth. > Support AcuPick with Max. 16-Channel. > Support N+M cluster. > AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus. > AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting. > Security baseline 2.3"
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 4179
Dimensions - 375.0 × 284.4 x 56.0mm
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
GTIN - 6923172589798
Hard drive - Number of HDDs supported - 2
HDMI Input/Output connectors - 1
Integrated LAN - Gigabit
LongDesc -
LongProductName - 16 channel, HDMI, VGA, Ethernet, max 2 SATA III HDD, 16 PoE, Embedded Linux, 1U
LongSummaryDescription - Dahua Technology WizMind NVR5216-EI. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Supported resolutions: 3840 x 2160 1920 x 1080 1280 x 1024 1280 x 720 1024 x 768. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,.... Rack capacity: 1U, Product colour: Black. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Power over Ethernet (PoE) power per port: 25.5 W. Width: 375 mm, Depth: 284.4 mm, Height: 56 mm
Model - NVR5216-EI
Number of Channels - 16
Number of drives/bays - 2
Operating temperature range - –10 °C to +55 °C
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Performance - Alarm input channels - 4
Performance - Alarm output channels - 2
Performance - Backup function - Yes
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Multi-screen - Yes
Performance - Number of users - 128 user(s)
Performance - Operating system installed - Embedded LINUX
Performance - Recording modes - Manual, Schedule
Performance - Supported resolutions - 3840 x 2160
1920 x 1080
1280 x 1024
1280 x 720
1024 x 768
Performance - Two-way talk - Yes
Performance - Video formats supported - H.264
Performance - Video formats supported - H.264+
Performance - Video formats supported - H.264, H.264+, H.265, H.265+, M-JPEG
Performance - Video formats supported - H.265
Performance - Video formats supported - H.265+
Performance - Video formats supported - M-JPEG
Performance - Video input channels - 16 channels
Performance - Video motion detection - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - Ethernet LAN data rates - 100
Ports & interfaces - Ethernet LAN data rates - 1000 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Networking standards - IEEE 802.3af
Ports & interfaces - Networking standards - IEEE 802.3af, IEEE 802.3at
Ports & interfaces - Networking standards - IEEE 802.3at
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 16
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - RS-485 ports - 1
Ports & interfaces - Supported network protocols - HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support IP camera, DVR, NVS, etc.), P2P
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power over Ethernet (PoE) power per port - 25.5 W
Power - Total Power over Ethernet (PoE) budget - 130 W
Power consumption - 10 Watts
Power supply requirements - 12 VDC, 4 A
producerCode - NVR5216-EI
productName - Dahua Technology WizMind NVR5216-EI network video recorder 1U Black
ProductName - NVR5216-EI
Product Net Weight - 1.57 kg
productSize - Normal
Rack 1U Mounting Type - Yes
RJ45 Input/Output connectors - 1
RS-485 Input/Output connectors - 1
RS232 Input/Output connectors - 1
ShortSummaryDescription - Dahua Technology WizMind NVR5216-EI, 16 channels, 3840 x 2160 pixels, 3840 x 2160 1920 x 1080 1280 x 1024 1280 x 720 1024 x 768, 128 user(s), H.264, H.264+, H.265, H.265+, M-JPEG, Embedded LINUX
sizeX - 430
sizeY - 360
sizeZ - 135
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - CE, Federal Communications Commission (FCC)
Technical details - Compliance certificates - Federal Communications Commission (FCC)

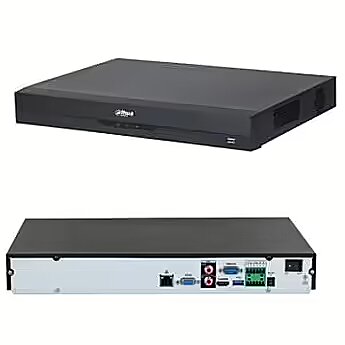

Title - Dahua Technology WizMind NVR5216-EI network video recorder 1U Black
Unit Box Height - 0.36
Unit Box Length - 0.42
Unit Box Width - 0.14
Unit Calculated Volume - 0.02117 cubm
Unit Calculated Weight - 2.84 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/2HDD/NVR5216-EI
USB 2.0 Input/Output connectors - 1
USB 3.0 Input/Output connectors - 1
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/2HDD/NVR5216-EI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - F
weight - 2860
Weight & dimensions - Depth - 284.4 mm
Weight & dimensions - Height - 56 mm
Weight & dimensions - Package depth - 141 mm
Weight & dimensions - Package height - 366 mm
Weight & dimensions - Package weight - 2.73 kg
Weight & dimensions - Package width - 433 mm
Weight & dimensions - Weight - 1.57 kg
Weight & dimensions - Width - 375 mm
