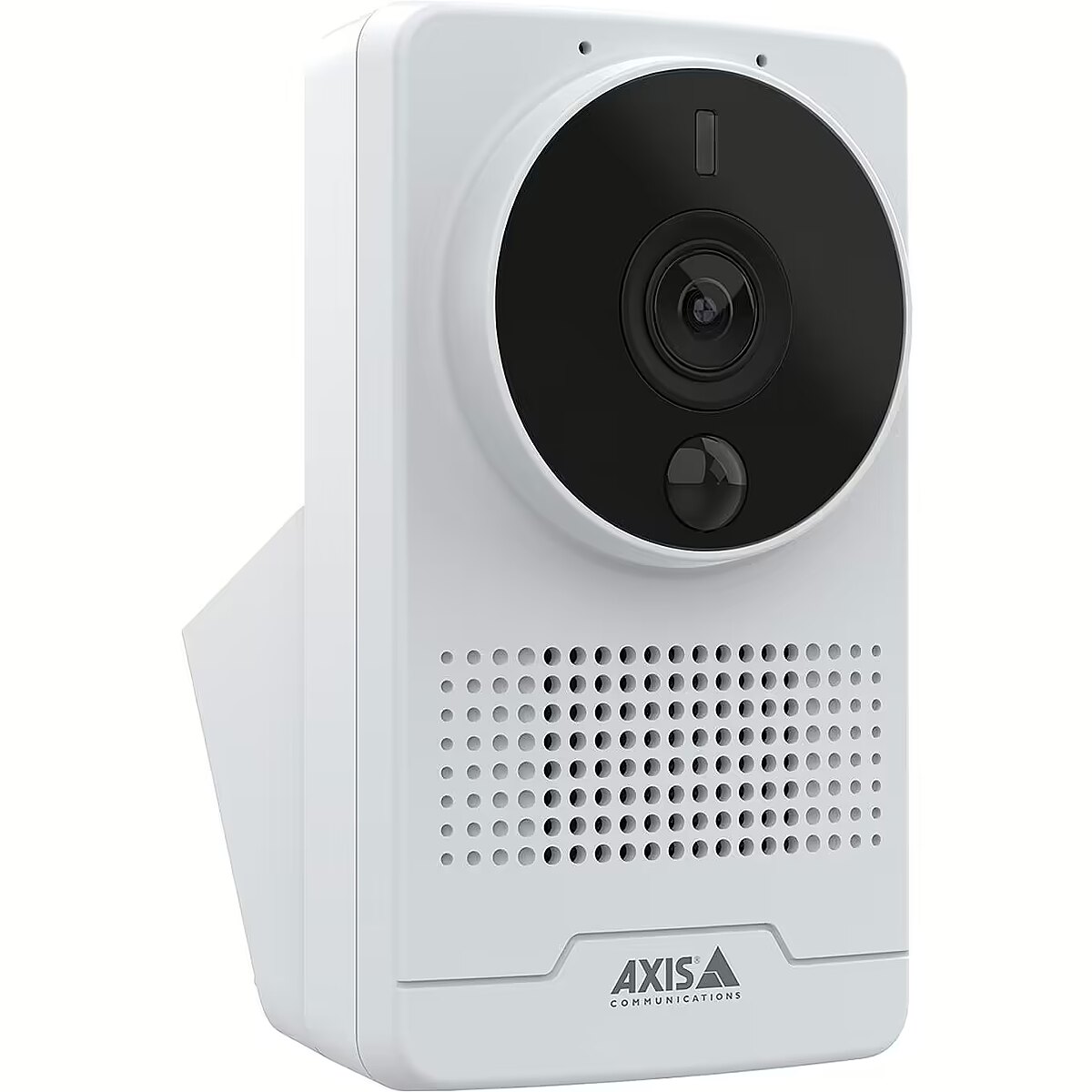

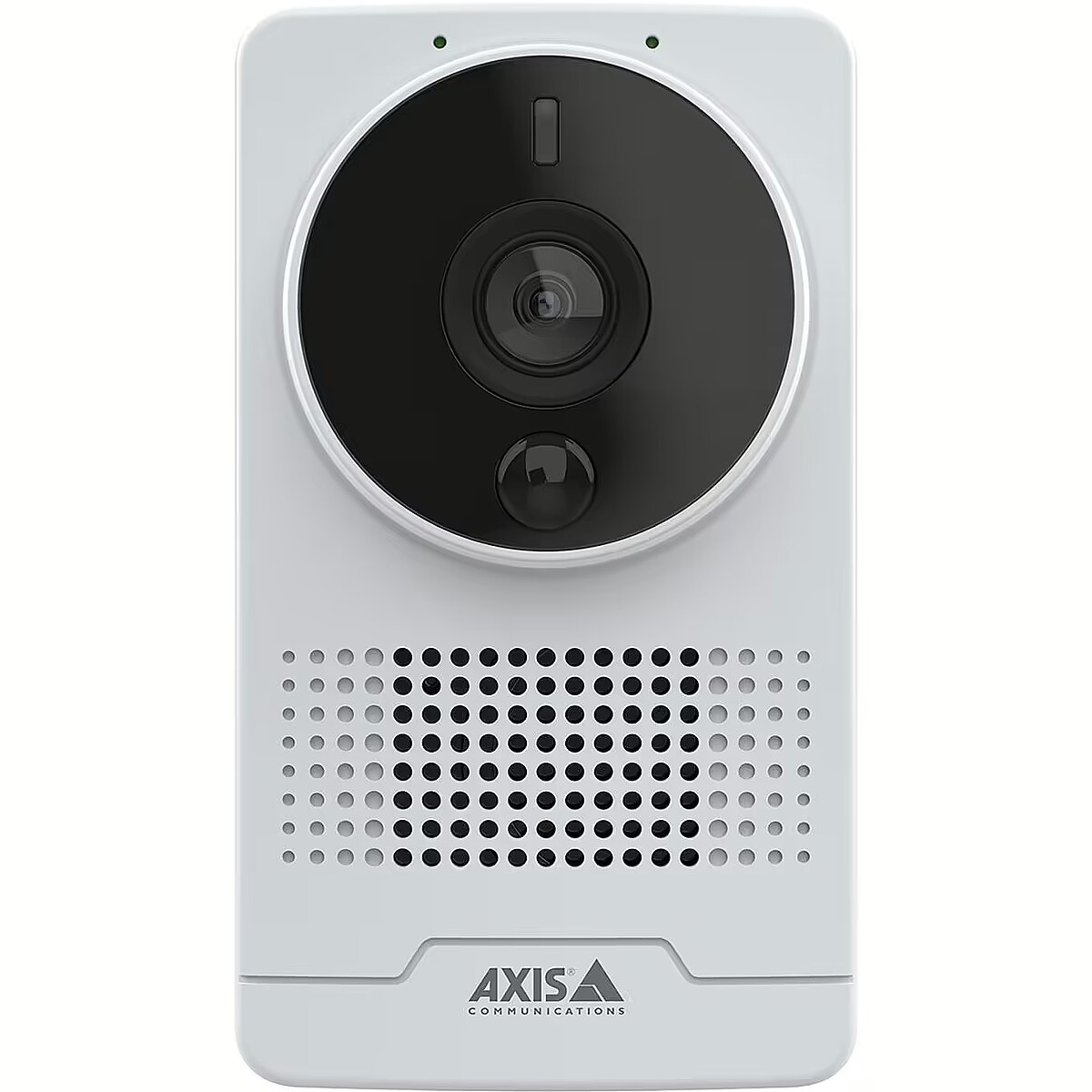

ARTIKEL1 - AXIS M1075-L BOX CAMERA INDOOR
ARTIKEL2 - 2MP/HDTV 30FPS IR DPLU 103 FOV
Audio system full duplex Audio - Yes
Built-in microphone Audio - Yes
Camera shutter speed Camera - 1/19000 - 1/5 s
Card reader integrated Storage - Yes
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Category Code - FNC
Certification Performance - EMC
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),
KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A,
VCCI Class A
Safety
CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3,
IEC 624
Compatible memory cards Storage - MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD
Connectivity technology Performance - Wired
Day/night mode Performance - Yes
DC output voltage Power - 12
Depth Weight & dimensions - 60 mm
Description - AXIS M1075-L offers excellent two-way audio communication and an IR-corrected lens to deliver professional-quality video both day-and-night. It includes a tally LED to indicate video streaming or recording. And, a passive infrared (PIR) sensor can detect movement even in total darkness. This compact camera includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. Built-in cybersecurity features prevent unauthorized access and safeguard your system. Furthermore, it includes a HDMI port and with support for Session Initiation Protocol (SIP), it’s easy to integrate with IP-systems. Optional wireless kit available.Built-in privacy features; Day-and-night with IR illumination; HDMI output; PIR sensor for motion detection; Two-way audio communication
EAN - 7331021076235
EANCode - 7331021076235
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Fixed focal length Lens system - 2 mm
Flash memory Storage - 512 MB
Focal length range Lens system - 3.16 mm
Form factor Design - Box
Frame rate Video - 30 fps
GRUPPE1 - Security
GRUPPE2 - Camera
Height Weight & dimensions - 105 mm
HERSTELLER - AXIS
Housing material Design - Aluminium, Plastic
HSTNUMMER - 02350-001
HTTPS encryption Security - Yes
Internal memory Storage - 1024 MB
LED type Night vision - IR
Lens viewing angle, horizontal Camera - 103°
Lens viewing angle, vertical Camera - 55°
Manufacturer - Axis
Maximum resolution Video - 1920 x 1080 pixels
Minimum illumination Camera - 0.03 lx
Model - M1075-L
Mounting type Design - Wall
MPN - 02350-001
Name - Axis Netzwerkkamera Cube M1075-L Box Camera 1080p
Networking standards Network - IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Night vision Night vision - Yes
Number of cameras Packaging content - 1
Operating relative humidity (H-H) Operational conditions - 10 - 85%
Operating temperature (T-T) Operational conditions - 0 - 35 °C
Optical sensor size Image sensor - 25.4 / 2.9 mm (1 / 2.9")
Placement supported Performance - Indoor
Power consumption (max) Power - 12.95 W
Power consumption (typical) Power - 5.4 W
Power source type Power - PoE
Privacy masking Video - Yes
Product colour Design - White
Progressive scan Image sensor - Yes
Security algorithms Security - EAP-TLS, TLS
Sensor type Image sensor - CMOS
Stck_Kart - 20
Stck_Pal - 20
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 65 °C
Storno - Y
Summary - Axis 02350-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 3.16 mm, Fixed focal length: 2 mm
Supported network protocols Network - IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, SIP, LLDP
Type Performance - IP security camera
Unit Box Height - 0.08
Unit Box Length - 0.14
Unit Box Width - 0.09
Unit Calculated Volume - 0.001008 cubm
Unit Calculated Weight - 0.5 kg
Units per Shipping Box - 1
USB port Ports & interfaces - Yes
Vendor Homepage - https://www.axis.com/products/axis-m1075-l#part-numbers
Video compression formats Video - H.264, H.265, MPEG4
Video formats supported Video - H.264
Video streaming Video - Yes
Warranty - 60 months
Weight - 0.282
Weight Weight & dimensions - 153 g
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 93 mm
