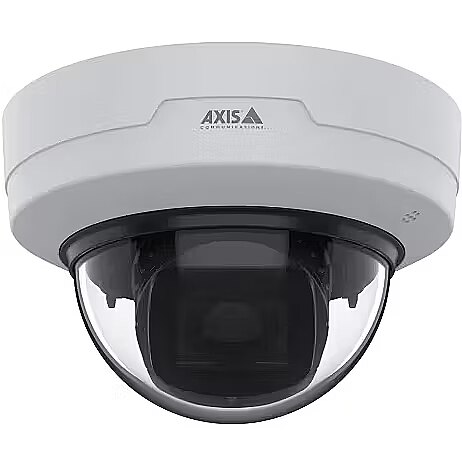

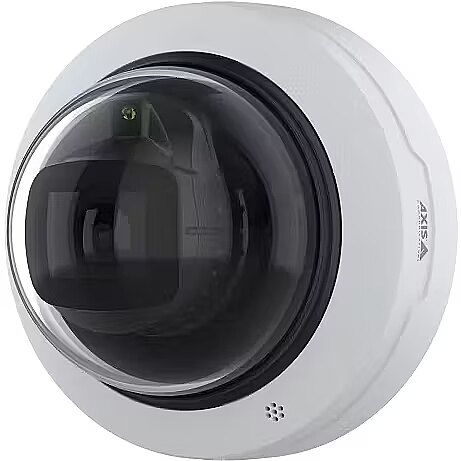

Axis M4227-LVE, 1512p, 5MP, White

Angle of rotation Camera - 360°
ARTIKEL1 - AXIS M4227-LVE
ARTIKEL2 -
Audio detection Audio - Yes
Auto-tracking Performance - Yes
Auto focus Lens system - Yes
Bit rate control Video - Variable Bit Rate (VBR)
Breite - 0.15
Camera pan control Camera - Yes
Camera pixel size Camera - 2.92 µm
Camera shutter speed Camera - 1/33500 - 1.5 s
Camera tilt control Camera - Yes
Category Code - FNC
Closest focusing distance Lens system - 1 m
Cloud-managed Management features - Yes
Compatible memory cards Storage - MicroSD (TransFlash), MicroSDHC, MicroSDXC
Compliance certificates Sustainability - BSMI, CE, EAC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL
Connectivity technology Performance - Wired
Day/night mode Performance - Yes
Depth Weight & dimensions - 112 mm
Description - AXIS M4227-LVE Dome Camera This compact, varifocal dome camera offers great images in 5 MP. It comes preinstalled with AXIS Object Analytics, as well as AXIS Audio Analytics to detect and classify specific sounds as well as sudden changes in sound volume. Great images, every time AXIS M4227-LVE delivers great image quality in 5 MP. Featuring a varifocal lens with 98°-38° field of view and remote zoom and focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Thanks to Lightfinder 2.0 and Forensic WDR, it provides details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Powerful with strong security Featuring a deep learning processing unit (DLPU), AXIS M4227-LVE lets you run advanced features and powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track, and count objects such as humans and vehicles. It includes an acoustic sensor, so it’s out-of-the-box-ready for AXIS Audio Analytics which can detect and classify specific sounds as well as sudden changes in sound volume. In addition, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. Small and discreet This compact and discreet dome camera blends in with any environment. There’s also a smoked dome available as an accessory, so you can disguise which way the camera is pointing. This IP66- and IK10-rated camera has an operating temperature range from -30°C to 50°C (-22°F to 122°F). Plus, the included weathershield offers extra protection.
Detect distance (tele) Lens system - 203.6 m
Detect distance (wide) Lens system - 87.5 m
Doesn't contain Other features - Brominated Flame Retardant (BFR), CFR, PVC
EANCode - 7331021084421
Ethernet interface type Network - Fast Ethernet
Ethernet LAN Network - Yes
Flash memory Storage - 8000 MB
Flip & mirror Video - Yes
Focal length range Lens system - 3.2 - 7.2 mm
Form factor Design - Dome
Frame rate Video - 30 fps
Gewicht - 0.76
GRUPPE1 - Security
GRUPPE2 - Network Cameras
Height Weight & dimensions - 126 mm
HERSTELLER - AXIS
Housing material Design - Plastic, Polycarbonate (PC)
HSTNUMMER - 02815-001
Human and vehicle targets classification Security - Yes
Identify distance (tele) Lens system - 20.4 m
Identify distance (wide) Lens system - 8.8 m
IK code Design - IK10
Image quality adjustment Video - Brightness, Contrast, Saturation, Sharpness
Infra-red wavelength Night vision - 850 nm
Infrared (IR) cut-off filter Performance - Yes
Intelligent Video Surveillance (IVS) system features Security - Abandoned object, Line crossing detection, Moving object
International Protection (IP) code Design - IP66
Laenge - 0.2
LED indicators Design - Yes
LED type Night vision - IR
Lens viewing angle, horizontal Camera - 98°
Lens viewing angle, vertical Camera - 66°
Manual Packaging content - Yes
Maximum aperture number Lens system - 2.7
Maximum resolution Video - 2688 x 1512 pixels
Minimum aperture number Lens system - 2.9
Minimum illumination Camera - 0.03 lx
Model - 02815-001
Mounting type Design - Wall
Networking standards Network - IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Night vision distance Night vision - 20 m
Night vision Night vision - Yes
Number of cameras Packaging content - 1
Number of lenses Lens system - 1
Number of sensors Image sensor - 1
Observe distance (tele) Lens system - 80.8 m
Observe distance (wide) Lens system - 34.7 m
Operating relative humidity (H-H) Operational conditions - 10 - 100%
Operating temperature (T-T) Operational conditions - -30 - 50 °C
Optical sensor size Image sensor - 25.4 / 2.7 mm (1 / 2.7")
Pan range Camera - -180 - 180°
Placement supported Performance - Outdoor
Power consumption (max) Power - 12.3 W
Power consumption (typical) Power - 3.1 W
Power source type Power - PoE
Preset points Performance - Yes
Privacy protection Security - Yes
Product colour Design - Black, White
PTZ control Performance - Yes
PTZ modes Performance - Digital PTZ
RAM capacity Storage - 2000 MB
Recognize distance (tele) Lens system - 40.7 m
Recognize distance (wide) Lens system - 17.5 m
Security algorithms Security - EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS
Sensor type Image sensor - CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera) Panoramic camera - 55 dB
Stck_Kart - 0
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 65 °C
Storno - Y
Streaming method Network - Multicast
Summary - Axis M4227-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 98°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB

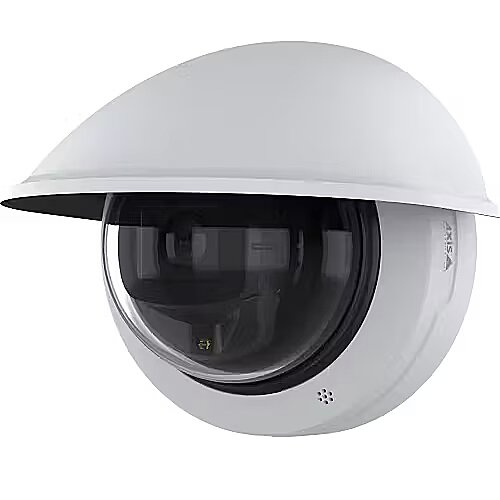

Sun shield included Packaging content - Yes
Supported graphics resolutions Video - 320 x 240, 640 x 360, 2592 x 1944, 2688 x 1512
Supported network protocols Network - IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
Text caption overlay Video - Yes
Tilt angle range Camera - -10 - 65°
Total megapixels Video - 5 MP
Tour recording Performance - Yes
Type Performance - IP security camera
Unit Box Height - 0.12
Unit Box Length - 0.195
Unit Box Width - 0.145
Unit Calculated Volume - 0.003393 cubm
Unit Calculated Weight - 0.757 kg
Units per Pallet - 0
Units per Shipping Box - 1
Vendor Homepage - https://www.axis.com/products/axis-m4227-lve
Video formats supported Video - AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Video streaming Video - Yes
Warranty - 60 months
Weatherproof Design - Yes
Weight Weight & dimensions - 540 g
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 140 mm
Zoom capability Lens system - Yes
