ID: 1245367
Product code: IPC-HDW2649TM-S-IL-0280B
In stock 26 units
Warranty: 3 years

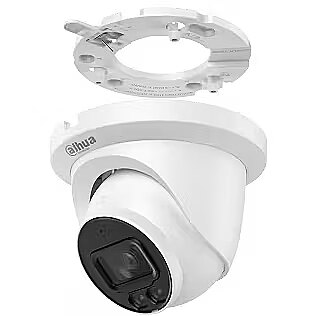

Dahua Eyeball, 1850p, 6MP, White
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
All parameters
Aperture
: F1.6
Atmiņas kartes ligzda
: microSD
Colour
: Balta
Encoding
: H.264, H.265
Feeding
: 12V adapteris, PoE
FPS at maximum resolution
: 20
Microphone
: Ir
Network connections
: Nav
Number of cameras per set
: 1
Operating temperature MAX (°C)
: 60
Operating temperature MIN (°C)
: -40
Resolution
: 3288x1850
SIM card socket
: Nav
Use
: Indoor/Outdoor
Viewing angle
: 112°
Water resistance
: IP67
Weight (g)
: 720
More detailed specification
Camera design - Eyeball
Category Code - FNC
Colour - White
Description - >1/2.7" CMOS image sensor, low luminance, and high definition image. >Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps. >H.265 codec, high compression rate, ultra-low bit rate. >Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m. >ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. >Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. >Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human). >Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. >Supports max. 256 G Micro SD card; built in Mic. >12 VDC/PoE power supply, easy for installation. >IP67 protection. >SMD Plus. >Focal Length 2.8mm. Field of View 112°
Dimensions - 99.1 mm × Φ121.9 mm
Effective pixels - 3288 (H) × 1850 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 3.6 mm; 2.8 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0007 Lux
Model - IPC-HDW2649TM-S-IL-0280B
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +60 °C
Power consumption - 4.6 Watts
Power supply requirements - 12 VDC; PoE
Product Net Weight - 0.53 kg
Resolution - 6 Mega Pixel
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7" CMOS
Supports card capacities up to - 256GB
Unit Box Height - 0.11
Unit Box Length - 0.14
Unit Box Width - 0.14
Unit Calculated Volume - 0.002769 cubm
Unit Calculated Weight - 0.725 kg
Units per Pallet - 0
Units per Shipping Box - 20
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2649TM-S-IL
Warranty - 36 months
Category Code - FNC
Colour - White
Description - >1/2.7" CMOS image sensor, low luminance, and high definition image. >Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps. >H.265 codec, high compression rate, ultra-low bit rate. >Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m. >ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. >Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. >Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human). >Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. >Supports max. 256 G Micro SD card; built in Mic. >12 VDC/PoE power supply, easy for installation. >IP67 protection. >SMD Plus. >Focal Length 2.8mm. Field of View 112°
Dimensions - 99.1 mm × Φ121.9 mm
Effective pixels - 3288 (H) × 1850 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 3.6 mm; 2.8 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0007 Lux
Model - IPC-HDW2649TM-S-IL-0280B
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +60 °C
Power consumption - 4.6 Watts
Power supply requirements - 12 VDC; PoE
Product Net Weight - 0.53 kg
Resolution - 6 Mega Pixel
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7" CMOS
Supports card capacities up to - 256GB
Unit Box Height - 0.11
Unit Box Length - 0.14
Unit Box Width - 0.14
Unit Calculated Volume - 0.002769 cubm
Unit Calculated Weight - 0.725 kg
Units per Pallet - 0
Units per Shipping Box - 20
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2649TM-S-IL
Warranty - 36 months
