Accessories included - GNU License Information Sealing Accessories Mounting Template Installation Manual Anchors Self-Tapping Screws Washers Screws Gasket Terminal Blocks Nuts L-Shaped Screwdriver
ARTIKEL1 - VIGI 8MP OUTDOOR NETWORK CAMERA
ARTIKEL2 - IR PANORAMIC BULLET
Audio - Audio formats supported - G.711 A-law
Audio - Audio input channels - 1.0 channels
Audio - Audio output channels - 1.0 channels
Audio - Audio system - 2-way
Audio - Bit rate range - 0 - 64 Kbit/s
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Number of microphones - 1
Audio - Sample rate - 8 kHz
Audio compression - G.711
Brand - TP-Link
BrandPartCode - INSIGHT S385PI(UN)
Breite - 0
Camera - Camera shutter speed - 1/3 to 1/10000
Camera - Lens viewing angle, diagonal - 180°
Camera - Lens viewing angle, horizontal - 180°
Camera - Lens viewing angle, vertical - 86°
Camera - Minimum illumination - 0 lx
Camera - Tilt angle range - 0 - 90°
Category - Security Cameras
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Certificates - CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
Color - White
Connectors - Audio in
Connectors - Audio out
Connectors - microSD
Connectors - RJ-45

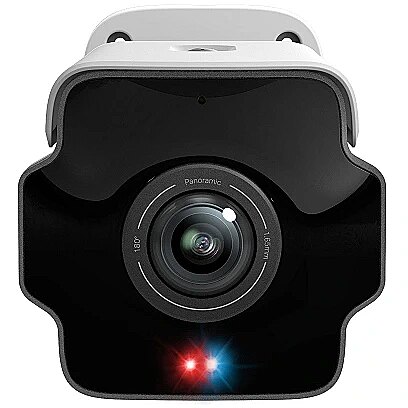

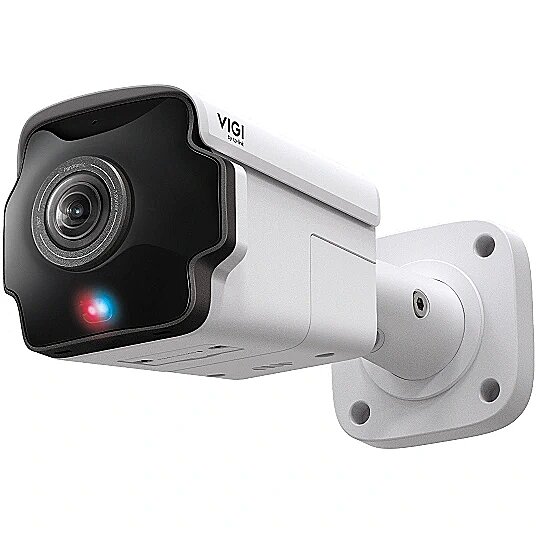

Description - VIGI 8MP Bullet Outdoor Panoramic Network Camera - Infrared Panoramic 180° Wide View
Capture wide areas with a 180° panoramic view, reducing blind spots and the need for multiple cameras. Perfect for large spaces like hotel lobbies, playgrounds, intersections, and warehouses. 4K Ultra HD (8MP) & Infrared up to 20m
Enjoy ultra-clear image quality with 4K resolution (8MP) and IR night vision up to 20m, ensuring reliable monitoring day and night. Active Deterrence with Red and Blue Warning Lights
Integrated red and blue flashing lights combined with loud audio alarms effectively deter intruders in real-time. The system also supports user-recorded voice alerts. Smart People and Vehicle Analytics
Advanced analytics classify and detect people and vehicles, providing smart detection for faster and more accurate alerts. Video Enhancement Technologies
Built-in intelligent video enhancement ensures crisp, clear footage in various lighting conditions. Audio & Alarm Integration
Supports audio and alarm input/output ports for seamless integration with external alarms and audio devices. Durable and Weatherproof Ingress Protection: IP67 (dust and water resistant) Vandal Resistance: IK10 Efficient H.265+ Compression
Reduces bandwidth and storage requirements while maintaining excellent video quality. Saves up to 57.5% bandwidth and 15% storage compared to H.264 and H.265, respectively. Cost-Effective Deployment
The single 180° panoramic 4K camera covers large areas that would otherwise require multiple devices, lowering installation, deployment, and maintenance costs while expanding coverage.
Design - Form factor - Bullet
Design - Housing material - Metal
Design - International Protection (IP) code - IP67
Design - Mounting type - Wall
Design - Product colour - White
Design - Protection features - Waterproof
Design - Weatherproof - Yes
Designation - CE+WEEE
dimension depth - 157 mm
dimension height - 305 mm
Dimensions - 266 × 100 × 101 mm
dimension weight - 1435 g
dimension width - 160 mm
ean - 8885020627862
EAN - 8885020627862
EANCode - 8885020627862
Environment requirements - Operating Temperature: -30°C to 60°C Storage Temperature: -40°C to 60°C Operating Humidity: 95% RH (non-condensing) Storage Humidity: 95% RH (non-condensing)
Frames per second - 30
GRUPPE1 - Network
GRUPPE2 - Network Camera
GTIN - 8885020627862
guarantee - 36
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - INSIGHT S385PI(UN)
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Impact protection - IK10
Laenge - 0
Lens - Type: Fixed Lens Focal Length: 1.65mm Aperture: F2.0 Lens Mount: M12 DORI Distance (1.65mm lens): Detection: 44m Observation: 18.33m Recognition: 8.8m Identification: 4.4m
Lens system - Detect distance - 44 m
Lens system - Fixed focal length - 1.65 mm
Lens system - Fixed focus - Yes
Lens system - Identify distance - 4.4 m
Lens system - Maximum aperture number - 2
Lens system - Observe distance - 18.33 m
Lens system - Recognize distance - 8.8 m
LongDesc - Cut Project Costs with 180° View and 4K (8MP) ClarityGeneral cameras require multiple units to cover blind spots in large spaces like hotel lobbies, playgrounds, intersections, and warehouses, raising costs. A single panoramic camera with 180° view and 4K resolution reduces installation, deployment, and maintenance costs while covering more area.Powerful, Efficient Monitoring with Active DefenseActive Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.Red-Blue Warning Lights with Stronger DeterrenceRed-blue flashing lights are more effective than white lights and create a strong deterrent effect when paired with audio alarms.Flexible Audio & Alarm IntegrationThe Audio In/Out and Alarm In/Out ports enable easy integration with external alarm or access control devices.Instant Event NotificationsWhen the AI function detects an event or an external alarm device senses an event and sends a signal to the IPC, the alarm will trigger with alerts instantly sent to your phone.Smart Video Enhancement TechnologyTrue WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.Efficient H.265+ Compression TechnologyH.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
LongProductName - InSight S385PI VIGI 8MP Outdoor IR Panoramic Bullet Network Camera
LongSummaryDescription - TP-Link VIGI InSight S385PI. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 86°, Lens viewing angle, diagonal: 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Sensor type (panoramic camera): CMOS
Management features - Cloud-managed - Yes
Management features - Reset button - Yes
Management features - Web-based management - Yes
Management features - Web browser - Yes
Manufacturer - TP-Link
Memory card reader - Yes
Memory standard - SDXC
Microphone - Yes
Min. illuminance - 0 lx
Motion detection - Yes
MPN - INSIGHT S385PI
name - TP-Link InSight S385PI
Name - TP-Link Omada InSight S385PI(UN) VIGI 8MP Outd. IR Pano. Bullet Kamera
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Networking standards - IEEE 802.3at
Network - SIM card slot - Yes
Network - SIM card type - MicroSIM
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Network - Wi-Fi - No
Network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP
Night mode - Yes
Night mode range - 20 m
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - Drilling template included - Yes
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of cameras - 1
Packaging content - Screws included - Yes
Panoramic camera - Sensor type (panoramic camera) - CMOS
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Infrared (IR) cut-off filter - Yes
Performance - Maximum operating distance - 44 m
Performance - Placement supported - Outdoor
Performance - Remote viewing - Yes
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 18 W
Power - Power consumption (Power over Ethernet (PoE)) - 21 W
Power - Power source type - DC, PoE
Power supply - Power Supply: 12V DC 5%, Max. 18W, 5.5mm Coaxial Power Plug PoE: 802.3at, Class 4, Max. 21W
producer - TP-LINK
ProductName - InSight S385PI
Protection class - IP67
Resolution - 4K Ultra HD (3840 x 2160)
Security - Alert notification type - Push notification
Security - Built-in siren - Yes
Security - Detection distance - 120 m
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - Human and vehicle targets classification - Yes
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Motion sensor - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
ShortSummaryDescription - TP-Link VIGI InSight S385PI, IP security camera, Outdoor, Wired, 44 m, 120 dB, Wall
Speakers built-in - Yes
Standards - 802.3at
Stck_Kart - 9998
Stck_Pal - 0
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 512 GB
Storno - N
Title - TP-Link VIGI InSight S385PI Bullet IP security camera Outdoor 3840 x 2160 pixels Wall
Two-way transmission - Yes
type - Panoramic
URL - https://www.tp-link.com/en/business-networking/vigi-network-camera/insight-s385pi/
vendpn - InSight S385PI
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 1024 Kbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness, Contrast, Mirror, Saturation, Sharpness
Video - Maximum resolution - 3840 x 2160 pixels
Video - Supported graphics resolutions - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520, 2880 x 1620, 3840 x 2160
Video - Total megapixels - 8 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video recording - Yes
Video compression - H.264
Video compression - H.264+
Video compression - H.265
Video compression - H.265+
Viewing angle, horizontal - 180 °
Viewing angle, vertical - 86 °
Visual angle diagonal - 180 °
WarrantyInfo -
Weight - 1.01 kg
Weight & dimensions - Height - 101 mm
Weight & dimensions - Length - 266 mm
Weight & dimensions - Weight - 1.01 kg
Weight & dimensions - Width - 100 mm
