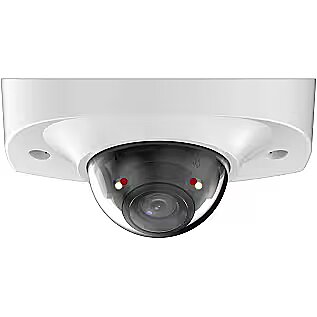

Dahua Dome, 1520p, 4MP, White

Active tampering alarm Security - Yes
Alarm input/output Performance - Yes
Alarm input channels Security - 1
Alarm output channels Security - 1
Angle of rotation Camera - 360°
Audio - Audio input channels - 1.0 channels
Audio - Audio output channels - 1.0 channels
Audio - Built-in microphone - Yes
Audio - Signal-to-Noise Ratio (SNR) - 56 dB
Audio - Voice codecs - G.711Mu, G.711a, G.726, PCM
Audio input channels Audio - 1.0 channels
Audio output channels Audio - 1.0 channels
Back Light Compensation (BLC) Video - Yes
Bit rate control Video - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate Video - H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Bluetooth Network - No
Brand - Dahua Technology
BrandPartCode - IPC-HDBW2449F-AS-IL-0280B
Built-in HDD Storage - No
Built-in light Performance - Yes
Built-in microphone Audio - Yes
Camera - Angle of rotation - 360°
Camera - Camera shutter speed - 1/3 – 1/100000
Camera - Lens viewing angle, diagonal - 120°
Camera - Lens viewing angle, horizontal - 101°
Camera - Lens viewing angle, vertical - 54°
Camera - Minimum illumination - 0.0006 lx
Camera - Number of Privacy masking areas - 4
Camera - Pan range - -30 - 30°
Camera - Tilt angle range - 0 - 80°
Camera - White balance - Auto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter speed Camera - 1/3 – 1/100000
Card reader integrated Storage - Yes
Category - Security Cameras
Category Code - FNC
Closest focusing distance Lens system - 1.7 m
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired
DC output voltage Power - 12
Description - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions. With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance. Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently. SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm. Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced. Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission. Full-color
With high-performance sensor and large aperture lens, Dahua Fullcolor technology can display clear colorful image in the environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details. Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device. Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage. 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition imageOutputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fpsH.265 codec, high compression rate, ultra-low bit rateBuilt-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 mROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environmentsRotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenesIntelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detectionSupports max. 256 G Micro SD card; built in Mic12 VDC/PoE power supply, easy for installationIP67 and IK10 protectionSMD Plus
Design - Form factor - Dome
Design - Housing material - Metal
Design - IK code - IK10
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/Wall/Pole
Design - Product colour - White
Detect distance Lens system - 63.6 m
Diameter Weight & dimensions - 10.9 cm
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Fixed focal length Lens system - 2.8 mm
Fixed focus Lens system - Yes
Flip & mirror Video - Yes
Form factor Design - Dome
Gain control type Video - Auto/Manual
GTIN - 6923172526922
Height Weight & dimensions - 55 mm
Highlight Compensation (HLC) Video - Yes
Housing material Design - Metal
Identify distance Lens system - 6.4 m
IK code Design - IK10
Image sensor - Optical sensor size - 25.4 / 2.9 mm (1 / 2.9")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Infrared (IR) cut-off filter Performance - Yes
Intelligent Video Surveillance (IVS) system features Security - Human detection, Intrusion, Tripwire, Vehicle detection
International Protection (IP) code Design - IP67
LED type Night vision - IR/White
Lens system - Closest focusing distance - 1.7 m
Lens system - Detect distance - 63.6 m
Lens system - Fixed focal length - 2.8 mm
Lens system - Fixed focus - Yes
Lens system - Identify distance - 6.4 m
Lens system - Number of lenses - 1
Lens system - Observe distance - 25.4 m
Lens system - Recognize distance - 12.7 m
Lens viewing angle, diagonal Camera - 120°
Lens viewing angle, horizontal Camera - 101°
Lens viewing angle, vertical Camera - 54°
LongDesc - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.Smart Dual LightDahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.SMD PlusWith intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.Perimeter ProtectionWith deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.Smart H.265+ & Smart H.264+With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.Full-colorWith high-performance sensor and large aperture lens, Dahua Fullcolor technology can display clear colorful image in the environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.Cyber SecurityDahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.Protection (IP67, IK10, Wide Voltage)IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
LongProductName - 4MP Smart Dual Light Fixed-focal Dome WizSense Network Camera, 1/2.9" CMOS, 2.8 mm, RJ-45, IP67
LongSummaryDescription - Dahua Technology WizSense IPC-HDBW2449F-AS-IL-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.0006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 101°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 63.6 m, Observe distance: 25.4 m, Recognize distance: 12.7 m
Management features - Web-based management - Yes
Maximum memory card size Storage - 256 GB
Maximum resolution Video - 2688 x 1520 pixels
Minimum illumination Camera - 0.0006 lx
Model - IPC-HDBW2449F-AS-IL-0280B
Mounting type Design - Ceiling/Wall/Pole
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Number of users - 6 user(s)
Network - Supported network protocols - IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Network - Wi-Fi - No
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 4
Night vision distance Night vision - 30 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of illumination LEDs Night vision - 4
Number of lenses Lens system - 1
Number of Privacy masking areas Camera - 4
Number of users Network - 6 user(s)
Observe distance Lens system - 25.4 m
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - -40 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Optical sensor size Image sensor - 25.4 / 2.9 mm (1 / 2.9")
Package weight Packaging data - 550 g
Packaging content - Number of cameras - 1
Packaging data - Package weight - 550 g
Pan range Camera - -30 - 30°
Performance - Alarm input/output - Yes
Performance - Built-in light - Yes
Performance - Connectivity technology - Wired
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Performance - Outdoor
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 8.5 W
Power - Power consumption (Power over Ethernet (PoE)) - 3.8 W
Power - Power consumption (typical) - 2.3 W
Power - Power source type - DC, PoE
Power consumption (max) Power - 8.5 W
Power consumption (Power over Ethernet (PoE)) Power - 3.8 W
Power consumption (typical) Power - 2.3 W
Power source type Power - DC, PoE
Privacy protection Security - Yes
Product colour Design - White
ProductName - IPC-HDBW2449F-AS-IL-0280B
Progressive scan Image sensor - Yes
RAM capacity Storage - 128 MB
Recognize distance Lens system - 12.7 m
Region of Interest (ROI) encoding Video - Yes
ROM capacity Storage - 128 MB
Security - Active tampering alarm - Yes
Security - Alarm input channels - 1
Security - Alarm output channels - 1
Security - Intelligent Video Surveillance (IVS) system features - Human detection, Intrusion, Tripwire, Vehicle detection
Security - Privacy protection - Yes
Security - Video motion detection - Yes
Sensor type Image sensor - CMOS
ShortSummaryDescription - Dahua Technology WizSense IPC-HDBW2449F-AS-IL-0280B, IP security camera, Outdoor, Wired, Ceiling/Wall/Pole, White, Dome
Signal-to-Noise Ratio (SNR) Audio - 56 dB
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
Storage - RAM capacity - 128 MB
Storage - ROM capacity - 128 MB
Storage relative humidity (H-H) Operational conditions - 0 - 95%
Storage temperature (T-T) Operational conditions - -40 - 60 °C
Summary - Dahua Technology WizSense IPC-HDBW2449F-AS-IL-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.0006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 101°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 63.6 m, Observe distance: 25.4 m, Recognize distance: 12.7 m
Supported graphics resolutions Video - 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520
Supported network protocols Network - IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Tilt angle range Camera - 0 - 80°
Title - Dahua Technology WizSense IPC-HDBW2449F-AS-IL-0280B security camera Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole
Total megapixels Video - 4 MP
Type Performance - IP security camera
Unit Box Height - 0.085
Unit Box Length - 0.14
Unit Box Width - 0.135
Unit Calculated Volume - 0.001607 cubm
Unit Calculated Weight - 0.54 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDBW2449F-AS-IL
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDBW2449F-AS-IL
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Flip & mirror - Yes
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2688 x 1520 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264B, H.264H, H.265, M-JPEG
Video - Video streaming - Yes
Video compression formats Video - H.264, H.264B, H.264H, H.265, M-JPEG
Video motion detection Security - Yes
Video streaming Video - Yes
Voice codecs Audio - G.711Mu, G.711a, G.726, PCM
Warranty - 36 months
WarrantyInfo -
Web-based management Management features - Yes
Weight & dimensions - Diameter - 10.9 cm
Weight & dimensions - Height - 55 mm
Weight & dimensions - Weight - 410 g
Weight Weight & dimensions - 410 g
White balance Camera - Auto, Manual, Natural, Outdoor, Regional custom, Street lamp
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
