Camera design - Dome
Category Code - FNC
Colour - White

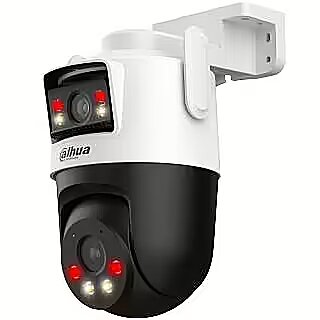

Description - Designed with more lens than the conventional PT camera, the SDT2A series captures an expansive view, as it independently monitors scenes from different angles. It has a unique design that makes it costeffective, greatly reducing the installation cost of security systems. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. It also records videos in full color, and uses Smart Dual Light to help produce vivid images, making it easy to obtain information on events, and reduce light pollution. 1920 × 1080, Lens fixed/PT 4 mm/ 4 mm, view 85.7°/ 85.7°, IR/white light up to 30m, built-in Mic, built-in speaker, Micro SD card max. 256 GB, 12 VDC/PoE, AI Human Detection, AI Vehicle Detection, ICR, IP66 indoor/outdoor use.
dimensionalWeight - 1148
Dimensions - 110.0 mm × 159.4 mm × 210.1 mm
Environment - Outdoor
Focal Length - 4 mm
IR Illumination - Yes
Microphone - Built-in
MicroSD Card Slot Input/Output connectors - 1
Min. Illumination - 0 Lux
Model - SDT2A200-2F-NB-A-PV
Network Camera Type - Fixed Dome/Outdoor
Operating temperature range - –20 °C to +50 °C
Pixel Resolution - 2 Mega Pixel
Power consumption - 4 Watts
Power options - PoE
Power supply requirements - 12 VDC/1.5 A ± 10%
producerCode - SDT2A200-2F-NB-A-PV
productName - Dahua Technology Lite DH-SD2A500HB-GN-AW-PV-S2 security camera Dome IP security camera Indoor & outdoor 2560 x 1920 pixels Ceiling/wall
Product Net Weight - 1 kg
productSize - Normal
RJ45 Input/Output connectors - 1
Sensor size - 1/2.8" CMOS
sizeX - 230
sizeY - 135
sizeZ - 185
Supports card capacities up to - 256GB
Unit Box Height - 0.235
Unit Box Length - 0.185
Unit Box Width - 0.135
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 1 kg
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com
Warranty - 36 months
warrantyLength - 24
warrantyType - F
weight - 870
