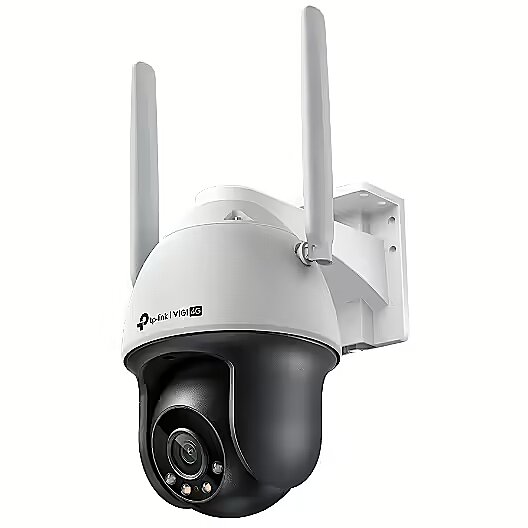

TP-LINK VIGI C540-4G(4mm), 1440p, 4MP 4G LTE Full-Color Pan/Tilt

3D positioning Video - Yes
3G standards Network - WCDMA
4G standard Network - LTE-TDD & LTE-FDD
Accessories included -
Audio - Bit rate range - 64 - 64 Kbit/s
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Sample rate - 8 kHz
Audio - Signal-to-Noise Ratio (SNR) - 52 dB
Auto patrol mode Performance - Yes
Basic event Features - Motion Detection, Camera Tampering Detection, Exception
Behavior analysis Management features - Intrusion detection,Line crossing detection
Bit rate control Video - Constant Bit Rate (CBR),Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate range Audio - 64 - 64 Kbit/s
Bit rate Video - 256 Kbps - 4 Mbps
Brand - TP-Link
BrandPartCode - VIGI C540-4G(4MM)
Built-in HDD Storage - No
Built-in microphone Audio - Yes
Built-in speaker(s) Audio - Yes
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/3 - 1/10000 s
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 94°
Camera - Lens viewing angle, horizontal - 80°
Camera - Lens viewing angle, vertical - 43°
Camera - Number of Privacy masking areas - 4
Camera - Pan range - 0 - 348°
Camera - Pan speed - 44 °/sec
Camera - Tilt angle range - 0 - 120°
Camera - Tilt speed - 44 °/sec
Camera pan control Camera - Yes
Camera shutter speed Camera - 1/3 - 1/10000 s
Camera tilt control Camera - Yes
Card reader integrated Storage - Yes
Category - Security Cameras
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Category Code - NCI
Certificates - CE, RCM, BSMI, RoHS, NCC
Certification Performance - RCM, BSMI, VCCI, NTRA, KC
Color - Black
Color - White
Compatible memory cards Storage - MicroSD (TransFlash)
Compliance certificates Sustainability - CE/RoHS
Connectivity technology Performance - Wired
Connectors - RJ-45
Day/night mode Performance - Yes
DC output voltage Power - 12
Depth Weight & dimensions - 182 mm
Description - Clarity and Colors, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance. Network Anywhere You Need It

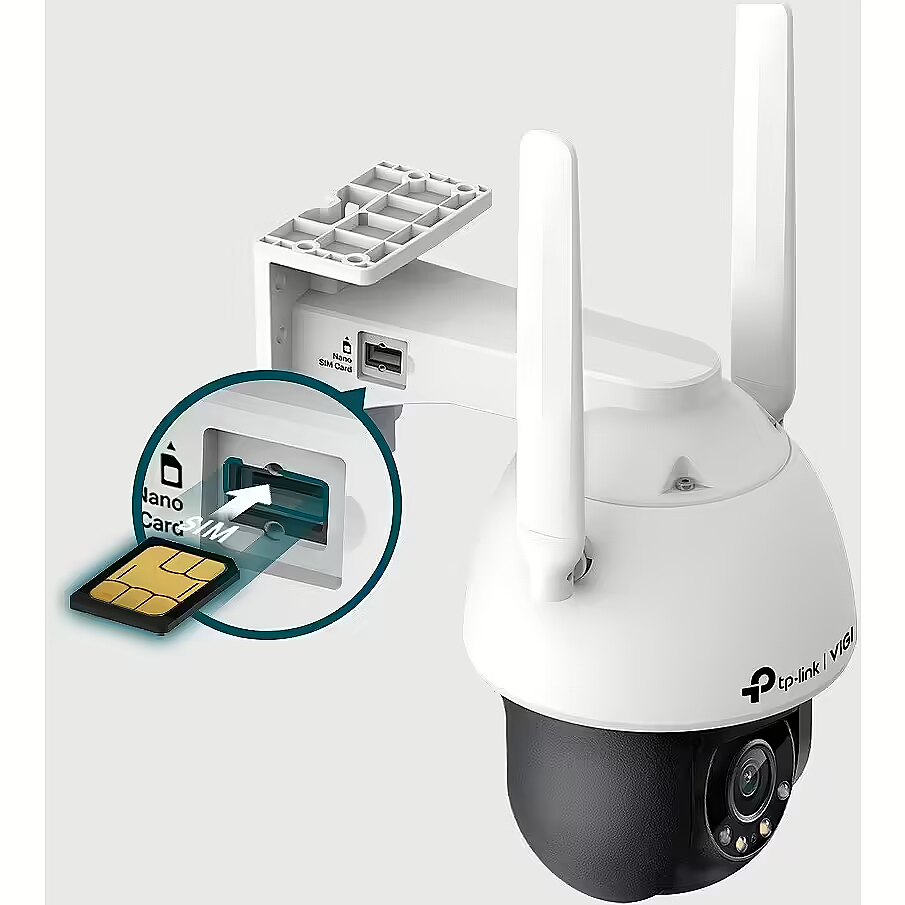

No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites. Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly. Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications. Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage. Smart Detection for Efficient Monitoring
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios. Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene. Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client. One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available360° Monitoring: Cover every corner and eliminate blind spotsHuman & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notificationsSmart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantlyAutomatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer videoActive Defense: Warn potential intruders instantly with sound and light when abnormal eventsTwo-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhereH.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk spaceIP66 Waterproof: Reliable IP66 for stable outdoor performanceRemote Management: Take full control over your security anytime and anywhere on the VIGI app or PC clientOnboard Storage: Support on-board storage up to 256 GB (SD card slot)
Description - Experience clear, vivid monitoring 24/7, even in complete darkness. 4G Mobile Network: Enjoy hassle-free installation and easy monitoring in places where there is no internet access. 360° Monitoring: Covers every corner and eliminates blind spots. People and Vehicle Classification: Distinguishes people and vehicles from other objects, so you get more accurate event notifications. Smart Detection: Actively detects abnormal events such as intrusion and line crossing, sending notifications to you immediately. Auto Tracking: Automatically tracks people or vehicles of interest and provides smooth and longer video recordings. Active Defense: Instantly warns potential intruders with sound and light when abnormal events occur. Two-Way Audio: With two-way audio support, conduct two-way conversations while watching from anywhere. IP66 Waterproof: Reliable IP66 waterproof rating ensures stable performance outdoors. Internal Memory: Supports internal memory up to 256 GB (SD card slot).
Design - Form factor - Turret
Design - Housing material - Plastic
Design - International Protection (IP) code - IP66
Design - Mounting type - Ceiling/wall
Design - Product colour - Black, White
Designation - CE+WEEE
Detect distance Lens system - 80 m
Digest authentication Security - Yes
Digital Wide Dynamic Range (DWDR) Video - Yes
dimension depth - 160 mm
dimension height - 240 mm
Dimensions - 120 × 182 × 201 mm
dimension weight - 1201 g
dimension width - 240 mm
ean - 4895252504910
EAN - 4895252504910
Environment requirements - Operating temperature: -30-60°C Storage temperature: -40-60°C Operating humidity: 95% or less (non-condensing) Storage humidity: 95% or less (non-condensing)
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Features - Basic event - Motion Detection, Camera Tampering Detection, Exception
Form factor Design - Turret
Frame rate Video - 30 fps
Frames per second - 30
GTIN - 4895252504910
GTIN - 4895252504927
guarantee - 36
guarantee_type - normal
Height Weight & dimensions - 201 mm
Housing material Design - Plastic
HTTPS encryption Security - Yes
Identify distance Lens system - 8 m
Image quality adjustment Video - Brightness/Contrast/Mirror/Saturation/Sharpness
Image sensor - Optical sensor size - 25.4 / 3.06 mm (1 / 3.06")
Image sensor - Sensor type - CMOS
Infrared (IR) cut-off filter Performance - Yes
Intelligent Video Surveillance (IVS) system features Security - Human detection
International Protection (IP) code Design - IP66
IP address filtering Security - Yes
LED type Night vision - IR/White
Lens -
Lens diameter Lens system - 4 mm
Lens system - Detect distance - 80 m
Lens system - Identify distance - 8 m
Lens system - Lens diameter - 4 mm
Lens system - Maximum aperture number - 1.6
Lens system - Minimum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Observe distance - 33 m
Lens system - Recognize distance - 16 m
Lens system - Zoom capability - Yes
Lens viewing angle, diagonal Camera - 94 °
Lens viewing angle, horizontal Camera - 80 °
Lens viewing angle, vertical Camera - 43 °
Live view Network - Yes
LongDesc - Clarity and Colors, All in OneExperience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperturelens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.Network Anywhere You Need ItNo need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.Powerful Pan TiltCover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.Automatic TrackingAutomatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.Smart Detection for Efficient MonitoringBy setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.Active DefenseWarn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.Two-Way AudioWith voice intercom support, carry two-way conversations while watching your feed from anywhere.Smart Video Coding by H.265+Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Remote ManagementTake full control over your security anytime and anywhere on the VIGI app or client.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - 1/3.06", CMOS, 4G, F1.6, 4mm
LongSummaryDescription - TP-Link VIGI C540-4G. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 80°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 94°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.06 mm (1 / 3.06"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
Luminous flux Performance - 0.005 lm
Management, monitoring, configuration -
Management features - Behavior analysis - Intrusion detection, Line crossing detection
Management features - Reset button - Yes
Manufacturer - TP-Link
Maximum aperture number Lens system - 1.6
Maximum memory card size Storage - 256 GB
Maximum resolution Video - 2560 x 1440 pixels
Memory card reader - Yes
Microphone - Yes
Minimum aperture number Lens system - 1.6
Minimum illuminance - 0.005 lx
Mirror Security - Yes
Model name - VIGI C540-4G
Motion detection - Yes
Mounting kit Packaging content - Yes
Mounting type Design - Ceiling/wall
MPN - VIGI C540-4G(4mm)
name - Camera VIGI C540-4G(4mm) 4MP 4G LTE Full-Color Pan/Tilt
Name - TP-Link Omada IPCam VIGI C540-4G(4mm) 4MP 4G LTE Full-Color
Network - 3G standards - WCDMA
Network - 4G standard - LTE-TDD & LTE-FDD
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Number of simultaneous live view channels - 3 channels
Network - SIM card slot - Yes
Network - SIM card type - NanoSIM
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network protocols -
Night mode - Yes
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 4
Night vision distance Night vision - 30 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of illumination LEDs Night vision - 4
Number of lenses Lens system - 1
Number of Privacy masking areas Camera - 4
Number of simultaneous live view channels Network - 3 channels
Observe distance Lens system - 33 m
Operating relative humidity (H-H) Operational conditions - 0 - 95 %
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Optical sensor size Image sensor - 1/3.06 "
Other features -
Package depth Packaging data - 213 mm
Package height Packaging data - 243 mm
Package weight Packaging data - 1160 g
Package width Packaging data - 163 mm
Packaging content - Mounting kit - Yes
Packaging content - Number of cameras - 1
Packaging data - Package depth - 213 mm
Packaging data - Package height - 243 mm
Packaging data - Package weight - 1.16 kg
Packaging data - Package width - 163 mm
Pan range Camera - 0 - 348 °
Pan speed Camera - 44 °/sec
Password protection Security - Yes
Performance - Auto patrol mode - Yes
Performance - Certification - RCM, BSMI, VCCI, NTRA, KC
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Infrared (IR) cut-off filter - Yes
Performance - Luminous flux - 0.005 lm
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Performance - Indoor & outdoor
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power source type - DC
Power source type Power - DC
Power supply - 12 V DC/1 A, 5,5 mm
Privacy masking Video - Yes
producer - TP-LINK
Product colour Design - Black/White
ProductName - C540-4G
Protection class - IP66
Recognize distance Lens system - 16 m
Reset button Management features - Yes
Resolution - 2560 x 1440
Sample rate Audio - 8 kHz
Security - Password Protection, HTTPS Encryption, IP Filter, Hash Authentication
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - Intelligent Video Surveillance (IVS) system features - Human detection
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Sensor - 1/3.06" progressive scan CMOS.
Sensor type Image sensor - CMOS
ShortSummaryDescription - TP-Link VIGI C540-4G, IP security camera, Indoor & outdoor, Wired, 0.005 lm, RCM, BSMI, VCCI, NTRA, KC, Ceiling/wall
Signal-to-Noise Ratio (SNR) Audio - 52 dB
SIM card slot Network - Yes
SIM card type Network - NanoSIM
Speakers built-in - Yes
Special functions -
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
Storage relative humidity (H-H) Operational conditions - 0 - 95 %
Storage temperature (T-T) Operational conditions - -40 - 60 °C
Summary - TP-Link VIGI C540-4G. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 80°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 94°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.06 mm (1 / 3.06"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
Supported graphics resolutions Video - 1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/320 x 240/352 x 288/640 x 480 (VGA)
Supported network protocols Network - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Sustainability - Compliance certificates - CE, RoHS
System Requirements -
Tilt angle range Camera - 0 - 120 °
Tilt speed Camera - 44 °/sec
Title - TP-Link VIGI C540-4G Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall
Total megapixels Video - 4 MP
Two-way transmission - Yes
type - fixed camera
Type Performance - IP security camera
Unit Box Height - 0.245
Unit Box Length - 0.24
Unit Box Width - 0.16
Unit Calculated Volume - 0.009408 cubm
Unit Calculated Weight - 1.21 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/my/business-networking/vigi-network-camera/vigi-c540-4g/#overview
Vendor Homepage - https://www.tp-link.com/my/business-networking/vigi-network-camera/vigi-c540-4g/#overview
vendpn - VIGI C540-4G(4mm)
Video - 3D positioning - Yes
Video - Bit rate - 256 Kbps - 4 Mbps
Video - Bit rate control - Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Frame rate - 30 fps
Video - Image quality adjustment - Brightness, Contrast, Mirror, Saturation, Sharpness
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Supported graphics resolutions - 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video streaming - Yes
Video compression formats Video - H.264/H.264+/H.265/H.265+
Video streaming Video - Yes
Viewing angle, horizontal - 80 °
Viewing angle, vertical - 43 °
Warranty - 24 months
WarrantyInfo -
Weight - 0.12
Weight & dimensions - Depth - 182 mm
Weight & dimensions - Height - 201 mm
Weight & dimensions - Weight - 690 g
Weight & dimensions - Width - 120 mm
Weight Weight & dimensions - 690 g
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 120 mm
Wireless communication - LTE
Zoom capability Lens system - Yes
