Dahua Eyeball, 1440p, 4MP, Black

Active tampering alarm Security - Yes
Angle of rotation Camera - 360°
Audio - Audio formats supported - G.711 A-law, G.711 μ-law, G.726, PCM
Audio - Signal-to-Noise Ratio (SNR) - 56 dB
Audio formats supported Audio - G.711 A-law, G.711 μ-law, G.726, PCM
Back Light Compensation (BLC) Video - Yes
Bit rate control Video - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Brand - Dahua Technology
BrandPartCode - IPC-HDW1439V-A-IL-0280B-B
Camera - Angle of rotation - 360°
Camera - Camera shutter speed - 1/3 –1/100000
Camera - Camera shutter type - Electronic
Camera - Lens viewing angle, diagonal - 111°
Camera - Lens viewing angle, horizontal - 94°
Camera - Lens viewing angle, vertical - 52°
Camera - Minimum illumination - 0.0006 lx
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 78°
Camera - White balance - Auto, Manual, Natural, Outdoor, Regional custom
Camera shutter speed Camera - 1/3 –1/100000
Camera shutter type Camera - Electronic
Category - Security Cameras
Category Code - FNC
Certification Performance - CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Connectivity technology Performance - Wired
Day/night mode Performance - Yes
DC output voltage Power - 12

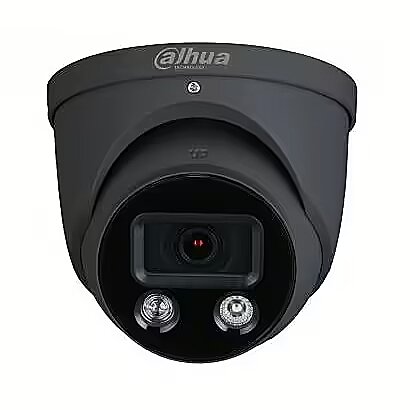

Description - 4MP Entry Smart Dual Light Fixed-focal Eyeball Network Camera4-MP 1/2.9" CMOS image sensor, low luminance, and high definition imageOutputs max. 4 MP (2560 × 1440)@25/30 fpsH.265 codec, high compression rate, ultra-low bit rateBuilt-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 mWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenesROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environmentsAbnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal accessBuilt in Mic12 VDC/PoE power supply,easy for installationIP67 protectionSupports human and vehicle detection
Design - Form factor - Dome
Design - Housing material - Metal, Plastic
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/Wall/Pole
Design - Product colour - Black
Design - Protection features - Dust resistant
Diameter Weight & dimensions - 11 cm
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Flip & mirror Video - Yes
Form factor Design - Dome
Gain control type Video - Auto/Manual
GTIN - 6923172570352
Highlight Compensation (HLC) Video - Yes
Housing material Design - Metal, Plastic
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.9 mm (1 / 2.9")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Infrared (IR) cut-off filter Performance - Yes
Internal memory Storage - 128 MB
International Protection (IP) code Design - IP67
LED type Night vision - IR
Lens viewing angle, diagonal Camera - 111°
Lens viewing angle, horizontal Camera - 94°
Lens viewing angle, vertical Camera - 52°
LongDesc - 4MP Entry Smart Dual Light Fixed-focal Eyeball Network Camera
LongProductName - 1/2.9" CMOS, 2560 (H) × 1440 (V), 128 MB, >56 dB, M12, F1.6, 0°/180°
LongSummaryDescription - Dahua Technology WizSense IPC-HDW1439V-A-IL. Type: IP security camera, Connectivity technology: Wired, Certification: CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Dome. Minimum illumination: 0.0006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 94°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Night vision distance: 30 m, LED type: IR
Management features - Management software - PSS inteligente Lite; DSS; DMSS
Management features - Web browser - Yes
Management software Management features - PSS inteligente Lite; DSS; DMSS
Maximum resolution Video - 2560 x 1440 pixels
Minimum illumination Camera - 0.0006 lx
Mobile operating systems supported System requirements - Android, iOS
Model - DHI-IPC-HDW1439V-A-IL-0280B-B
Mounting type Design - Ceiling/Wall/Pole
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Quality of Service (QoS) support - Yes
Network - Streaming method - Multicast
Network - Supported network protocols - IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multidifusión; ICMP; IGMP; P2P
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision distance Night vision - 30 m
Night vision Night vision - Yes
Number of cameras Packaging content - 1
Number of sensors Image sensor - 1
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - -40 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Optical sensor size Image sensor - 25.4 / 2.9 mm (1 / 2.9")
Package weight Packaging data - 450 g
Packaging content - Number of cameras - 1
Packaging data - Package weight - 450 g
Pan range Camera - 0 - 360°
Performance - Certification - CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Infrared (IR) cut-off filter - Yes
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (typical) - 2 W
Power - Power source type - DC, PoE
Power consumption (typical) Power - 2 W
Power source type Power - DC, PoE
Privacy masking Video - Yes
Product colour Design - Black
ProductName - IPC-HDW1439V-A-IL
Progressive scan Image sensor - Yes
Protection features Design - Dust resistant
Quality of Service (QoS) support Network - Yes
Region of Interest (ROI) encoding Video - Yes
ROM capacity Storage - 128 MB
Security - Active tampering alarm - Yes
Security - Video motion detection - Yes
Sensor type Image sensor - CMOS
ShortSummaryDescription - Dahua Technology WizSense IPC-HDW1439V-A-IL, IP security camera, Wired, CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, Ceiling/Wall/Pole, Black, Dome
Signal-to-Noise Ratio (SNR) Audio - 56 dB
Storage - Internal memory - 128 MB
Storage - ROM capacity - 128 MB
Storage temperature (T-T) Operational conditions - -40 - 60 °C
Streaming method Network - Multicast
Summary - Dahua Technology WizSense IPC-HDW1439V-A-IL. Type: IP security camera, Connectivity technology: Wired, Certification: CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Dome. Minimum illumination: 0.0006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 94°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Night vision distance: 30 m, LED type: IR
Supported graphics resolutions Video - 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Supported network protocols Network - IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multidifusión; ICMP; IGMP; P2P
System requirements - Mobile operating systems supported - Android, iOS
Tilt angle range Camera - 0 - 78°
Title - Dahua Technology WizSense IPC-HDW1439V-A-IL Dome IP security camera 2560 x 1440 pixels Ceiling/Wall/Pole
Total megapixels Video - 4 MP
Type Performance - IP security camera
Unit Box Height - 0.11
Unit Box Length - 0.125
Unit Box Width - 0.12
Unit Calculated Volume - 0.00165 cubm
Unit Calculated Weight - 0.45 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/th/products/All-Products/Network-Cameras/Lite-Series/4-MP/IPC-HDW1439V-A-IL
Vendor Homepage - https://www.dahuasecurity.com/th/products/All-Products/Network-Cameras/Lite-Series/4-MP/IPC-HDW1439V-A-IL
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Flip & mirror - Yes
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2560 x 1440 pixels
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264+, H.264B, H.264H, H.265, H.265+
Video - Video formats supported - H.264, H.265
Video - Video streaming - Yes
Video compression formats Video - H.264, H.264+, H.264B, H.264H, H.265, H.265+
Video formats supported Video - H.264, H.265
Video motion detection Security - Yes
Video streaming Video - Yes
Warranty - 36 months
WarrantyInfo -
Web browser Management features - Yes
Weight & dimensions - Diameter - 11 cm
Weight & dimensions - Weight - 330 g
Weight & dimensions - Width - 100.9 mm
Weight Weight & dimensions - 330 g
White balance Camera - Auto, Manual, Natural, Outdoor, Regional custom
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 100.9 mm
