Adjustment shutter speed Camera - Auto/Manual
Alarm input channels Security - 1
Alarm output channels Security - 1
Camera shutter speed Camera - 1/3 s–1/100,000 s s
Category Code - FNC
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired
Depth Weight & dimensions - 90.7 mm

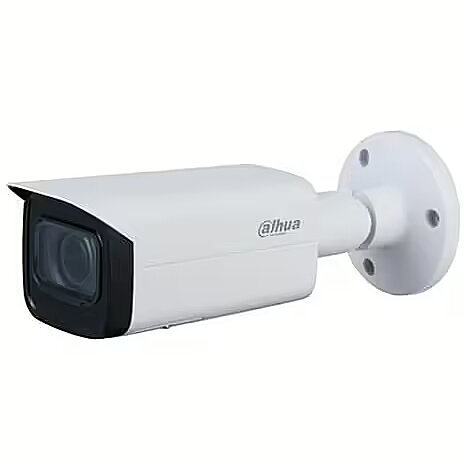

Description - > 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in IR LED, and the max. illumination distance is 60 m. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human). > Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC. > 12 VDC/PoE power supply, easy for installation. > IP67, IK10 (optional) protection. > SMD Plus.
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Focal length range Lens system - 2.7 mm–13.5 mm mm
Form factor Design - Bullet
Height Weight & dimensions - 90.7 mm
Lens mount interface Technical details - M14
Maximum memory card size Storage - 256 GB
Model - IPC-HFW2541T-ZAS27135S2
Number of effective pixels (H x V) Image sensor - 2960 (H) × 1668 (V) pixels
Operating temperature (T-T) Operational conditions - –30 °C to +60 °C °C
Optical sensor size Image sensor - 1/2.7" "
Product colour Design - White
Sensor type Image sensor - CMOS
Suitable for outdoor use Technical details - Yes
Total megapixels Video - 5 MP
Unit Box Height - 0.14
Unit Box Length - 0.31
Unit Box Width - 0.16
Unit Calculated Volume - 0.006944 cubm
Unit Calculated Weight - 1.03 kg
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/5MP/IPC-HFW2541T-ZAS=S2
Warranty - 36 months
Weight Weight & dimensions - 770 g
Width Weight & dimensions - 238.5 mm
