Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Bullet
Category Code - FNC
Colour - Black

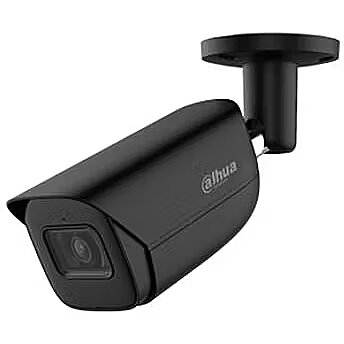

Description - "5 MP IR Fixed-focal Bullet WizSense Network Camera > 5-MP 1/2.7"" CMOS image sensor, excellent low luminance performance and high definition of images. > Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in IR LED, max. IR distance: 50 m. > ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human). > Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > SMD 4.0, AI SSA."
Dimensions - 192.7 × 70.5 × 66.4 mm
Effective pixels - 2960 (H) × 1668 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Full Description Line - Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7"|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0005 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour Black|Dimensions 192.7 × 70.5 × 66.4 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0005 Lux
Model - IPC-HFW3541E-AS-0280B-S2-B
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +60 °C
Pixel Resolution - 5 Mega Pixel
Power consumption - 3.7 Watts
Power options - 12V/PoE
Power supply requirements - 12 VDC/PoE (802.3af)
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7"
Shipping Box Depth Shipping/Package Box Dimensions - 25 cm
Shipping Box Height Shipping/Package Box Dimensions - 11.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.77 kg
Shipping Box Width Shipping/Package Box Dimensions - 13.5 cm
Supports card capacities up to - 256GB
Unit Box Height - 0.115
Unit Box Length - 0.25
Unit Box Width - 0.135
Unit Brutto Volume - 0.003881 cubm
Unit Gross Weight - 0.77 kg
Unit Net Weight - 0.59 kg
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HFW3541E-AS-S2=S2
Warranty - 36 months
