Accessories included -
ARTIKEL1 - TL-R1200C-RP EXPANSION UNIT RM
ARTIKEL2 - 2U 12 BAY RPSU
Brand - QNAP
BrandPartCode - TL-R1200C-RP
Category - Storage Drive Enclosures
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Description - TL-R1200C-RP

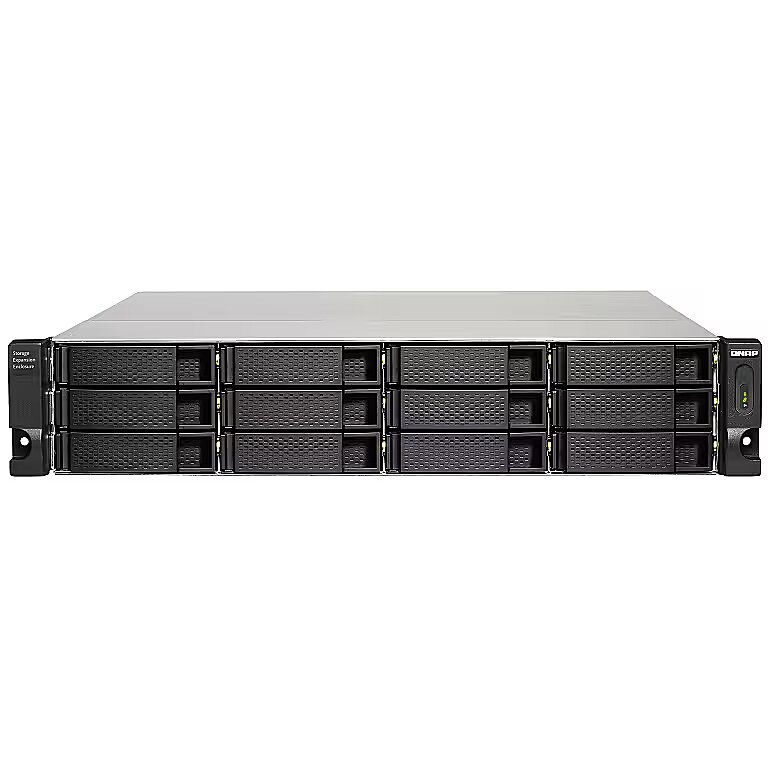

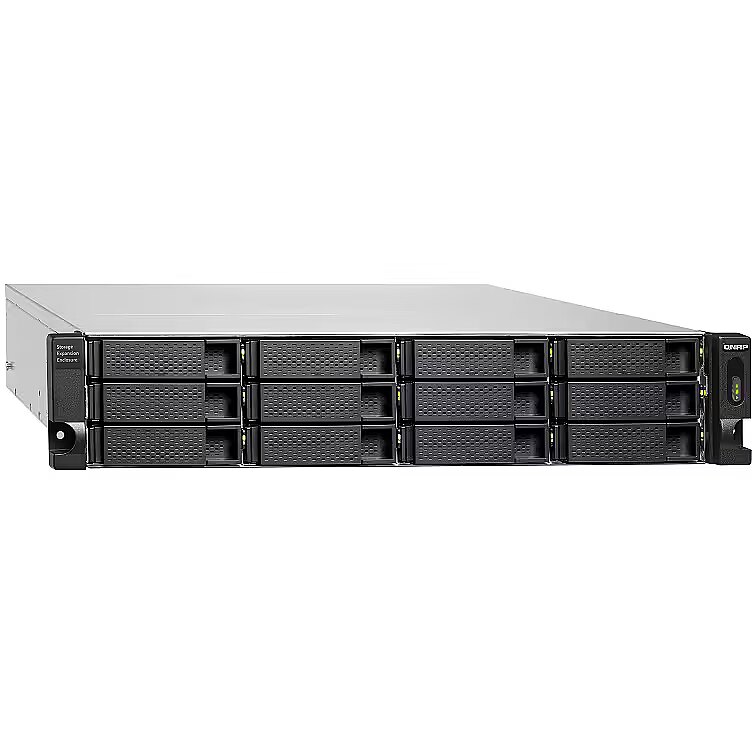

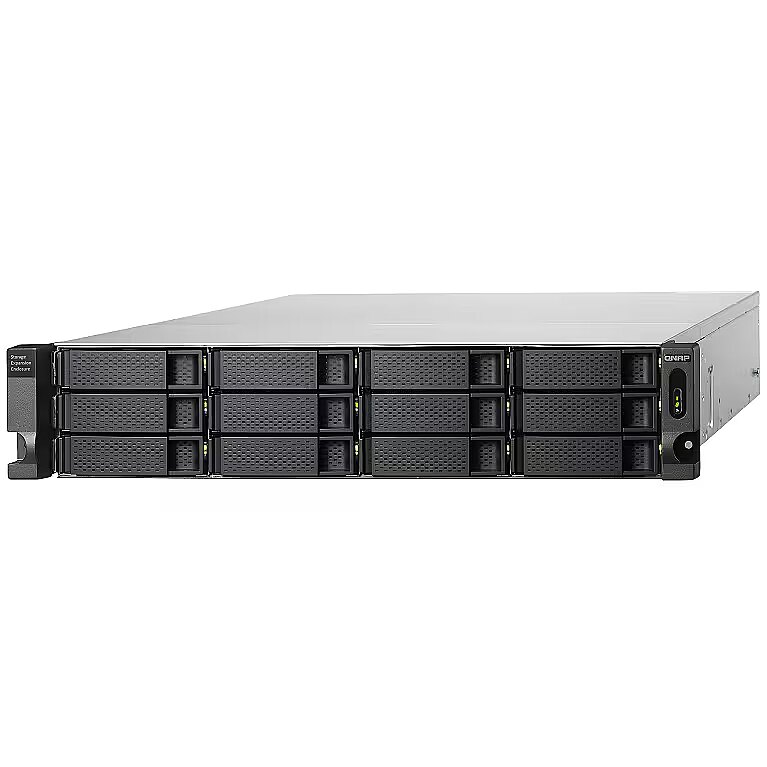

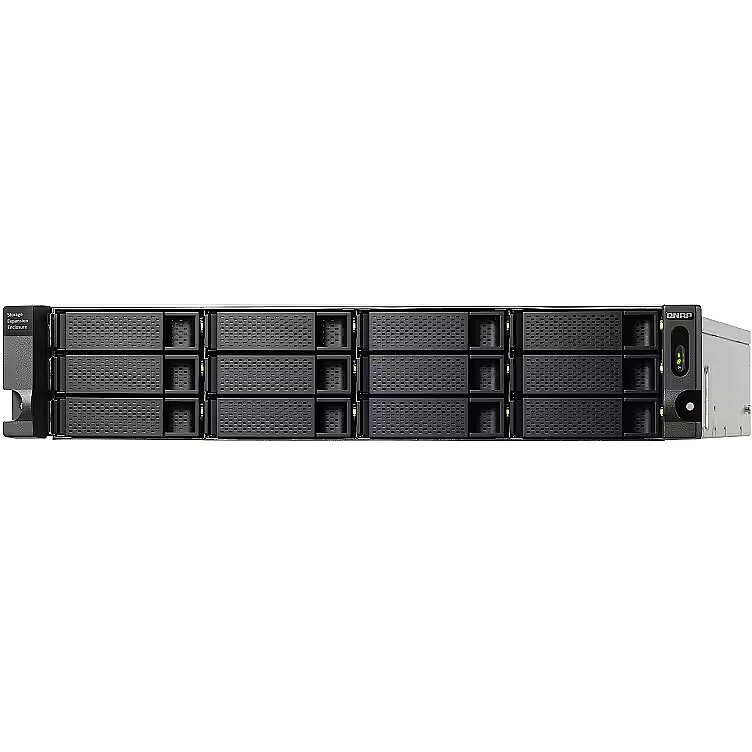

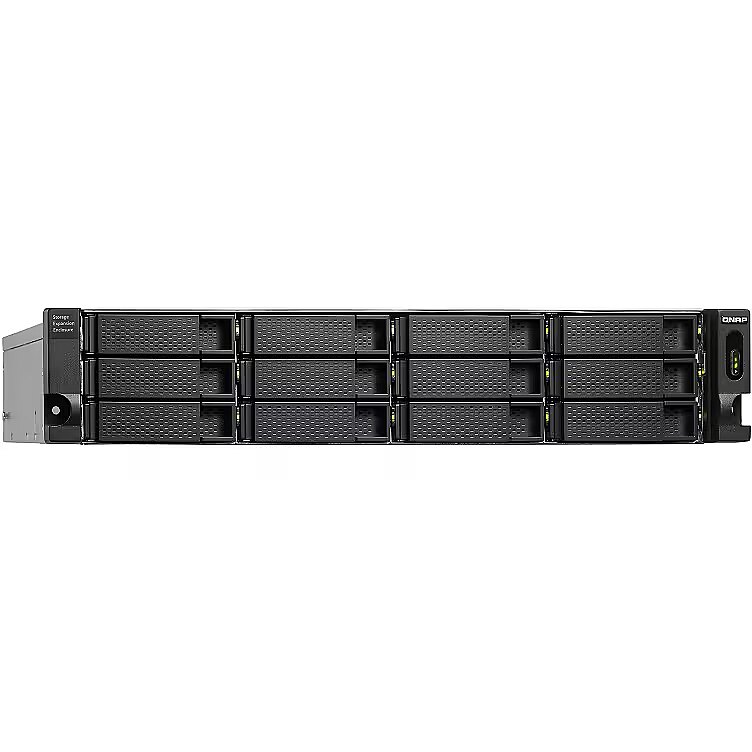

Rack-mountable, high-capacity JBOD storage enclosure with USB 3.2 Gen 2 Type-C and redundant power.
The TL-R1200C-RP rack-mountable JBOD enclosure allows you to backup and expand your QNAP NAS, computers (supports Windows and Mac), and servers. The TL-R1200C-RP offers twelve 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen 2 (10Gb/s) Type-C connectivity, providing quick and seamless expansion.
USB 3.2 Gen 2 (10Gb/s)
USB 3.2 Gen 2 Type-C connectivity provides data transfer speeds of up to 10Gb/s. The port supports USB Type-A to Type-C or Thunderbolt 3 Type-C connections using various cables.
Cost-Effective Expansion
Ideal for QNAP NAS backup, offering high capacity and cost-effectiveness.
Redundant Power Supply

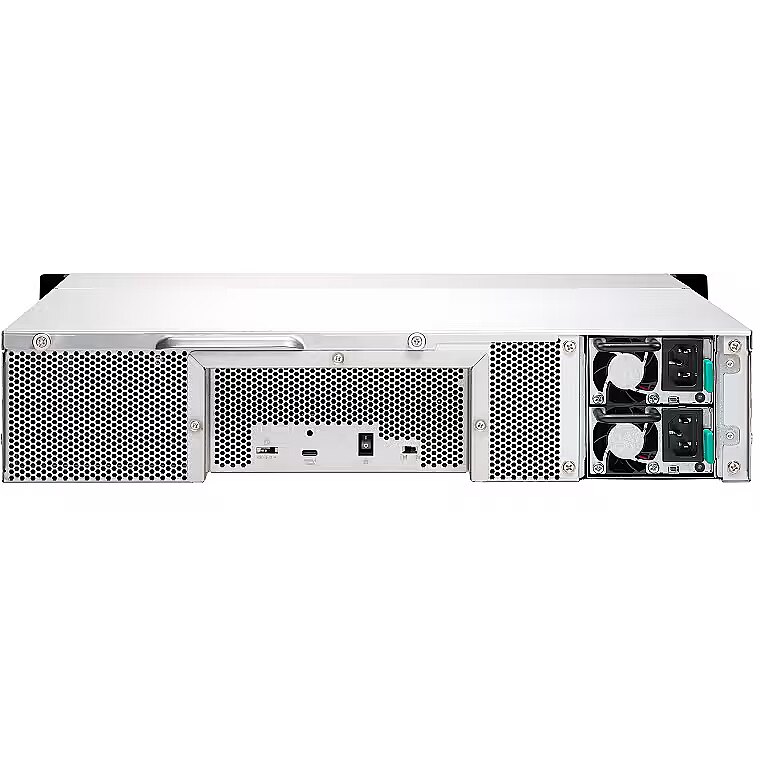

A 250W redundant power supply ensures long system uptime.
Flexible Storage Configuration and Management
The TL-R1200C-RP offers software-controlled configurations for greater management flexibility.
Use the QTS/QuTS hero Storage and Snapshots Manager to configure the TL-R1200C-RP as a storage enclosure for your QNAP NAS. NAS storage expansion mode supports various NAS features, including storage pools and snapshots. Easily expand storage capacity with the TL-R1200C-RP.
JBOD Migration Speeds Up Remote File Transfers
Migrating a large number of small files or a single large data file over the network can be time-consuming and significantly consume network bandwidth, reducing workflow efficiency. The TL-R1200C-RP supports remote file transfer. Simply configure a RAID configuration and save multiple files. Then, move the TL-R1200C-RP to another location and connect it to a computer or NAS server for simple plug-and-play functionality and fast data migration.
The TL-R1200C-RP can be used as a high-capacity disk drive by configuring single-disk mode.
Each drive in the TL-R1200C-RP can be treated as an individual storage space or used as a removable drive. It can also function as a high-capacity disk drive drive. When one drive reaches its storage limit, it can be removed and returned to its packaging. Next, insert another drive into the empty drive slot on the TL-R1200C-RP. You can then install the drive whose data has filled its storage space into the TL-R1200C-RP and connect it to your computer or NAS for direct access to your files.
Design - Fan diameter - 7 cm
Design - LED indicators - Fan fail, HDD, Link, Status
Design - Number of fans - 2 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black, Grey
Design - Product type - HDD/SSD enclosure
Design - Rack capacity - 2U
Design - Rack mounting - Yes
Designation - CE+WEEE
dimension depth - 255 mm
dimension height - 720 mm
Dimensions - 88,6 x 482 x 562,5 mm
dimension weight - 14500 g
dimension width - 560 mm
Disk type - HDD
Disk type - SSD
ean - 4713213516171
EAN - 4713213516171
EANCode - 4713213516171
Fan - 7 cm
Form factor (width) - 3,5'' (LFF)
Gross Weight Kg - 14,29
GRUPPE1 - Storage
GRUPPE2 - NAS Server
GTIN - 0885022018178
GTIN - 885022018178
GTIN - 4713213516171
guarantee - 36
guarantee_type - normal
HDD interface - SATA III - 6 Gb/s
HERSTELLER - QNAP

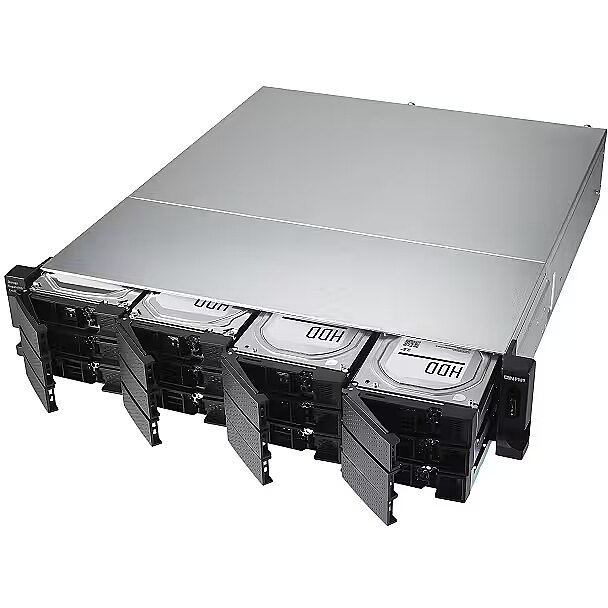

Hot-swapping support - Yes
Housing - Rack 2U
HSTNUMMER - TL-R1200C-RP
I/O connectors - 1 x USB 3.2 Type-C Gen 2
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - The rackmount TL-R1200C-RP JBOD storage enclosure allows you to back up and expand your QNAP NAS, computers (supports Windows and Mac), and servers. The TL-R1200C-RP features twelve 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen 2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.Flexible storage configuration and managementThe TL-R1200C-RP provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using the QTS / QuTS hero Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP JBOD Manager utility on their computer.What you need to knowYou can connect your TL-R1200C-RP to Windows®, Mac®, and Ubuntu® computers through the USB interface and use built-in utility to manage the RAID configuration.Intelligently monitor JBOD enclosure status on PC and servers with QNAP JBOD Manager The QNAP JBOD Manager is a desktop utility for monitoring the TL-R1200C-RP on Windows® and Mac® computers. You can quickly obtain and view information about the JBOD status, health, fan rotation speed, and check for firmware version updates. All device events are recorded, and QNAP JBOD Manager will automatically send system alert notifications to your desktop.JBOD migration speeds up remote file transfersMigrating a large number of small files or a single large data file by network environment can be time-consuming and consume significant network bandwidth that causes decreased work efficiency. The TL-R1200C-RP supports remote file transfer. All you have to do is set up the RAID configuration and store a large number of files. Then you can move the TL-R1200C-RP to another place and connect it with the computer or NAS to experience the device’s simple plug and play feature and fast data migration.Use TL-R1200C-RP as a high-capacity disk drive reader by setting up single disk modeYou can treat each disk in your TL-R1200C-RP as an individual storage space, and also use it as a removable drive. It can function like a high-capacity disk drive reader. When one of disk reaches data storage limitation, you can remove it and put it into a dry box. Then swap a different disk into the TL-R1200C-RP empty drive slot. After that, you can install the disk that reached full data capacity into the TL-R1200C-RP and connect it with a computer or NAS for direct file access.Versatile usage scenarios to meet storage expansion needsThe TL-R1200C-RP meets many storage expansion requirements for the home and office. Below is a list of potential usage scenarios:Scenario 1: Expand your NAS capacityThe TL-R1200C-RP provides an alternative method for users to expand their NAS storage capacity. By connecting the TL-R1200C-RP to their NAS and using the Storage & Snapshots Manager in QTS or QuTS hero, users can easily configure and manage their storage expansion. The TL-R1200C-RP supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, finding files with Qsirch, and organizing files with Qfiling.Scenario 2: External storage for your NASYou can use the TL-R1200C-RP to expand your NAS storage. You can select disks to create storage pools for expanding your NAS capacity, or you can treat each disk as an individual external storage space and use it as a removable drive for greater flexibility. Regardless of the mode you use, you can always use Storage & Snapshots Manager in QTS or QuTS hero to set up and manage your TL-R1200C-RP and use hard drive S.M.A.R.T. and Notification Center to check disk status anytime and anywhere.Scenario 3: Expand the storage space of your Windows, Mac, and Ubuntu computerYou can use your TL-R1200C-RP with Windows®, Mac®, and Ubuntu® computers to expand more storage space. You can set up the RAID configuration of your TL-R1200C-RP to further secure data protection. Moreover, you can also use the single disk mode and format with the exFAT file system for more convenient access and sharing of files between Windows® and Ubuntu® computers.High-speed USB transferTThe TL-R1200C-RP features high-speed USB 3.2 Gen 2 Type-C connectivity and built-in USB Attached SCSI Protocol (UASP) to provide convenient fast file sharing and intensive data transfer. The TL-R1200C-RP not only provides you higher file transfer performance than traditional USB interfaces but offers a more cost-effective option than REXP SAS JBOD.
LongProductName - 12x 2.5"/3.5" SATA, 1x USB 3.2 Gen 2 Type-C, 2U, 250 W (x2) PSU, 100-240V, 88.7 x 482.2 x 423.8 mm, 13.17 kg
LongSummaryDescription - QNAP TL-R1200C-RP. Product type: HDD/SSD enclosure. Number of storage drives supported: 12, Storage drive size: 2.5/3.5", Supported storage drive interfaces: Serial ATA III. Data transfer rate: 6 Gbit/s. Rack mounting, Rack capacity: 2U, Product colour: Black, Grey. USB connector type: USB Type-C
Management, monitoring, configuration -
Manufacturer - QNAP
Manufacturer Code - TL-R1200C-RP
Manufacturer Name - QNAP
Max. number of disks - 12
MPN - TL-R1200C-RP
name - Enclosure TL-R1200C-RP 12x 3,5'' Sata 6Gb USB 3.2
Name - QNAP TL-R1200C-RP 12-bay 2U rackmount USB-C 3.1 Gen2 10Gbps JBOD expansion unit
Network protocols -
Number of fans - 2
Number of HDDs installed - 0
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other disk parameters - 3.5-inch bays: 3.5-inch SATA 6Gb/s, 3Gb/s hard drives 2.5-inch SATA 6Gb/s, 3Gb/s SSD hard drives
Other features -
Other features - Host interface - 1 x USB 3.2 Gen 2 Type-C

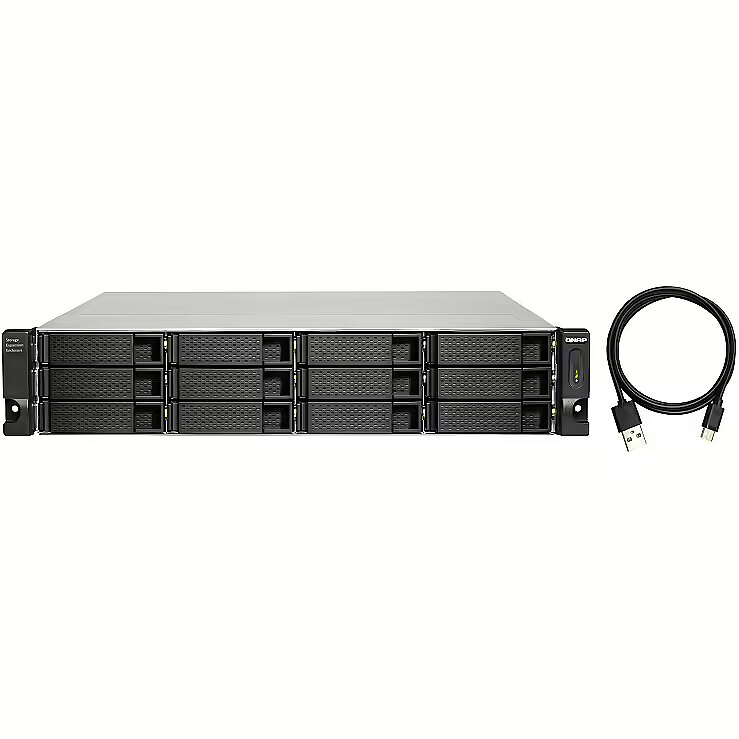

Packaging content - Cables included - AC, USB Type-C to USB Type-A
Packaging content - Manual - Yes
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Data transfer rate - 6 Gbit/s
Performance - Noise level - 33.4 dB
Ports & interfaces - USB connectivity - Yes
Ports & interfaces - USB connector gender - Female
Ports & interfaces - USB connector type - USB Type-C
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 3.2 Gen 2 (3.1 Gen 2)
Power - AC adapter frequency - 50/60 Hz
Power - AC adapter input voltage - 100 - 240 V
Power - Power source type - AC
Power supply - 2 x 250 W PSU, 100-240 V
Processor -
producer - QNAP
ProductName - TL-R1200C-RP
RAID - Yes
Short description - QNAP NAS Expansion Unit TL-R1200C-RP (12 Bay) 2U +++
ShortSummaryDescription - QNAP TL-R1200C-RP, HDD/SSD enclosure, 2.5/3.5", Serial ATA III, 6 Gbit/s, Rack mounting, Black, Grey
Stck_Kart - 1
Stck_Pal - 3
Storage - Number of storage drives supported - 12
Storage - Storage drive size - 2.5/3.5"
Storage - Supported storage drive interfaces - Serial ATA III
Storno - N
Technical details - Warranty period - 3 year(s)
Title - QNAP TL-R1200C-RP storage drive enclosure HDD/SSD enclosure Black, Grey 2.5/3.5"
URL - https://www.qnap.com/en/product/tl-r1200c-rp
vendpn - TL-R1200C-RP
WarrantyInfo - 3 year
Weight - 14.38
Weight - 15.22 kg
Weight & dimensions - Depth - 423.8 mm
Weight & dimensions - Height - 88.7 mm
Weight & dimensions - Package depth - 253 mm
Weight & dimensions - Package height - 719 mm
Weight & dimensions - Package weight - 14.3 kg
Weight & dimensions - Package width - 552 mm
Weight & dimensions - Weight - 13.2 kg
Weight & dimensions - Width - 482.2 mm
