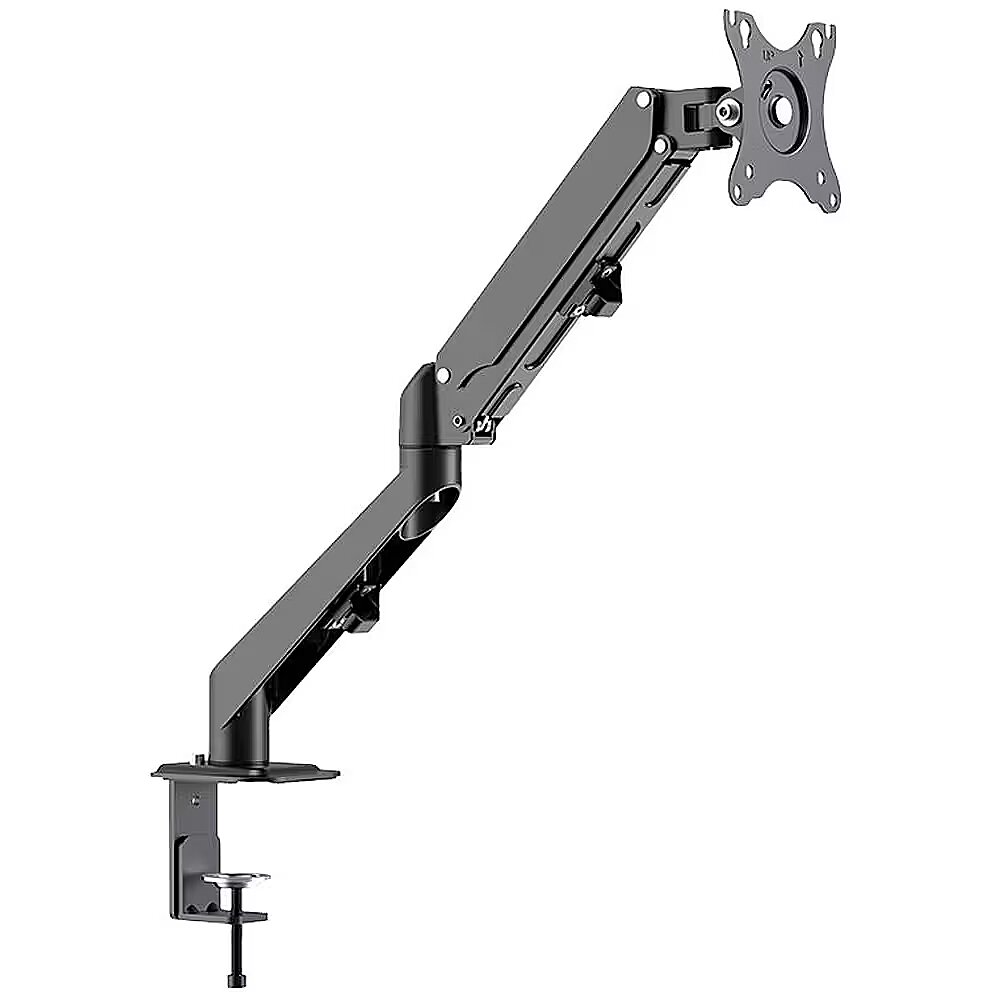

Newstar Full motion desk monitor arm, 17-27"

Adjustable depth Ergonomics - Yes
Angle of rotation Ergonomics - 360°
Brand - Neomounts
BrandPartCode - DS70-700BL1
Cable management Ergonomics - Yes
Category - Monitor Mounts & Stands
Category 1 - Displays
Category 2 - Display Zubehör
Category Code - MAS
Country of origin Logistics data - China
Depth adjustment range Ergonomics - 0 - 480 mm
Depth Weight & dimensions - 542 mm
Description - NEOMOUNTS BY NEWSTAR GAS SPRING DESK MOUNT (CLAMP/GROMMET)

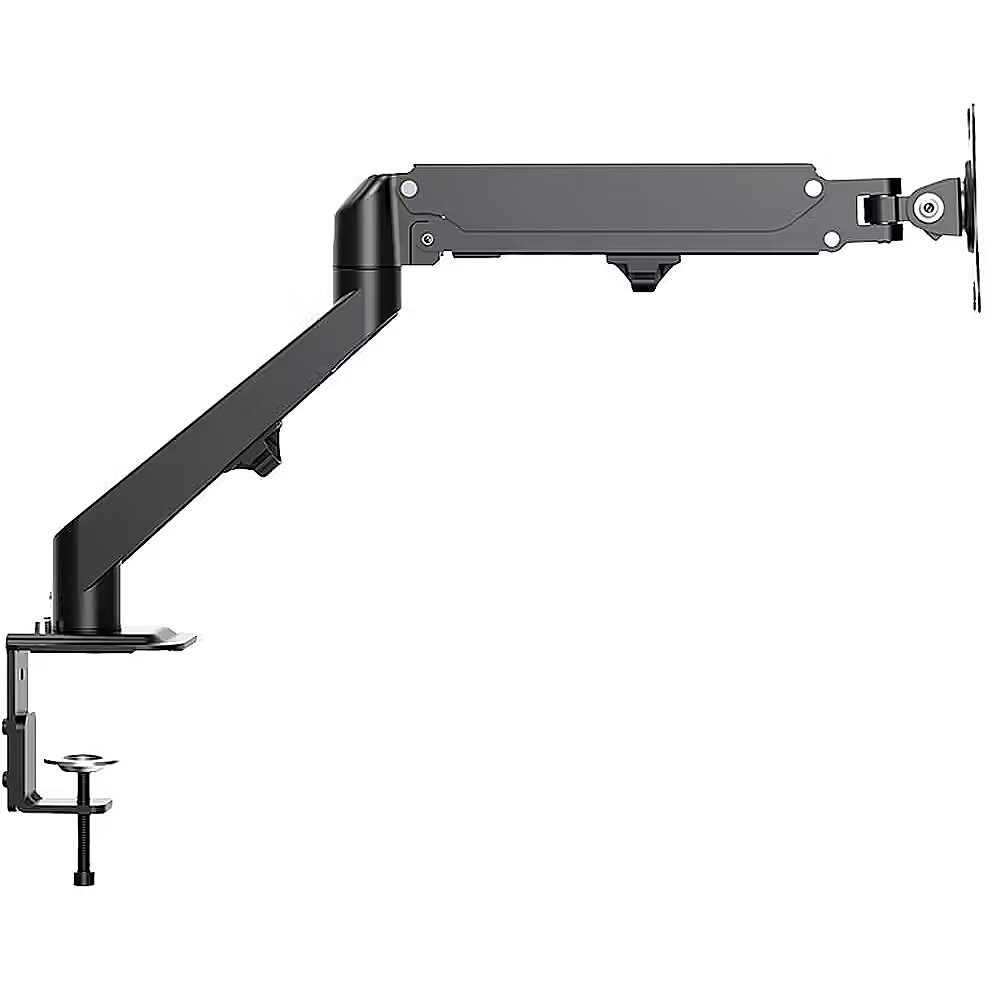

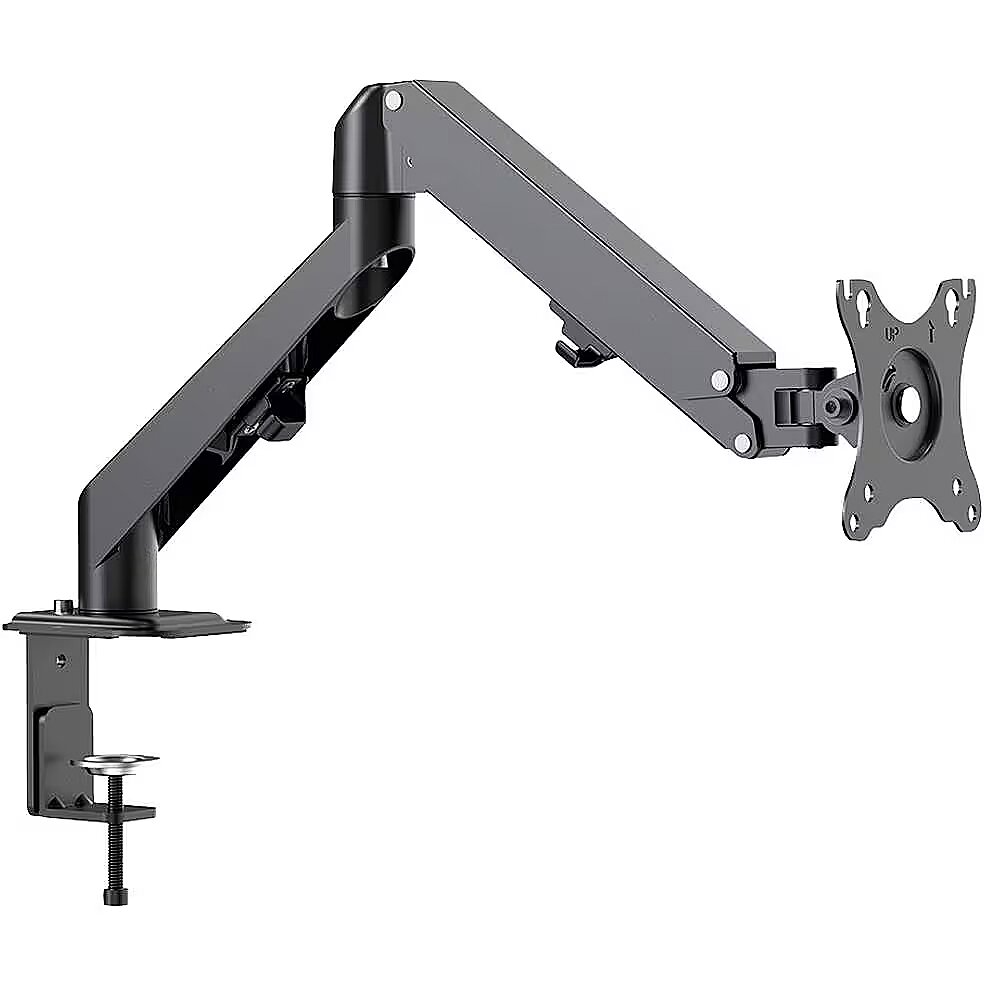

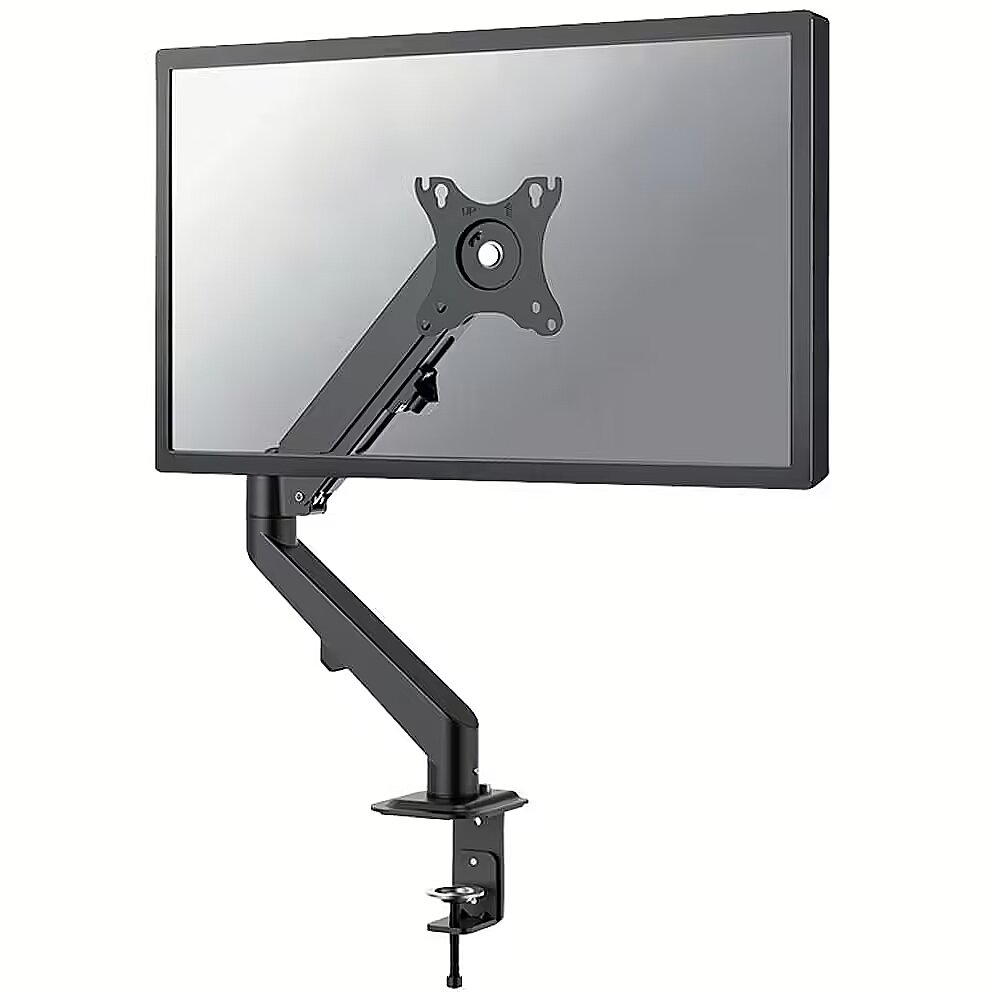

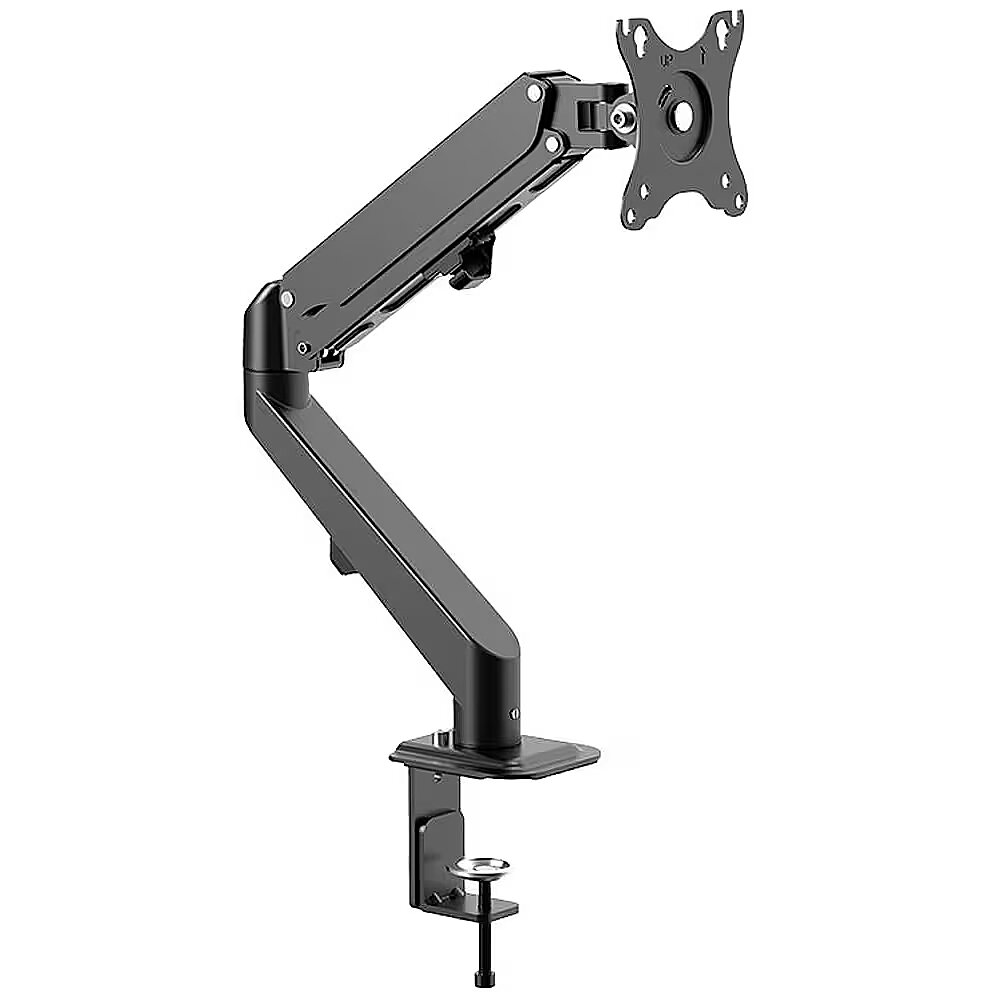

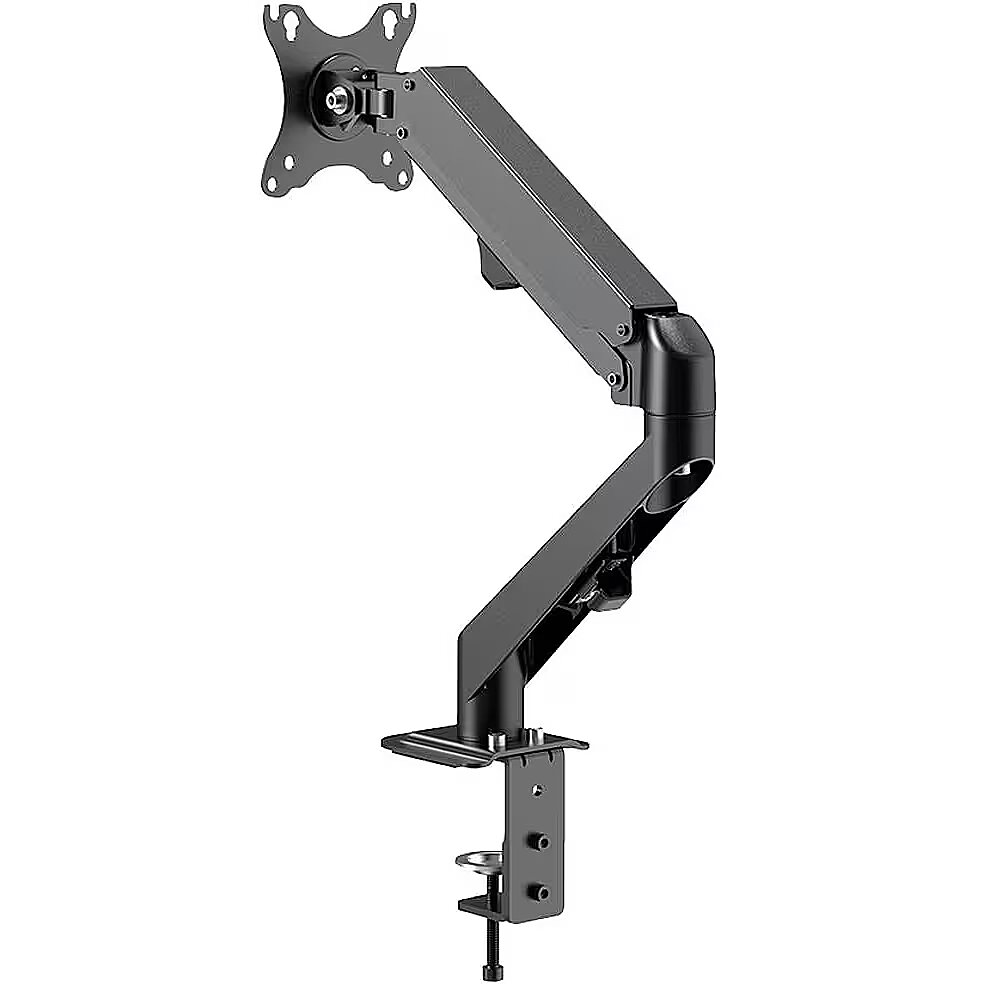

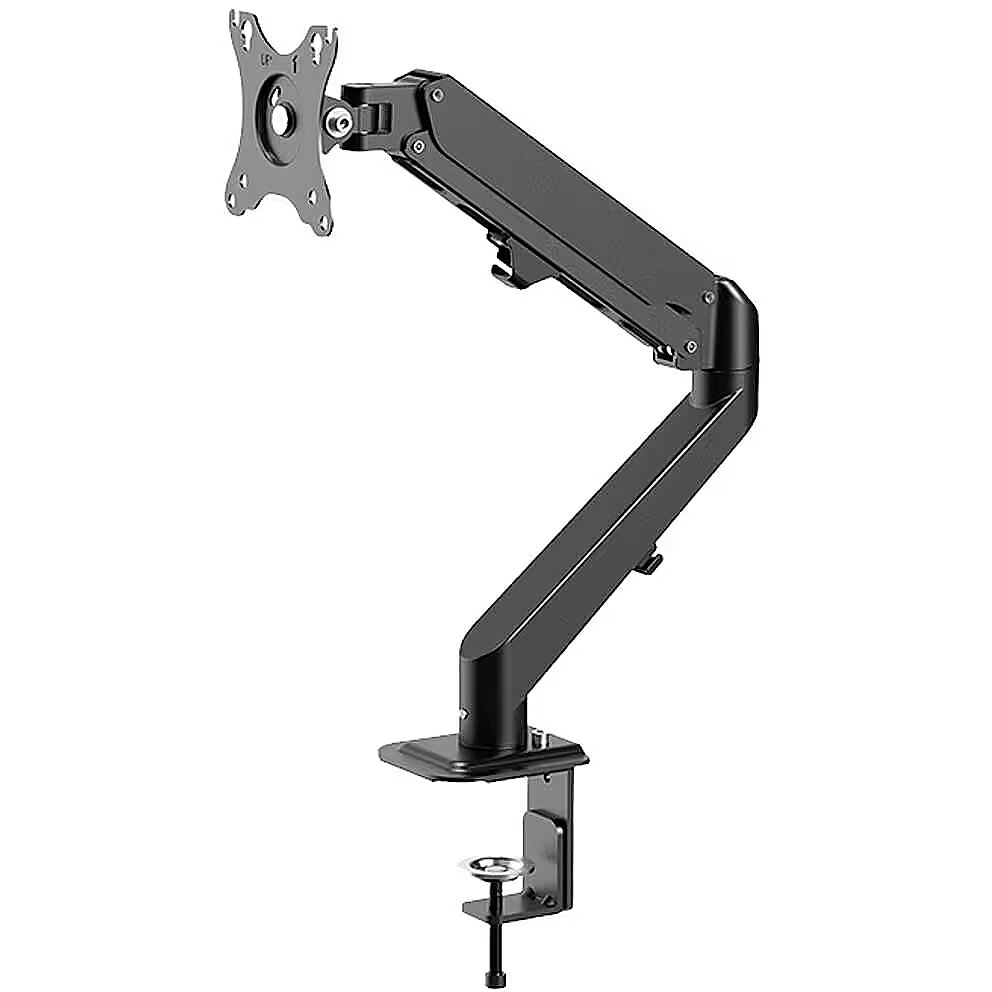

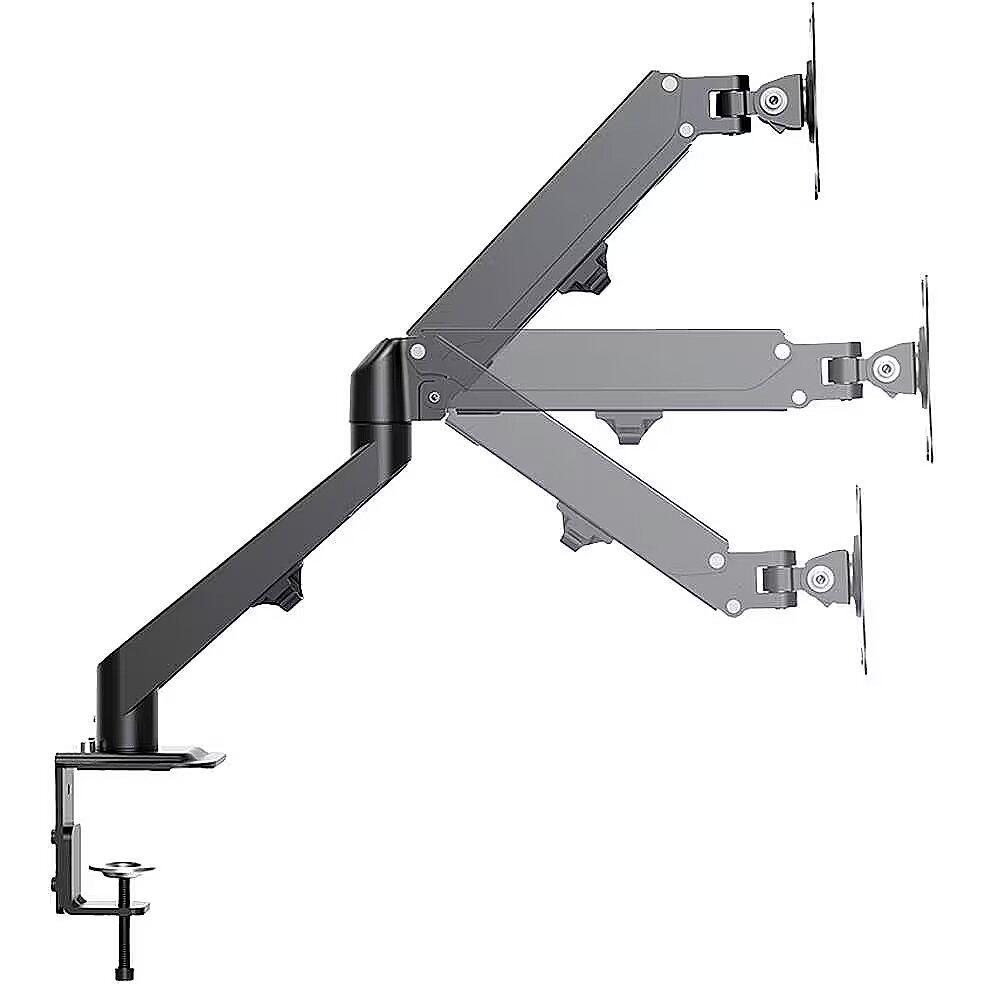

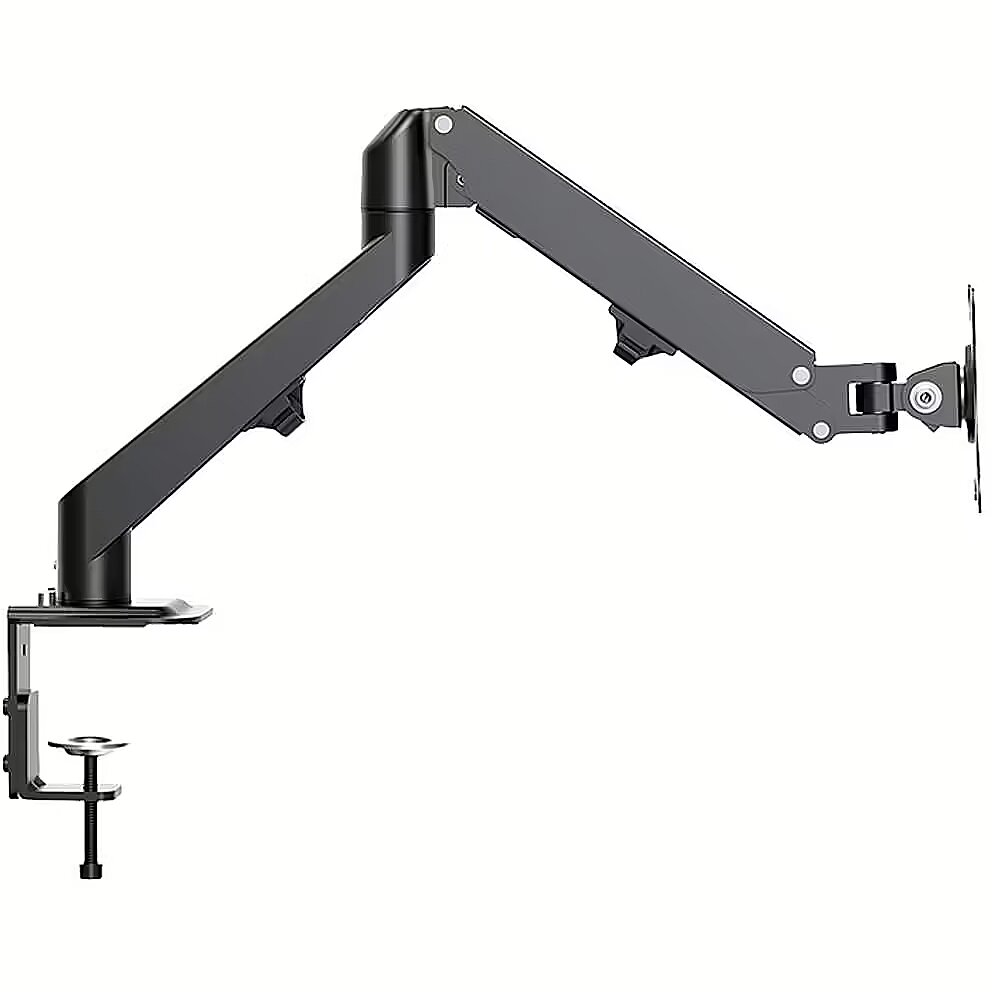

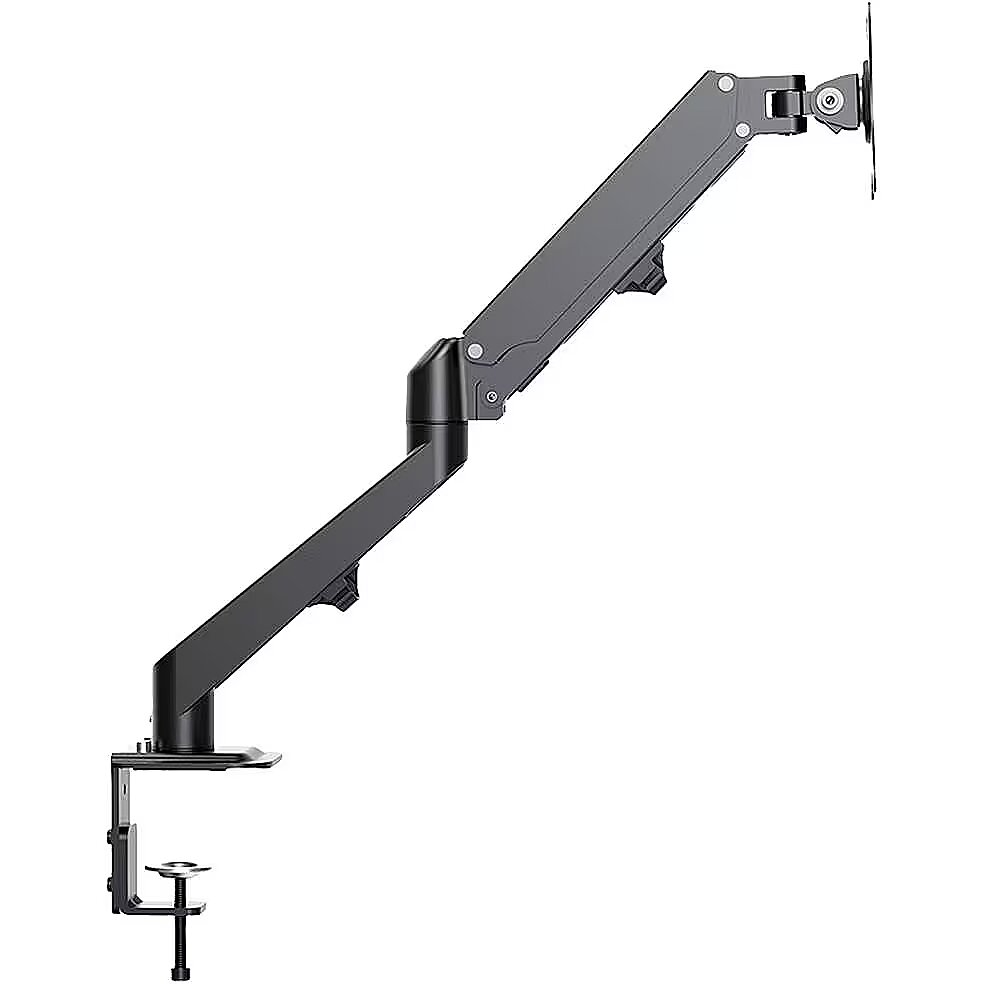

Description - The Neomounts DS70-700BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (15,2-40,2 cm) and depth adjustment (0-48 cm), to create the perfect working position. The DS70-700BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates.
Design - Housing material - Steel
Design - Orientation - Landscape/Portrait
Design - Product colour - Black
Desk thickness (max) Mounting - 8 cm
Desk thickness (min) Mounting - 1 cm
EAN - 8717371449261
Ergonomics - Adjustable depth - Yes
Ergonomics - Angle of rotation - 360°
Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment range - 0 - 480 mm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 152 - 402 mm
Ergonomics - Height adjustment type - Gas spring
Ergonomics - Pivot angle - -180 - 180°
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle range - -90 - 90°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -45 - 90°
GTIN - 8717371449261
Harmonized System (HS) code Logistics data - 7326909890
Height - 95.000000
Height adjustment Ergonomics - Yes
Height adjustment range Ergonomics - 152 - 402 mm
Height adjustment type Ergonomics - Gas spring
Height Weight & dimensions - 566 mm
Housing material Design - Steel
Length - 408.000000
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 2.5 kg
Logistics data - Master (outer) case height - 90 mm
Logistics data - Master (outer) case length - 270 mm
Logistics data - Master (outer) case net weight - 2.1 kg
Logistics data - Master (outer) case width - 405 mm
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet (EU) - 135 pc(s)
LongDesc - The Neomounts DS70-700BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (15,2-40,2 cm) and depth adjustment (0-48 cm), to create the perfect working position. The DS70-700BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates.
LongProductName - Neomounts DS70-700BL1 Single monitor arm - 17-27" - 2-7 kg - gas spring - black
LongSummaryDescription - Neomounts DS70-700BL1 Monitor arm 17-27" - gas spring. Mounting: Clamp, Maximum weight capacity: 7 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 90°. Product colour: Black
Manufacturer - Neomounts
Manufacturer - Newstar
ManufacturerPartNumber - DS70-700BL1
Master (outer) case gross weight Logistics data - 2.5 kg
Master (outer) case height Logistics data - 90 mm
Master (outer) case length Logistics data - 270 mm
Master (outer) case net weight Logistics data - 2.1 kg
Master (outer) case width Logistics data - 405 mm
Maximum screen size Mounting - 68.6 cm (27")
Maximum VESA mount Mounting - 100 x 100 mm
Maximum weight capacity (per curved/ultra-wide display) Mounting - 7 kg
Maximum weight capacity (per display) Mounting - 7 kg
Maximum weight capacity Mounting - 7 kg
Minimum screen size Mounting - 43.2 cm (17")
Minimum VESA mount Mounting - 75 x 75 mm
Minimum weight Other features - 2 kg
Mounting - Desk thickness (max) - 8 cm
Mounting - Desk thickness (min) - 1 cm
Mounting - Maximum screen size - 68.6 cm (27")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 7 kg
Mounting - Maximum weight capacity (per curved/ultra-wide display) - 7 kg
Mounting - Maximum weight capacity (per display) - 7 kg
Mounting - Minimum screen size - 43.2 cm (17")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Clamp
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,75 x 75 mm
Mounting Mounting - Clamp
Mounting type Mounting - Desk
MPN - DS70-700BL1
Name - Full-Motion-Tischhalterung für 17-27" Bildschirme 7KG DS70-700BL1 Neomounts
Number of displays supported Mounting - 1
Orientation Design - Landscape/Portrait
Other features - Minimum weight - 2 kg
Package depth Packaging data - 270 mm
Package height Packaging data - 90 mm
Package net weight Packaging data - 2.5 kg
Package weight Packaging data - 2.5 kg
Package width Packaging data - 405 mm
Packaging data - Package depth - 270 mm
Packaging data - Package height - 90 mm
Packaging data - Package net weight - 2.5 kg
Packaging data - Package weight - 2.5 kg
Packaging data - Package width - 405 mm
Packaging data - Quantity per pack - 1 pc(s)
Panel mounting interface Mounting - 100 x 100,75 x 75 mm
PeriodofWarranty - 5 Y
Pivot angle Ergonomics - -180 - 180°
Product colour Design - Black
ProductName - Neomounts DS70-700BL1 Monitor arm 17-27" - gas spring
Products per master (outer) case Logistics data - 1 pc(s)
Products per pallet (EU) Logistics data - 135 pc(s)
Quantity per pack Packaging data - 1 pc(s)
Rotating Ergonomics - Yes
Short summary - Neomounts DS70-700BL1 Single monitor arm - 17-27" - 2-7 kg - gas spring - black
ShortSummaryDescription - Neomounts DS70-700BL1 Monitor arm 17-27" - gas spring, Clamp, 7 kg, 43.2 cm (17"), 68.6 cm (27"), 100 x 100 mm, Black
Stand/mount type - Table
Summary - Neomounts DS70-700BL1 Monitor arm 17-27" - gas spring. Mounting: Clamp, Maximum weight capacity: 7 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 90°. Product colour: Black
Swivel angle range Ergonomics - -90 - 90°
Swivelling Ergonomics - Yes
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -45 - 90°
Title - Neomounts DS70-700BL1 Monitor arm 17-27" - gas spring
Unit Box Height - 0.1
Unit Box Length - 0.41
Unit Box Width - 0.28
Unit Calculated Volume - 0.01148 cubm
Unit Calculated Weight - 2.48 kg
Units per Shipping Box - 1
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-700BL1
Vendor Homepage - https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-700BL1
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 2.46
Weight - 2.460000

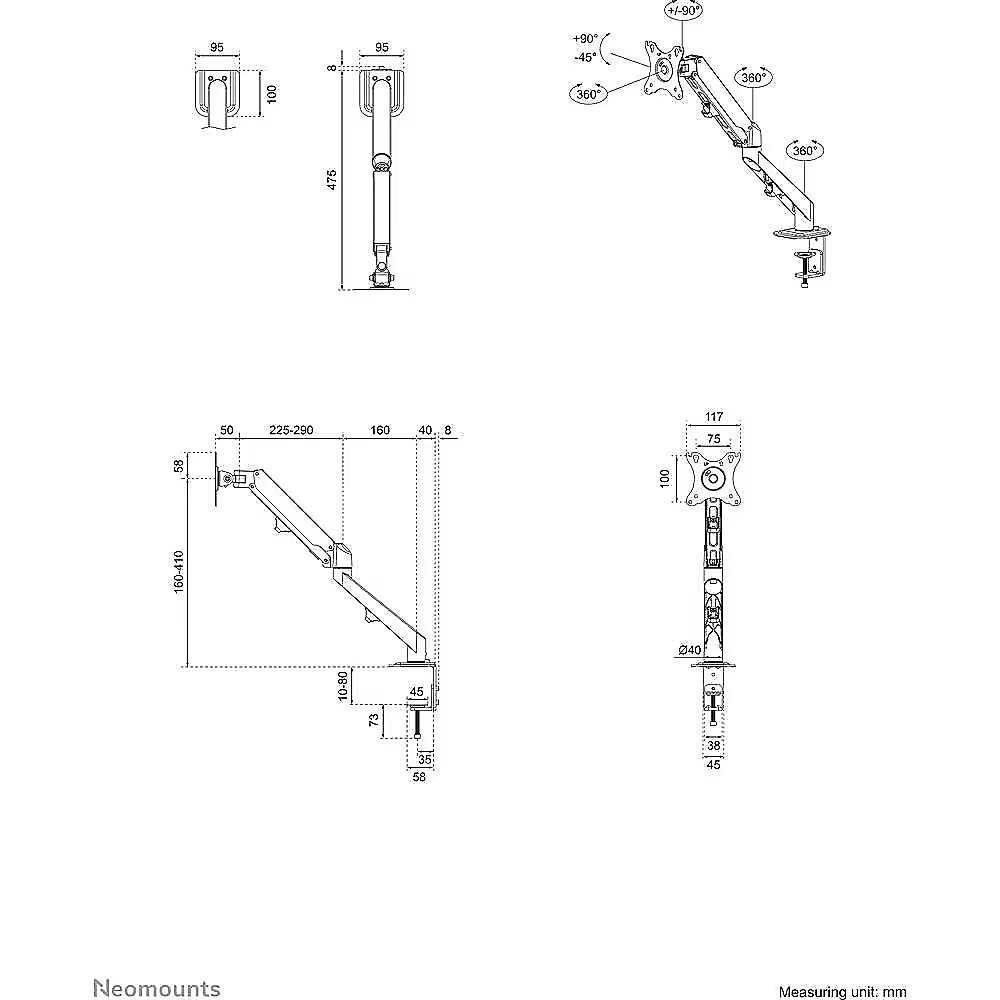

Weight & dimensions - Depth - 542 mm
Weight & dimensions - Height - 566 mm
Weight & dimensions - Weight - 2.1 kg
Weight & dimensions - Width - 117 mm
Weight Weight & dimensions - 2.1 kg
Wheels - No
Width - 271.000000
Width Weight & dimensions - 117 mm
