Newstar Full Motion desk monitor arm for curved monitor, 10-49"

Adjustable depth Ergonomics - Yes
Angle of rotation Ergonomics - 180°
Brand - Neomounts
BrandPartCode - NM-D775BLACKPLUS
Cable management Ergonomics - Yes
Category - Monitor Mounts & Stands
Category 1 - Displays
Category 2 - Display Zubehör
Category Code - MAS
CnCode - 83021000
Country of origin Logistics data - China
Depth adjustment range Ergonomics - 0 - 630 mm
Depth Weight & dimensions - 630 mm
Description - NEOMOUNTS FLAT SCREEN DESK MOUNT (10-49") DESK CLAMP/GROMMET

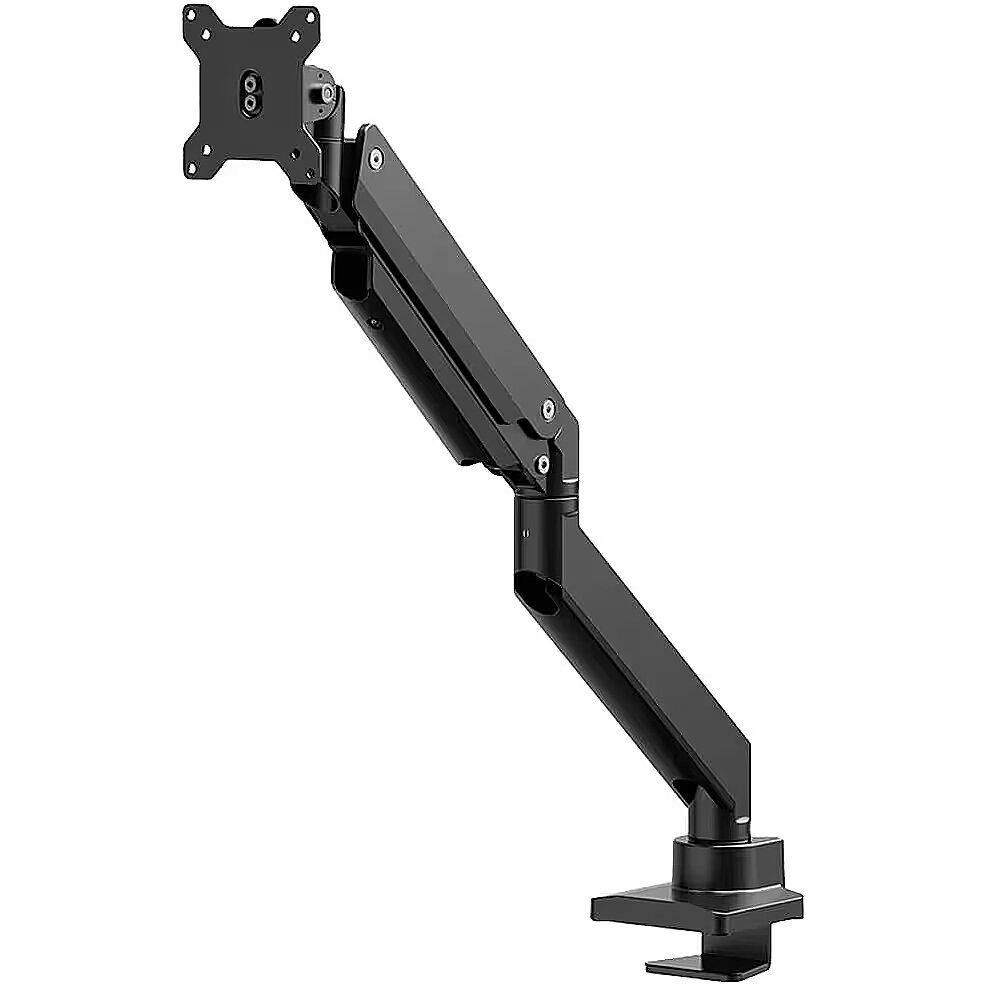

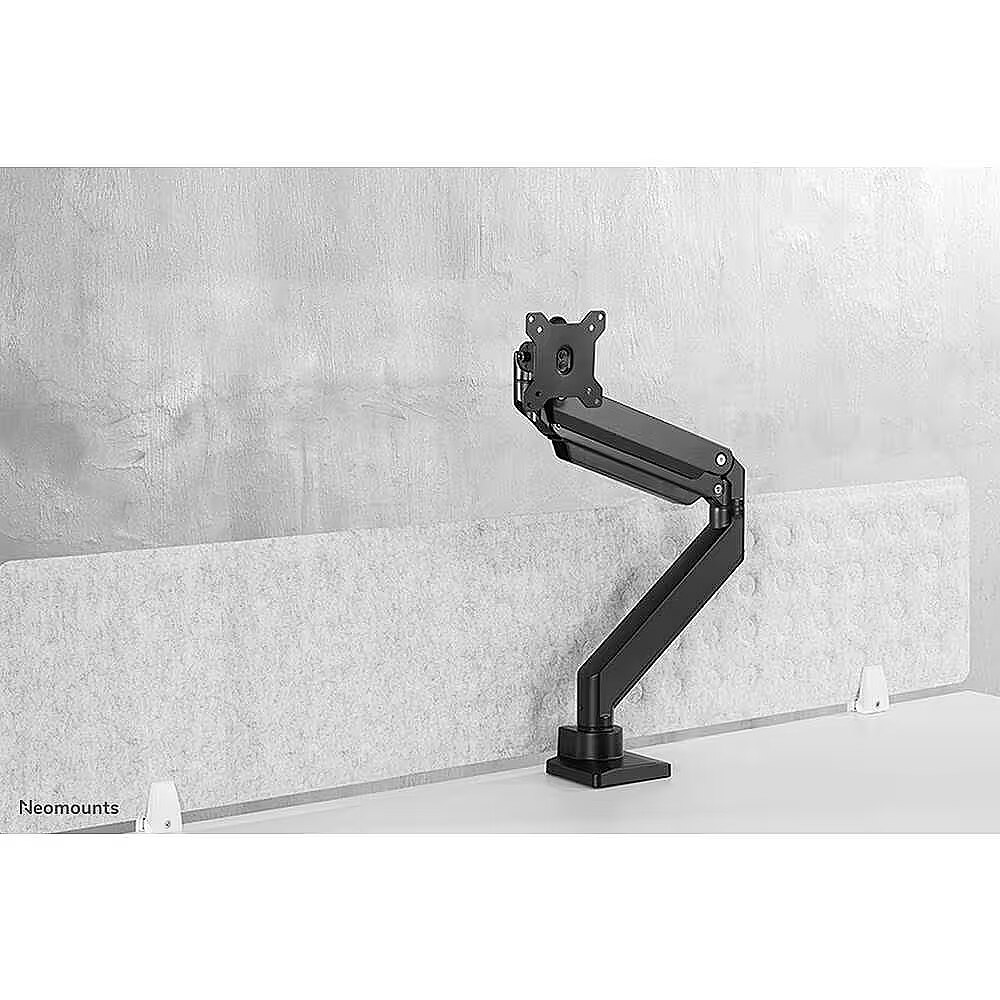

Description - The Neomounts NM-D775BLACKPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount. The NM-D775BLACKPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg. Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775BLACKPLUS desk mounts are ideal for use in offices, on counters and in reception areas. All installation material is included with the product.
Design - Housing material - Steel
Design - Product colour - Black
Desk thickness (max) Mounting - 4.5 cm
Desk thickness (min) Mounting - 1 cm
EAN - 8717371447809
Ergonomics - Adjustable depth - Yes
Ergonomics - Angle of rotation - 180°
Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment range - 0 - 630 mm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 270 - 600 mm
Ergonomics - Height adjustment type - Gas spring
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 360°
Ergonomics - Swivel angle range - 0 - 360°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -45 - 45°
GTIN - 8717371447809
Harmonized System (HS) code Logistics data - 7326909890
Height - 245.000000
Height adjustment - Yes
Height adjustment Ergonomics - Yes
Height adjustment range Ergonomics - 270 - 600 mm
Height adjustment type Ergonomics - Gas spring
Height Weight & dimensions - 600 mm
Housing material Design - Steel
Length - 130.000000
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 5.2 kg
Logistics data - Master (outer) case height - 575 mm
Logistics data - Master (outer) case length - 265 mm
Logistics data - Master (outer) case net weight - 4.6 kg
Logistics data - Master (outer) case width - 500 mm
Logistics data - Products per master (outer) case - 4 pc(s)
Logistics data - Products per pallet (EU) - 72 pc(s)
LongDesc - The Neomounts NM-D775BLACKPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.The NM-D775BLACKPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg. Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775BLACKPLUS desk mounts are ideal for use in offices, on counters and in reception areas.All installation material is included with the product.
LongProductName - Neomounts NM-D775BLACKPLUS Single monitor arm - 10-49" - 1-18 kg (curved 14 kg) - gas spring - 180°-stop - Topfix - black
LongSummaryDescription - Neomounts NM-D775BLACKPLUS Monitor arm 10-49" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 360°, Tilt angle range: -45 - 45°. Product colour: Black
Manufacturer - Neomounts
Manufacturer - Newstar
ManufacturerPartNumber - NM-D775BLACKPLUS
Master (outer) case gross weight Logistics data - 5.2 kg
Master (outer) case height Logistics data - 575 mm
Master (outer) case length Logistics data - 265 mm
Master (outer) case net weight Logistics data - 4.6 kg
Master (outer) case width Logistics data - 500 mm
Maximum screen size Mounting - 124.5 cm (49")
Maximum VESA mount Mounting - 100 x 100 mm
Maximum weight (capacity), kg - 18
Maximum weight capacity (per curved/ultra-wide display) Mounting - 14 kg
Maximum weight capacity (per display) Mounting - 18 kg
Maximum weight capacity Mounting - 18 kg
Minimum screen size Mounting - 25.4 cm (10")
Minimum VESA mount Mounting - 75 x 75 mm
Minimum weight Other features - 1 kg
Motorized - No
Mounting - Desk thickness (max) - 4.5 cm
Mounting - Desk thickness (min) - 1 cm
Mounting - Maximum screen size - 124.5 cm (49")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 18 kg
Mounting - Maximum weight capacity (per curved/ultra-wide display) - 14 kg
Mounting - Maximum weight capacity (per display) - 18 kg
Mounting - Minimum screen size - 25.4 cm (10")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Clamp/Grommet
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,75 x 75 mm
Mounting Mounting - Clamp/Grommet
Mounting type Mounting - Desk
MPN - NM-D775BLACKPLUS
Name - Neomounts NM-D775BLACKPLUS Tischhalterung für Bildschirme bis 49" (124 cm) 18KG
Number of displays supported Mounting - 1
Other features - Minimum weight - 1 kg
Package depth Packaging data - 123 mm
Package height Packaging data - 555 mm
Package net weight Packaging data - 5.2 kg
Package weight Packaging data - 5.2 kg
Package width Packaging data - 240 mm
Packaging data - Package depth - 123 mm
Packaging data - Package height - 555 mm
Packaging data - Package net weight - 5.2 kg
Packaging data - Package weight - 5.2 kg
Packaging data - Package width - 240 mm
Panel mounting interface Mounting - 100 x 100,75 x 75 mm
PeriodofWarranty - 5 Y
Product colour Design - Black
ProductName - Neomounts NM-D775BLACKPLUS Monitor arm 10-49" - gas spring - Topfix - 180°-stop
Products per master (outer) case Logistics data - 4 pc(s)
Products per pallet (EU) Logistics data - 72 pc(s)
Rotating Ergonomics - Yes
Short summary - Neomounts NM-D775BLACKPLUS Single monitor arm - 10-49" - 1-18 kg (curved 14 kg) - gas spring - 180°-stop - Topfix - black
ShortSummaryDescription - Neomounts NM-D775BLACKPLUS Monitor arm 10-49" - gas spring - Topfix - 180°-stop, Clamp/Grommet, 18 kg, 25.4 cm (10"), 124.5 cm (49"), 100 x 100 mm, Black
Stand/mount type - Table
Summary - Neomounts NM-D775BLACKPLUS Monitor arm 10-49" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 360°, Tilt angle range: -45 - 45°. Product colour: Black
Swivel angle Ergonomics - 360°
Swivel angle range Ergonomics - 0 - 360°
Swivelling Ergonomics - Yes
Tilt - Yes
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -45 - 45°
Title - Neomounts NM-D775BLACKPLUS Monitor arm 10-49" - gas spring - Topfix - 180°-stop
Turn - Yes
Unit Box Height - 0.245
Unit Box Length - 0.555
Unit Box Width - 0.125
Unit Calculated Volume - 0.017 cubm
Unit Calculated Weight - 5 kg
Units per Shipping Box - 1
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=NM-D775BLACKPLUS
Vendor Homepage - https://www.neomounts.com/default.asp?pageid=44&artdetail=NM-D775BLACKPLUS
VESA-standard, mm - 75 x 75
VESA-standard, mm - 100 x 100
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 4.9
Weight - 5.020000
Weight & dimensions - Depth - 630 mm
Weight & dimensions - Height - 600 mm
Weight & dimensions - Weight - 3.91 kg
Weight Weight & dimensions - 3.91 kg
Wheels - No
Width - 560.000000
