ID: 243197
Product code: XWB1
In stock 18 units
Warranty: 3 years

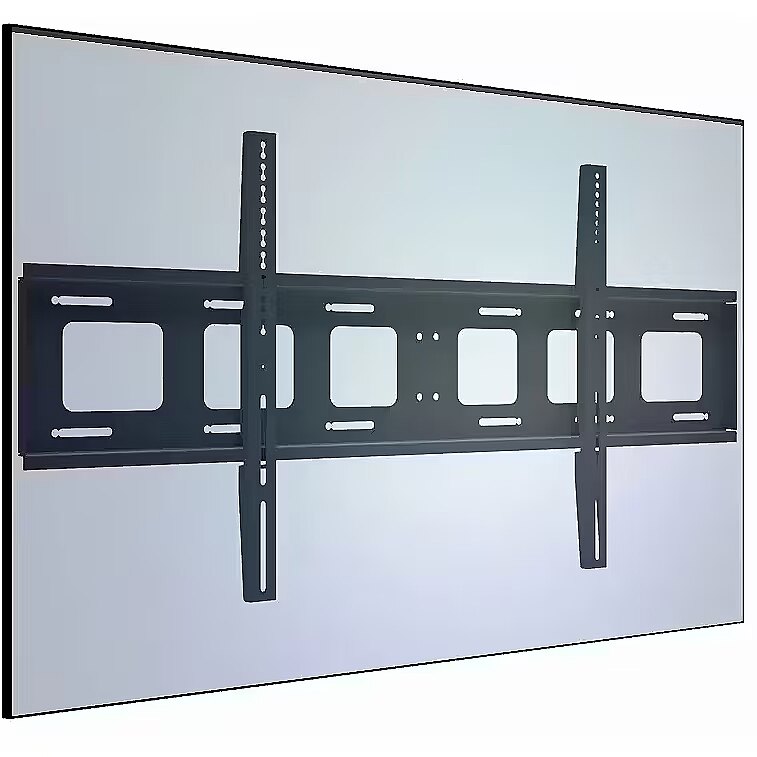

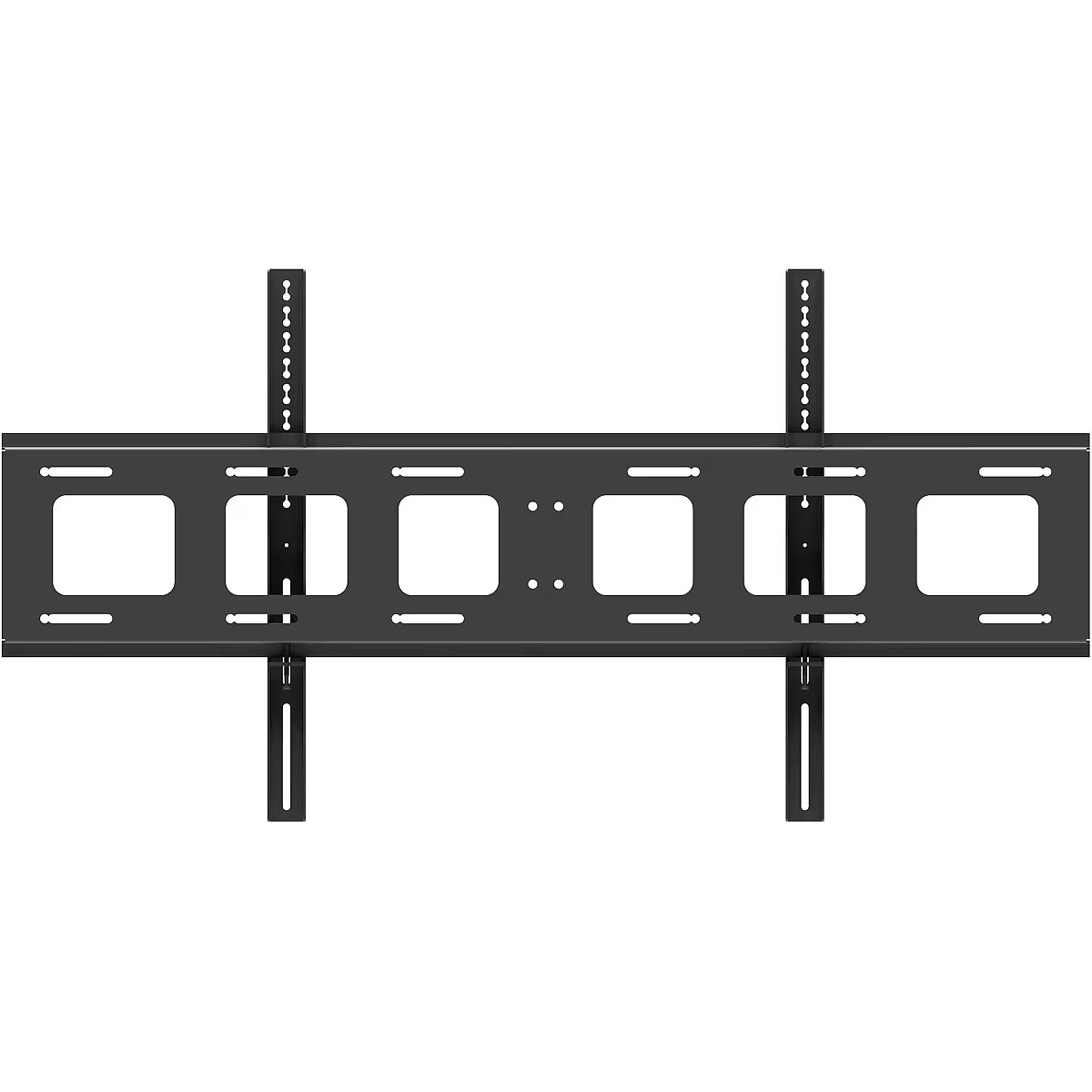

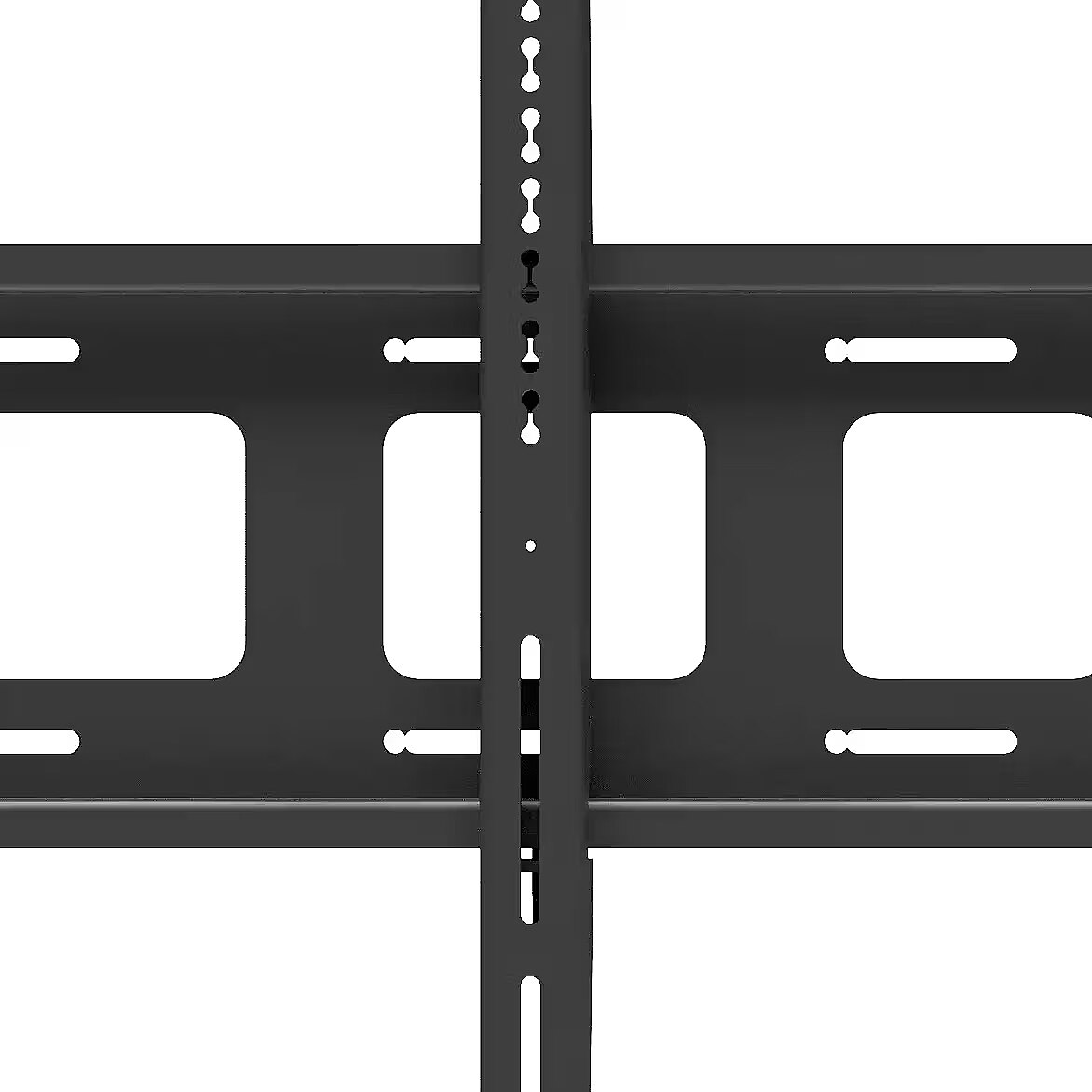

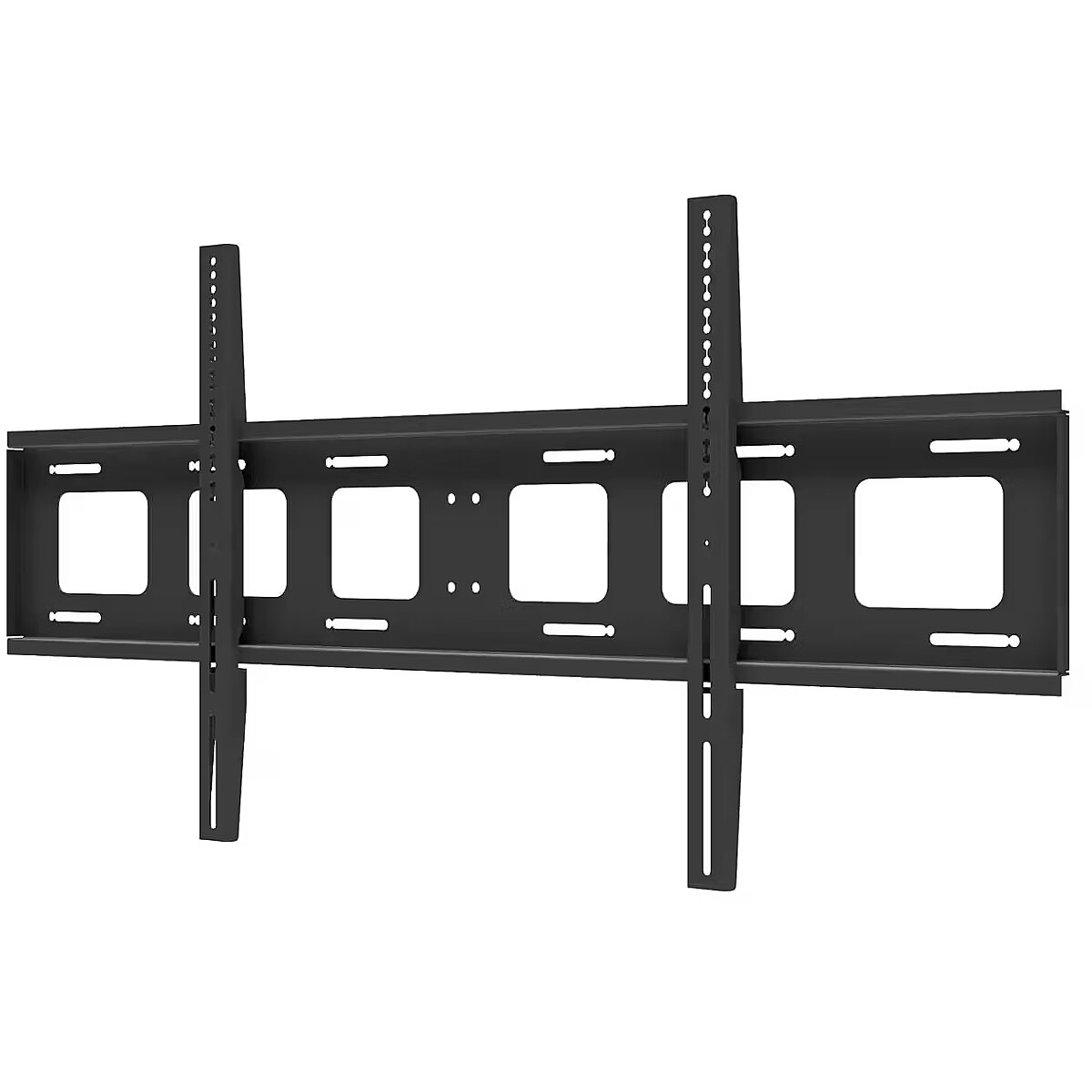

Edbak Universal fixed wall mount, 75-110"
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Maximum load (1 screen), kg: 110.00
- Maximum screen diagonal, inches: 130
- Minimum screen diagonal, inches: 65
All parameters
Colour
: Melna
Maximum load (1 screen), kg
: 110.00
Maximum screen diagonal, inches
: 130
Minimum screen diagonal, inches
: 65
Model
: XWB1
Notebook holder
: Nav
Number of supported screens
: 1
Rotation
: Not
Swivel
: Nav
Tilt
: Not
Type of attachment
: Sienas
VESA support
: 100 x 100, 100 x 150, 100 x 200, 120 x 120, 150 x 100, 150 x 150, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 200 x 500, 300 x 100, 300 x 200, 300 x 300, 300 x 400, 300 x 500, 300 x 600, 350 x 350, 400 x 100, 400 x 200, 400 x 300, 400 x 400, 400 x 500, 400 x 600, 440 x 330, 440 x 400, 500 x 200, 500 x 300, 500 x 400, 500 x 500, 600 x 100, 600 x 200, 600 x 300, 600 x 400, 600 x 500, 600 x 600, 680 x 300, 700 x 400, 700 x 500, 700 x 600, 750 x 450, 800 x 200, 800 x 400, 800 x 500, 800 x 600, 850 x 400, 900 x 400, 900 x 600, 1000 x 400, 1000x600, 1200 x 400, 1200 x 600
More detailed specification
Accessories included - Set screws for mounting the screen
Code - XWB1C-B
Color - Black
Description - XWB1 MONITOR WALL MOUNT 80 - 95 "
- Suitable for installation of large screens over 70 "
- Made of steel with a thickness of 3 mm powder-coated for maximum load capacity of up to 110 kg
- Wide range of mounting holes VESA max. 1200 x 600
- The proximity of the screen of ściany- only 42 mm
- Easy way to install the screen in 3 steps
- Included is a set of screws for mounting the screen
Design > Colour of product - Black
Design > VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 1270 mm
dimension height - 360 mm
Dimensions - 1260 x 42 x 640 mm
dimension weight - 10400 g
dimension width - 70 mm
EAN - 5908252960897
ean - 5908252960897
guarantee - 60
guarantee_type - external
Link - https://edbak.com/en/products/display-mounts/display-wall-mounts/flat-wall-mounts/xwb1/
Load (max) - 110 kg
Mounting > Distance to the wall (max) - 42 mm
Mounting > Distance to the wall (min) - 42 mm
Mounting > Maximum screen size compatibility - 110 "
Mounting > Maximum weight (capacity) - 110 kg
Mounting > Mounting interface compatibility (max) - 1200x600 mm
Mounting > Mounting interface compatibility (min) - 100x100 mm
Mounting > VESA mounting interfaces - 100x100; 1200x600 mm
Name - EDBAK | Wall mount | XWB1C-B | 75-110 " | Maximum weight (capacity) 110 kg | Black
name - XWB1 MONITOR WALL MOUNT 65 - 130" 110KG
Number of supported monitors - 1
Other features - Maximum distance from the wall: 42mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 1280.00 mm
Package features > Gross height (mm) - 75 mm
Package features > Gross width (mm) - 280 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 64 pc(s)
Package features > Paper/Pasteboard - 770.00 g
Package features > Plastic (No PET) - 84.00 g
Package features > Tare weight (kg) - 0.77 kg
Package features > Volume (m3) - 0.02688 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
producer - Edbak
Range adjustment - No
Screen size (max) - 110 ''
Screen size (min) - 75 ''
Stuff - Steel
Technical details > Gross weight - 10.07 kg
Technical details > Net weight - 9.3 kg
Technical details > Other features - Lateral adjustment of the screen once mounted on the wall plate. Suitable for installation on brick, concrete, plaster and wooden walls. Wide range of VESA mounting holes
Technical details > Placement - Wall mount
Technical details > Producer - EDBAK
Technical details > Producer product family - Universal Flat Wall Mount
Technical details > Producer product name - XWB1c-B
Technical details > Product name - XWB1C-B
Technical details > Screen size compatibility - 75-110 "
Type - Wall
Usage - Monitors
vendpn - XWB1
VESA - 100 x 100
VESA - 1200 x 600
Warranty - 60
Warranty - 60 month(s)
Weight - 9.3 kg
Code - XWB1C-B
Color - Black
Description - XWB1 MONITOR WALL MOUNT 80 - 95 "
- Suitable for installation of large screens over 70 "
- Made of steel with a thickness of 3 mm powder-coated for maximum load capacity of up to 110 kg
- Wide range of mounting holes VESA max. 1200 x 600
- The proximity of the screen of ściany- only 42 mm
- Easy way to install the screen in 3 steps
- Included is a set of screws for mounting the screen
Design > Colour of product - Black
Design > VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 1270 mm
dimension height - 360 mm
Dimensions - 1260 x 42 x 640 mm
dimension weight - 10400 g
dimension width - 70 mm
EAN - 5908252960897
ean - 5908252960897
guarantee - 60
guarantee_type - external
Link - https://edbak.com/en/products/display-mounts/display-wall-mounts/flat-wall-mounts/xwb1/
Load (max) - 110 kg
Mounting > Distance to the wall (max) - 42 mm
Mounting > Distance to the wall (min) - 42 mm
Mounting > Maximum screen size compatibility - 110 "
Mounting > Maximum weight (capacity) - 110 kg
Mounting > Mounting interface compatibility (max) - 1200x600 mm
Mounting > Mounting interface compatibility (min) - 100x100 mm
Mounting > VESA mounting interfaces - 100x100; 1200x600 mm
Name - EDBAK | Wall mount | XWB1C-B | 75-110 " | Maximum weight (capacity) 110 kg | Black
name - XWB1 MONITOR WALL MOUNT 65 - 130" 110KG
Number of supported monitors - 1
Other features - Maximum distance from the wall: 42mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 1280.00 mm
Package features > Gross height (mm) - 75 mm
Package features > Gross width (mm) - 280 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 64 pc(s)
Package features > Paper/Pasteboard - 770.00 g
Package features > Plastic (No PET) - 84.00 g
Package features > Tare weight (kg) - 0.77 kg
Package features > Volume (m3) - 0.02688 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
producer - Edbak
Range adjustment - No
Screen size (max) - 110 ''
Screen size (min) - 75 ''
Stuff - Steel
Technical details > Gross weight - 10.07 kg
Technical details > Net weight - 9.3 kg
Technical details > Other features - Lateral adjustment of the screen once mounted on the wall plate. Suitable for installation on brick, concrete, plaster and wooden walls. Wide range of VESA mounting holes
Technical details > Placement - Wall mount
Technical details > Producer - EDBAK
Technical details > Producer product family - Universal Flat Wall Mount
Technical details > Producer product name - XWB1c-B
Technical details > Product name - XWB1C-B
Technical details > Screen size compatibility - 75-110 "
Type - Wall
Usage - Monitors
vendpn - XWB1
VESA - 100 x 100
VESA - 1200 x 600
Warranty - 60
Warranty - 60 month(s)
Weight - 9.3 kg
