Techly Universal TV Wall Mount, 23-55"

Accessories included - - Wall mount
- Fitting elements
- User's Guide
Brand - Techly
BrandPartCode - ICA-PLB 136M
Category - Root/Electronics/PC peripherals/Accessories/Grip holders/Wall brackets
Category - TV Mounts & Stands
Color - Black
Corner mount - No
Description - Wall bracket LCD/LED 23-55 double arm, 45kg
- Enables secure mounting on the LCD / LCD display or TV
- Steel construction guarantees maximum safety
- Mounting the display in VESA standard
- Two-hinged boom with adjustable distance from the wall
- Ability to adjust the tilt angle
- The ability to adjust the rotation in the horizontal plane
- Integrated cable management system
- Ideal for home, office and commercial use
Design - Anti-theft function - No
Design - Product colour - Black
Designation - Kosz zgodnie z zasadami recyklingu
dimensionalWeight - 1310
dimension depth - 50 mm
dimension height - 425 mm

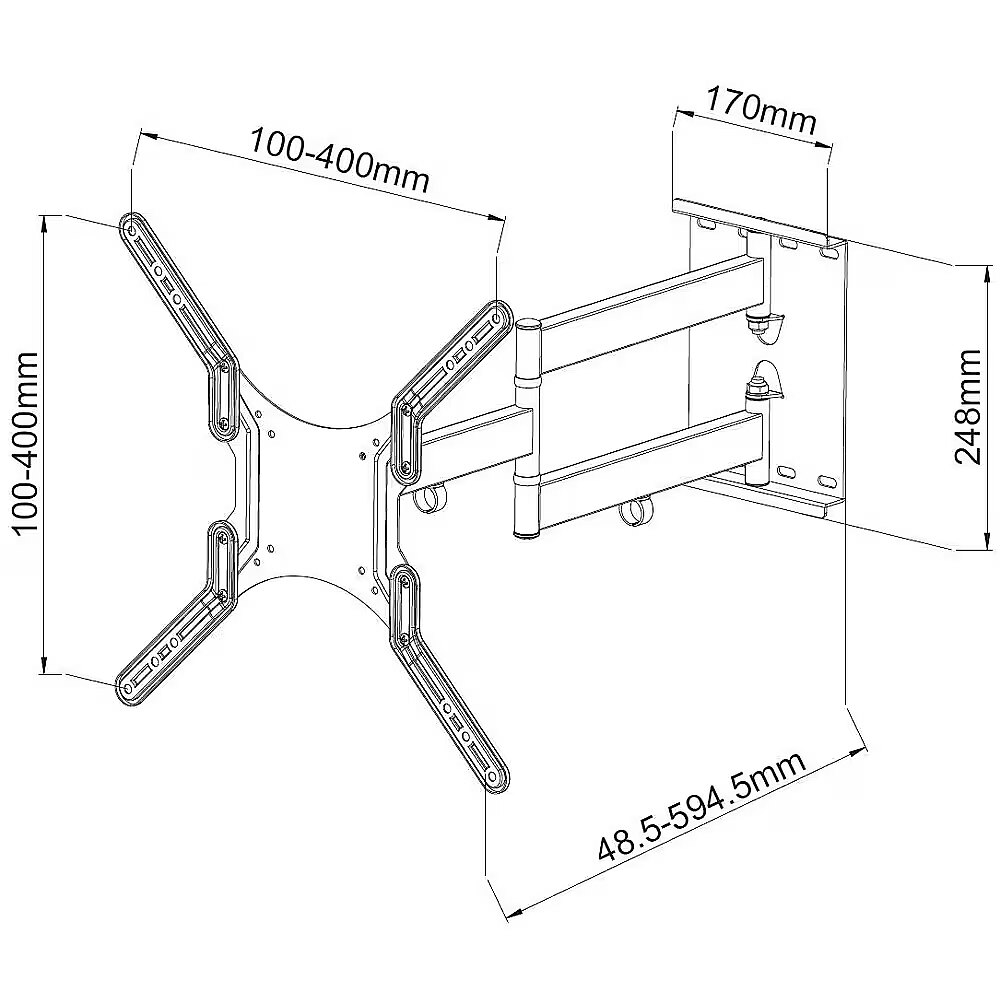

Dimensions - Overall dimensions: 170 x 248 x (48 - 590) mm
dimension weight - 4400 g
dimension width - 255 mm
ean - 8057685308893
Eans - 8057685308893
Ergonomics - Angle of rotation - 180°
Ergonomics - Built-in spirit level - No
Ergonomics - Cable management - Yes
Ergonomics - Distance to the wall (max) - 59 cm
Ergonomics - Distance to the wall (min) - 4.8 cm
Ergonomics - Swivel angle - 180°
Ergonomics - Tilt angle range - -2 - 12°
Ergonomics - Turn angle - 180°
GTIN - 8057685308893
guarantee - 36
guarantee_type - external
Horizontal adjustment - 180 °
Load (max) - 45 kg
Logistics data - Harmonized System (HS) code - 85299097
LongDesc - Compact design bracket, ideal for thin TV- Robust fastening plate and the new tilt system that allows adjusting the angle of -2° to + 12°- A lateral adjustment of +/- 2° ensures leveling even after hanging the TVFeatures- Universal bracket for thin TV 23-55"- Supports VESA up to 400x400 mm- Maximum weight supported: 45 kg- Possibility of mounting angle
LongProductName - 23-55" Universal LCD TV Wall Mount Bracket Black
LongSummaryDescription - Techly 23-55 Universal LCD TV Wall Mount Bracket Black" ICA-PLB 136M. Maximum weight capacity: 45 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -2 - 12°, Angle of rotation: 180°, Distance to the wall (min): 4.8 cm, Distance to the wall (max): 59 cm. Product colour: Black
Mounting - Maximum screen size - 139.7 cm (55")
Mounting - Maximum VESA mount - 400 x 400 mm
Mounting - Maximum weight capacity - 45 kg
Mounting - Minimum screen size - 58.4 cm (23")
Mounting - Minimum VESA mount - 100 x 100 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100 mm
Mounting - Panel mounting interface - 100 x 100,200 x 200,400 x 400
Mounting - Panel mounting interface - 200 x 200 mm
Mounting - Panel mounting interface - 400 x 400
Name - Techly Uchwyt ścienny LCD (308893) 55"
name - Wall mount LCD/LED 23-55 double arm, 45kg, black
Other features - Adjustable tilt angle: -2° to + 12°
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
Packaging data - Package type - Box
producer - Techly
Producer - Techly
producerCode - 308893
ProducerCode - 308893
ProductName - 23-55 Universal LCD TV Wall Mount Bracket Black" ICA-PLB 136M
productName - Techly 23-55 Universal LCD TV Wall Mount Bracket Black" ICA-PLB 136M
productSize - Normal
Range (max) - 590 mm
Range (min) - 48 mm
Range adjustment - Yes
Screen size (max) - 55 ''
Screen size (min) - 23 ''
ShortDescription - Elastyczne mocowanie LCD 23-55" do 45kg
ShortSummaryDescription - Techly 23-55 Universal LCD TV Wall Mount Bracket Black" ICA-PLB 136M, 139.7 cm (55"), 100 x 100 mm, 400 x 400 mm, -2 - 12°, 180°, Black
sizeX - 420
sizeY - 260
sizeZ - 60
Stuff - Steel
Technical details - Number of joints - 3
Technical details - Warranty period - 10 year(s)
Title - Techly 23-55 Universal LCD TV Wall Mount Bracket Black" ICA-PLB 136M
Type - Wall
URL - https://www.techly.com/23-55-universal-lcd-tv-wall-mount-bracket-black.html
Usage - Monitors
Usage - TV
vendpn - 308893
VESA - 100 x 100
VESA - 200 x 100
VESA - 200 x 200
VESA - 200 x 300
VESA - 300 x 300
VESA - 400 x 200
VESA - 400 x 300
VESA - 400 x 400
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 4.32 kg
weight - 4500
Weight & dimensions - Weight - 4.66 kg
