Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 16
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Fast Ethernet (10/100)
Built-in processor Performance - Yes
Category Code - SWI
Certification Certificates - CE/RED, EAC, ROHS
Data transmission - Forwarding rate - 5.4 Mpps
Data transmission - Switching capacity - 7.2 Gbit/s
Data transmission - Throughput - 3600 Mpps
DC input voltage Power - 18 - 57 V
Depth Weight & dimensions - 212 mm

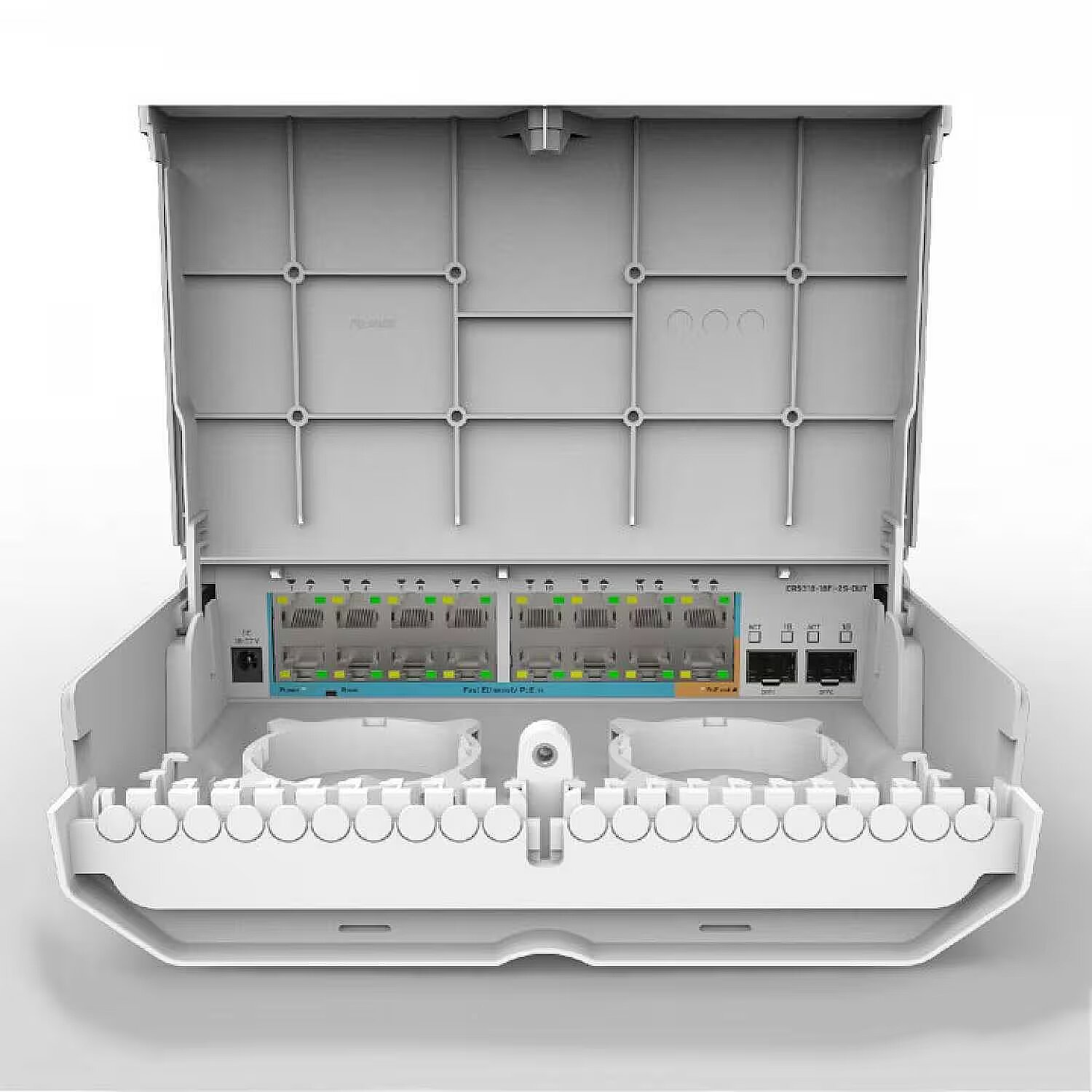

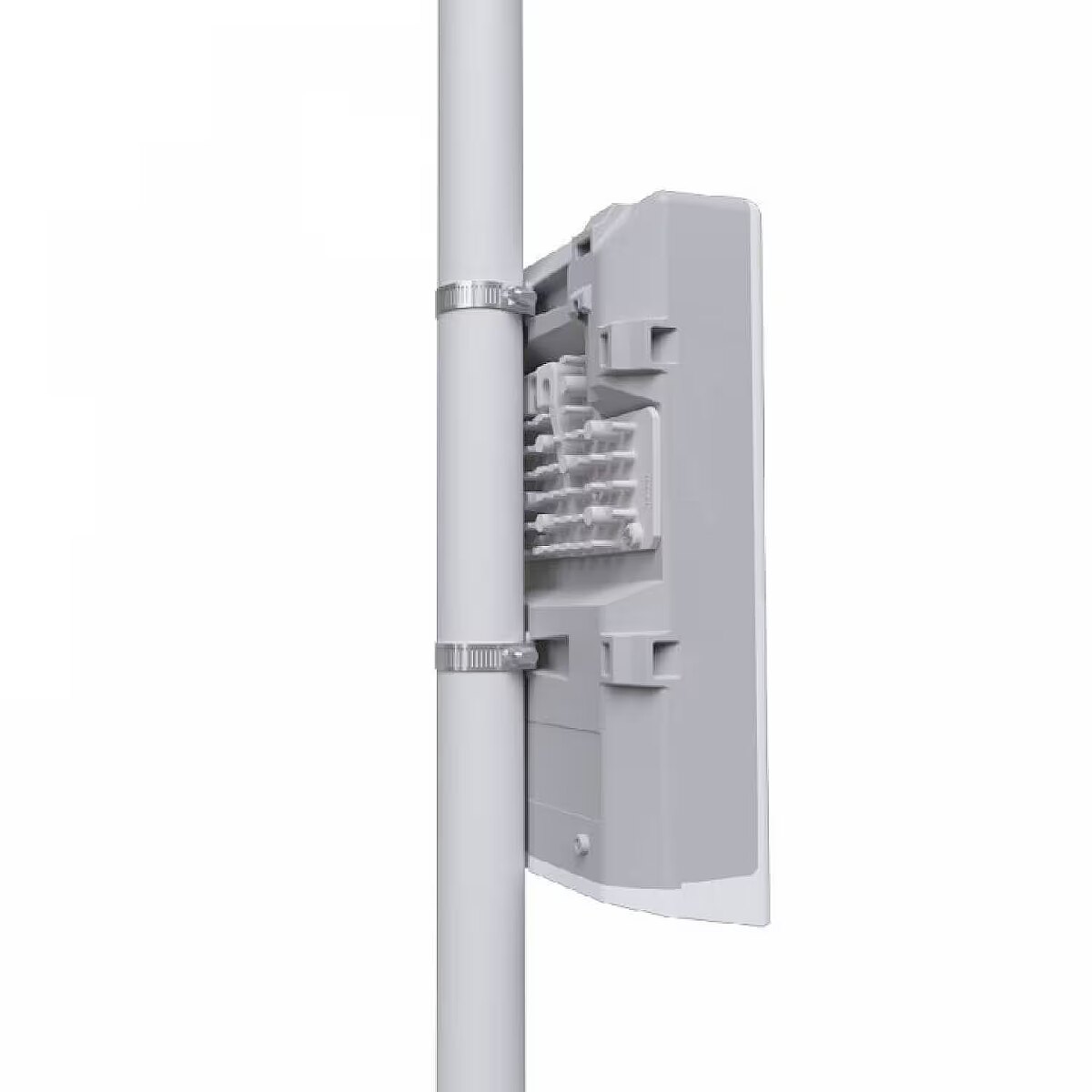

Description - With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments. You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Another Ethernet port has PoE-out – you can use it to power an aggregate link such as our Wireless Wire Dish or a security camera, for example. There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up! netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.
Design - Certification - CE/RED, EAC, ROHS
Design - Product colour - White
dimensionalWeight - 1624
Ethernet LAN data rates Network - 10,100 Mbit/s
Flash memory Performance - 16 MB
Forwarding rate Data transmission - 5.4 Mpps
Height Weight & dimensions - 71 mm
Internal memory Performance - 256 MB
Memory type Performance - RAM
Network - Ethernet LAN data rates - 10,100 Mbit/s
Operating temperature (T-T) Operational conditions - -40 - 70 °C
Operational conditions - Operating temperature (T-T) - -40 - 70 °C
Performance - Built-in processor - Yes
Performance - Flash memory - 16 MB
Performance - Internal memory - 256 MB
Performance - Memory type - RAM
Performance - Processor frequency - 800 MHz
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 16
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces - SFP module slots quantity - 2
Power - DC input voltage - 18 - 57 V
Power - Power consumption (max) - 29 W
Power connector Ports & interfaces - DC-in jack
Power consumption (max) Power - 29 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Processor frequency Performance - 800 MHz
producerCode - CRS318-1Fi-15Fr-2S-OUT
Product colour Design - White
productName - Mikrotik netPower 15FR Fast Ethernet (10/100) Power over Ethernet (PoE) White
productSize - Normal
SFP module slots quantity Ports & interfaces - 2
sizeX - 390
sizeY - 85
sizeZ - 245
Summary - Mikrotik netPower 15FR. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Switching capacity: 7.2 Gbit/s. DC input voltage: 18 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE)
Switching capacity Data transmission - 7.2 Gbit/s
Throughput Data transmission - 3600 Mpps
Unit Box Height - 0.08
Unit Box Length - 0.39
Unit Box Width - 0.24
Unit Calculated Volume - 0.007488 cubm
Unit Calculated Weight - 2.24 kg
Units per Shipping Box - 1
Vendor Homepage - https://mikrotik.com/product/crs318_1fi_15fr_2s_out#fndtn-specifications
Warranty - 12 months
warrantyLength - 24
warrantyType - G
weight - 2250
Weight & dimensions - Depth - 212 mm
Weight & dimensions - Height - 71 mm
Weight & dimensions - Width - 304 mm
Width Weight & dimensions - 304 mm
