Cudy Router CUDY IR04_EU

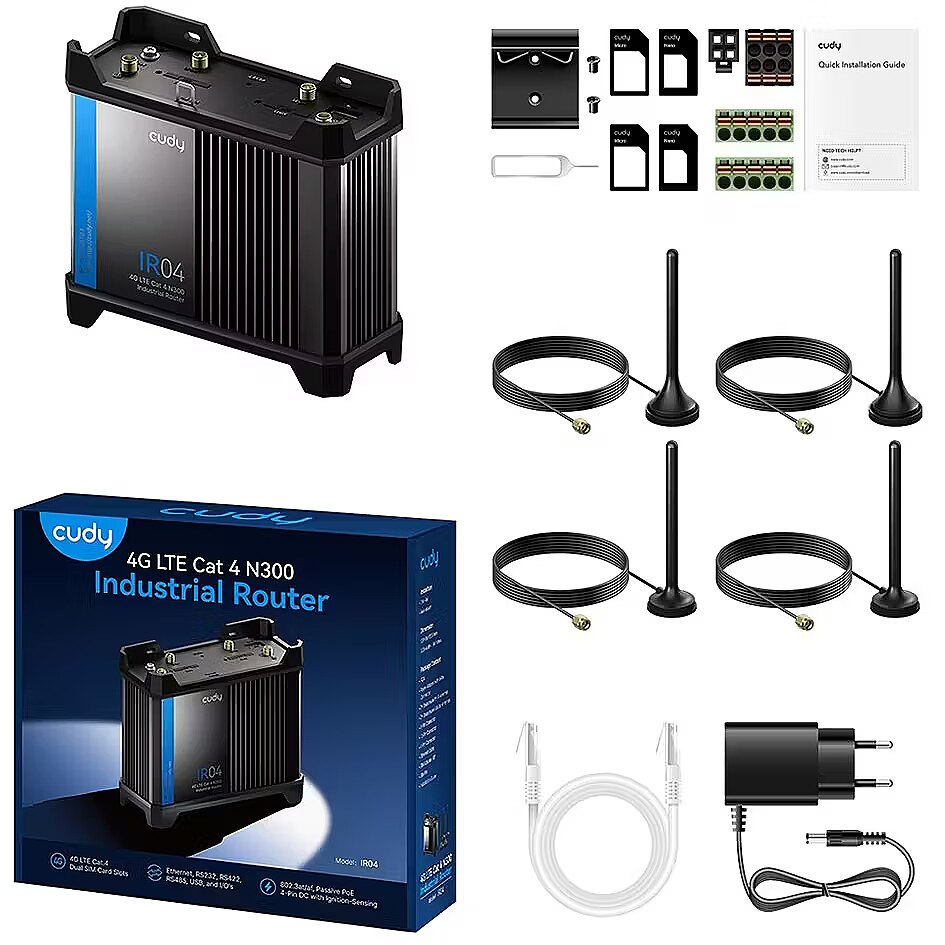

Accessories included - IR04 Power Adapter Detachable Wi-Fi Antennas Detachable Cellular Antennas 6-PIN Connector 10-PIN Connector 4-PIN Connector Ethernet Cable SIM Adapter KIT Mounting Kit Installation Guide
Antenna - Detachable external
Antenna - Antenna design - Internal
Antenna - Antennas quantity - 2
Antenna - Antenna type - 2x2
Certificates - FCC, CE
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Color - Black
Data Act - Link
Description - A cellular Wi-Fi router with mobile connectivity for networking in harsh conditions such as moving vehicles, manufacturing, maritime, oil & gas, and mining.

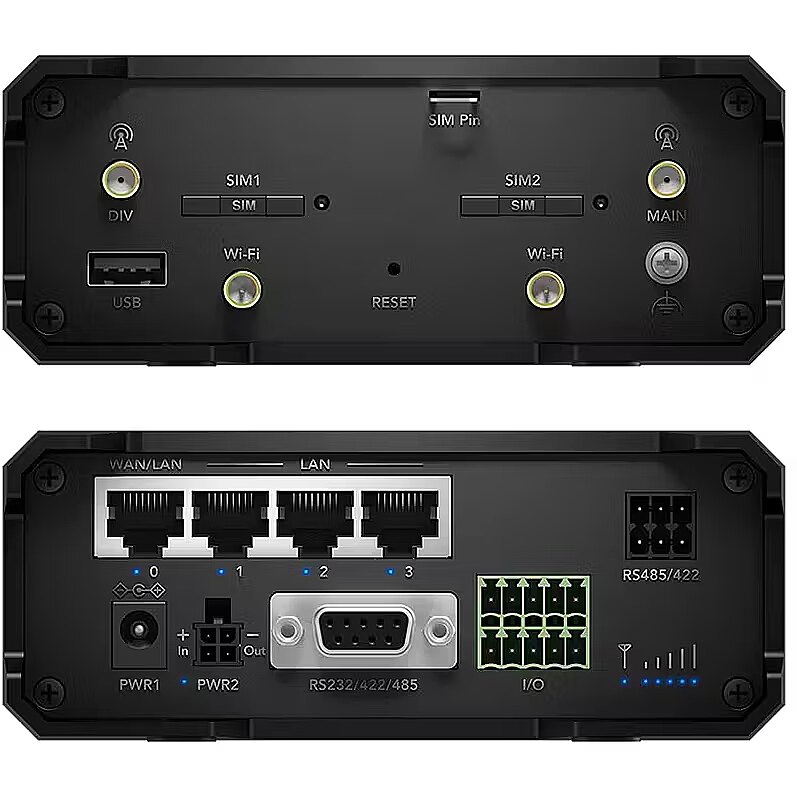

12 Types of Interfaces
Versatile interfaces meet the networking, control, and data acquisition needs of various devices. The interfaces include: Ethernet, USB, RS232, RS485, RS422, Ignition Sensing, Analog Input, DI-Dry, DI-Wet, DO-Dry, DO-Wet, and Wi-Fi.
DC. 4-Pin. PoE. Passive PoE.
Different power options enable flexible installation ideal for integration into machines, production lines, moving vehicles, and distribution boxes. DC 4-Pin Socket 802.3at/af PoE Passive PoE Works in Heat, Cold, Shock, Vibration, EMC Interference
Built with a sophisticated design and high-quality components, the device achieves Level 4 EMC. Its precisely crafted aluminum alloy body and integrated heat sink design enable it to withstand shock and vibration, operate in extreme temperatures, and ensure long-lasting durability.
Design - Housing material - Aluminium alloy
Design - LED indicators - Power
Designation - CE+WEEE
dimensionalWeight - 582
dimension depth - 60 mm
dimension height - 210 mm
Dimensions - 129 × 114 × 50.6 mm
dimension weight - 950 g
dimension width - 220 mm
ean - 6971690793210
Environment requirements - Operating Temperature: -40 - 75   Storage Temperature: -40 - 75   Operating Humidity: 5% - 95% non-condensing Storage Humidity: 5% - 95% non-condensing
Features - Built-in processor - Yes
Features - Flash memory - 16 MB
Features - Internal memory - 128 MB
Features - Processor cores - 1
Features - Processor frequency - 580 MHz
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 10/100/1000 Mbit/s LAN / WAN (Combo)
I/O ports - 1 x RS-485
I/O ports - 1 x USB 2.0
I/O ports - 3 x 10/100/1000 Mbit/s
Management features - MIMO - Yes
Management features - Reset button - Yes
Mobile network - 3G standards - WCDMA
Mobile network - 4G standard - LTE-TDD & LTE-FDD
Mobile network - Mobile network generation - 4G
Model - IR04
name - CUDY IR04 4G LTE Cat4 Industrial Router
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN interface type - Fast Ethernet
Network architecture - GigabitEthernet
Number of antennas - 4
Operating frequency - 2 GHz
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 75 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 75 °C
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Quick installation guide - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - USB 2.0 connectors - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Output current - 1 A
Power - Output voltage - 12 V
Power - Power source type - DC
Power supply - Power Adapter      Input: 100-240V~, 50/60Hz Output: 12V1A  Max Power Consumption: 9.6W
Power Methods:      DC 802.3at/af PoE Passive PoE Power Input:     DC: 11-57V1A 4-Pin DC: 11-57V Passive PoE: 24-57V PoE: 802.3at/af
producer - Cudy
producerCode - IR04_EU
productName - CUDY IR04_EU Router
productSize - Normal
sizeX - 223
sizeY - 204
sizeZ - 64
Standards - 802.3af
Standards - 802.3at
Type - xDSL
vendpn - IR04
warrantyLength - 24
warrantyType - G
Weight - 462 g
weight - 940
Weight & dimensions - Depth - 114 mm
Weight & dimensions - Height - 50,6 mm
Weight & dimensions - Weight - 462 g
Weight & dimensions - Width - 129 mm
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi band - 2.4 GHz
