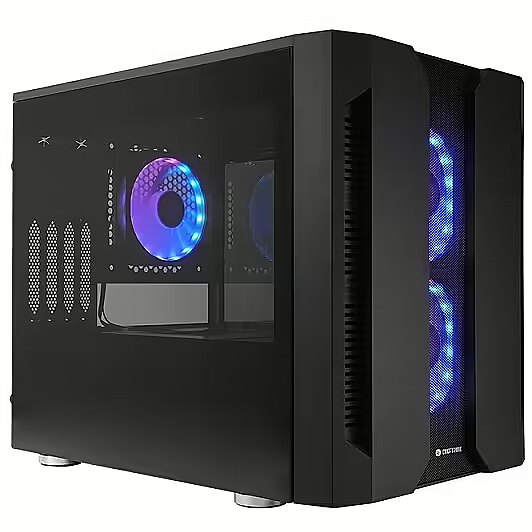

Chieftec Chieftronic M2, RGB, Tempered Glass, Black

Anti-dust filter Design - Yes
Audio input Ports & interfaces - Yes
Audio output Ports & interfaces - Yes
Brand - Chieftec
BrandPartCode - GM-02B-OP
Category - Computer Cases
Category Code - CAS
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
category_en - Computers & Components > Computer components > PC Cases
category_lv - Datortehnika > Datoru komponentes > Datoru korpusi
category_ru - Datortehnika > Datoru komponentes > Datoru korpusi
Certification Design - EAC
Compliance certificates Technical details - CE/RoHS
Cooling - Front fans diameters supported - 120,140 mm
Cooling - Front fans installed - 2x 120 mm
Cooling - Front radiator sizes supported - 280 mm
Cooling - Number of front fans supported (max) - 2
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 2
Cooling - Rear fans diameters supported - 120,140 mm
Cooling - Rear fans installed - 1x 120 mm
Cooling - Top fans diameters supported - 120 mm
Cooling - Top radiator sizes supported - 240 mm
Depth Weight & dimensions - 398 mm
Description - The Chieftronic M2 is the next upgraded iteration of the original M1 gaming cube case for significantly improved performance. The newly designed front panel incorporates mesh for optimized airflow, the increased number of stock fans to 3 pieces and the added support for 240mm radiator in the top panel, in addition to the front support for 280mm radiator, makes the M2 a very capable case for a high-performance gaming rig. Side panels made from tempered glass allow a clean view of the installed system and the case comes with a certified A-RGB control hub, ensuring M/B sync compatibility with: ASUS™ Aura, ASRock™ RGB Sync, MSI™ Mystic Light Sync and Gigabyte™ RGB Fusion. Mesh front panel for optimized air ow 3x A-RGB Rainbow Fans pre-installed 2x Tempered glass for perfect view of system Supports 280mm radiator in front & 240mm radiator on top
description_en - The Chieftec GM-02B-OP cube-format case is designed for compact systems based on microATX and Mini-ITX motherboards. It features a steel chassis with a tempered-glass side panel. The model supports tall CPU coolers, long graphics cards and multiple storage drives. It is compatible with front-mounted liquid cooling radiators and provides modern front I/O connectivity.
SpecificationsModel: Chieftec GM-02B-OPDevice type: PC caseForm factor: CubeSupported motherboards: microATX, Mini-ITXColour: BlackMaterial: SPCC steel, tempered-glass side panelLighting support: RGB / ARGB readyFront I/O: 2× USB 3.2 Gen1, 2× USB 2.0, audio in/outDrive support: 2× 3.5″, 2× 2.5″Max GPU length: 340 mmMax CPU cooler height: 200 mmMax PSU length: 160 mmCooling support:– front: 2× 120/140 mm or 280 mm radiator– rear: 1× 120/140 mmDust filters: includedWeight: 7.47 kg
Physical parametersWeight: 7.47 kgGross weight: 8.93 kgPackage dimensionsLength, m: 0.455Height, m: 0.39Width, m: 0.27
description_lv - Chieftec GM-02B-OP Cube formāta korpuss paredzēts kompaktām sistēmām ar microATX un Mini-ITX mātesplatēm. Korpuss izgatavots no SPCC tērauda un aprīkots ar rūdītā stikla sānu paneli. Tas atbalsta augstus procesoru dzesētājus, garas videokartes un vairākus datu nesējus. Pieejama radiatoru uzstādīšana priekšpusē un moderna priekšējā I/O saskarne.
RaksturlielumiModelis: Chieftec GM-02B-OPIerīces tips: Datora korpussForm-faktors: CubeAtbalstītās mātesplates: microATX, Mini-ITXKrāsa: MelnaMateriāls: SPCC tērauds, rūdīts stikla sānu panelisApgaismojums: RGB / ARGB atbalstsPriekšējie porti: 2× USB 3.2 Gen1, 2× USB 2.0, audio ieeja/izejaDatu nesēji: 2× 3.5″, 2× 2.5″Maksimālais videokartes garums: 340 mmMaksimālais CPU dzesētāja augstums: 200 mmMaksimālais PSU garums: 160 mmDzesēšanas atbalsts:– priekšā: 2× 120/140 mm vai 280 mm radiators– aizmugurē: 1× 120/140 mmPutekļu filtri: irSvars: 7.47 kg
Fiziskie parametriSvars: 7.47 kgBruto svars: 8.93 kgIepakojuma izmēriGarums, m: 0.455Augstums, m: 0.39Platums, m: 0.27
description_ru - Корпус Chieftec GM-02B-OP формата Cube предназначен для сборки компактных систем на базе материнских плат microATX и Mini-ITX. Конструкция выполнена из прочной стали с боковой панелью из закалённого стекла. Модель поддерживает установку высоких процессорных кулеров, длинных видеокарт и нескольких накопителей. Предусмотрена совместимость с фронтальными радиаторами СЖО и современный набор портов на передней панели.
ХарактеристикиМодель: Chieftec GM-02B-OPТип устройства: Корпус для ПКФорм-фактор: CubeПоддержка материнских плат: microATX, Mini-ITXЦвет: ЧёрныйМатериал: сталь SPCC, боковая панель из закалённого стеклаПодсветка: поддержка RGB (ARGB-вентиляторы при необходимости)Разъёмы на передней панели: 2× USB 3.2 Gen1, 2× USB 2.0, аудио вход/выходСовместимые накопители: 2× 3.5″, 2× 2.5″Максимальная длина видеокарты: 340 ммМаксимальная высота кулера: 200 ммМаксимальная длина блока питания: 160 ммПоддержка охлаждения:– фронтально: 2× 120/140 мм или радиатор до 280 мм– сзади: 1× 120/140 ммФильтры от пыли: естьВес: 7.47 кг
Физические параметрыВес: 7.47 кгВес брутто: 8.93 кгРазмеры упаковкиДлина, м: 0.455Высота, м: 0.39Ширина, м: 0.27
Design - Anti-dust filter - Yes
Design - Certification - EAC
Design - Form factor - Cube
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Illumination location - Case fans
Design - Material - SPCC, Tempered glass
Design - Maximum CPU cooler height - 20 cm
Design - Maximum graphics card length - 34 cm
Design - Maximum PSU length - 16 cm
Design - Number of 2.5" bays - 2
Design - Number of internal 3.5" bays - 2
Design - Number of storage drives supported - 4
Design - Product colour - Black
Design - Side window - Yes
Design - Suitable for - Gaming
Design - Supported motherboard form factors - micro ATX, Mini-ITX
Design - Tempered glass panel(s) - Yes
Design - Type - PC
EAN - 753263077622
EAN_code - 0753263077622
Form factor Design - Cube
Front fans diameters supported Cooling - 120/140 mm
Front fans installed Cooling - 2x 120 mm
Front radiator sizes supported Cooling - 280 mm
gross_weight - 8.93 kg
GTIN - 753263077622
GTIN - 0753263077622
Harmonized System (HS) code Logistics data - 84733080
Height Weight & dimensions - 345 mm
Illumination colour Design - Multi
Illumination Design - Yes
Illumination location Design - Case fans
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - The Chieftronic M2 is the next upgraded iteration of the original M1 gaming cube case for significantly improved performance. The newly designed front panel incorporates mesh for optimized airflow, the increased number of stock fans to 3 pieces and the added support for 240mm radiator in the top panel, in addition to the front support for 280mm radiator, makes the M2 a very capable case for a high-performance gaming rig. Side panels made from tempered glass allow a clean view of the installed system and the case comes with a certified A-RGB control hub, ensuring M/B sync compatibility with: ASUS™ Aura, ASRock™ RGB Sync, MSI™ Mystic Light Sync and Gigabyte™ RGB Fusion.
LongProductName - Gaming cube case, Mini ITX / mATX, 3x A-RGB Rainbow Fans
LongSummaryDescription - Chieftec Chieftronic M2. Form factor: Cube, Type: PC, Product colour: Black. Supported power supply form factors: ATX. Front fans installed: 2x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 273 mm, Depth: 398 mm, Height: 345 mm
Manufacturer - Chieftec
Manufacturer_code - GM-02B-OP
Material Design - SPCC/Tempered glass
Maximum CPU cooler height Design - 20 cm
Maximum graphics card length Design - 34 cm
Maximum PSU length Design - 16 cm
Model -
Name - Chieftronic M2 GM-02B-OP mATX - GM-02B-OP
Number of 2.5" bays Design - 2
Number of front fans supported (max) Cooling - 2
Number of internal 3.5" bays Design - 2
Number of rear fans supported (max) Cooling - 1
Number of storage drives supported Design - 4
Number of top fans supported (max) Cooling - 2
Package weight Packaging data - 8.93 kg
Packaging data - Package weight - 8.93 kg
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Power supply - Power supply included - No
Power supply - Supported power supply form factors - ATX
Power supply included Power supply - No
Producer - CHIEFTEC
Product colour Design - Black
ProductName - Chieftronic M2
Rear fans diameters supported Cooling - 120/140 mm
Rear fans installed Cooling - 1x 120 mm
ShortSummaryDescription - Chieftec Chieftronic M2, Cube, PC, Black, micro ATX, Mini-ITX, SPCC, Tempered glass, Gaming
Side window Design - Yes
Storage - Supported HDD sizes - 2.5,3.5"
Suitable for Design - Gaming
Summary - Chieftec Chieftronic M2. Form factor: Cube, Type: PC, Product colour: Black. Supported power supply form factors: ATX. Front fans installed: 2x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 273 mm, Depth: 398 mm, Height: 345 mm
Supported HDD sizes Storage - 2.5/3.5 "
Supported motherboard form factors Design - micro ATX/Mini-ITX
Supported power supply form factors Power supply - ATX
Sustainability compliance Technical details - Yes
Technical details - Compliance certificates - CE, RoHS
Technical details - Sustainability compliance - Yes
Tempered glass panel(s) Design - Yes
Title - Chieftec Chieftronic M2 Cube Black
title_en - Chieftec GM-02B-OP PC Case microATX / Mini-ITX / Cube
title_lv - Chieftec GM-02B-OP Datora korpuss microATX / Mini-ITX / Cube
title_ru - Chieftec GM-02B-OP Корпус microATX / Mini-ITX / Cube
Top fans diameters supported Cooling - 120 mm
Top radiator sizes supported Cooling - 240 mm
Type Design - PC
Unit Box Height - 0.525
Unit Box Length - 0.455
Unit Box Width - 0.39
Unit Calculated Volume - 0.09316 cubm
Unit Calculated Weight - 9 kg
Units per Pallet - 0
Units per Shipping Box - 1
URL - https://www.chieftec.eu/products-detail/516/GM-02B-OP
USB 2.0 ports quantity Ports & interfaces - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 2
Vendor Homepage - https://www.chieftec.eu/products-detail/516/GM-02B-OP
Warranty - 24 months
WarrantyInfo - 24 Months
weight - 7.47 kg
Weight - 9,05
Weight & dimensions - Depth - 398 mm
Weight & dimensions - Height - 345 mm
Weight & dimensions - Weight - 7.47 kg
Weight & dimensions - Width - 273 mm
Weight Weight & dimensions - 7.47 kg
Width Weight & dimensions - 273 mm
