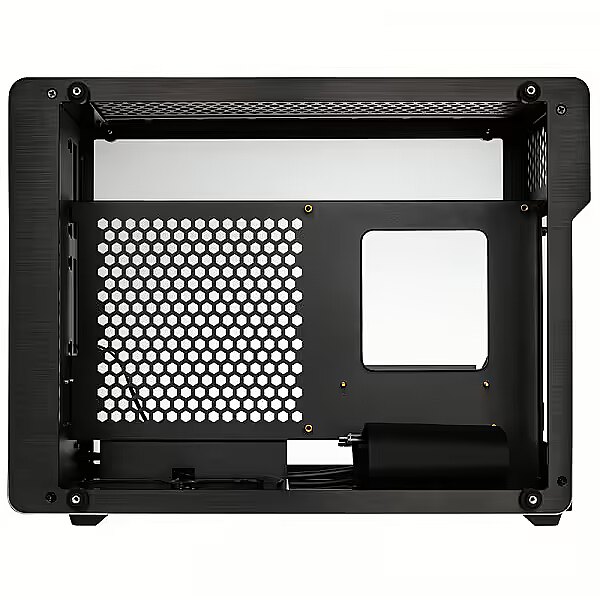

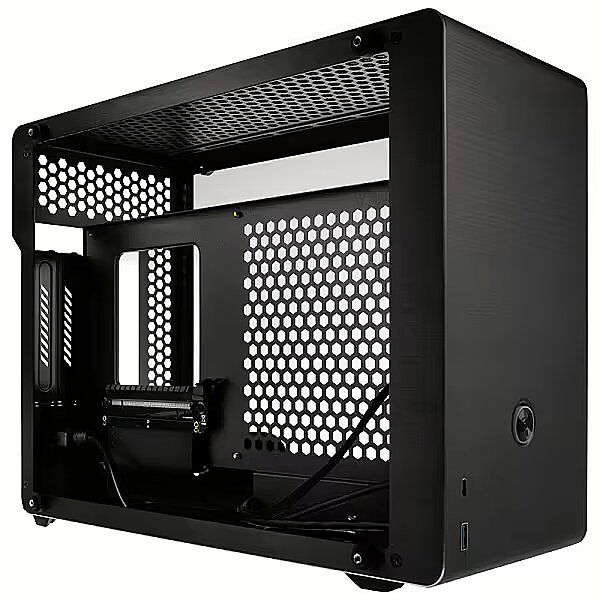

Raijintek Ophion EVO, Tempered Glass, Black

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 221954 Product code: 0R20B00098
Can be ordered 33 units Availability: 21 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
66.67 €
Ready for dispatch
27.11.2025
starting from 5.99 €
Delivery options
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Form factor: mITX
  • Case type: Premium Quality
  • Color: Melna
  • PSU: Nav
All parameters
Form factor : mITX
Case type : Premium Quality
Color Melna
The colour of the front panel of the housing. This parameter is approximate and may differ from the actual colour of the housing.
Side panel type : Tempered Glass
PSU : Nav
Max. CPU cooler height, mm : 90
Max. radiator size, mm : 240
Max. Video card length, mm : 330
2.5" internal HDD/SSD bays : 4
3.5" internal HDD bays : 0
5.25" external drive bays : 0
3.5" FDD drive bays : 0
USB 2.0 Ports : Nav
USB 3.0 ports : 1
USB Type-C ports : 1
Number of fans : Nav
More detailed specification
Additional information in manufacturers website Raijintek Ophion EVO, Tempered Glass, Black
category - Cases & Modding|PC Cases|Mini Cases|Mini-ITX Cases
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
code - 0R20B00098
ean - 4715109922295
EAN_code - 4715109922295
Manufacturer - RAIJINTEK
Manufacturer_code - 0R20B00098
Name - RAIJINTEK OPHION EVO, tower case (black, tempered glass)
name - Raijintek Ophion EVO Mini-ITX Case, Tempered Glass - Black
Technical_details - OPHION EVO, tower case The RAIJINTEK OPHION EVO is an OPHION series SFF chassis. The case is designed to be one of the smallest cases with maximum support for high-end, gaming and commodity components. The OPHION EVO case supports Mini-ITX motherboards, maximum three fans. The OPHION chassis features include tool-free and easy installation, compatibility with ATX / EPS power supplies and the high-end riser card with cable. The case combines an understated design with a compact SFF form factor. The OPHION series is the perfect choice for a small high-end gaming system or workstation and also for gaming enthusiasts. Type: Tower case Color: Black EAN: 4715109922295 Manufacturer number: 0R20B00098 Series: OPHION Design: mini tower Mainboard form factor: Mini-ITX Material: Aluminum (2mm), SPCC (0.8mm), Tempered Glass (3mm) Window Kit: Yes Internal dimensions: plug-in card length | maximum 330 mm Internal measurements: CPU cooler height | maximum 90 mm Internal dimensions: PSU form factor | ATX Drive bays: 3.5 inch | internal | 1 piece Drive bays: 2.5 inch | internal | 1 piece Drive bays: 2.5 inch | 2.5 in 3.5 inch internal | 3 pieces Slots: Full Size | 2 pieces Front ports: 1x USB-A 3.2 Gen 1 (5 Gbps), 1x USB-C 3.2 Gen 1 (5 Gbps) Front connectors: The designation USB 3.2 Gen 1 corresponds to the former designation USB 3.1 Gen 1 / USB 3.0. Notes: 2x 120mm fan mountable on the top, 1x 120mm fan mountable on the bottom Water cooling possible: Yes Water cooling possible: Supported radiators | up to 240mm Note: EVO version: 240 mm radiator and fan can be installed on the top and 1x 3.5" HDD + 2x 2.5" or 4x 2.5" HDD / SSD can be installed More information: Riser card adapter: PCI Express 16X Gen 3.0 Dimensions: Width: 174mm x Height: 290mm x Depth: 375mm Weight: 3.6kg
Weight - 4,40
