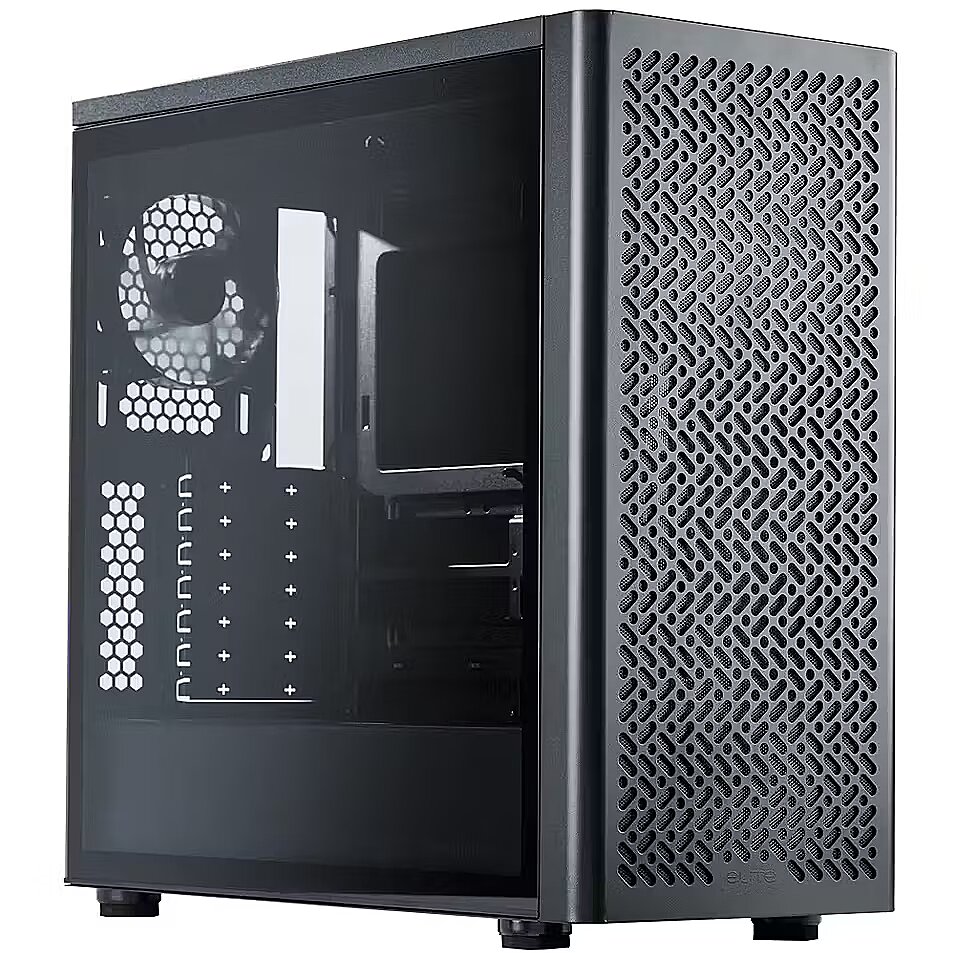

Cooler Master Elite 502 Lite, Temepred Glass, Black

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1260519 Product code: E502L-KGNN-S00
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Form factor: Extended ATX
  • Case type: Premium Quality
  • Color: Black
  • PSU: None
Similar Products
This product Cooler Master Elite 502 Lite, Temepred Glass, Black
Recommended Cooler Master Elite 502, Tempered Glass, Black
Cooler Master Elite 600 ARGB, Tempered Glass, Black
Cooler Master MasterFrame 500 Mesh, Tempered Glass, Black
Cooler Master Elite 502, Tempered Glass, White
Show similar specs. Hide similar specs.
48.92 €
59.29 €
123.59 €
153.27 €
77.79 €
Form factor Extended ATX Extended ATX ATX Extended ATX Extended ATX
Case type Premium Quality Premium Quality High-End Quality Premium Quality
Color Black Black Black Black White
Side panel type Tempered Glass Tempered Glass Tempered Glass Tempered Glass Tempered Glass
PSU None None None None None
Max. CPU cooler height, mm 170 170 160 190 170
Max. radiator size, mm 360 360 360 360 360
Max. Video card length, mm 360 360 425 390 360
2.5" internal HDD/SSD bays 2 2 2 1 2
3.5" internal HDD bays 2 2 1 0 2
5.25" external drive bays 0 0 0 0 0
3.5" FDD drive bays 0 0 0 0 0
USB 2.0 Ports 0 0 0 0 0
USB 3.0 ports 1 1 2 2 1
USB Type-C ports 1 1 1 1 1
Number of fans 1 3 4 3 3
All parameters
Form factor : Extended ATX
Case type : Premium Quality
Color Black
The colour of the front panel of the housing. This parameter is approximate and may differ from the actual colour of the housing.
Side panel type : Tempered Glass
PSU : None
Max. CPU cooler height, mm : 170
Max. radiator size, mm : 360
Max. Video card length, mm : 360
2.5" internal HDD/SSD bays : 2
3.5" internal HDD bays : 2
5.25" external drive bays : 0
3.5" FDD drive bays : 0
USB 2.0 Ports : 0
USB 3.0 ports : 1
USB Type-C ports : 1
Number of fans : 1
More detailed specification
Accessories included -
Chassis type - Midi Tower
Color - Black
Computer case backlight - No
Description - ELITE 502 LITE The Elite 502 Lite delivers exceptional cooling and performance with its advanced mesh front panel for enhanced airflow. Designed for mid-to-entry-level builders, it supports up to a 420mm radiator, 410mm GPUs, and modern back-connector motherboards, offering a streamlined and efficient building experience at an accessible price. BACK-CONNECTED MOTHERBOARD SUPPORT
Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management. BASIC COOLING CONFIGURATION
Equipped with a single 120mm fan, it provides essential cooling while enhancing system airflow for improved performance and aesthetics. ROOM FOR UPDATES
Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades. VERSATILE THERMAL OPTIONS
Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance. REMOVABLE HDD CAGE
The HDD cage is completely removable, providing better access during assembly and system upgrades.
Designation - CE+WEEE
dimension depth - 550 mm
dimension height - 560 mm
Dimensions - 474 x 230 x 481 mm
dimension weight - 8860 g
dimension width - 315 mm
Drive bays 2.5'' intern. - 2
Drive bays 3.5'' intern. - 2
ean - 4719512158524
Fans installed - 1 x 120 mm (back)
Form-factor - ATX
Form-factor - E-ATX
Form-factor - ITX
Form-factor - Micro ATX
Front panel connectors - 1 x mic/headphone (combo)
Front panel connectors - 1 x USB 3.2 Gen1
Front panel connectors - 1 x USB 3.2 Gen 1 Type-C
guarantee - 24
guarantee_type - normal
Maximum CPU cooling height - 170 mm
Maximum length of the graphics card - 410 mm
Maximum length of the power supply - 210 mm
Maximum number of fans - 7
name - Case Elite 502 Lite black
No. of drive bays - 4
Number of fans installed - 1
Number of slots for expansion cards - 7
Ooptional water cooling - 1 x 120 mm (back)
Ooptional water cooling - 1 x 120 mm (front)
Ooptional water cooling - 1 x 120 mm (top)
Ooptional water cooling - 1 x 140 mm (front)
Ooptional water cooling - 1 x 140 mm (top)
Ooptional water cooling - 1 x 240 mm (front)
Ooptional water cooling - 1 x 240 mm (góra)
Ooptional water cooling - 1 x 280 mm (front)
Ooptional water cooling - 1 x 280 mm (góra)
Ooptional water cooling - 1 x 360 mm (front)
Ooptional water cooling - 1 x 360 mm (top)
Ooptional water cooling - 1 x 420 mm (front)
Optional fans - 1 x 120 mm (back)
Optional fans - 3 x 120 mm or 2 x 140 mm (top)
Optional fans - 3 x 120 mm or 3 x 140 mm (front)
Other features -
Power supply - Failure
producer - Cooler Master
Side panel - Tempered Glass
vendpn - E502L-KGNN-S00
48.92 €
