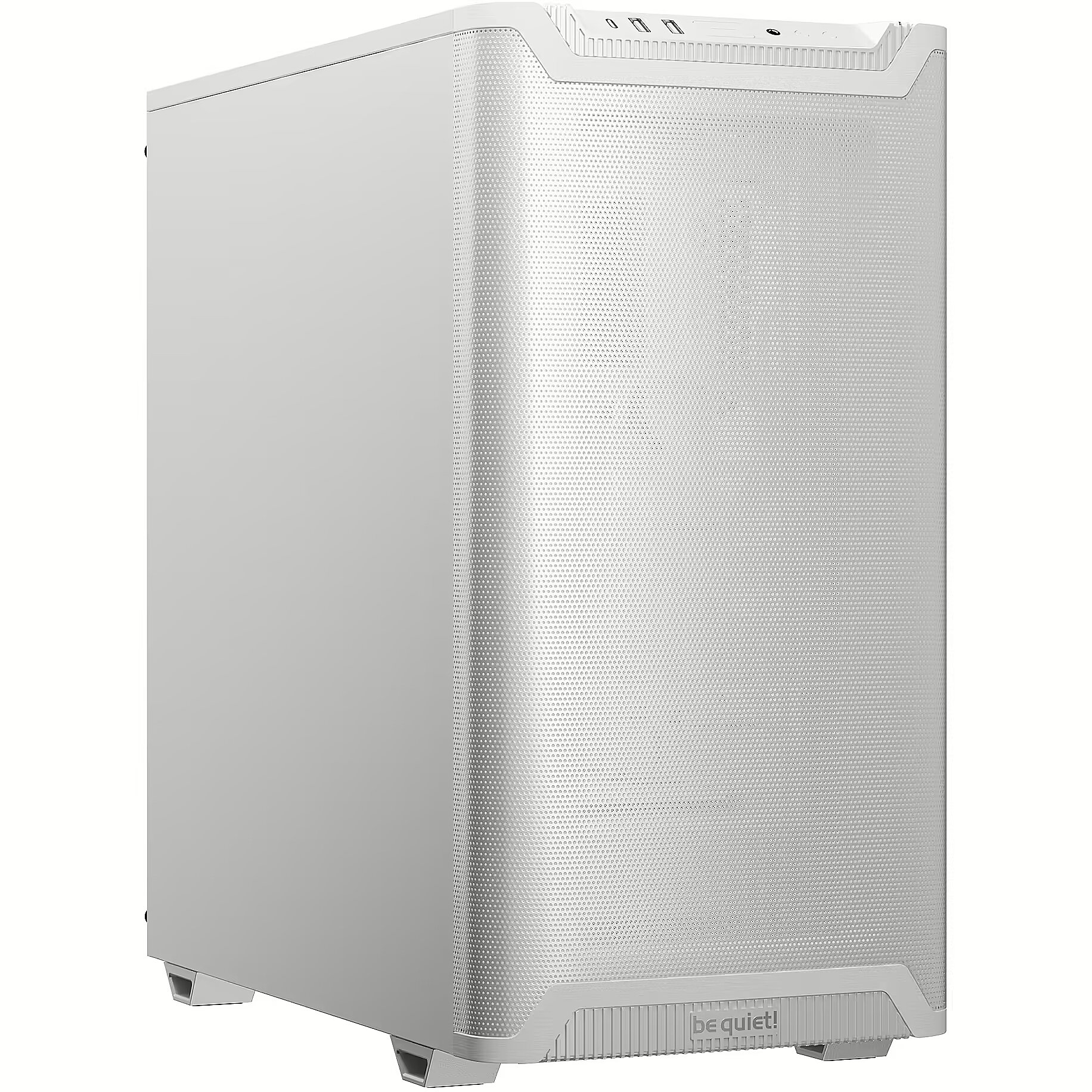

Be Quiet Pure Base 501 Airflow, Solid, White

2.5" Internal Drive Bays - 5
3.5" Internal Drive Bays - 2
Accessories included -
ATX Mainboard Form Factor - Yes
Audio port Input/Output connectors - 1
Brand - be quiet!
BrandPartCode - BG075
Case Type - MidiTower
category - Cases & Modding|PC Cases|Mid Towers|Steel Mid Towers
Category - Computer Cases
Category - Root/Electronics/PC parts/Computer casings
Category 1 - Gehäuse
Category 2 - Midi-/Mini-Tower
Category Code - CAS
Chassis type - Midi Tower
code - BG075
Color - White
Colour - White
Computer case backlight - No
Cooling & Ventilation System - front 1x Pure Wings 3 140mm PWM White; rear 1x Pure Wings 3 140mm PWM White
Cooling - Front fans diameters supported - 120 mm
Cooling - Front fans diameters supported - 120,140 mm
Cooling - Front fans diameters supported - 140 mm
Cooling - Front fans installed - 1x 140 mm
Cooling - Front radiator sizes supported - 120
Cooling - Front radiator sizes supported - 120,140,240,280,360 mm
Cooling - Front radiator sizes supported - 140
Cooling - Front radiator sizes supported - 240
Cooling - Front radiator sizes supported - 280
Cooling - Front radiator sizes supported - 360 mm
Cooling - Maximum airflow - 57.4 cfm
Cooling - Maximum air pressure - 0.96 mmH2O
Cooling - Number of front fans supported (max) - 3
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 2
Cooling - Pulse-width modulation (PWM) support - Yes
Cooling - Rear fans diameters supported - 120 mm
Cooling - Rear fans diameters supported - 120,140 mm
Cooling - Rear fans diameters supported - 140 mm
Cooling - Rear fans installed - 1x 140 mm
Cooling - Rear radiator sizes supported - 120 mm
Cooling - Rear radiator sizes supported - 120,140 mm
Cooling - Rear radiator sizes supported - 140 mm
Cooling - Top fans diameters supported - 120 mm
Cooling - Top fans diameters supported - 120,140 mm
Cooling - Top fans diameters supported - 140
Cooling - Top radiator sizes supported - 120 mm
Cooling - Top radiator sizes supported - 120,240 mm
Cooling - Top radiator sizes supported - 240
Depth Retail box Dimensions - 503 mm
Description - PURE BASE 501 Airflow White Comfortably compact Pure Base 501 Airflow White is a traditional, timeless and versatile be quiet! ATX case with compact dimensions. High airflow intake front panel and top cover for maximum performance 2 preinstalled Pure Wings 3 140mm PWM White fans for extraordinary air pressure Generous space for high-end graphics cards and large coolers, despite compact footprint Optional vertical graphics card installation Water cooling ready for radiators up to 360mm USB 3.2 Gen. 2 Type C for best connectivity Comfortable cable management with clever cable routing design
Description - Pure Base 501 Airflow White is a traditional, timeless, and versatile ATX case from be quiet! with compact dimensions. High-performance design: The high airflow front panel and top cover ensure maximum performance. Superior cooling: 2 factory-installed Pure Wings 3 140mm PWM White fans deliver high static pressure airflow. Spacious interior: Despite its compact size, there is ample space for high-end graphics cards and large coolers. Flexible GPU installation: Optional vertical installation of the graphics card is available. Water cooling support: Supports the installation of water cooling solutions with radiators up to 360mm. Advanced connectivity: USB 3.2 Gen. 2 Type-C provides top-notch connectivity. Easy cable management: Thoughtfully designed cable routing ensures simple and efficient cable management. Minimalism. Classic look.
Without unnecessary distractions, the Pure Base 501 Airflow White excels in its core functions and is aimed at users who appreciate an understated presentation.
Ideal case fan:
Fan blades optimized for high airflow.
Thanks to optimization for maximum airflow, the Pure Wings 3 140mm PWM White is an ideal choice for the Pure Base 501 Airflow White. Its 7 optimized fan blades not only reduce turbulence generating noise, but also ensure that the Pure Wings 3 140mm PWM White provides the performance needed in demanding configurations.
More than meets the eye. Ample space for high-end components:

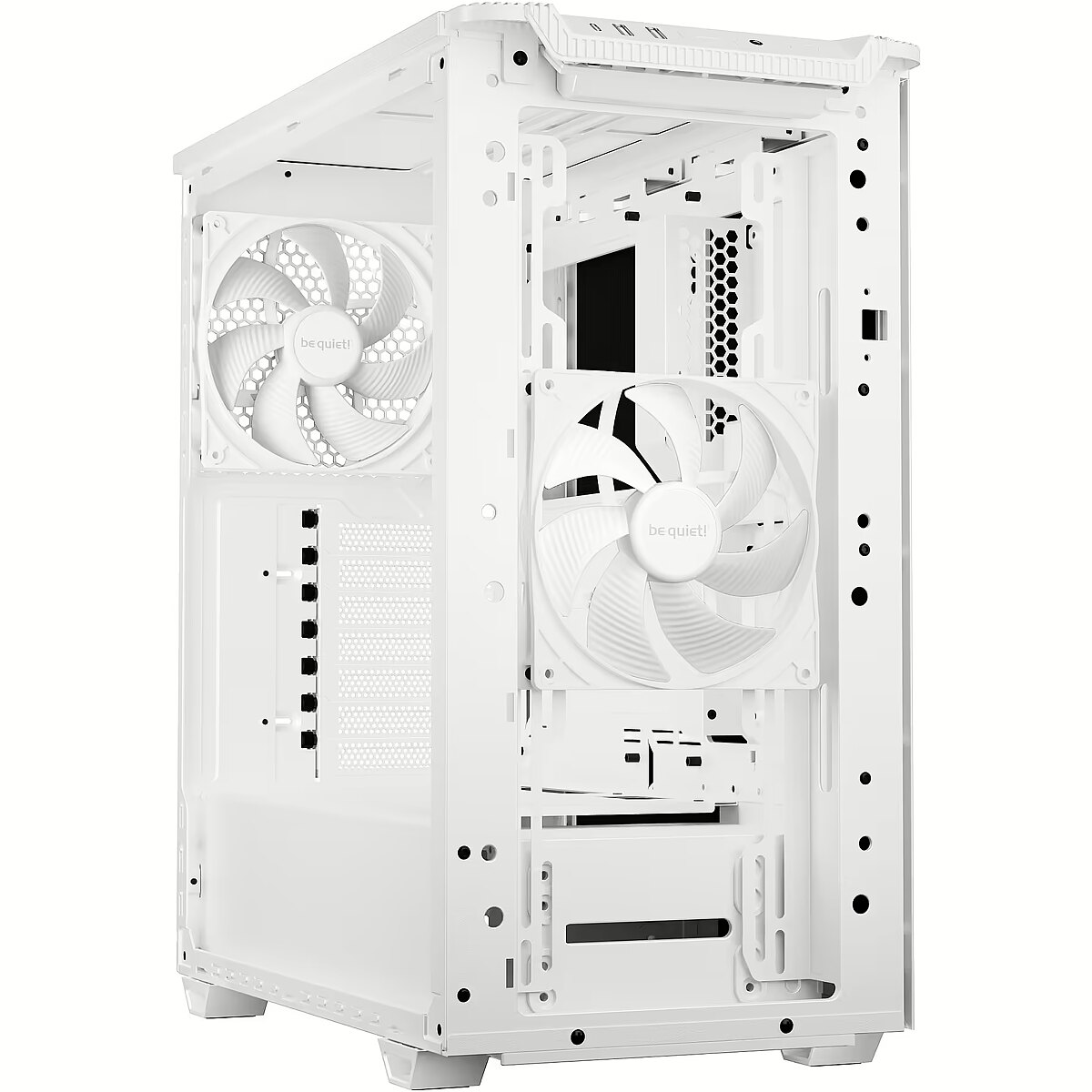

Despite its compact dimensions, the Pure Base 501 Airflow White offers plenty of room for high-end graphics cards and large coolers. The front panel easily accommodates 3 fans or a radiator up to 360mm, while the top section provides space for up to 3 fans or a radiator with a diameter of up to 240mm.
Vertically. PCIe slots with rotation capability:

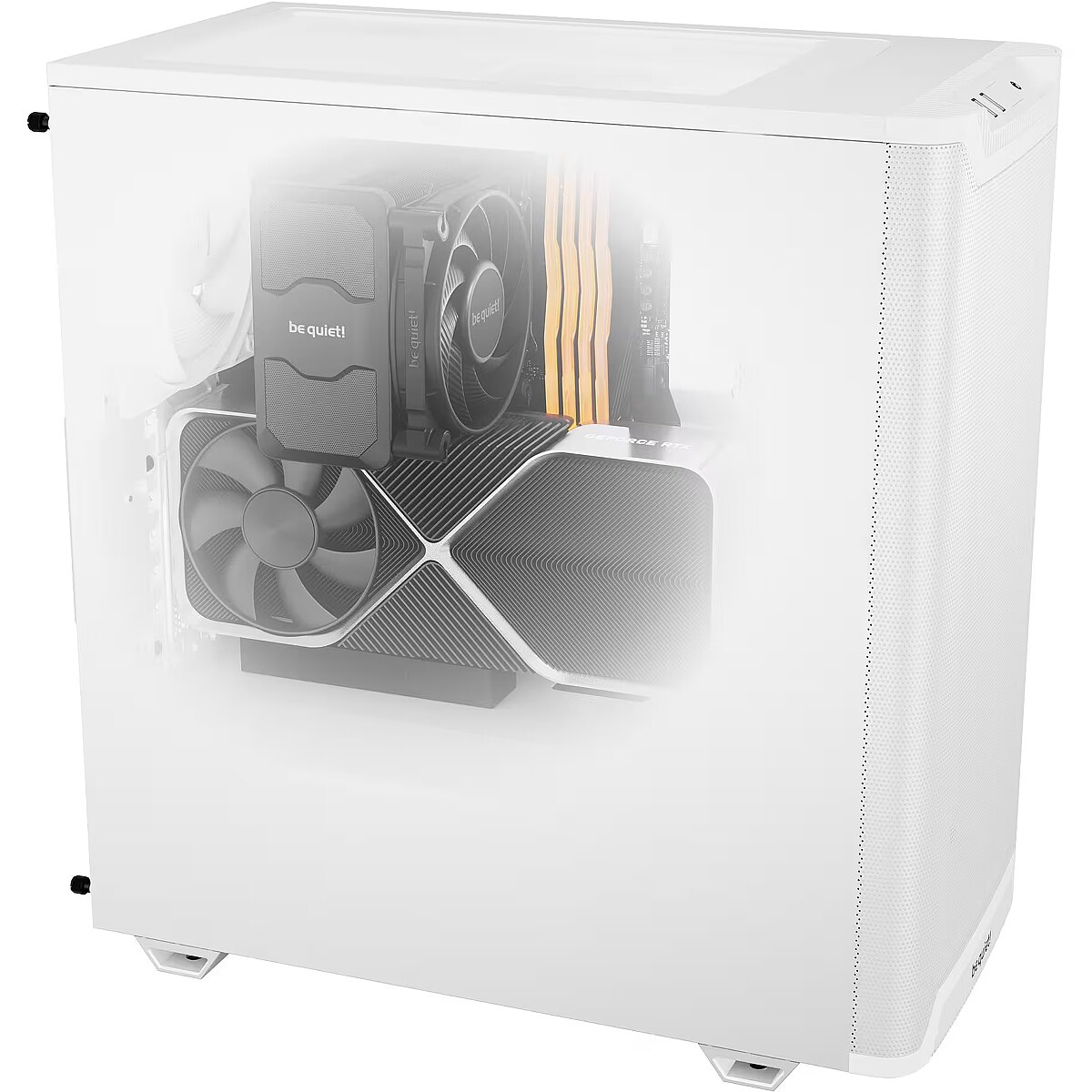

Why not try a different GPU configuration? The PCIe slots in the Pure Base 501 Airflow White can be rotated by 90°, allowing for vertical installation of wide, high-end graphics cards. Additionally, you can use an optional be quiet! riser with a foam base that provides excellent protection against vertical GPU sag.
Cable management. Thanks to intelligent cable routing options:
As a compact PC case, the Pure Base 501 Airflow White optimally utilizes the available space. With its cleverly integrated cable routing options, managing cables is a breeze.
Connect with me. The most modern technology for your system:

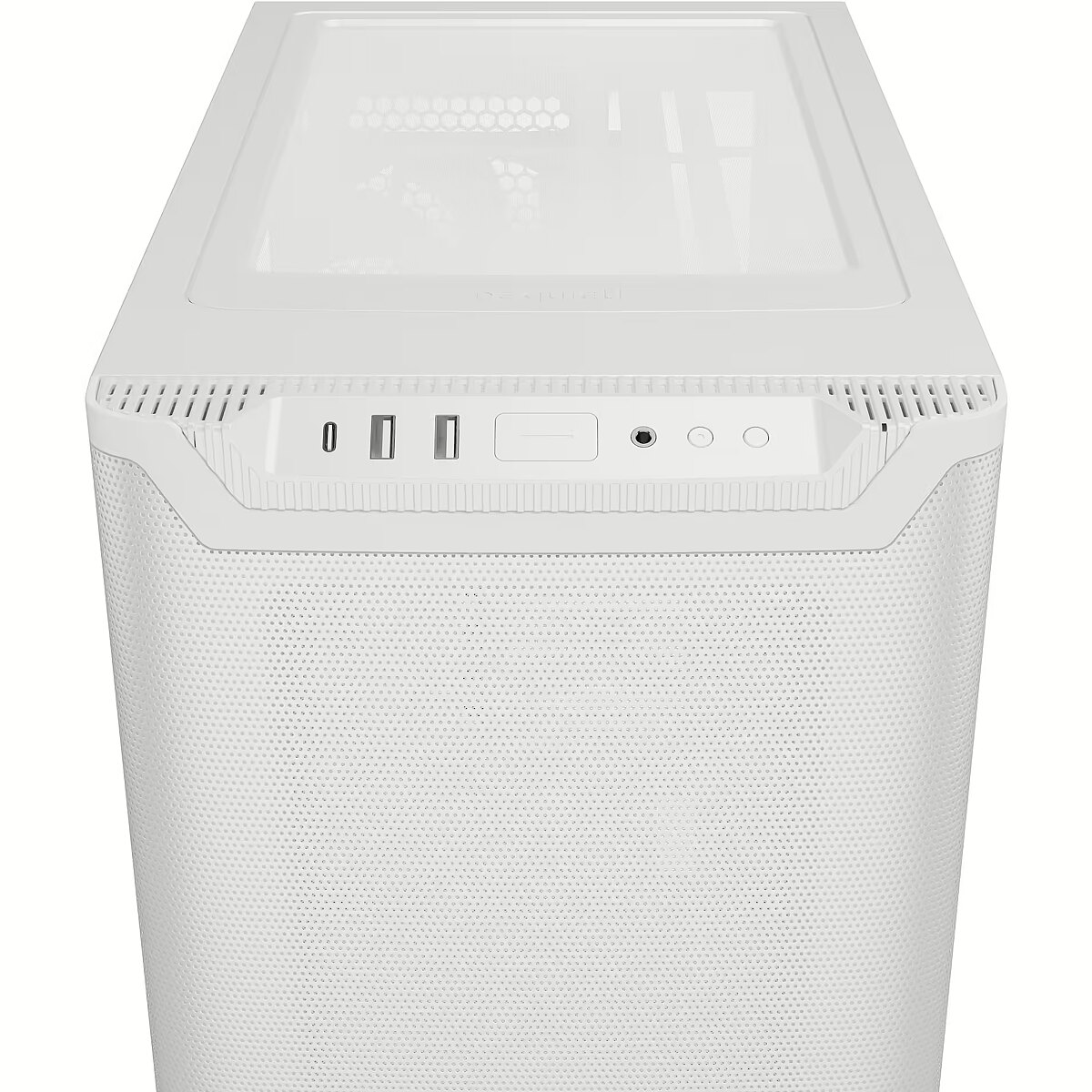

The front I/O panel features a USB 3.2 Gen. 2 Type-C connector and 2 Type-A ports, ensuring fast and easy connectivity.
Design - Anti-dust filter - Yes
Design - Form factor - Midi Tower
Design - Material - Acrylonitrile butadiene styrene (ABS)
Design - Material - Acrylonitrile butadiene styrene (ABS), Steel
Design - Material - Steel
Design - Maximum CPU cooler height - 17.8 cm
Design - Maximum PSU length - 18 cm
Design - Number of 2.5" bays - 5
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - On/off button - Yes
Design - Product colour - White
Design - Reset button - Yes
Design - Supported motherboard form factors - ATX
Design - Supported motherboard form factors - ATX, micro ATX, Mini-ITX
Design - Supported motherboard form factors - micro ATX
Design - Supported motherboard form factors - Mini-ITX
Design - Type - PC
Designation - CE+WEEE
dimensionalWeight - 9625
dimension depth - 290 mm
dimension height - 515 mm

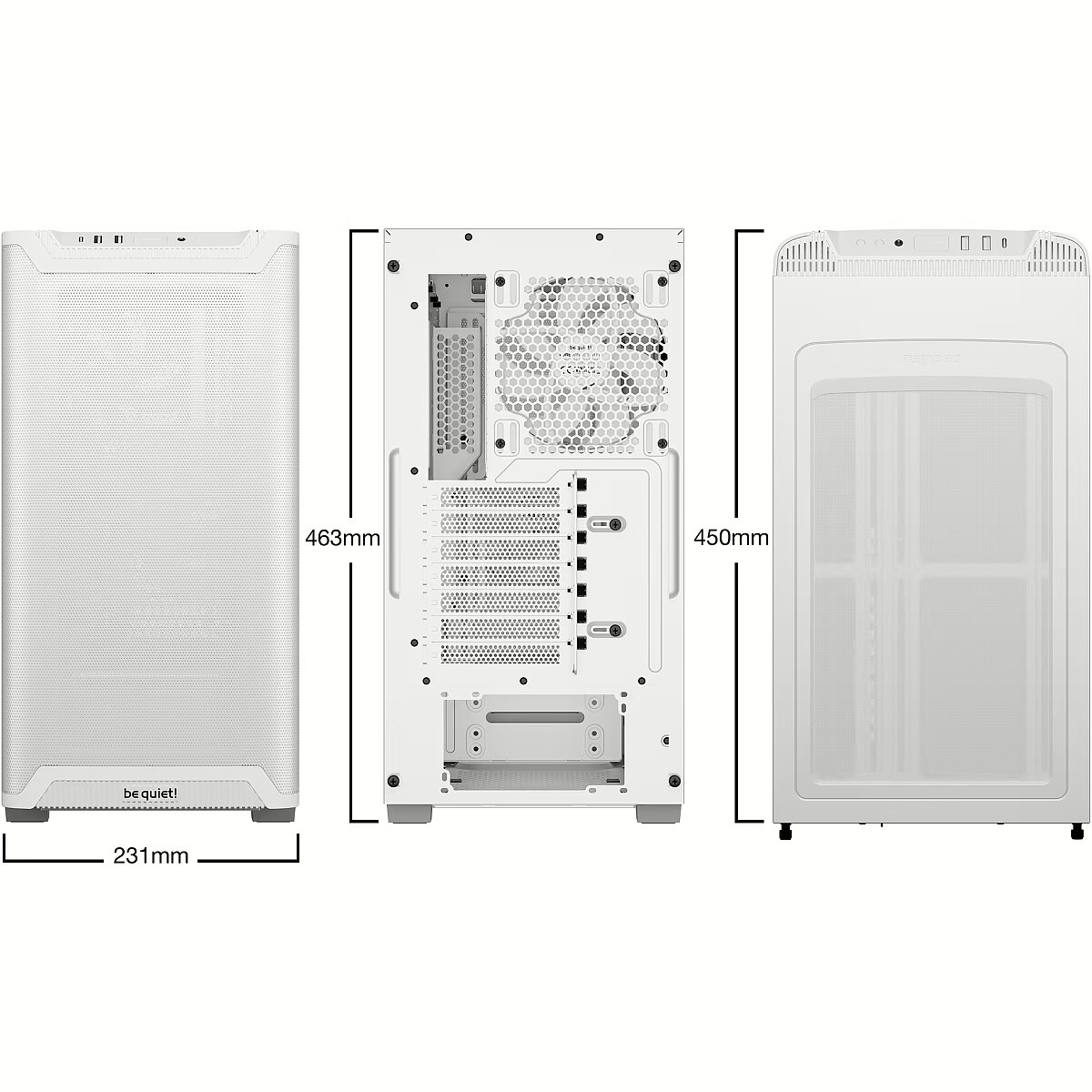

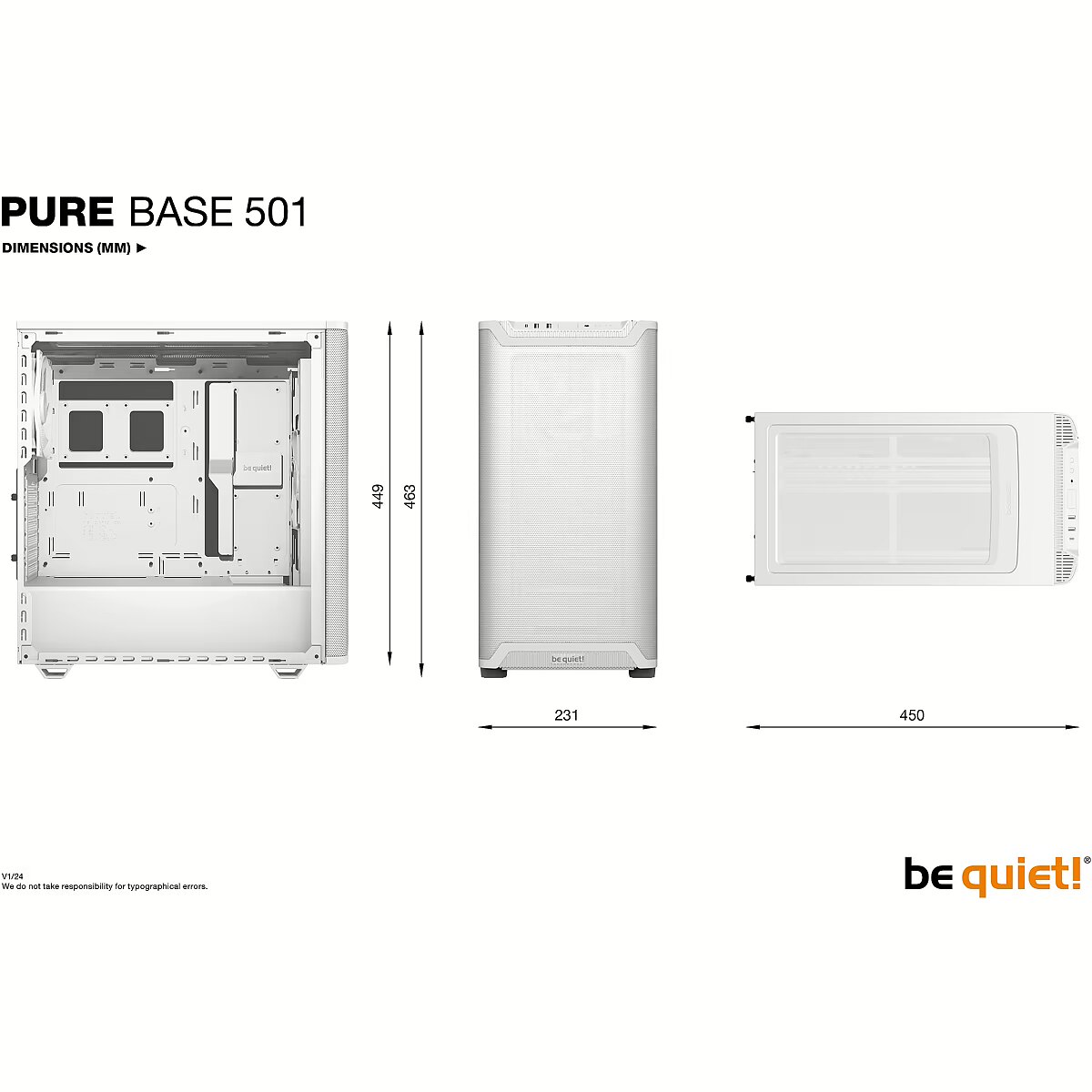

Dimensions - 450 x 231 x 463 mm
dimension weight - 7100 g
dimension width - 505 mm
Drive bays 2.5'' extern. - 0
Drive bays 2.5'' intern. - 5
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 2
Drive bays 5.25'' extern. - 0
Drive bays 5.25'' intern. - 0
ean - 4260052191811
EAN - 4260052191811
Eans - 4260052191811
Fans installed - 1 x 140 mm (back)
Fans installed - 1 x 140 mm (front)
Form-factor - ATX
Form-factor - Micro ATX
Form-factor - Mini-ATX
Front panel connectors - 1 x mic/headphone (combo)
Front panel connectors - 1 x UB1 x USB 3.2 Gen 2 Type-CavS 3.2 Gen 2 Type-C
Front panel connectors - 2 x USB 3.2 Gen1
Front panel connectors - Power
Front panel connectors - Reset
Full Description Line - PURE BASE 501|MidiTower|PSU Not included|front 1x Pure Wings 3 140mm PWM White; rear 1x Pure Wings 3 140mm PWM White|Dimensions 450 x 231 x 463 mm
GTIN - 4260052191811
guarantee - 36
guarantee_type - normal
Height Retail box Dimensions - 292 mm
LongDesc - Comfortably compactPure Base 501 Airflow White is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.REDUCED TO THE MAXClassic appearanceWithout any distractions, Pure Base 501 Airflow White is reduced to excel at its core functions and is aimed at users that appreciate anunagitated presentation.PERFECT CASE FANFan blades optimized for high airflowWith optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow White. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM White provides the performance that is needed for demanding configurations.MORE THAN MEETS THE EYEGenerous space for high-end hardwareDespite its compact dimensions, Pure Base 501 Airflow White offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.WAY UP!With rotatable PCIe slotsWhy not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow White can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.INVENTORY MANAGEMENTWith smart cable routing optionsAs a compact PC case, Pure Base 501 Airflow White optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.CONNECT WITH MEState-of-the-art technology for your systemA USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.
LongProductName - ATX / M-ATX / Mini-ATX, 1x USB Type-C, 2x USB Type-A, ATX PS/2, 2x Pure Wings 3 140mm PWM White
LongSummaryDescription - be quiet! PURE BASE 501 Airflow White. Form factor: Midi Tower, Type: PC, Product colour: White. Supported power supply form factors: ATX, PS2. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5". Width: 231 mm, Depth: 450 mm, Height: 463 mm
Manufacturer - Be Quiet!
Maximum CPU cooling height - 178 mm
Maximum length of the graphics card - 368 mm
Maximum length of the power supply - 200 mm
Maximum number of fans - 6
MicroATX Mainboard Form Factor - Yes
MiniITX Mainboard Form Factor - Yes
Model - BG075
Model name - PURE BASE 501
MPN - BG075
name - be quiet! Pure Base 501 Airflow Midi-Tower, ATX - weiß
Name - be quiet! Pure Base 501, airflow, biała
name - be quiet Pure Base 501 Airflow White
Name - Midi be quiet! PURE BASE 501 Airflow White
No. of drive bays - 7
Number of expansion slots - 7
Number of fans installed - 2
Ooptional water cooling - 1 x 120 mm (back)
Ooptional water cooling - 1 x 120 mm (front)
Ooptional water cooling - 1 x 120 mm (top)
Ooptional water cooling - 1 x 140 mm (back)
Ooptional water cooling - 1 x 140 mm (front)
Ooptional water cooling - 1 x 240 mm (front)
Ooptional water cooling - 1 x 240 mm (góra)
Ooptional water cooling - 1 x 280 mm (front)
Ooptional water cooling - 1 x 360 mm (front)
Optional fans - 1 x 120 mm (back)
Optional fans - 1 x 140 mm (rear)
Optional fans - 2 x 120/140 mm (top)
Optional fans - 3 x 120 mm lub 2 x 140 mm (front)
Other features -
Packaging data - Package depth - 518 mm
Packaging data - Package height - 503 mm
Packaging data - Package weight - 8 kg
Packaging data - Package width - 292 mm
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Power supply - Power supply included - No
Power supply - Supported power supply form factors - ATX
Power supply - Supported power supply form factors - ATX, PS2
Power supply - Supported power supply form factors - PS2
producer - Be quiet!
Producer - be quiet!
producerCode - BG075
ProducerCode - BG075
productName - be quiet! PURE BASE 501 Airflow White Midi Tower
ProductName - PURE BASE 501 Airflow White
Product Net Weight - 6.8 kg
productSize - Normal
PSU - Not included
Shipping Box Depth Shipping/Package Box Dimensions - 51.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 50.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 8.35 kg
Shipping Box Width Shipping/Package Box Dimensions - 29.3 cm
ShortDescription - Midi Tower | biały | bez zasilacza | 2 x USB 3.0 | 450mm x 231mm x 463mm
ShortSummaryDescription - be quiet! PURE BASE 501 Airflow White, Midi Tower, PC, White, ATX, micro ATX, Mini-ITX, Acrylonitrile butadiene styrene (ABS), Steel, 17.8 cm
Side panel - SPCC
sizeX - 231
sizeY - 450
sizeZ - 463
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 2.5,3.5"
Storage - Supported HDD sizes - 3.5
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - CE, REACH, RoHS
Technical details - Compliance certificates - REACH
Technical details - Compliance certificates - RoHS
Title - be quiet! PURE BASE 501 Airflow White Midi Tower
Unit Calculated Volume - 0.0762 cubm
Unit Calculated Weight - 8.35 kg
Units per Shipping Box - 1
URL - https://www.bequiet.com/en/case/5323
USB-C Input/Output connectors - 1
USB 3.2 Input/Output connectors - 2
Vendor Homepage - www.bequiet.com/en/case/5323
vendpn - BG075
Warranty - 24 months
WarrantyInfo - 3 Year
warrantyLength - 24
warrantyType - G
Weight - 6.82 kg
Weight - 8.5
weight - 8020
Weight & dimensions - Depth - 450 mm
Weight & dimensions - Height - 463 mm
Weight & dimensions - Weight - 6.8 kg
Weight & dimensions - Width - 231 mm
Width Retail box Dimensions - 518 mm
