NZXT H7 Flow V2, Tempered Glass, Black

Accessories included - Included accessories Installation instructions Mounting hardware kit
Audio output Ports & interfaces - Yes
Cable management Design - Yes
category - Cases & Modding|PC Cases|Mid Towers|Windowed Mid Towers
Category - Datortehnika :: Datoru komponentes :: Korpusi
Category - Root/Electronics/PC parts/Computer casings
Category Code - CAS
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
Chassis type - Midi Tower
Chłodzenie: Możliwość montażu - 3 wentylatory 120 mm
Chłodzenie: Możliwość montażu - 7 wentylatorów 120/140 mm
Chłodzenie: Obsługiwane radiatory - 120 mm
Chłodzenie: Obsługiwane radiatory - 140 mm
Chłodzenie: Obsługiwane radiatory - 240 mm
Chłodzenie: Obsługiwane radiatory - 280 mm
Chłodzenie: Obsługiwane radiatory - 360 mm
Chłodzenie: Obsługiwane radiatory - 420 mm
Chłodzenie: Zainstalowane komponenty - 3 wentylatory 120 mm
Code - CM-H72FB-01
code - CM-H72FB-01
Color - Black
Computer case backlight - No
Dane fizyczne: Głębokość - 468 mm
Dane fizyczne: Szerokość - 244 mm
Dane fizyczne: Waga - 11.13 kg
Dane fizyczne: Wysokość - 544 mm
Dane techniczne: Grupa produktowa - Obudowy komputerowe NZXT
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Kolor - czarny
Dane techniczne: Panel boczny - z oknem
Dane techniczne: Producent - NZXT
Dane techniczne: Standard - ATX
Dane techniczne: Standard - extended ATX
Dane techniczne: Standard - micro-ATX
Dane techniczne: Standard - mini-ITX
Dane techniczne: Typ obudowy - Midi Tower
Depth Weight & dimensions - 468 mm
Desc -
Description - H7 Flow
The H7 Flow revolutionizes GPU cooling in the classic mid-tower case. The vertical power supply layout provides space for three 120mm bottom fans, offering efficient cooling without increasing the case's footprint.
It supports three 120mm bottom fans for direct GPU cooling while maintaining a slim mid-tower form factor.
The case is equipped with three 120mm front-mounted fans for exceptional cooling right out of the box.
High-performance mesh panels maximize airflow for both intake and exhaust, while also filtering dust.
It supports up to 420mm radiators in the front and 360mm radiators in the top, providing powerful cooling potential.
Intuitive cable management system with wide channels, built-in hooks, and included cable management straps. Up to 10 fans can be mounted: 3 on the top, 3 on the front, 3 on the bottom, and 1 on the rear.
Convenient access to 2 USB-A ports and 1 USB-C port located on the top panel.
Tool-free access to the front, top, and side panels makes building and upgrading a breeze.
Description - The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint. Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.

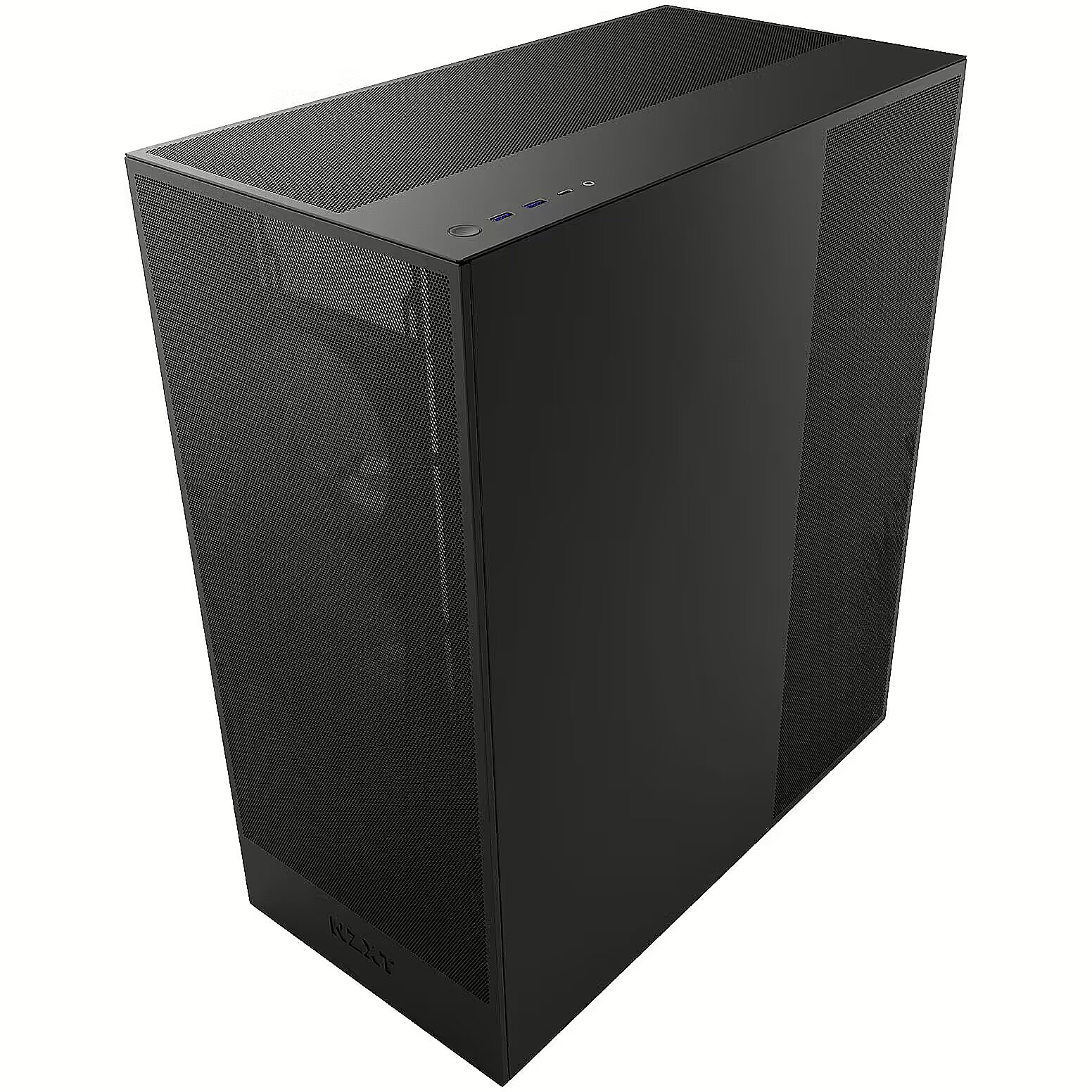

Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans Out-of-the-Box Performance
Comes equipped with 3 x 120mm front-mounted fans for exceptional out-of-the-box cooling performance. Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
H7 Flow showing radiator size supportH7 Flow showing radiator size support Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.

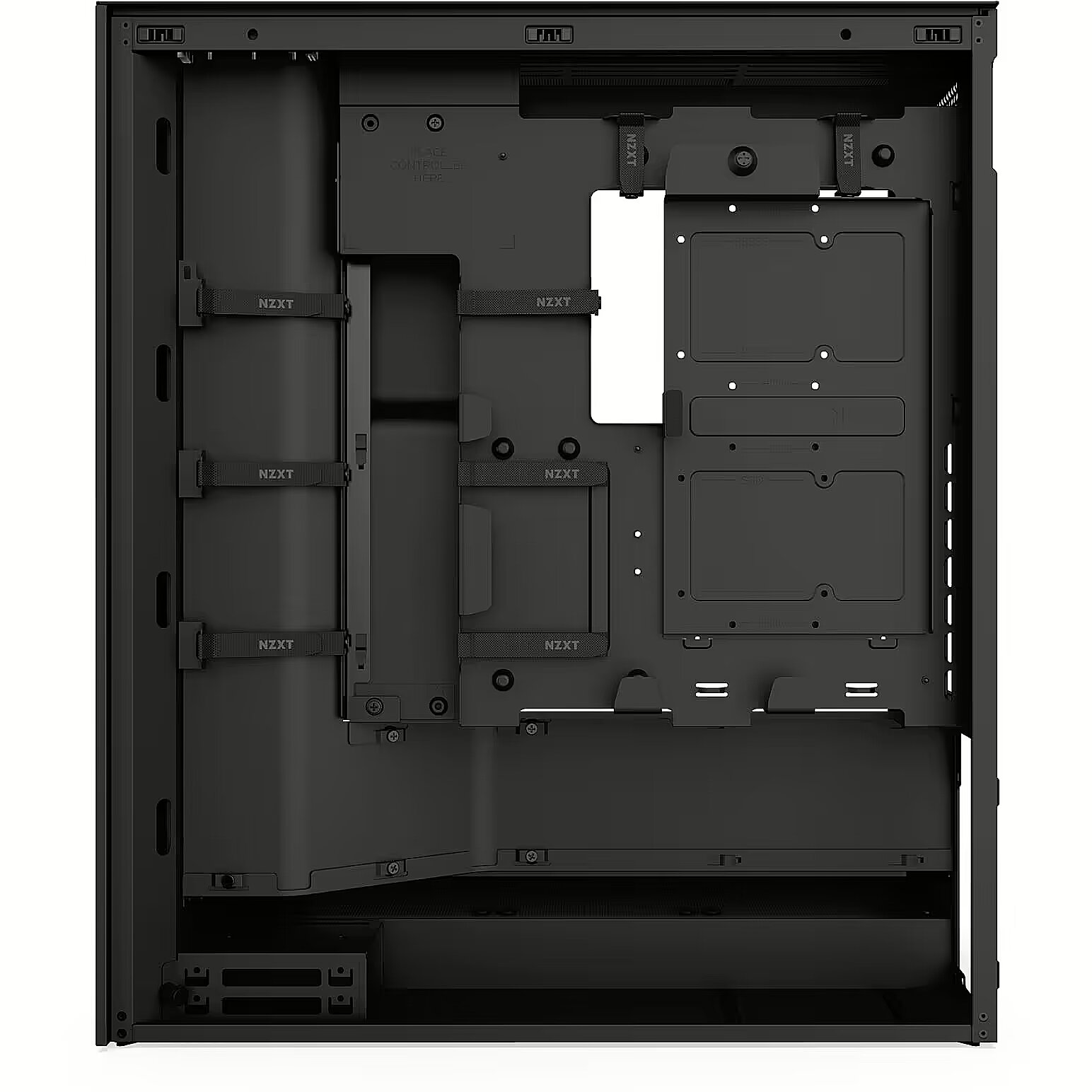

Open Back of H7 Flow showing cable managementOpen Back of H7 Flow showing cable management Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing. 10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear. Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Exploded view of H7 Flow panelsExploded view of H7 Flow panels Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprintComes equipped with three front-mounted 120mm fans for exceptional out-of-the-box coolingHigh-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dustSupports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potentialIntuitive cable management system with wide channels, built-in hooks, and included straps for easy routingCapacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rearConveniently access 2 x USB-A and 1 x USB-C ports located on the top panelTool-less access to the front, top, and side panels makes building and upgrading a breeze
Designation - CE+WEEE
dimension depth - 330 mm
dimension height - 560 mm
Dimensions - Length: 468 mm Width: 244 mm Height: 544 mm
dimension weight - 14000 g
dimension width - 630 mm
Drive bays 2.5'' extern. - 4
Drive bays 2.5'' intern. - 7
Drive bays 3.5'' intern. - 2
EAN - 5056547205502
ean - 5056547205502
Eans - 5056547205502
EAN_code - 5056547205502
Fan 2 maximum airflow Cooling - 60.2 cfm
Fan 2 maximum air pressure Cooling - 1.05 mmH2O
Fans installed - 3 x 120 mm (front)
Fan speed control Cooling - No
Fan speed Cooling - 1200 - 1500 RPM
Form-factor - ATX
Form-factor - E-ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Form factor Design - Midi Tower
Front fans diameters supported Cooling - 120/140 mm
Front fans installed Cooling - 3x 120 mm
Front panel connectors - 1 x mic/headphone (combo)
Front panel connectors - 1 x USB 3.1 Typ C
Front panel connectors - 2 x USB 3.2 Gen1
Front panel connectors - Power
Front radiator sizes supported Cooling - 360/420 mm
guarantee - 24
guarantee_type - normal
Height Weight & dimensions - 544 mm
Kieszenie na dyski: Ilość kieszeni 2.5 wewn. - 4 szt.
Kieszenie na dyski: Ilość kieszeni 3.5 wewn. - 2 szt.
LargeDescHTML -
Manufacturer - NZXT
Manufacturer_code - CM-H72FB-01
Material Design - SGCC/Tempered glass
Maximum airflow Cooling - 60.2 cfm
Maximum air pressure Cooling - 1.05 mmH2O
Maximum CPU cooler height Design - 185 mm
Maximum CPU cooling height - 185 mm
Maximum graphics card length Design - 410 mm
Maximum length of the graphics card - 410 mm
Maximum length of the power supply - 200 mm
Maximum PSU length Design - 200 mm
Model - H7 FLOW
Name - Korpuss H7 Flow Mid-Tower ATX Airflow
Name - NZXT H7 Flow ( 2024 ), tower case (black, tempered glass)
Name - NZXT H7 Flow (2024) czarna
name - NZXT H7 Flow PC-Gehäuse, Midi-Tower, E-ATX, Tempered Glass - schwarz
name - PC CASE NZXT H7 FLOW MIDI TOWER WINDOW 2024
No. of drive bays - 13
Number of 2.5" bays Design - 4
Number of 3.5" bays Design - 2
Number of front fans supported (max) Cooling - 3
Number of rear fans supported (max) Cooling - 1
Number of slots for expansion cards - 7
Number of top fans supported (max) Cooling - 3
On/off button Design - Yes
Optional fans - 1 x 120 mm or 1 x 140 mm (rear)
Optional fans - 3 x 120 mm (bottom)
Optional fans - 3 x 120 mm or 2 x 140 mm (top)
Other features -
Panel przedni: Złącza na przednim panelu - 1 x USB 3.1 typ C
Panel przedni: Złącza na przednim panelu - 2 x USB 3.1
Panel przedni: Złącza na przednim panelu - audio
Power supply - Failure
Power supply included Power supply - No
Pozostałe cechy: Model - NZXT H7 Flow (2024)
Producent: Nazwa producenta / importera - NZXTNZXT Inc605 E. Huntington Drive, Suite 213CA 91016 MonroviaUSAEmail: https://support.nzxt.com/hc/en-us/requests/new
producer - NZXT
Producer - NZXT
ProducerCode - CM-H72FB-01
Product colour Design - Black
Przestrzeń na komponenty: Maksymalna długość karty graficznej - 41 cm
Przestrzeń na komponenty: Maksymalna wysokość chłodzenia - 18.5 cm
Rear fans diameters supported Cooling - 120/140 mm
Rear radiator sizes supported Cooling - 140 mm
Reset button Design - No
ShortDescription - Midi Tower | czarna | bez zasilacza | 2 x USB 3.1, 1x USB-C 3.1, audio | 468mm x 244mm x 544mm | 3 x wen 120mm
Side panel - Tempered Glass
Side window Design - Yes
Summary - NZXT H7 Flow. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 244 mm, Depth: 468 mm, Height: 544 mm
Supported HDD sizes Storage - 2.5/3.5 "
Supported motherboard form factors Design - ATX/EATX/micro ATX/Mini-ITX
Tempered glass panel(s) Design - Yes
Top fans diameters supported Cooling - 120/140 mm
Top radiator sizes supported Cooling - 360 mm
Type Design - PC
Unit Box Height - 0.56
Unit Box Length - 0.63
Unit Box Width - 0.335
Unit Calculated Volume - 0.1182 cubm
Unit Calculated Weight - 14.5 kg
Units per Shipping Box - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Ports & interfaces - 1
Vendor Homepage - https://nzxt.com/product/h7-flow#
vendpn - CM-H72FB-01
Warranty - 24 months
Warranty period Technical details - 2 year(s)
Weight - 11.13 kg
Weight - 14,05
Weight Weight & dimensions - 11130 g
Width Weight & dimensions - 244 mm
