Accessories included - audio adapter, printed multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA, packed in a cardboard box with a hanging hole.
Audio - Audio A/D Converter (ADC) - 24-bit/48kHz
Audio - Audio output channels - 2.0 channels
Audio - Audio quality - 24 bit
Audio - Digital-to-Analog Conversion (DAC) - 24-bit/96kHz
Audio - Internal - No
Audio - Line-in Signal-to-Noise Ratio (SNR) - 90 dB
Audio - Line-out Signal-to-Noise Ratio (SNR) - 93 dB
Audio A/D Converter (ADC) Audio - 24-bit/48kHz
Audio channels - Mono
Audio Chipset - C-Media CM6533
Audio Controller Form Factor - External
Audio Data Width - 24-bit
Audio Line-Out Interface Quantity - 2
Audio output channels Audio - 2.0 channels
Audio Output Mode - Stereo
Audio quality Audio - 24 bit
Box Weight Brutto (kg) - 3.15 kg
Brand - Axagon
BrandPartCode - ADA-17
Category - Audio Cards
category - PC Components|Sound Cards|USB Sound Cards
Category Code - SOU
Certification Features - CE, FCC, RoHS
Chipset Features - C-Media CM6533
Chipset type -
code - ADA-17
Color - Black
Compliance certificates Technical details - RoHS
Connectors - 1x 3,5mm minijack Headphones
Connectors - 1x 3,5mm minijack Microphone
Country of origin Logistics data - China
Depth (mm) - 39 mm
Depth Weight & dimensions - 24 mm

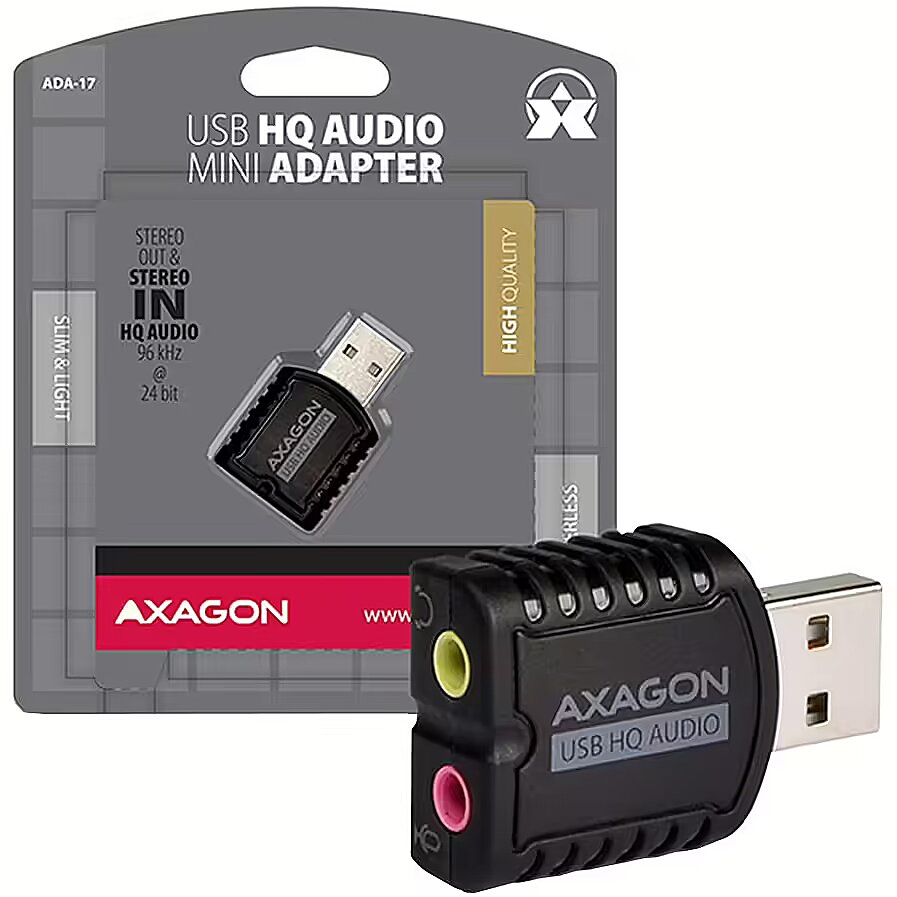

Description - The AXAGON ADA-17 MINI USB HQ audio adapter easily and quickly adds an external USB sound card to your computer. The miniature sound card is suitable for both desktop and laptop computers and allows stereo headphones, microphones or headsets to be connected for Skype, Zoom, MS Teams services etc. It also serves well as a replacement for the broken original sound card in your notebook and replace headphones output or microphone input. The advantage of the ADA-17 USB DAC converter is, however, the high-quality 24-bit audio with up to 96 kHz sampling in playback. The installation can be handled by everyone - only plug the adapter into the USB port of the computer and the rest is done automatically. Input:
1x USB 2.0 Full Speed USB port, backward compatible with USB 1.1.
USB type A male connector. Audio output:
2-channel analog 16-bit output (3.5 mm stereo jack):
stereo output for headphones or active speakers. Audio input:
2-channel analog 16-bit input (3.5 mm stereo jack):
stereo microphone input and input for recording analog signal. Sampling rate, resolution and output converter (DAC) noise:
Analog - 44.1 / 48 / 96 kHz @ 16 / 24 bit for playback.
Signal-to-Noise ratio (Output SNR) 91dB.
Harmonic distortion (Output THD+N) -75dB. Sampling rate, resolution and input converter (ADC) noise:
Analog - 44.1 / 48 kHz @ 16 / 24 bit for recording.
Signal-to-Noise ratio (Input SNR) 91dB.
Harmonic distortion (Input THD+N) -85dB. Other features:
USB 2.0 full speed 12 Mbit/s and USB 1.1 compatible interface.
Built-in direct USB Type A male connector.
Built-in 30mW @ R=32 Ohm headphones amplifier.
Easy to install thanks to full Plug and Play support.
Possibility to connect your device while running thanks to the Hot Plug support.
Compliant with the USB Audio Device Class specification v1.0.
Adapter power supply via USB (bus power) - no auxiliary power supply required.
A green LED indicating data transmission (blinking).
Miniature dimensions of 39 x 24 x 12 mm, when inserted into the USB port, the adapter protrudes only 27 mm.
Weight only 8 g. Setting up a sound card in Windows allows:
adjusting volume and balance of speakers,
enhanced speaker features: Bass Boost, Virtual Surround Sound, Room Correction, Loudness Equalization,
setting the sampling rate and bit depth for both reproduction and recording,
setting the automatic level of gain for the microphone (Automatic Gain Control),
setting the manual level of gain for the microphone. Supported OSs:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.4.x and higher, Linux with kernel 2.6.x and above.
Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.
Compatible with all Internet telephony programs using the sound card. Package contains:
audio adapter,
printed multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box with a hanging hole.
Description - The AXAGON ADA-17 USB HQ audio MINI adapter easily and quickly adds an external USB sound card to your computer. The installation can be handled even by a layman - only plug the adapter into the USB port of the computer and the rest is done automatically. The miniature sound card is suitable for both desktop and laptop computers and allows stereo headphones, microphones or headsets to be connected for Skype service, for example. It also serves well as a replacement for the broken original sound card in your laptop. The advantage of the ADA-17 USB DAC converter is, however, the high-quality 24-bit audio with up to 96 kHz sampling in playback. Outputs:
• 2-channel analog 16/24-bit output (3.5 mm stereo jack):
• stereo output for headphones or active speakers. Inputs:
• 2-channel analog 16-bit input (3.5 mm stereo jack):
• stereo microphone input and input for recording analog signal. Sampling rate, resolution and output converter (DAC) noise:
• analog - 44.1 / 48 / 96 kHz @ 16 / 24 bit for playback,
• Signal-to-Noise ratio (Output SNR) ≥ 93 dB,
• harmonic distortion (Output THD + N) ≤ -87 dB. Sampling rate, resolution and input converter (ADC) noise:
• analog - 44.1 / 48 kHz @ 16 bit for recording,
• Signal-to-Noise ratio (input SNR) ≥ 90 dB,
• harmonic distortion (input THD + N) ≤ -85 dB. Indicators:
• Green LED indicating data transmission (blinking). Other features:
• USB 2.0 full speed 12 Mbit/s and USB 1.1 compatible interface.
• Built-in direct USB Type A male connector.
• Built-in headphone amplifier 30mW @ R=32 Ohm.
• Easy to install thanks to full Plug and Play support.
• Possibility to connect your device while running thanks to the Hot Plug support.
• Compliant with the USB Audio Device Class specification v1.0.
• Compliant with the USB HID Class specification v1.1.
• Adapter power supply via USB (bus power) - no auxiliary power supply required.
• Miniature dimensions of 39 x 24 x 12 mm, when inserted into the USB port, the adapter protrudes only 27 mm.
• Weight only 8 g.
• Cmedia CM6533 chipset is used. Setting up a sound card in Windows allows:
• adjusting volume and balance of speakers,
• setting for microphone in-ear monitoring,
• enhanced speaker features: Bass Boost, Virtual Surround Sound, Room Correction, Loudness Equalization,
• setting the sampling rate and bit depth for both reproduction and recording,
• setting the manual level of gain for the microphone. Supported OSs:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.4.x and higher, Linux with kernel 2.6.x and above.
• Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available. Compatible with all Internet telephony programs using the sound card. Package contains: • audio adapter,
• packed in a blister with a sealed-on back card with the installation procedure.
Designation - CE
Digital-to-Analog Conversion (DAC) Audio - 24-bit/96kHz
dimension depth - 20 mm
dimension height - 120 mm
Dimensions - 39 x 24 x 12 mm
dimension weight - 27 g
dimension width - 70 mm
ean - 8595247903518
EAN Code - 8595247903518
Features - Certification - CE, FCC, RoHS
Features - Chipset - C-Media CM6533
Features - LED indicators - Yes
Features - Product colour - Black
Features - USB powered - Yes
GTIN - 8595247903518
guarantee - 24
guarantee_type - normal
Headphone connectivity Ports & interfaces - 3.5 mm
Headphone outputs Ports & interfaces - 1
Height (mm) - 12 mm
Height Weight & dimensions - 12 mm
Host interface Ports & interfaces - USB
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/200218080009642909.jpg
Interface - USB
Internal Audio - No
LED indicators Features - Yes
Line-in Signal-to-Noise Ratio (SNR) Audio - 90 dB
Line-out Signal-to-Noise Ratio (SNR) Audio - 93 dB
Linux operating systems supported Software - Yes
Logistics data - Country of origin - China
LongDesc - The AXAGON ADA-17 USB HQ audio MINI adapter easily and quickly adds an external USB sound card to your computer.The installation can be handled even by a layman - only plug the adapter into the USB port of the computer and the rest is done automatically.The miniature sound card is suitable for both desktop and laptop computers and allows stereo headphones, microphones or headsets to be connected for Skype service, for example. It also serves well as a replacement for the broken original sound card in your laptop.The advantage of the ADA-17 USB DAC converter is, however, the high-quality 24-bit audio with up to 96 kHz sampling in playback.Outputs:• 2-channel analog 16/24-bit output (3.5 mm stereo jack):• stereo output for headphones or active speakers.Inputs:• 2-channel analog 16-bit input (3.5 mm stereo jack):• stereo microphone input and input for recording analog signal.Sampling rate, resolution and output converter (DAC) noise:• analog - 44.1 / 48 / 96 kHz @ 16 / 24 bit for playback,• Signal-to-Noise ratio (Output SNR) ≥ 93 dB,• harmonic distortion (Output THD + N) ≤ -87 dB.Sampling rate, resolution and input converter (ADC) noise:• analog - 44.1 / 48 kHz @ 16 bit for recording,• Signal-to-Noise ratio (input SNR) ≥ 90 dB,• harmonic distortion (input THD + N) ≤ -85 dB.Indicators:• Green LED indicating data transmission (blinking).Other features:• USB 2.0 full speed 12 Mbit/s and USB 1.1 compatible interface.• Built-in direct USB Type A male connector.• Built-in headphone amplifier 30mW @ R=32 Ohm.• Easy to install thanks to full Plug and Play support.• Possibility to connect your device while running thanks to the Hot Plug support.• Compliant with the USB Audio Device Class specification v1.0.• Compliant with the USB HID Class specification v1.1.• Adapter power supply via USB (bus power) - no auxiliary power supply required.• Miniature dimensions of 39 x 24 x 12 mm, when inserted into the USB port, the adapter protrudes only 27 mm.• Weight only 8 g.• Cmedia CM6533 chipset is used.Setting up a sound card in Windows allows:• adjusting volume and balance of speakers,• setting for microphone in-ear monitoring,• enhanced speaker features: Bass Boost, Virtual Surround Sound, Room Correction, Loudness Equalization,• setting the sampling rate and bit depth for both reproduction and recording,• setting the manual level of gain for the microphone.Supported OSs:• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.4.x and higher, Linux with kernel 2.6.x and above.• Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available. Compatible with all Internet telephony programs using the sound card.Package contains: • audio adapter,• packed in a blister with a sealed-on back card with the installation procedure.
LongProductName - ADA-17 USB HQ MINI audio
LongSummaryDescription - Axagon ADA-17. Audio output channels: 2.0 channels, Audio quality: 24 bit, Line-out Signal-to-Noise Ratio (SNR): 93 dB. Host interface: USB, Headphone connectivity: 3.5 mm. Chipset: C-Media CM6533, Product colour: Black, Certification: CE, FCC, RoHS. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP, Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High.... Weight: 8 g, Width: 39 mm, Depth: 24 mm
Mac compatibility Software - Yes
Mac operating systems supported Software - Mac OS X 10.10 Yosemite/Mac OS X 10.11 El Capitan/Mac OS X 10.12 Sierra/Mac OS X 10.13 High Sierra/Mac OS X 10.14 Mojave/Mac OS X 10.4 Tiger/Mac OS X 10.5 Leopard/Mac OS X 10.6 Snow Leopard/Mac OS X 10.7 Lion/Mac OS X 10.8 Mountain Lion/Mac OS X 10.9 Mave
Max. Sample Rate - 96 kHz
Microphone in Ports & interfaces - Yes
Min. Sample Rate - 44.1 kHz
Model - ADA-17
name - AXAGON ADA-17 USB 2.0 - HQ Soundkarte
name - AXAGON ADA-17, USB 2.0 external sound card 24b
Nominal Weight - 8 g
Other features -
Other features - Server operating systems supported - Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016
Package depth Weight & dimensions - 121 mm
Package height Weight & dimensions - 20 mm
Package Type - Retail
Package weight Weight & dimensions - 27 g
Package width Weight & dimensions - 71 mm
Packs in Box - 80
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.027 kg
Pieces in pack - 1
Plug and Play Ports & interfaces - Yes
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - USB
Ports & interfaces - Microphone in - Yes
Ports & interfaces - Plug and Play - Yes
Ports & interfaces - Wireless connection - No
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=200214112522419577&THEME=asbis&LANG=lv
ProductCategory - Multivides komponenti
ProductCode - ADA-17
Product colour Features - Black
ProductDescription - AXAGON ADA-17 USB2.0 - Stereo HQ Audio Mini Adapter 24bit 96kHz
ProductName - ADA-17
ProductType - Sound Card
Retail Packaging Net Weight Carton - 0.027 kg
Retail Packaging Net Weight Plastic - 0.027 kg
Server operating systems supported Other features - Windows Server 2003/Windows Server 2008/Windows Server 2012/Windows Server 2016
ShortSummaryDescription - Axagon ADA-17, 2.0 channels, 24 bit, 93 dB, USB
Software -
Software - Linux operating systems supported - Yes
Software - Mac compatibility - Yes
Software - Mac operating systems supported - Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Software - Windows operating systems supported - Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Summary - Axagon ADA-17. Audio output channels: 2.0 channels, Audio quality: 24 bit, Line-out Signal-to-Noise Ratio (SNR): 93 dB. Host interface: USB, Headphone connectivity: 3.5 mm. Chipset: C-Media CM6533, Product colour: Black, Certification: CE, FCC, RoHS. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP, Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High.... Weight: 8 g, Width: 39 mm, Depth: 24 mm
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Windows
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 10 Home
Supported operating systems - Windows 10 Mobile
Supported operating systems - Windows 10 Pro
Supported operating systems - Windows 11
Supported operating systems - Windows 11 Pro
Supported operating systems - Windows Server 2003
Supported operating systems - Windows Server 2008
Supported operating systems - Windows Server 2012
Supported operating systems - Windows Server 2016
Supported operating systems - Windows Server 2019
Supported operating systems - Windows Server 2022
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements -
System requirements - USB required - Yes
Technical details - Compliance certificates - RoHS
Technologies -
Title - Axagon ADA-17 audio card 2.0 channels USB
Unit Box Height - 0.12
Unit Box Length - 0.02
Unit Box Width - 0.07
Unit Calculated Volume - 0.000168 cubm
Unit Calculated Weight - 0.03 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/ada-17
USB 2.0 Interface Quantity - 1
USB powered Features - Yes
USB required System requirements - Yes
Vendor - AXAGON
Vendor Homepage - https://www.axagon.eu/en/produkty/ada-17
vendpn - ADA-17
Warranty - 24 months
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 8 g
Weight & dimensions - Depth - 24 mm
Weight & dimensions - Height - 12 mm
Weight & dimensions - Package depth - 121 mm
Weight & dimensions - Package height - 20 mm
Weight & dimensions - Package weight - 27 g
Weight & dimensions - Package width - 71 mm
Weight & dimensions - Weight - 8 g
Weight & dimensions - Width - 39 mm
Weight Weight & dimensions - 8 g
Width (mm) - 24 mm
Width Weight & dimensions - 39 mm
Windows operating systems supported Software - Windows 10/Windows 7/Windows 8/Windows 8.1/Windows Vista/Windows XP
Wireless connection Ports & interfaces - No
