ID: 920791
Product code: MG10ACA20TE
In stock 45 units
Warranty: 2 years

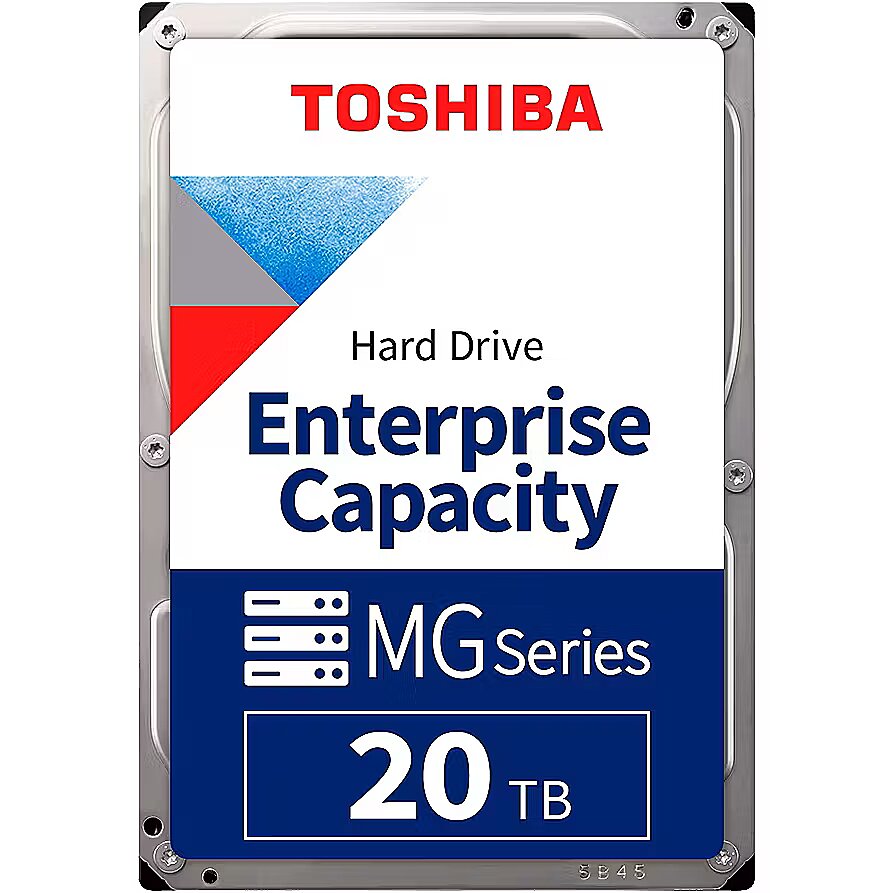

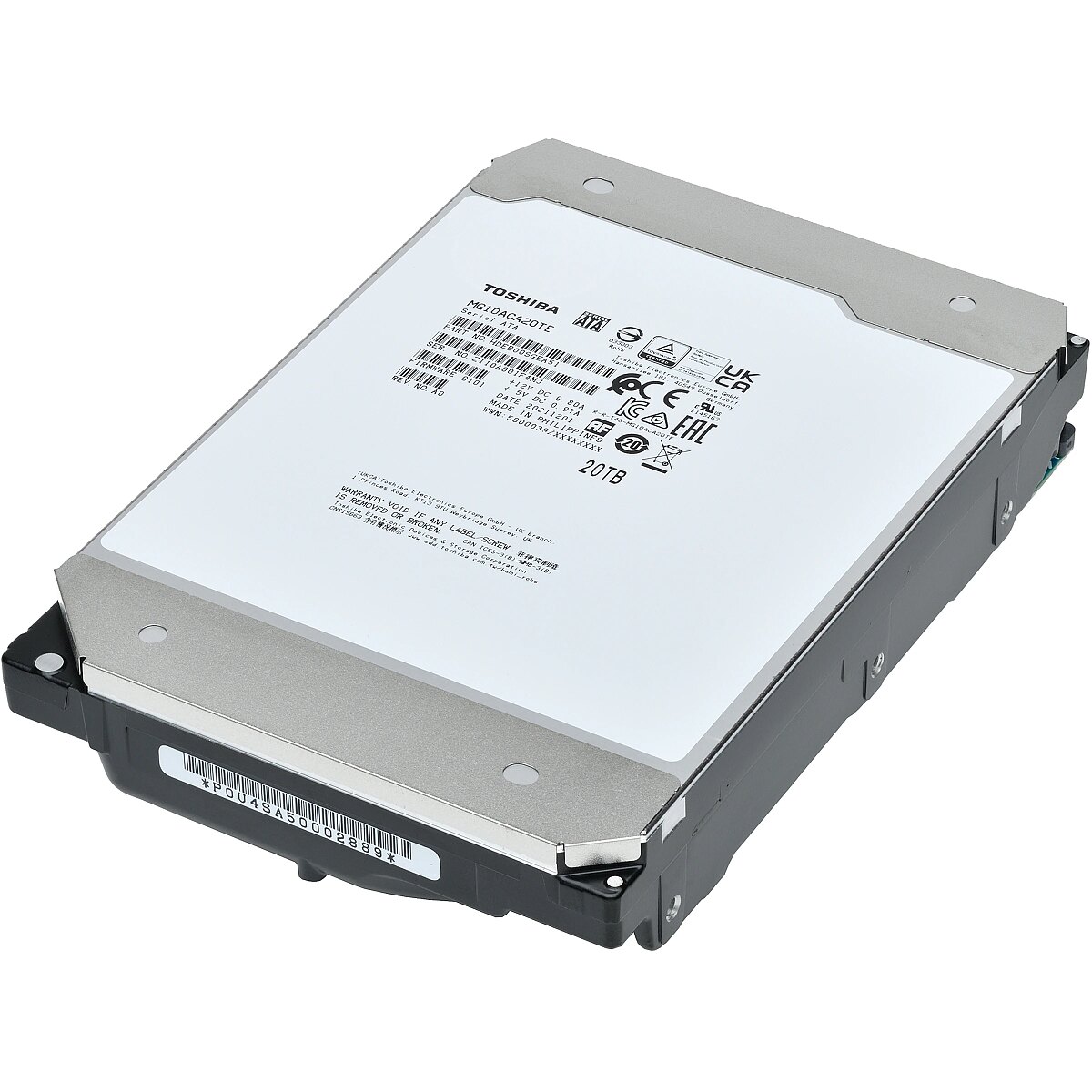

Toshiba 20TB, 7200rpm, 512MB, SATA III, MG10, 512e
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Capacity: 20 TB
- Data Interface: SATA III
- Spindle rotation speed: 7200 rpm
- Data buffer: 512 MB
Description
Dateks offers to buy the Toshiba hard disc with 20 TB data capacity, SATA III connection, 7200 rpm rotation speed and 512 MB cache memory.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity
20 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use
: Server
Data Interface
SATA III
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed
7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer
512 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
ARTIKEL1 - ENTERPRISE CAPACITY HDD 20TB
ARTIKEL2 - 3.5IN SATA 7200RPM 512MB 512E
Buffer memory size - 512 MB
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category Code - HES
Category_1 - Hard Drives and Pendrives
Category_2 - Internal Hard Drives - SATA - 3.5 inch
CnCode - 84717050
Description - The MG10 Series features Toshiba’s fourth-generation, 10-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2TB per disk, achieving a total capacity up to 20TB.The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions. The massive 20TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR™) technology. These advances help the MG10 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with a SATA 6.0Gbit/s interface, the MG10 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.
dimensionalWeight - 164
EAN - 4260557512487
EANCode - 4260557512487
EAN kods - 4260557512487
EAN_code - 4260557512487
External Data Bit Rate - 6 gigabits sekundē
Features - 24/7 operation - Yes
Features - Component for - NAS
Features - HDD capacity - 20 TB
Features - HDD interface transfer rate - 6 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - HDD sustained transfer rate - 281 MiB/s
Features - Hot-swap - No
Features - Interface - Serial ATA
Features - Mean time to failure (MTTF) - 2500000 h
Features - Storage drive buffer size - 512 MB
Features - Type - HDD
Features - Workload rate limit - 550 TB/year
Formas faktors - 3.5"
Form Factor - 3,5"
Gabali iepakojumā - 1
Garantija Produkti atgriežami - Jā
Garantijas apstiprināšanas kritēriji - Sērijas numurs
Garantijas termiņš (mēnesis) - 60 mēnesis(-i)
Gewicht - 0.78
Gross Weight Kg - 1
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
Hard Drive Features - Conventional Magnetic Recording (CMR)
HDD Capacity - 20TB
HDD Family name - Enterprise Capacity 3.5" HDD
HERSTELLER - TOSHIBA
HSTNUMMER - MG10ACA20TE
Iepakojuma augstums (mm) - 102 milimetrs
Iepakojuma garums (mm) - 147 milimetrs
Iepakojuma platums (mm) - 27 milimetrs
Iepakojuma svars Brutto (kg) - 0.73 kilograms
Iepakojuma svars Netto (kg) - 0.72 kilograms
Iepakojuma tips - Kaste
Iepakojums kastē - 20
Ierīces atrašanās vieta - Internal
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/240305150031941492.jpg
Installed Cache Memory Storage Capacity - 512 MiB
Internal Data Bit Rate - 256 MiB/s
Kastes augstums (mm) - 500 milimetrs
Kastes garums (mm) - 228 milimetrs
Kastes platums (mm) - 310 milimetrs
Kastes svars Brutto (kg) - 16.8 kilograms
Manufacturer - Toshiba
Manufacturer - Toshiba Storage
Manufacturer Code - MG10ACA20TE
Manufacturer Name - Toshiba
Manufacturer_code - MG10ACA20TE
Maximum Power Consumption - 4.38 Vats
Maximum Supply Voltage - 12 volts
Mazumtirdzniecības iepakojuma neto svars Plastmasa - 0 kilograms
Mazumtirdzniecības iepakojums Neto svars Kartona kārba - 0 kilograms
Mean Time Between Failures - 2500000 stunda
Minimum Supply Voltage - 5 volts
Model - MG10ACA20TE
MPN - MG10ACA20TE
Name - 20TB Toshiba Enterprise MG Series MG10ACA20TE
Name - Toshiba MG10 20 TB - SATA - 3.5
Nominālais svars - 0.72 kg
Other features - Warranty period - 5 year(s)
Packaging data - Quantity per pack - 1 pc(s)
Power - Power consumption (typical) - 9.3 W
producerCode - MG10ACA20TE
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=221206090450148201&THEME=asbis&LANG=lv
ProductCategory - Cietie diski
ProductCode - MG10ACA20TE
ProductDescription - HDD Server TOSHIBA MG10 20TB MAMR 512e, 3.5'', 512MB, 7200RPM, SATA, SKU: HDEB00SGEA51F
productName - Toshiba MG Series internal hard drive 20 TB 7200 RPM 512 MB 3.5" Serial ATA
Product Net Weight - 0.71 kg
productSize - Normal
ProductType - HDD Server
Rotational Speed - 7200 apgriezieni minūtē
Rotation speed - 7200 rpm
Safety warning - Warnings - Do not drop and avoid strong impacts.
Safety warning - Warnings - Do not expose to high temperatures or moisture.
Safety warning - Warnings - Do not open or disassemble.
SATA Interface - Yes
Short description - HD3.5" SATA3-Raid 20TB Toshiba MG10ACA20TE /7.2k/512e
sizeX - 126
sizeY - 159
sizeZ - 41
Stck_Kart - 20
Stck_Pal - 160
Storage Capacity - 20 terabaits
Storno - Y
Supports Data Channel - SATA III-600
Unit Box Height - 0.145
Unit Box Length - 0.18
Unit Box Width - 0.04
Unit Calculated Volume - 0.001044 cubm
Unit Calculated Weight - 0.71 kg
Units per Shipping Box - 1
Vendor - TOSHIBA
Vendor Homepage - toshiba.semicon-storage.com/eu/storage/product/data-center-enterprise/cloud-scale-capacity/articles/mg10-series.html
Warranty - 60L months
warrantyLength - 24
warrantyType - F
Weight - 0,72
Weight - 0.72
weight - 708
