ID: 1312083
Product code: 0B48722
In stock 5 units
Warranty: 3 years

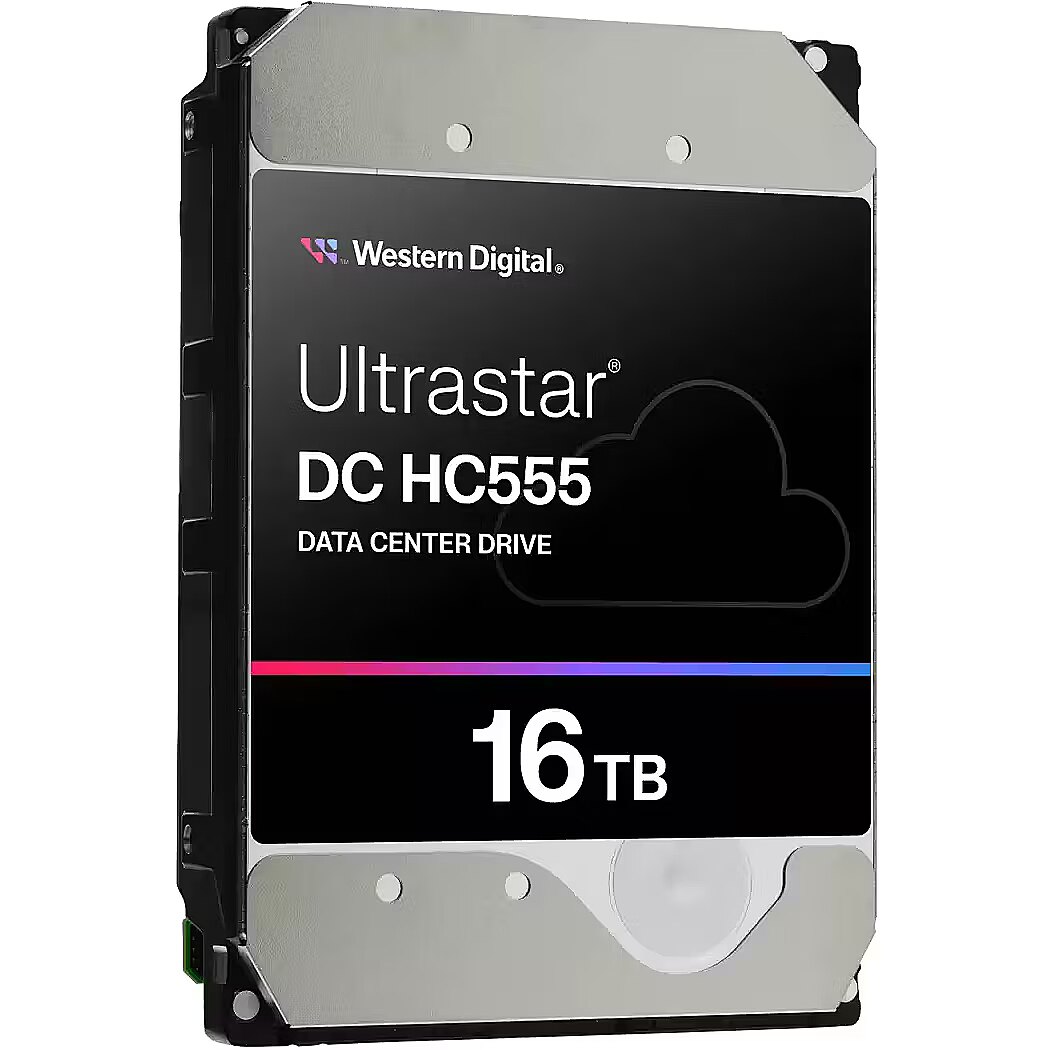

Western Digital 16TB, 7200rpm, 512MB, SATAIII, Ultrastar HC555, SE
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Capacity: 16 TB
- Data Interface: SATA III
- Spindle rotation speed: 7200 rpm
- Data buffer: 512 MB
Description
Dateks offers to buy the Western Digital hard disc with 16 TB data capacity, SATA III connection, 7200 rpm rotation speed and 512 MB cache memory.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity
16 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use
: Server
Data Interface
SATA III
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed
7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer
512 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
24/7 operation Features - Yes
Average latency Features - 4.16 ms
Category Code - HES
Component for Features - Server/workstation
Depth Weight & dimensions - 147 mm
Description - Engineered to handle high-intensity workloads with proven technology Ultrastar Data Center HC555 hard drives are engineered to deliver the large capacity, strong performance and proven reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments. Handle Data Center Workloads with Proven Technology The combination of field-proven hardware with the latest innovative technologies delivers the performance, capacity and reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments. Grow Capacity while Lowering Costs Western Digital’s energy-assisted perpendicular magnetic recording (ePMR) technology enables customers to grow capacities while lowering TCO (total cost of ownership) including both $/TB and OpEx. Rapid qualification and integration Leveraging hardware designs from generations of highly successful products ensures easy qualification, seamless integration and rapid adoption by existing customers. Reliability You Can Trust Built off the same platform that is deployed in thousands of data centers around the world, these drives deliver superior dependability and field-proven reliability for hassle free data storage. Increase Density with Low Power Western Digital’s Triple-Stage Actuator (TSA) increases tracks-per-inch (TPI) while providing greater control over the actuator arm, enabling the highest capacities with low power. Meet Eco Goals with Helium The stable internal environment created by our HelioSeal® technology enables this high-capacity helium drive to deliver one of the lowest power profiles in the industry. Protected Against Vibration & Shock Disturbances caused by increased vibration are anticipated and proactively counteracted by Rotation Vibration (RV) sensors and subtle shock events are automatically detected by multi-axis shock sensors and compensated for with dynamic fly height technology to maintain performance and protect data. Trusted Reliability, Quality and World-Class Support As an industry-leading hard drive manufacturer, Western Digital stands behind their Ultrastar hard drives with the assurance of a projected 2.5M-hour MTBF rating. Capacities up to 20TB in standard 3.5-inch form factor Conventional Magnetic Recording (CMR) technology Superior reliability of field-proven hardware and firmware designs Seamless integration with existing applications & environments
HDD average transfer rate Features - 269 MB/s
HDD capacity Features - 16 TB
HDD Family name - Ultrastar DC HC555
HDD interface transfer rate Features - 6 Gbit/s
HDD size Features - 3.5"
HDD speed Features - 7200 RPM
HDD sustained transfer rate Features - 257 MiB/s
Height Weight & dimensions - 26.1 mm
Hot-swap Features - No
Interface Features - Serial ATA III
Mean time between failures (MTBF) Features - 2500000 h
Model name - Western Digital Ultrastar DC HC555
Non-operating shock Operational conditions - 250 G
Non-operating vibration Operational conditions - 1.04 G
Operating shock Operational conditions - 50 G
Operating temperature (T-T) Operational conditions - 5 - 60 °C
Operating vibration Operational conditions - 0.67 G
Operating voltage Power - 5 / 12 V
Power consumption (idle) Power - 5.3 W
Power consumption (typical) Power - 6.4 W
Product Net Weight - 0.69 kg
Start/stop cycles Features - 600000
Storage drive buffer size Features - 512 MB
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Summary - Western Digital Ultrastar DC HC555. HDD capacity: 16 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5", Interface: Serial ATA III
Type Features - HDD
Unit Box Height - 0.028
Unit Box Length - 0.15
Unit Box Width - 0.105
Unit Calculated Volume - 0.001446 cubm
Unit Calculated Weight - 0.715 kg
Units per Pallet - 0
Units per Shipping Box - 20
Vendor Homepage - https://www.westerndigital.com/en-in/products/internal-drives/data-center-drives/ultrastar-data-center-hc555-hdd?sku=0B47747
Warranty - 60L months
Warranty period Other features - 5 year(s)
Weight Weight & dimensions - 679 g
Width Weight & dimensions - 101.6 mm
Average latency Features - 4.16 ms
Category Code - HES
Component for Features - Server/workstation
Depth Weight & dimensions - 147 mm
Description - Engineered to handle high-intensity workloads with proven technology Ultrastar Data Center HC555 hard drives are engineered to deliver the large capacity, strong performance and proven reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments. Handle Data Center Workloads with Proven Technology The combination of field-proven hardware with the latest innovative technologies delivers the performance, capacity and reliability needed to handle high-intensity workloads in 24×7 multi-user data center environments. Grow Capacity while Lowering Costs Western Digital’s energy-assisted perpendicular magnetic recording (ePMR) technology enables customers to grow capacities while lowering TCO (total cost of ownership) including both $/TB and OpEx. Rapid qualification and integration Leveraging hardware designs from generations of highly successful products ensures easy qualification, seamless integration and rapid adoption by existing customers. Reliability You Can Trust Built off the same platform that is deployed in thousands of data centers around the world, these drives deliver superior dependability and field-proven reliability for hassle free data storage. Increase Density with Low Power Western Digital’s Triple-Stage Actuator (TSA) increases tracks-per-inch (TPI) while providing greater control over the actuator arm, enabling the highest capacities with low power. Meet Eco Goals with Helium The stable internal environment created by our HelioSeal® technology enables this high-capacity helium drive to deliver one of the lowest power profiles in the industry. Protected Against Vibration & Shock Disturbances caused by increased vibration are anticipated and proactively counteracted by Rotation Vibration (RV) sensors and subtle shock events are automatically detected by multi-axis shock sensors and compensated for with dynamic fly height technology to maintain performance and protect data. Trusted Reliability, Quality and World-Class Support As an industry-leading hard drive manufacturer, Western Digital stands behind their Ultrastar hard drives with the assurance of a projected 2.5M-hour MTBF rating. Capacities up to 20TB in standard 3.5-inch form factor Conventional Magnetic Recording (CMR) technology Superior reliability of field-proven hardware and firmware designs Seamless integration with existing applications & environments
HDD average transfer rate Features - 269 MB/s
HDD capacity Features - 16 TB
HDD Family name - Ultrastar DC HC555
HDD interface transfer rate Features - 6 Gbit/s
HDD size Features - 3.5"
HDD speed Features - 7200 RPM
HDD sustained transfer rate Features - 257 MiB/s
Height Weight & dimensions - 26.1 mm
Hot-swap Features - No
Interface Features - Serial ATA III
Mean time between failures (MTBF) Features - 2500000 h
Model name - Western Digital Ultrastar DC HC555
Non-operating shock Operational conditions - 250 G
Non-operating vibration Operational conditions - 1.04 G
Operating shock Operational conditions - 50 G
Operating temperature (T-T) Operational conditions - 5 - 60 °C
Operating vibration Operational conditions - 0.67 G
Operating voltage Power - 5 / 12 V
Power consumption (idle) Power - 5.3 W
Power consumption (typical) Power - 6.4 W
Product Net Weight - 0.69 kg
Start/stop cycles Features - 600000
Storage drive buffer size Features - 512 MB
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Summary - Western Digital Ultrastar DC HC555. HDD capacity: 16 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5", Interface: Serial ATA III
Type Features - HDD
Unit Box Height - 0.028
Unit Box Length - 0.15
Unit Box Width - 0.105
Unit Calculated Volume - 0.001446 cubm
Unit Calculated Weight - 0.715 kg
Units per Pallet - 0
Units per Shipping Box - 20
Vendor Homepage - https://www.westerndigital.com/en-in/products/internal-drives/data-center-drives/ultrastar-data-center-hc555-hdd?sku=0B47747
Warranty - 60L months
Warranty period Other features - 5 year(s)
Weight Weight & dimensions - 679 g
Width Weight & dimensions - 101.6 mm
