ID: 1166287
Product code: 0B47741
In stock 7 units
Warranty: 3 years

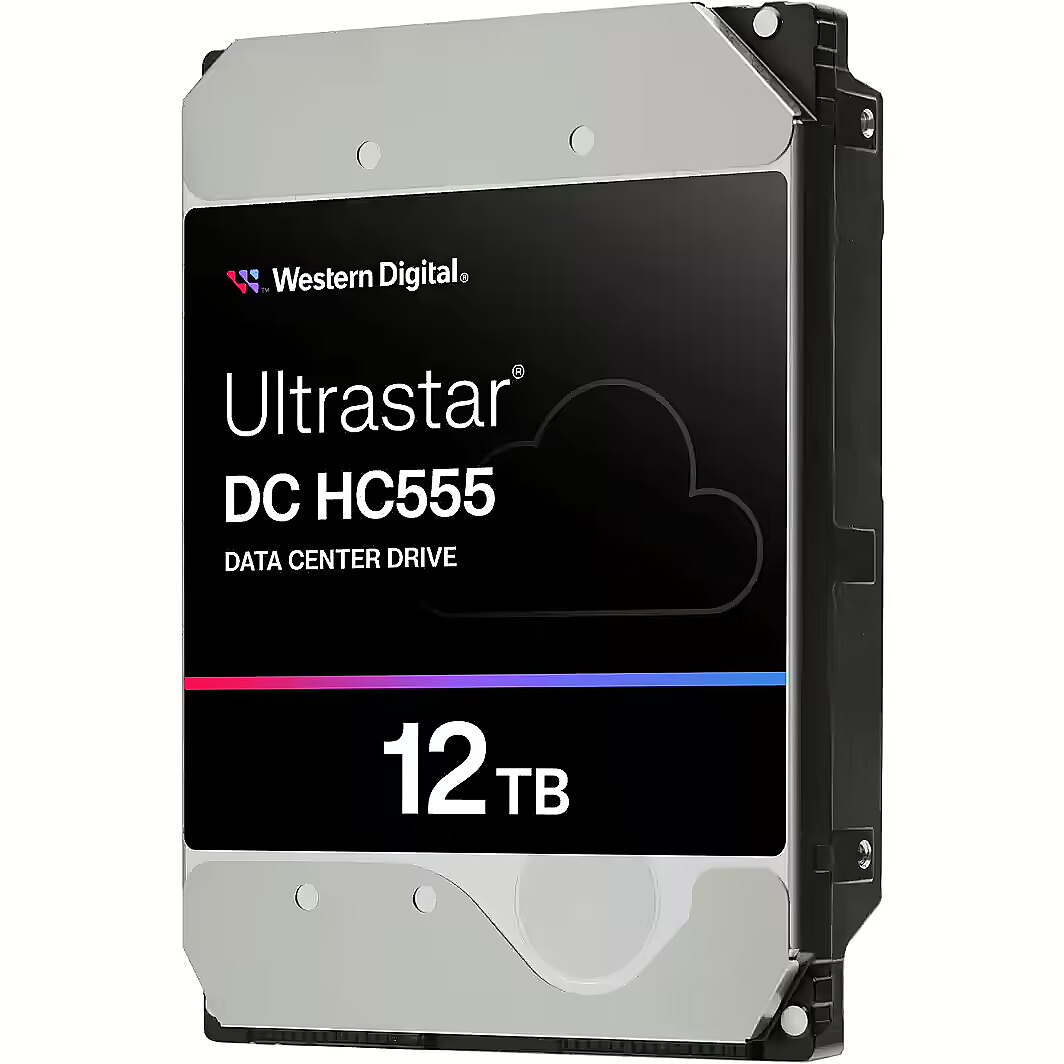

Western Digital 12TB, 7200rpm, 512MB, SAS, Ultrastar HC555, SE, EAMR
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
Itella parcel machineWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Capacity: 12 TB
- Data Interface: SAS
- Spindle rotation speed: 7200 rpm
- Data buffer: 512 MB
Description
Dateks offers to buy the Western Digital hard disc with 12 TB data capacity, SATA III connection, 7200 rpm rotation speed and 512 MB cache memory.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity
12 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use
: Archive
Data Interface
SAS
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed
7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer
512 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
ARTIKEL1 - 3.5IN 26.1 12TB 512 7200RPM SAS
ARTIKEL2 - ULTRA 512E SE P3 DC HC555
Breite - 0
Buffer memory size - 512 MB
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category Code - HDC
Description - Ultrastar HC555 Data Center HDD Storage - 12TB.
dimensionalWeight - 76
EAN - 829686009325
EAN - 0829686009325
EANCode - 0829686009325
Features - 24/7 operation - Yes
Features - Average latency - 4.16 ms
Features - Component for - Server/workstation
Features - HDD average transfer rate - 269 MB/s
Features - HDD capacity - 12 TB
Features - HDD interface transfer rate - 12 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - HDD sustained transfer rate - 257 MiB/s
Features - Hot-swap - No
Features - Interface - SAS3
Features - Mean time between failures (MTBF) - 2500000 h
Features - Start/stop cycles - 600000
Features - Storage drive buffer size - 512 MB
Features - Type - HDD
Full Description Line - Ultrastar DC HC555|WUH722012CL5204 0B47741|12TB|SAS|Buffer 512 MB|7200 rpm
Gewicht - 0
Gross Weight Kg - 0,33
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
HDD Capacity - 12TB
HDD Family name - Ultrastar DC HC555
HERSTELLER - WESTERN DIGITAL
Hoehe - 0
HSTNUMMER - 0B47741
Laenge - 0
Manufacturer - Western Digital
Manufacturer Code - 0B47741
Manufacturer Name - Western Digital
Model name - WUH722012CL5204 0B47741
MPN - 0B47741
Name - WESTERN DIGITAL Ultrastar DC HC555 8,89cm 3,5Zoll 26.1 12TB 512 7200RPM SAS ULTRA 512E SE P3 DC
Operational conditions - Non-operating shock - 250 G
Operational conditions - Non-operating vibration - 1.04 G
Operational conditions - Operating shock - 50 G
Operational conditions - Operating temperature (T-T) - 5 - 60 °C
Operational conditions - Operating vibration - 0.67 G
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Warranty period - 5 year(s)
Power - Operating voltage - 5 / 12 V
Power - Power consumption (idle) - 5.4 W
Power - Power consumption (typical) - 8.8 W
producerCode - 0B47741
productName - Western Digital Ultrastar DC HC555 internal hard drive 12 TB 7200 RPM 512 MB 3.5" SAS3
Product Net Weight - 0.679 kg
productSize - Normal
Rotation speed - 7200 rpm
Safety warning - Warnings - Avoid exposure to extreme temperatures.
Safety warning - Warnings - Do not dispose of in normal waste, special disposal.
Safety warning - Warnings - Store away from water and moisture.
SAS Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 49 cm
Shipping Box Height Shipping/Package Box Dimensions - 21 cm
Shipping Box Weight Shipping/Package Box Dimensions - 13.65 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
Short description - WD HD3.5" SAS3 12TB WUH722012CL5204/512e (Di)
sizeX - 145
sizeY - 105
sizeZ - 25
Stck_Kart - 20
Stck_Pal - 0
Storno - Y
Unit Box Height - 0.025
Unit Box Length - 0.15
Unit Box Width - 0.1
Unit Calculated Volume - 0.001415 cubm
Unit Calculated Weight - 0.682 kg
Units per Shipping Box - 20
Vendor Homepage - www.westerndigital.com/products/internal-drives/data-center-drives/ultrastar-data-center-hc555-hdd?sku=0B47741
Warranty - 60L months
warrantyLength - 60
warrantyType - G
Weight - 0.637
weight - 640
Weight & dimensions - Depth - 147 mm
Weight & dimensions - Height - 26.1 mm
Weight & dimensions - Weight - 679 g
Weight & dimensions - Width - 101.6 mm
